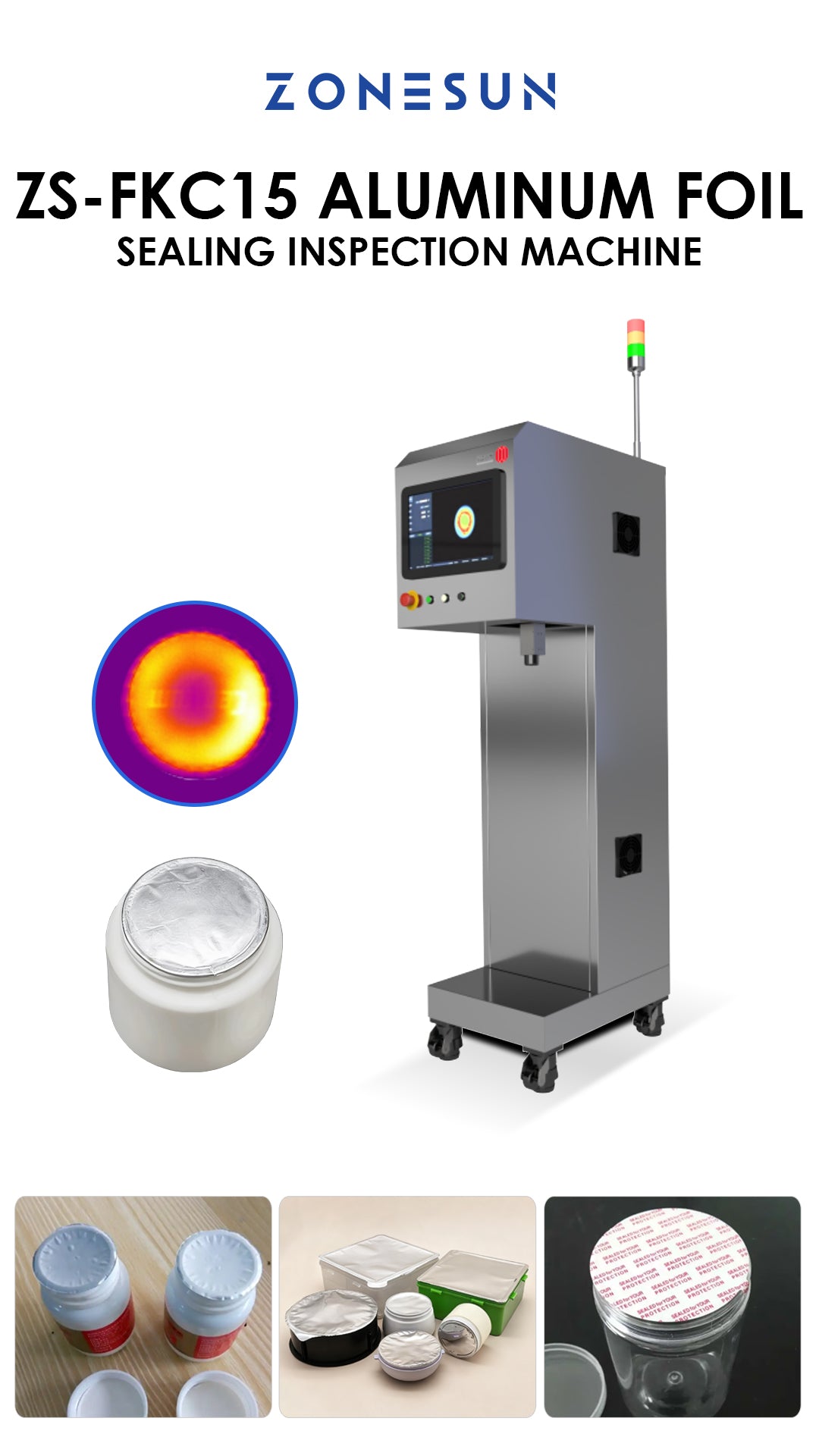

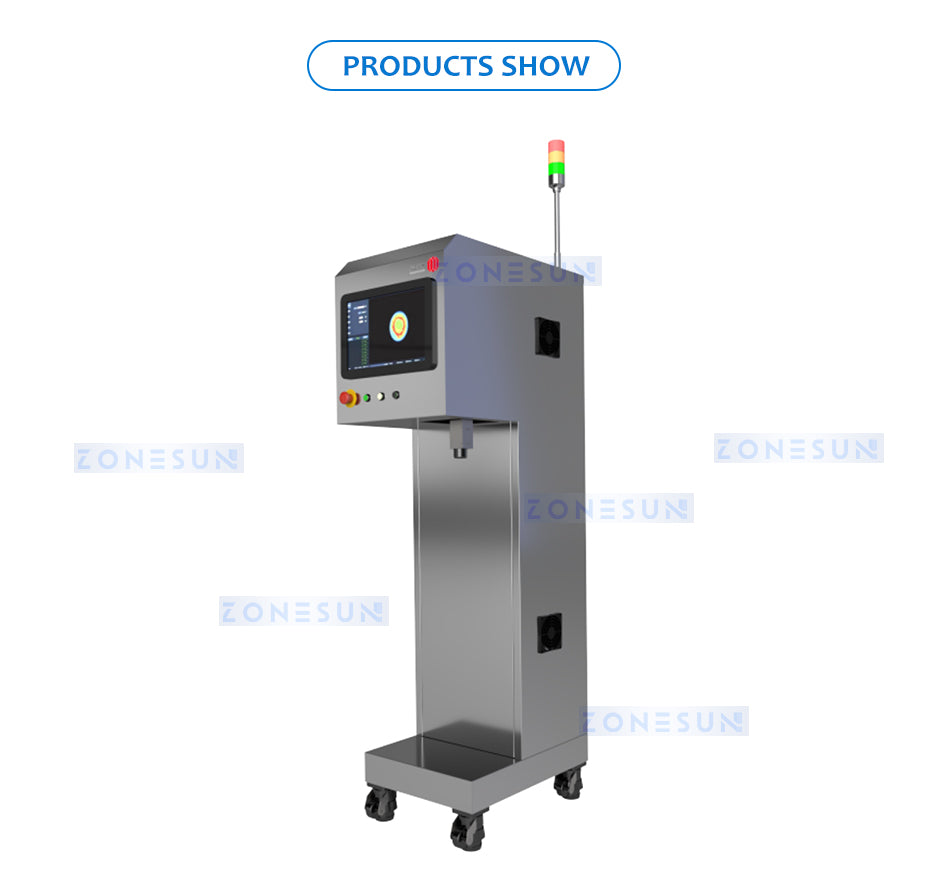

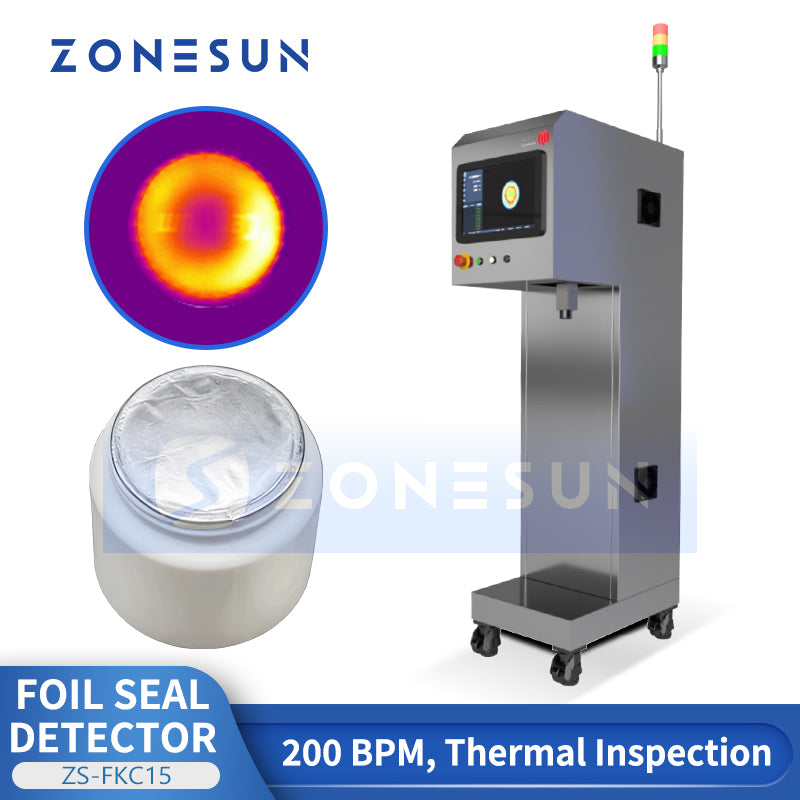

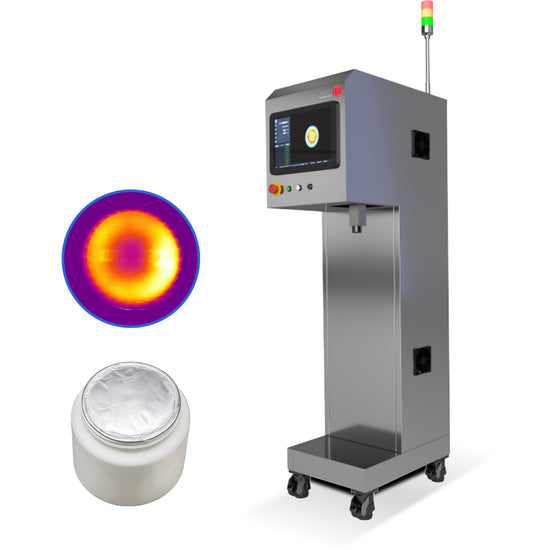

ZONESUN ZS-FKC15 Aluminum Foil Seal Inspection Machine for Bottles

Description

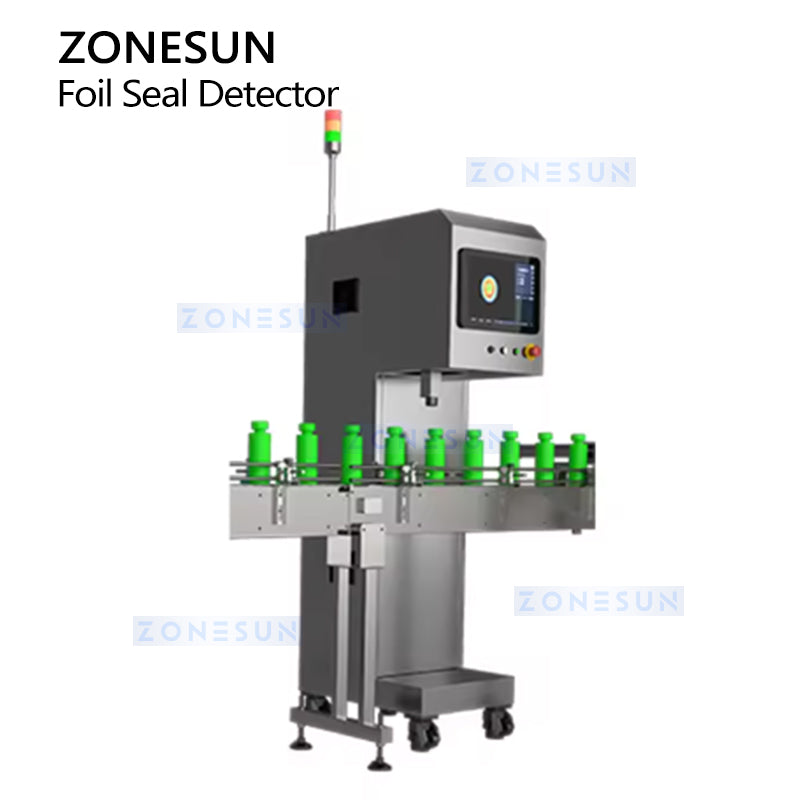

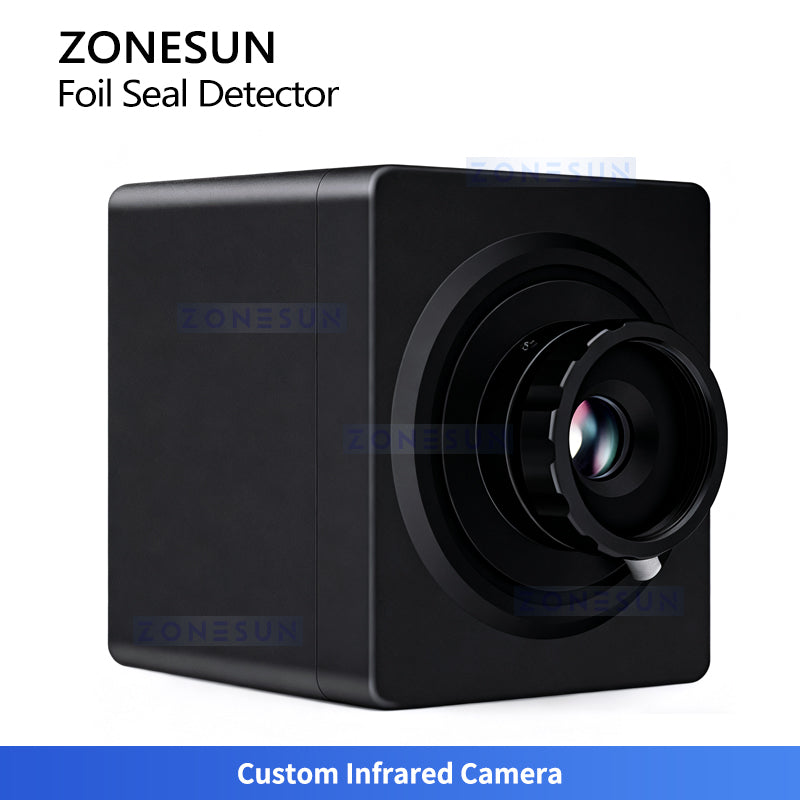

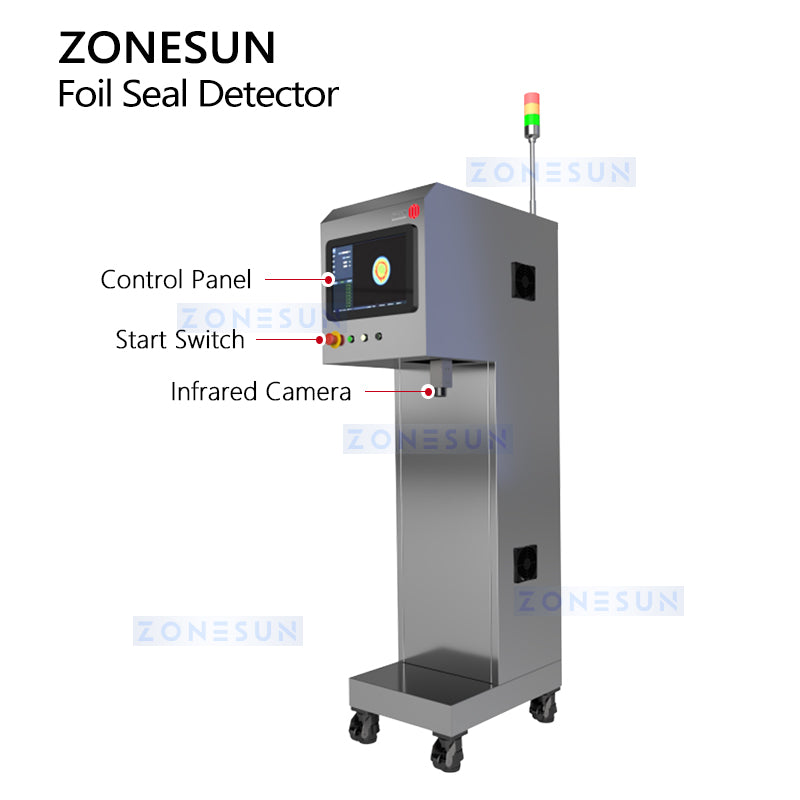

The ZONESUN ZS-FKC15 Aluminum Foil Seal Inspection Machine integrates seamlessly into automated production lines to ensure seal integrity. After heat or electromagnetic induction sealing, each bottle is transported to the infrared inspection station, where a custom thermal imaging camera captures the heat distribution of the sealed cap. The image is processed by a high-speed system to analyze temperature patterns and determine seal quality. Defective products are automatically rejected, while qualified ones proceed to the next stage—ensuring efficient, accurate, and hygienic quality control for high-speed packaging environments.

Parameter

• Model Name: ZS-FKC15
• Max Inspection Speed: 200 bottles/min (actual speed depends on product size)
• Pass Rate: ≥99.9%
• Applicable Specifications:
  • Bottle Diameter: 30–300 mm
  • Bottle Height: 50–500 mm
  • Cap Diameter: 15–200 mm
• Compatible Line Speed: ≤20 m/min

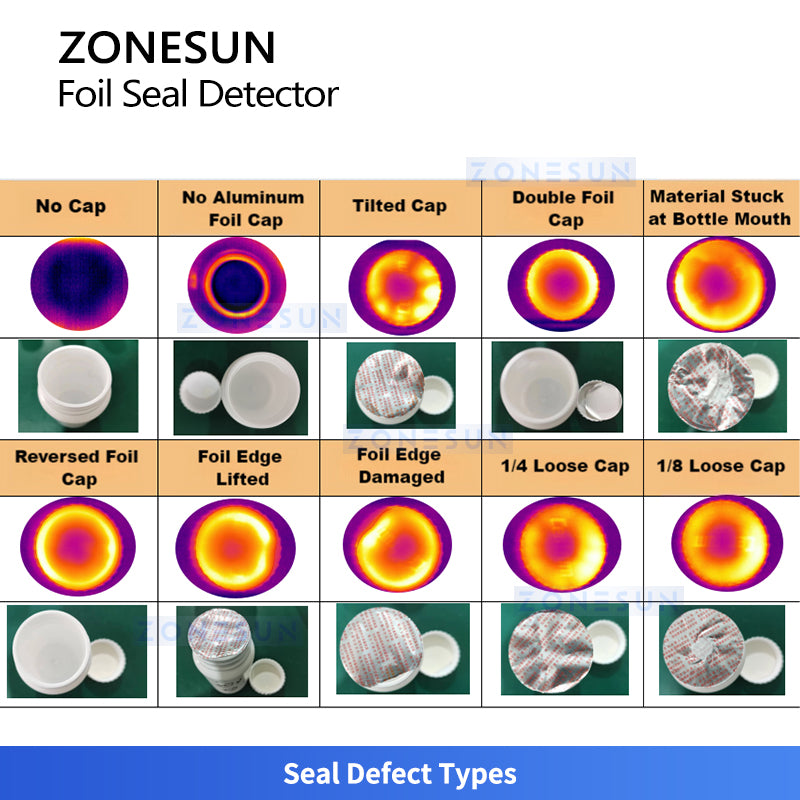

• Detection Capabilities (14+ types):
  • Missing aluminum foil / Missing film / Crooked caps
  • Reversed foil / Double foil / Incomplete sealing
  • Low sealing power / Over-sealing / Bottle mouth contamination
  • Loose caps / Others
• Air Consumption: 30 L/min
• Power Supply: AC 220V ±10%, 50/60 Hz
• Power Consumption: ≤1.5 kW
• Working Temperature: -10 °C to 60 °C
• Image Accuracy: ±0.05 mm
• Machine Dimensions: 490 × 750 × 1800 mm
• Machine Weight: 150 kg
