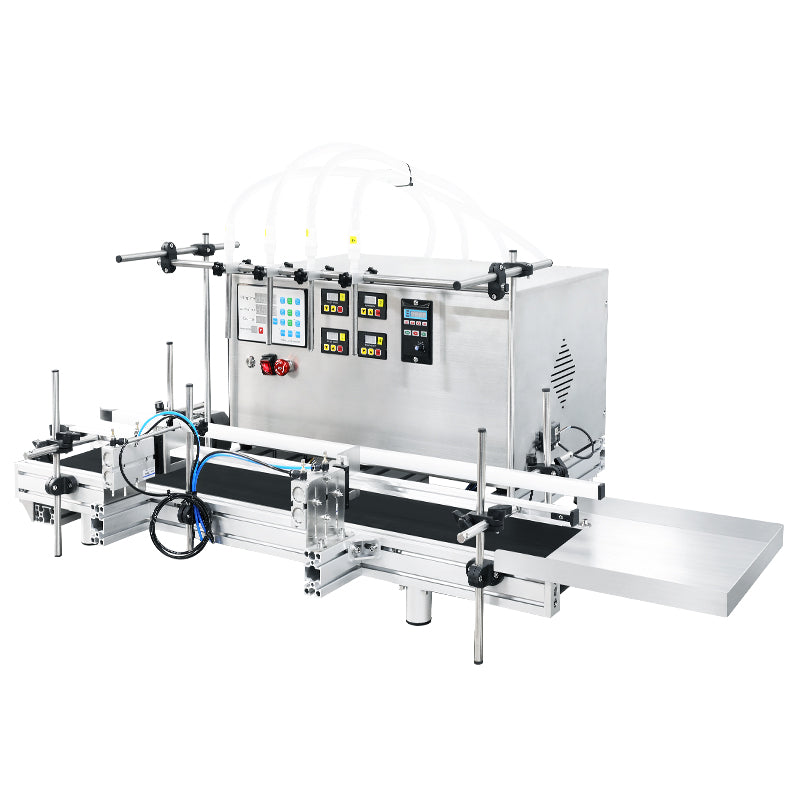

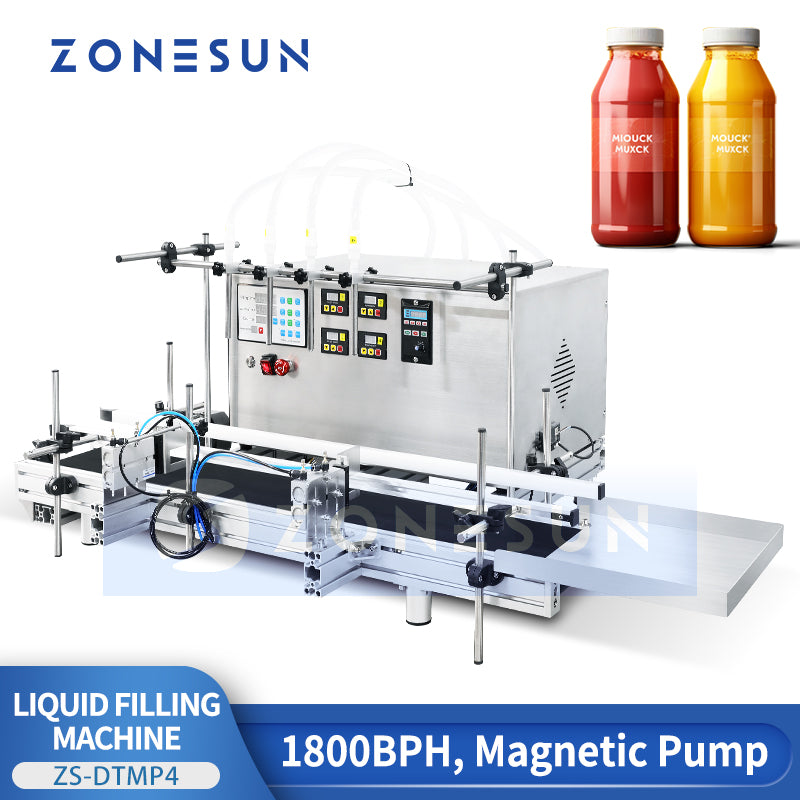

ZONESUN ZS-DTMP4 Automatic Magnetic Pump Liquid Filler
ZONESUN ZS-DTMP4 Automatic Magnetic Pump Liquid Filler
Couldn't load pickup availability
Application
The ZONESUN ZS-DTMP4 automatic magnetic pump liquid filling machine uses four filling nozzles for low-viscosity liquids such as juice, milk, soy sauce, essential oil and low-viscosity lotion. It can be used in a small production line and connected with a desktop capping machine and labeling machine to improve working efficiency.
PARAMETER
- Model: ZS-DTMP4
- Power Supply: 110/220 V, 50-60 Hz
- Working Speed: 20-30 bottles/min (based on 50-1000 ml filling volume)
- Flow Rate: 6L/min, 9L/min
- Air Pressure: 0.3-0.4 MPa
- Filling Accuracy: ≤ ±1% (for water)
- Filling Nozzle Diameter: 6 / 8 mm
- Delay Range: 0.01-999.9 s
- Count Range: 1-99,999 times
- Filling Volume: 3-1000 ml (220 V); 3-500 ml (110 V)
- Air Compressor Connector Size: OD 8 mm
- Suitable Bottle Height: <220 mm (customizable, max. 300 mm)
- Package Dimensions (L × W × H): About 1160 × 810 × 590 mm
- Gross Weight: About 111 kg

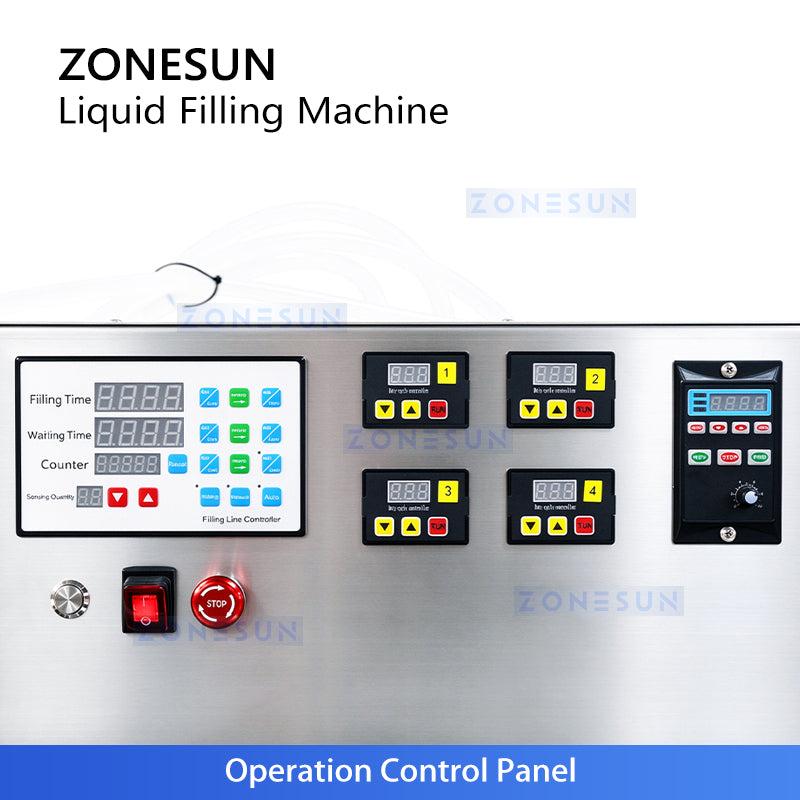

Operation Control Panel
Allows easy setting of filling time, waiting time, conveyor speed and other operating parameters for convenient machine control.

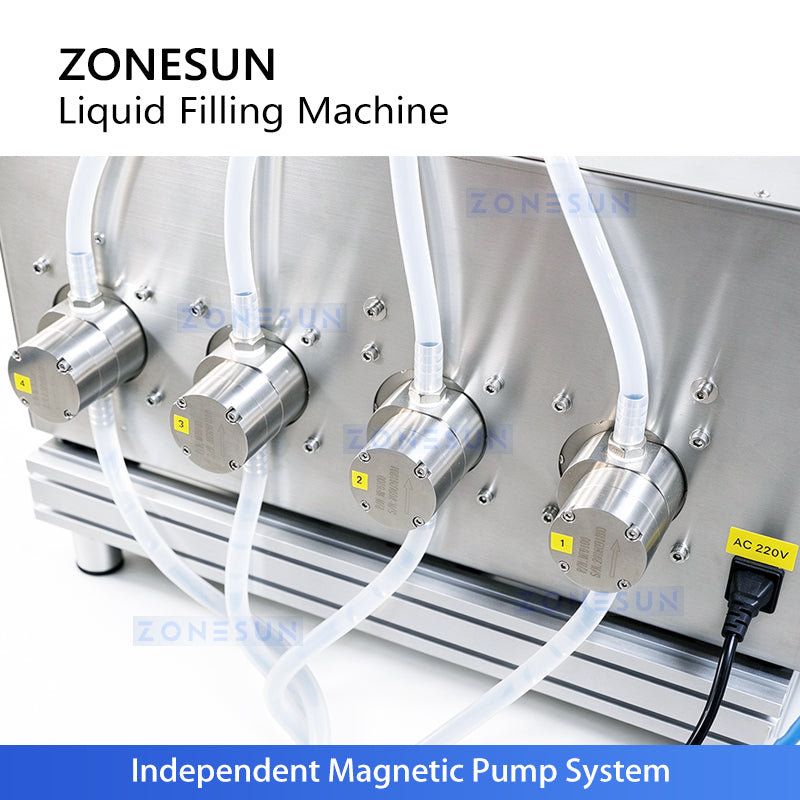

Independent Magnetic Pump System
Four corrosion-resistant magnetic pumps provide stable liquid filling, with each pump independently adjustable for different filling requirements.

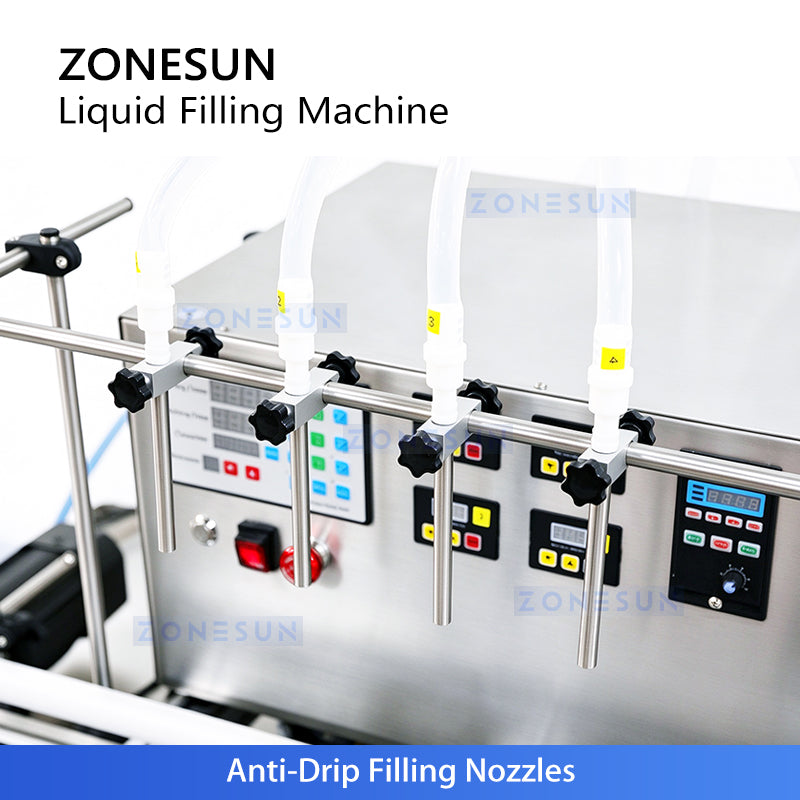

Anti-Drip Filling Nozzles
With anti-dripping function,can control each nozzle separately, We customize multiple nozzles filling machine.please send us message if you need it.

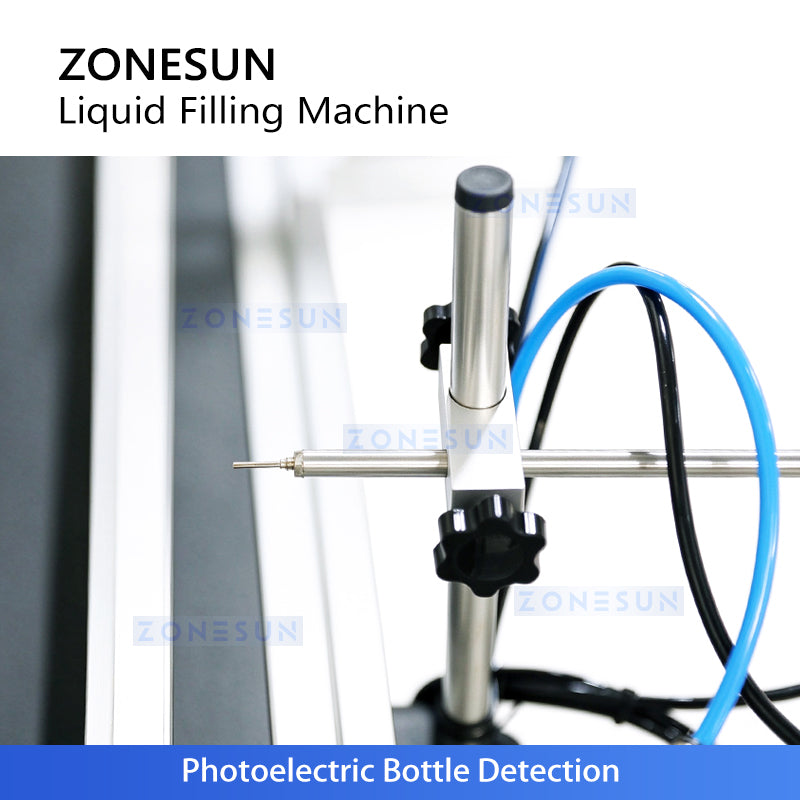

Photoelectric Bottle Detection
Detects incoming bottles and triggers filling at the correct position, helping prevent missed or incorrect filling.

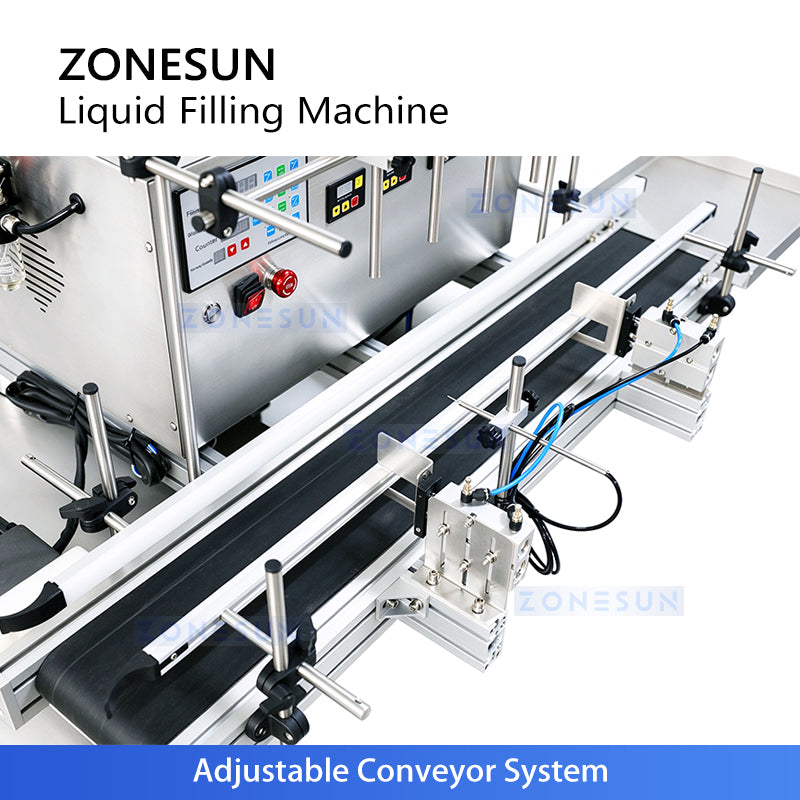

Adjustable Conveyor System
Continuously conveys bottles through the filling station, with adjustable speed for stable and efficient production.
Air Pressure Regulator & Gauge
Allows convenient adjustment and real-time monitoring of air pressure. An external air compressor is required and sold separately. If you need it, please contact us.
