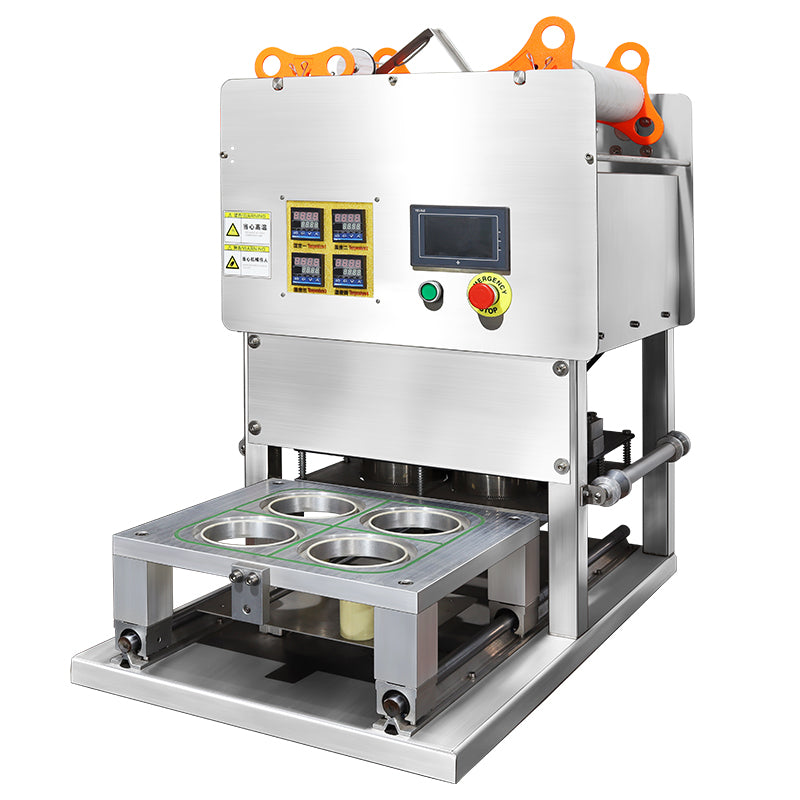

Zonesun ZS-FK4C Semi Automatic Cup Sealer for Yogurt Fruit Juice Jelly Cup

DESCRIPTION

Introducing our semi-automatic sealing machine, equipped with a PCL intelligent control system that allows for regulating sealing time and temperature. With a strong and efficient sealing process, our machine can customize molds to adapt to various sizes, and shapes of trays for sealing cups, boxes, etc. It is widely used in soy milk, milk tea, fast food restaurants, snack shops, etc.

ZS‑FK3530

• Mold Size: 350 × 300 × 20 mm
• Cup Diameter：Under 95mm
• Mold：4-cavity
• Speed: 300–1000 pcs/h
• Voltage: 220 V / 50 Hz
• Power: 0.5–2 kW
• Temp Range: 0–300 °C
• Air Pressure: 0.5–0.7 MPa
• Air Consumption: 0.4 m³/h
• Size: 840 × 520 × 780 mm
• Weight: 80 kg

ZS‑FK4035

• Mold Size: 400 × 350 × 23 mm
• Mold：4-cavity
• Cup Diameter：Under 115mm
• Speed: 400–1200 pcs/h
• Voltage: 220 V / 50 Hz
• Power: 1–2.5 kW
• Temp Range: 0–300 °C
• Air Pressure: 0.5–0.7 MPa
• Air Consumption: 0.4 m³/h
• Size: 950 × 570 × 790 mm
• Weight: 90 kg

ZS‑FK5040

• Mold Size: 500 × 400 × 25 mm
• Mold：4-cavity
• Cup Diameter：Under 140mm
• Speed: 600–1200 pcs/h
• Voltage: 220 V / 50 Hz
• Power: 1–3 kW
• Temp Range: 0–300 °C
• Air Pressure: 0.5–0.7 MPa
• Air Consumption: 0.4 m³/h
• Size: 1050 × 670 × 840 mm
• Weight: 110 kg
