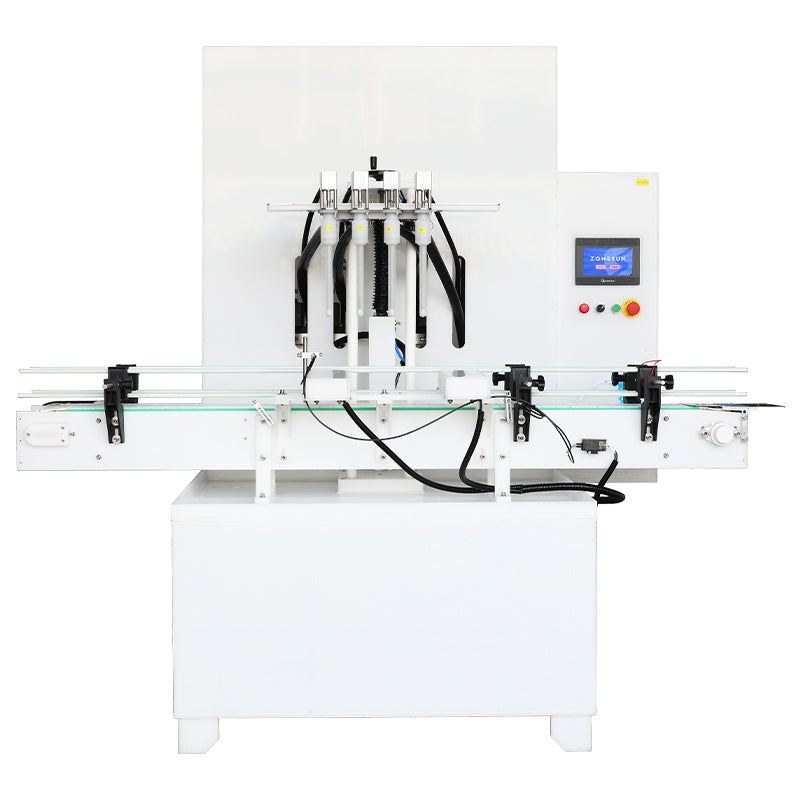

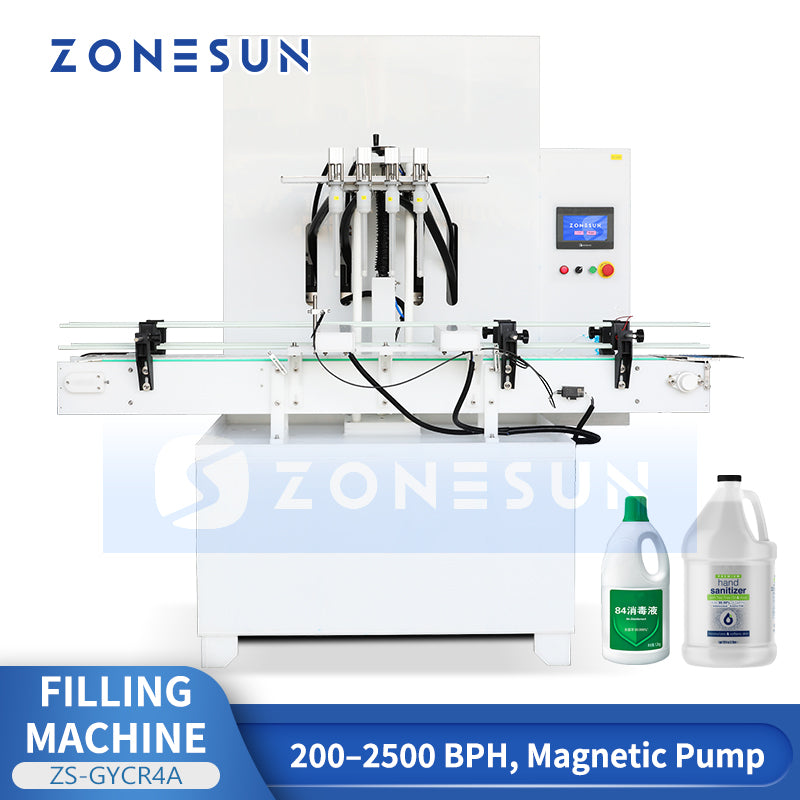

ZONESUN ZS-GYCR4A Automatic Corrosive Liquid 4-Head Filling Machine

Description

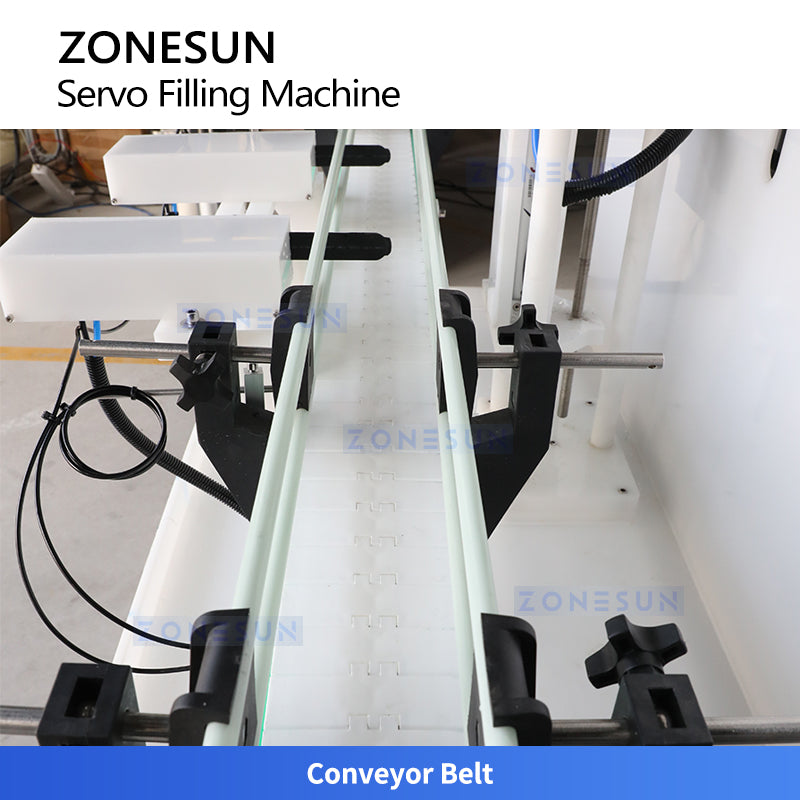

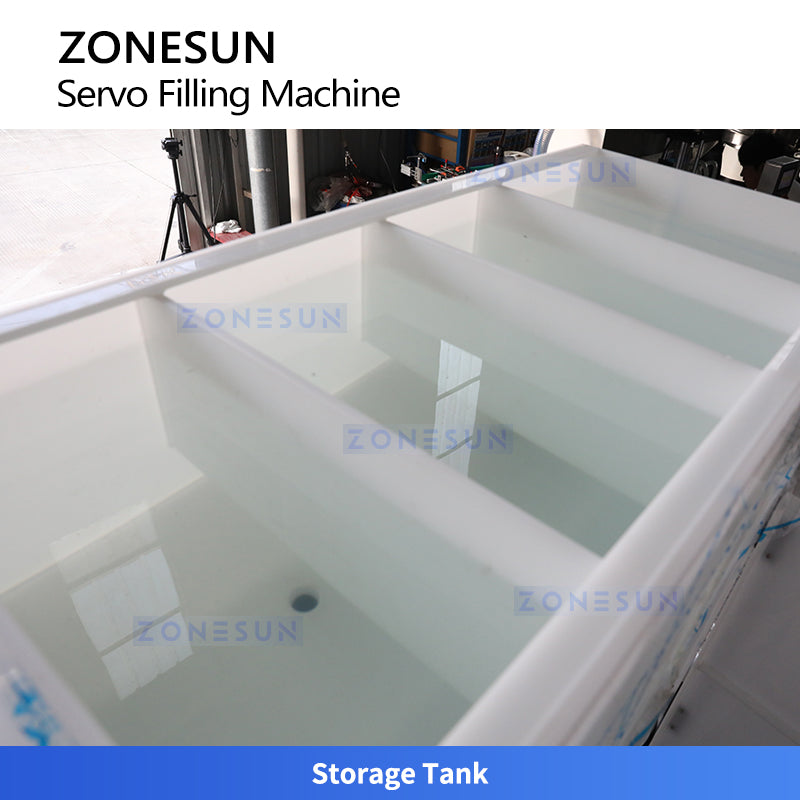

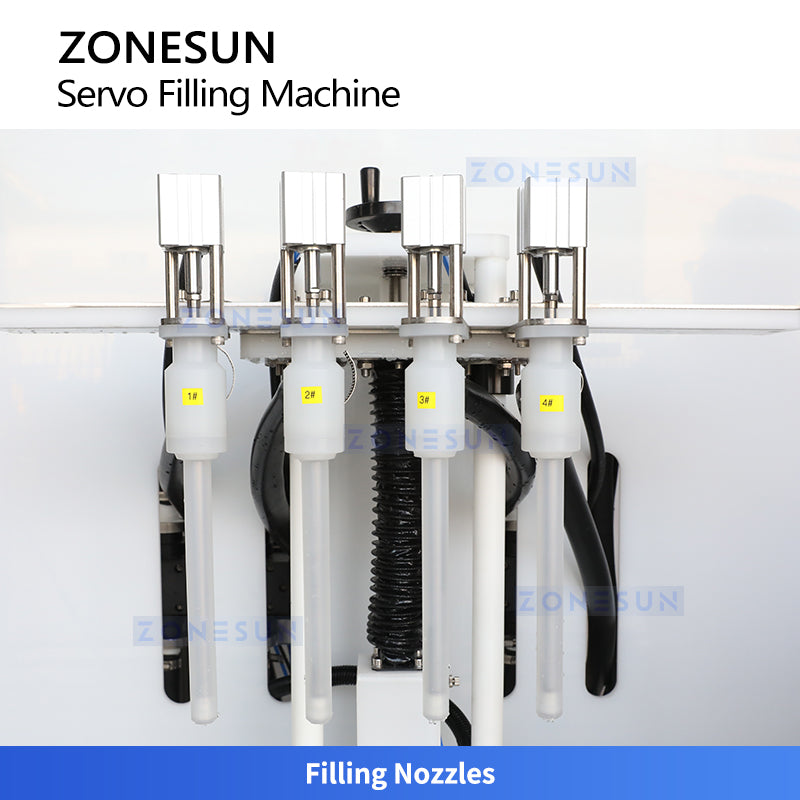

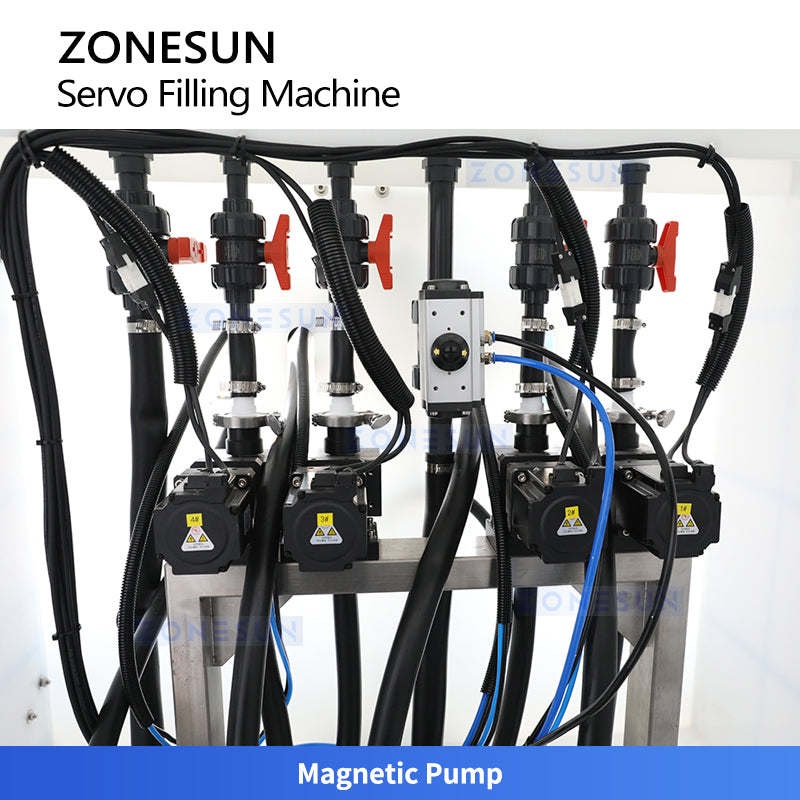

The ZONESUN ZS-GYCR4A is an automatic 4-head servo-driven filling machine designed for corrosive liquids. Running at 200–2500 bottles per hour, it uses a corrosion-resistant PVDF magnetic pump for precise, stable, and leak-free filling. With adjustable filling heads, customizable anti-drip nozzles, a storage tank, a PP machine housing, and a corrosion-resistant conveyor system, it performs reliably in harsh chemical environments. Ideal for small to medium-scale production lines, it is suitable for filling acids, alkalis, bleach, disinfectants, detergents, fertilizer solutions, automotive chemicals, and other corrosive liquids.

Parameter

• Machine Model: ZS-GYCR4A
• Voltage / Power: 110V / 220V, 50–60 Hz, 5000 W
• Air Pressure Requirement: 0.4–0.7 MPa
• Suitable Bottle Diameter: φ60–φ120 mm
• Suitable Bottle Height: 60–300 mm
• Hopper Capacity: About 120 L
• Filling Range: 300 ml – 20 L
• Filling Speed: 200–2500 BPH (based on filling volume)
• Machine Dimensions (L×W×H): About 2000 × 1300 × 1900 mm
• Machine Weight: About 280 kg
