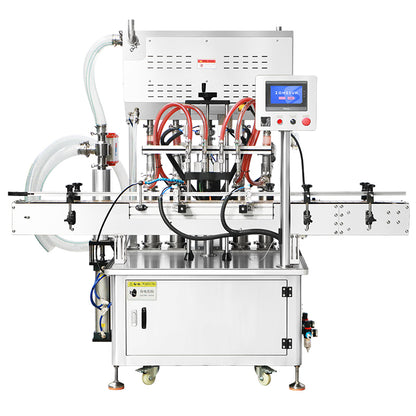

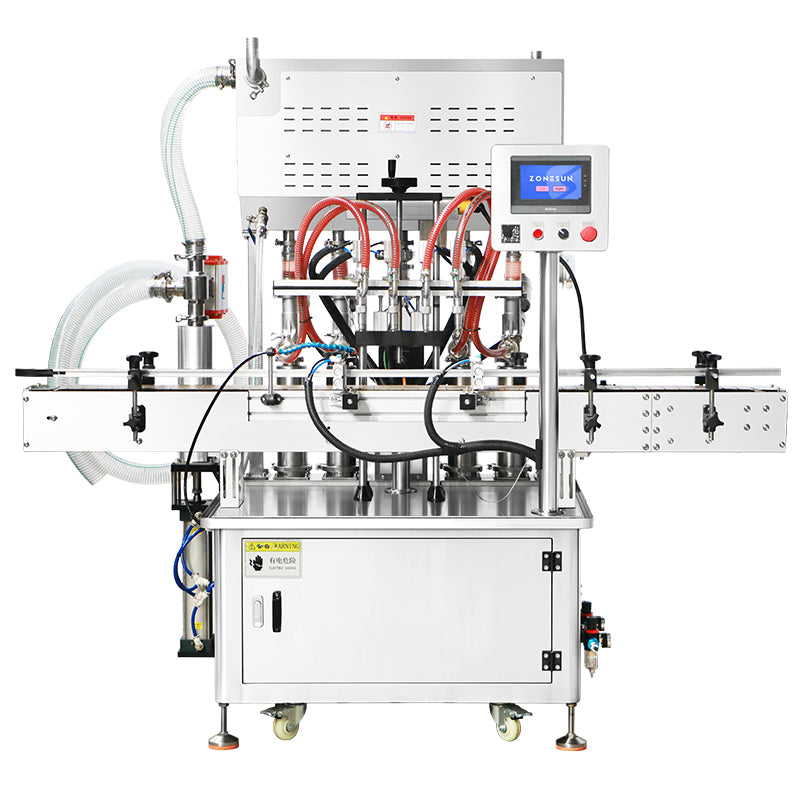

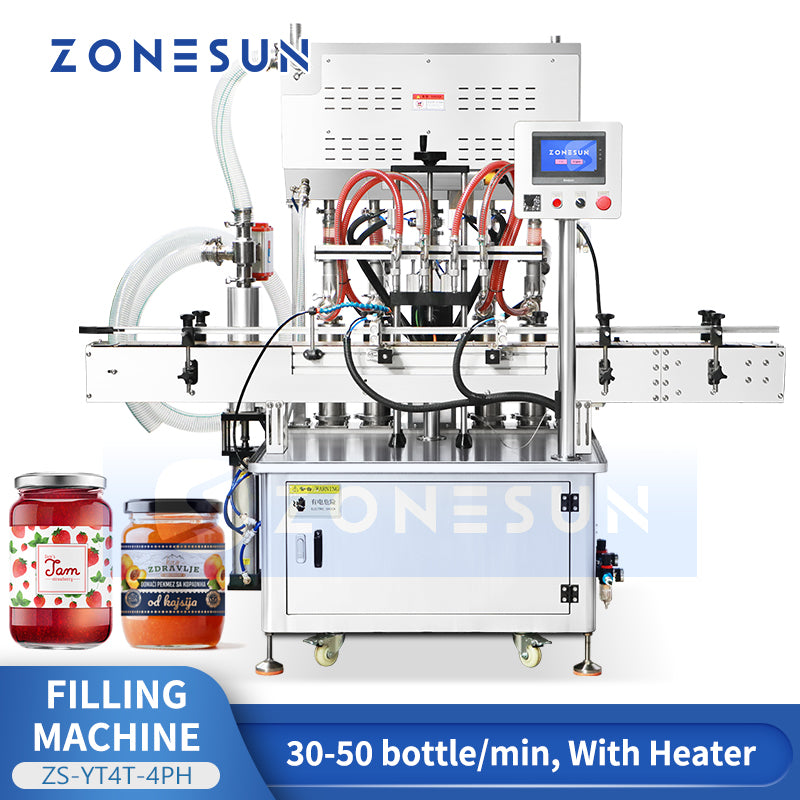

ZONESUN ZS-YT4T-4PH Heated Piston Pump Sauce Honey Filling Machine

Description

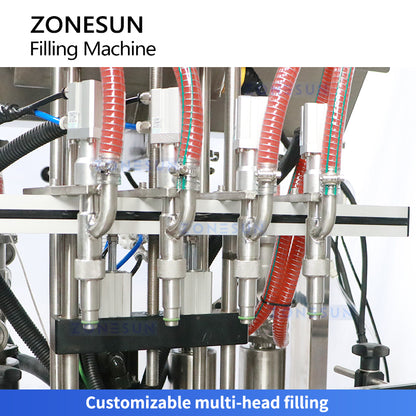

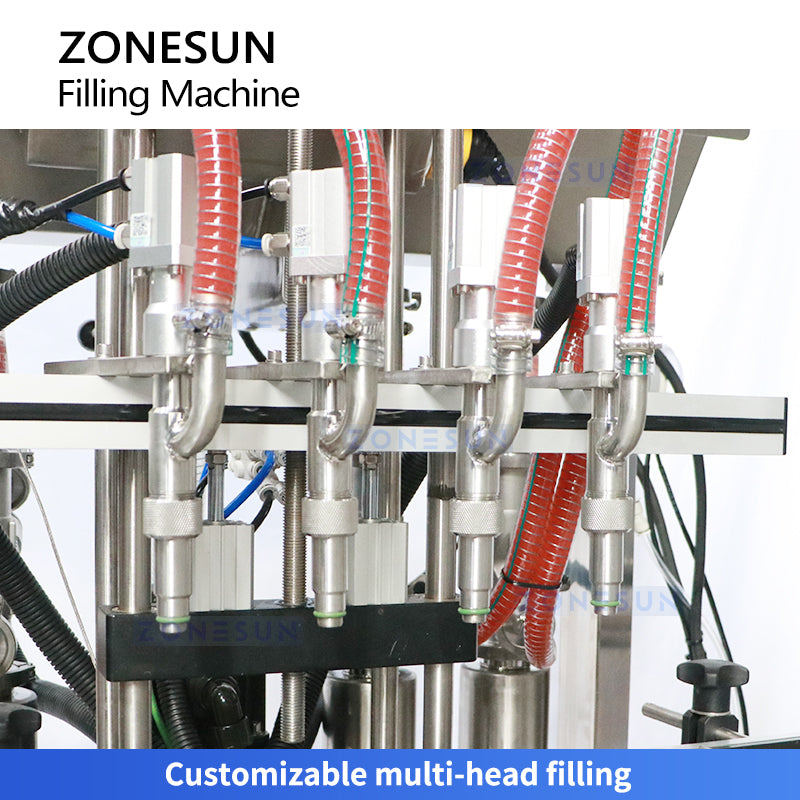

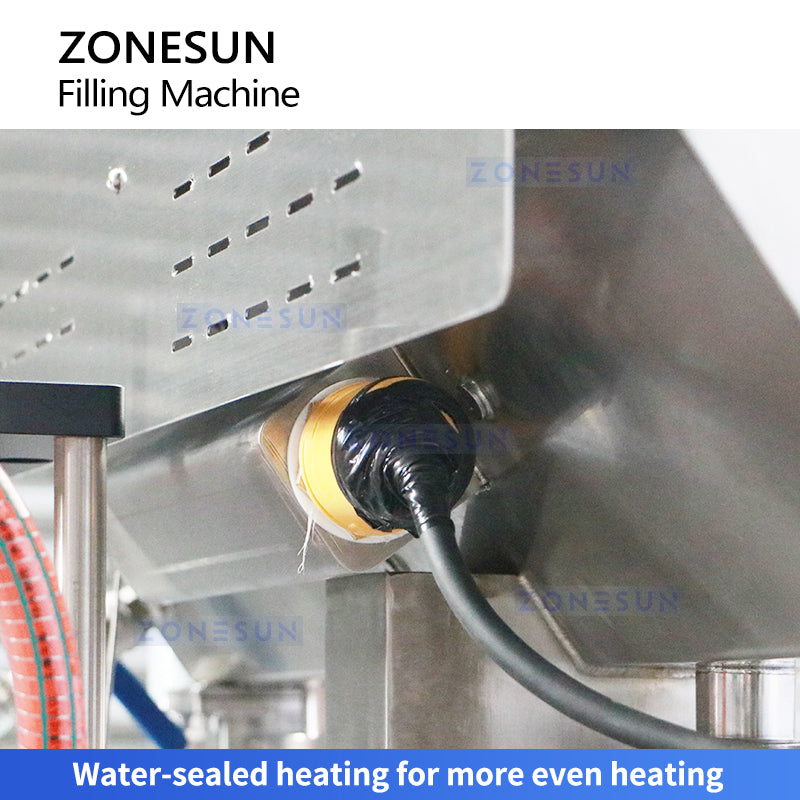

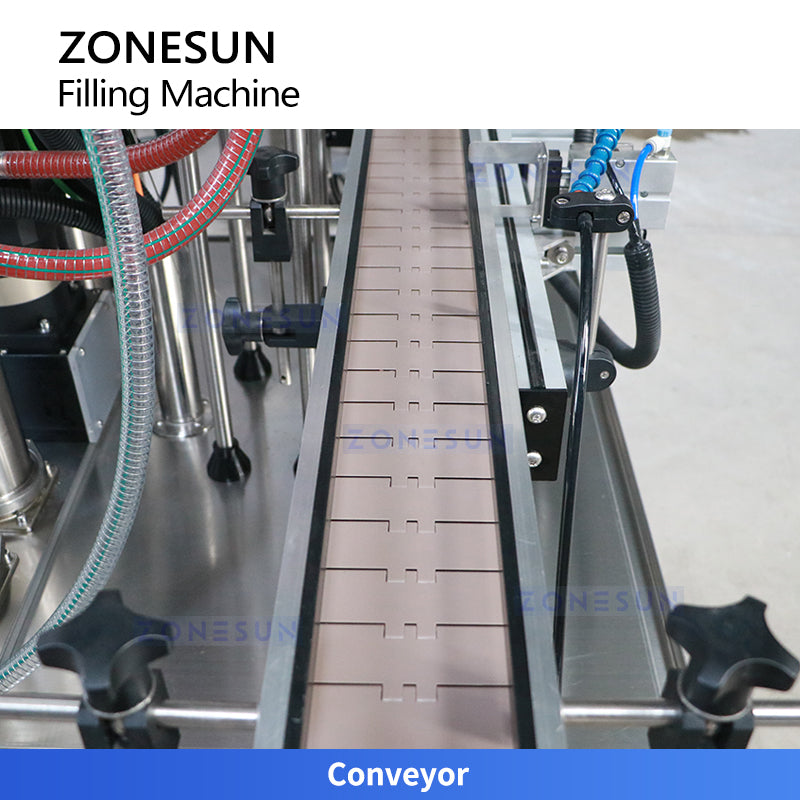

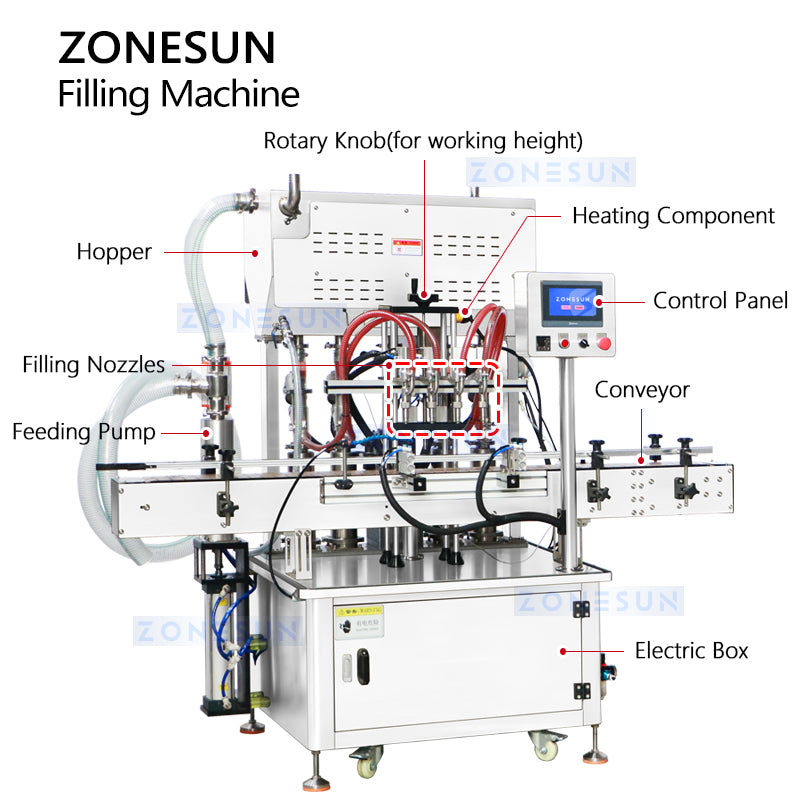

The ZONESUN ZS-YT4T-4PH is a piston pump filling machine equipped with a heating system to improve the flow properties of viscous materials. Designed for sauces, honey, tomato paste, peanut butter, and other thick liquids, it ensures smooth, accurate, and efficient filling. With customizable multi-head configurations, adjustable nozzles, and a durable conveyor system, this machine supports stable production at 30–50 bottles per minute. The water-sealed heating structure provides uniform heating, while optional mixing enhances material pretreatment for better filling performance.

Parameter

• Model: ZS‑YT4T‑4PH
• Voltage: 110 / 220 V, 50–60 Hz, 1 kW
• Filling Range: 10–180 ml / 30–500 ml / 100–1000 ml
• Working Speed: about 30–50 bottles/min
• Filling Pump: Piston pump
• Air Pressure: 0.6–0.8 MPa
• Suitable Temperature Range: 30–90 °C
• Filling Accuracy: ±1%
• Filling Nozzles: 4 (customizable)
• Machine Size: about 2000 × 800 × 1800 mm
• Machine Weight: about 200 kg

Package Information

• Packaging Size: about 2070 × 960 × 2010 mm (100–1000 ml)
• Packaging Weight: about 392 kg (100–1000 ml)
