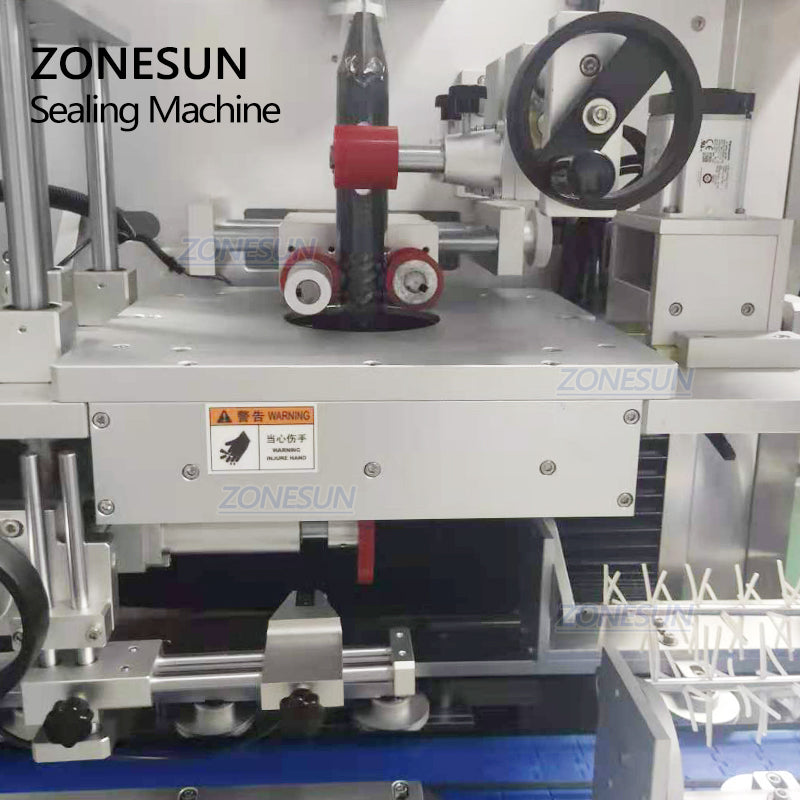

ZONESUN ZS-STB150 Automatic Shrink Sleeve Labeling Machine for Bottles
ZONESUN ZS-STB150 Automatic Shrink Sleeve Labeling Machine for Bottles
Couldn't load pickup availability
Description
The ZONESUN ZS-STB150 fully automatic sleeve labeling machine is suitable for various kinds of bottles, like round bottles, square bottles, oval bottles, etc. This machine can automatically feed and cut film, and it can sleeve labels precisely, greatly saving labor and improving work efficiency. The machine can be widely used for beverage bottles, cosmetic bottles, shampoo bottles, etc.
Parameter
|
Machine model |
ZS-STB150 |
|
Bottle diameter range |
φ28mm-φ125mm (can be customized) |
|
Bottle height |
30mm ~ 280mm (can be customized) |
|
Label length |
30mm~250mm (can be customized) |
|
Label thickness |
0.03 mm~0.13 mm (PVC, PET, OPS, materials are all available) |
|
Sleeve standard error |
+1.5mm |
|
Paper tube inner diameter |
5"~10" (can be adjusted) |
|
Machine speed |
150 bottles/min (based on label length) |
|
Voltage |
220V |
|
Power |
1.5KW |
|
Conveyor belt |
standard 2M |
|
Host size |
About 2100*850*2000 mm(L*W*H) |
|
Weight |
About 400Kg |
Notice
The machine can work with heat shrinking machine, realizing automated production. If you need, please contact us. Thank you!
AUTOMATIC FILM PULLING
The electric eye enables the machine to pull the film automatically for convenient operation.
TOUCHSCREEN CONTROL PANEL
The touchscreen clearly displays operating parameters and supports precise adjustments to help achieve a consistent labeling result.
BOTTLE SEPARATING COMPONENT
The bottle-separating component spaces bottles before labeling so they enter the machine in sequence, helping improve the labeling result.
POSITION ADJUSTMENT
Rotary knobs adjust the positions of different mechanisms to support accurate sleeve-label placement and consistent production quality.
AUTOMATIC LABEL FEEDING
The label-feeding mechanism starts automatically when the system detects a bottle. It is suitable for bottles 30–280 mm high, and the machine can be customized as required.
SOFT BRUSH
A soft brush helps improve sleeve placement before the film-shrinking process.
