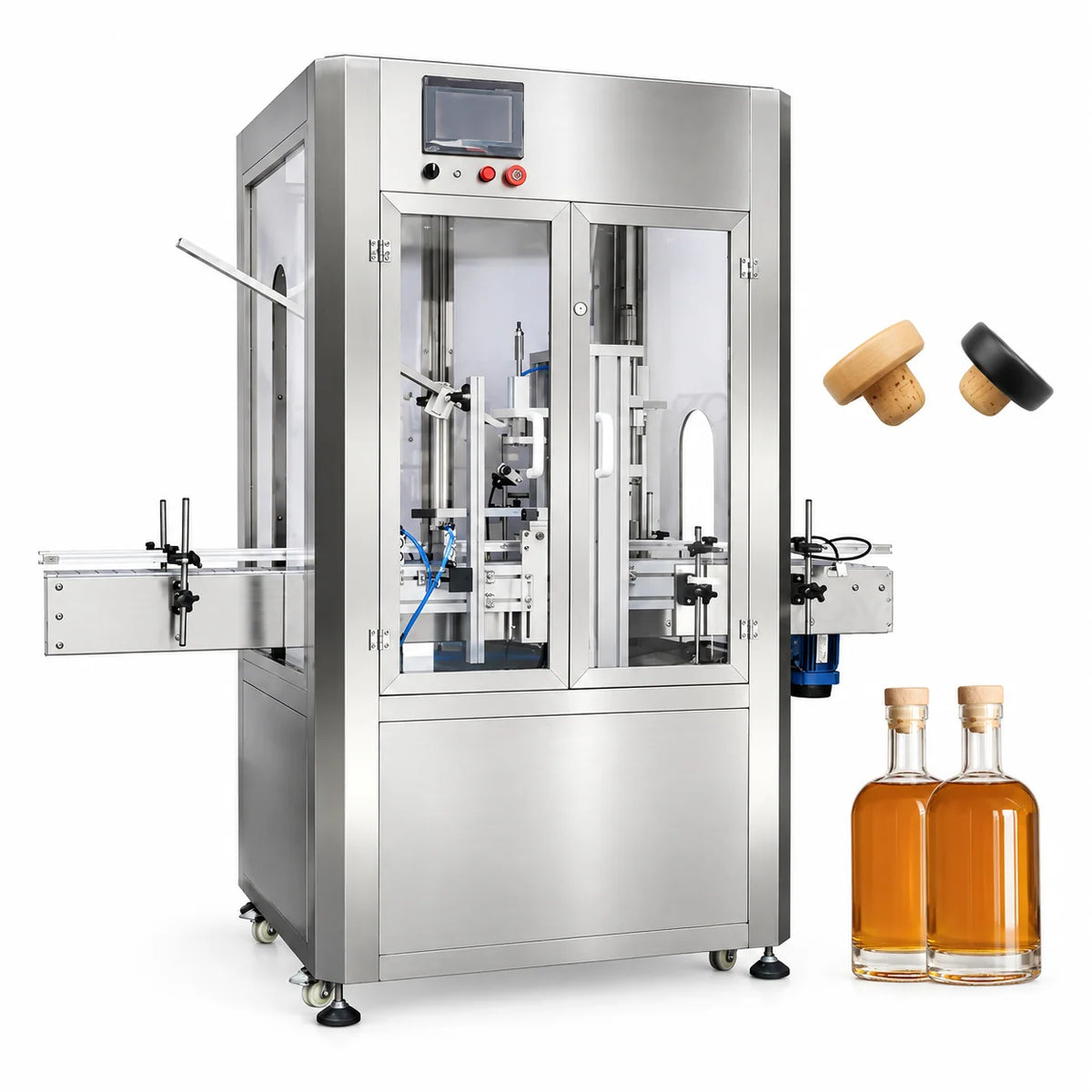

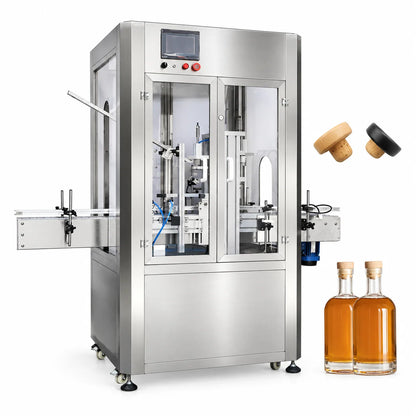

ZONESUN ZS-XG16D Custom Full Automatic Capping Machine With Dust Cover

Description

The ZONESUN ZS-XG16D is a fully automatic capping machine designed to feed and press corks with precision and speed. Equipped with a protective dust cover, it ensures hygienic operation and consistent product quality. Compatible with a wide range of bottle and cap sizes, this machine is ideal for pharmaceutical, cosmetic, and beverage industries. It can be customized to meet specific production needs and easily integrated with filling and labeling machines to create a fully automated packaging line. A smart solution to reduce labor costs and boost efficiency.

Product Specifications: ZS-XG16D Automatic Capping Machine
Parameter Specification
Machine Model ZS-XG16D
Bottle Height 30–300mm
Cap Diameter 18–70mm
Bottle Diameter 20–160mm
Working Voltage AC220V / 110V, 50–60Hz
Working Pressure 0.4–0.6MPa
Working Speed 20–60 bottles/min (depends on bottle & cap size/shape)
Machine Dimensions Approx. 1000 × 900 × 1860mm
Packing Size Approx. 1970 × 1020 × 2030mm
Net/Gross Weight Approx. 243kg / 350kg

Product Applications

The machine is suitable for cork-capped bottles used in beverage, cosmetic, pharmaceutical, and other compatible applications.

Adjustable Cork Pressing

The pressing mechanism can be adjusted for supported bottles and corks of different sizes.

Cork Pressing Head

The pressing head applies downward pressure to insert compatible corks securely into bottle openings.

Height Adjustment

The capping assembly can be adjusted to accommodate supported bottles with different heights.

Operation Controls

The control system allows the machine’s capping operation and working settings to be managed conveniently.

DUST COVER

The dust cover helps protect the production area from contamination during operation.
