ZONESUN ZS-VMB200RH Vacuum Emulsifying Mixer Tank for Cream Lotion Ointment Sauce Homogenizing Heating Cooling

Description

This mixing equipment is designed with a sealed tank and features an integrated system that includes wall-scraping mixing, high-efficiency homogenizing and emulsifying, jacketed heating and cooling, vacuum functionality, temperature control, internal lighting, and a sturdy support frame. By operating under vacuum conditions, it effectively eliminates air incorporation during mixing, resulting in superior homogenization and emulsification performance.

Parameter

• Machine Model: ZS-VMB200RHVoltage: 220V 50-60Hz
• Tank Capacity: 200L (customizable upon request)
• Wall Thickness: Inner layer: 5 mm
• Middle layer: 4 mm
• Outer layer: 3 mm
• Tank Material: Inner layer made of SUS316L; middle and outer layers made of SUS304
• Heating Power: 18 kW
• Mixing Motor Power: 2.2 kW
• Mixing Speed: Frequency-controlled, adjustable from 0 to 62 RPM
• Homogenizing Emulsifier Power: 5.5 kW
• Homogenizing Speed: Frequency-controlled, adjustable from 0 to 2,930 RPM

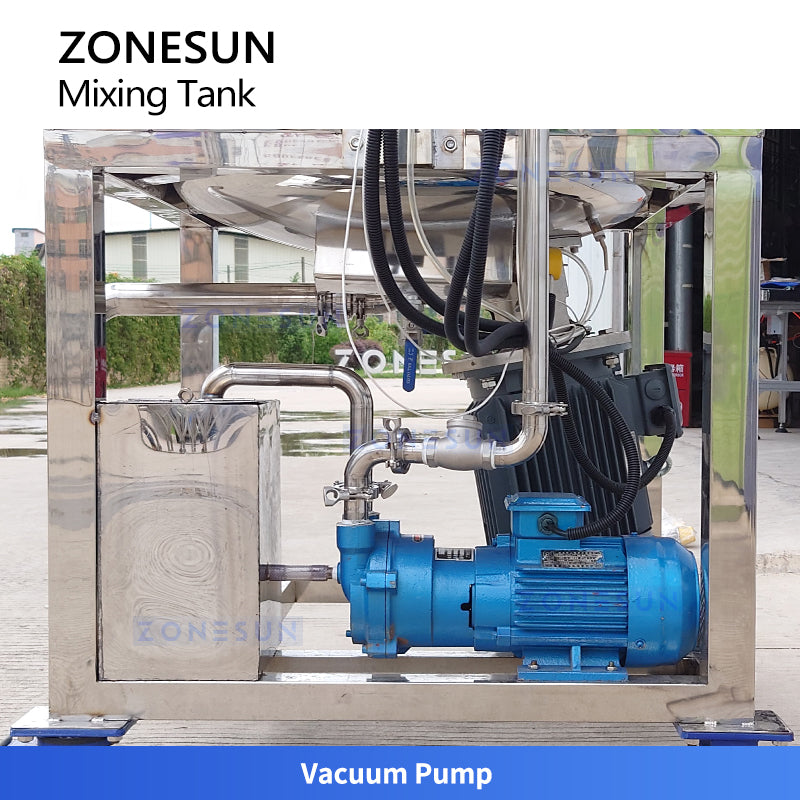

• Vacuum Pump Power: 1.45 kW
• Working Pressure: Vacuum pressure range: -0.09 to -0.02 MPa;
• Positive pressure: ≤ 0.3 MPa
• Dimension: About 1512*1026*2619 mm
• Package Size: About 1350*1060*2230 mm
• Package Weight: About 591 kg

Cosmetic creams and lotions (e.g., moisturizers, sunscreens, BB creams)
Pharmaceutical ointments (e.g., medicinal gels, dermatological creams)
Food-grade pastes and sauces (e.g., mayonnaise, cheese paste, peanut butter) — requires food-grade stainless steel contact parts
Chemical emulsions and dispersions (e.g., detergents, paint additives, lubricants)
Personal care products (e.g., shampoo, conditioner, toothpaste)
👉If you need a customized vacuum mixing solution for your formulation, feel free to contact us for tailored configurations and capacity options!
