ZONESUN ZS-512F Automatic Bottom Real-Time Print and Apply RFID Labeling Machine
ZONESUN ZS-512F Automatic Bottom Real-Time Print and Apply RFID Labeling Machine
Prezzo di listino
$20,200.00 USD
Prezzo di listino
Prezzo scontato
$20,200.00 USD
Prezzo unitario
per
Spese di spedizione calcolate al check-out.
Impossibile caricare la disponibilità di ritiro
Description![]()

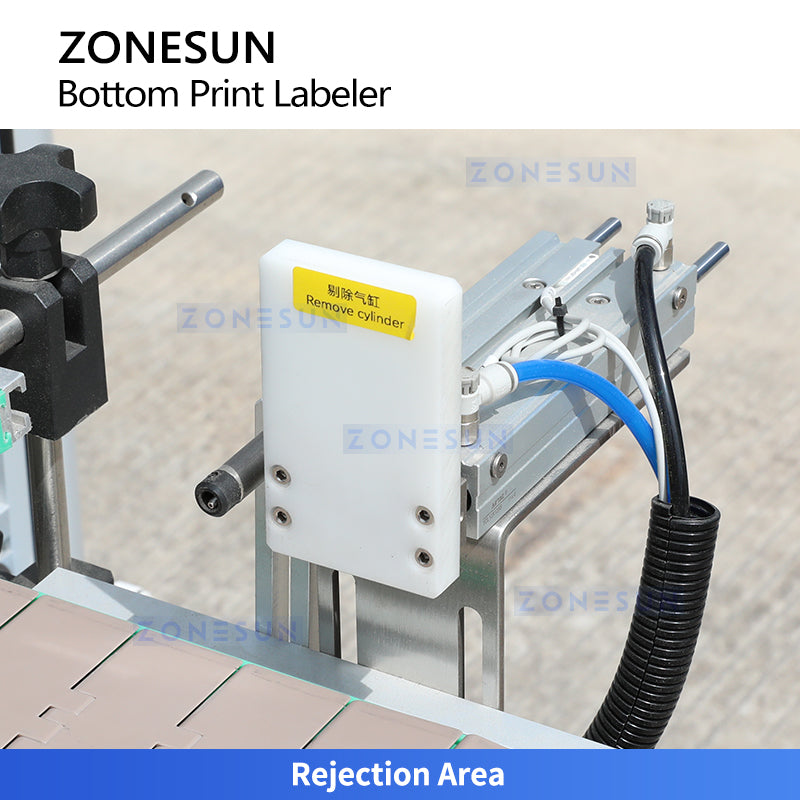

The ZONESUN ZS-512F is an automatic bottom real-time printing labeling machine designed for bottom labeling. Running at 20-26 pcs/min, it integrates real-time printing, labeling, RFID writing & verification, and automatic rejection. With its rotary positioning conveyor and dual-belt stabilizer, products are conveyed precisely into the turntable rotation unit for accurate bottom labeling. The system ensures stable operation, precise alignment, and consistent labeling quality, making it ideal for automated production lines requiring traceability and defect elimination.
Parameter
- Model: ZS-512F
- Labeling Accuracy: ±1.5 mm
- Labeling Speed: 20–26 pcs/min (depends on product & label size)
- Applicable Product Size: Diameter 56 mm, Height 145 mm (Customizable)
- Applicable Label Size: Diameter 20–40 mm (Customizable)
- Machine Size (L × W × H): About 1800 × 900 × 1500 mm (Customizable)
- Electrical Requirements: 220 V / 50 Hz
- Air Pressure: 0.6–0.8 MPa
- Machine Weight: About 200 kg
