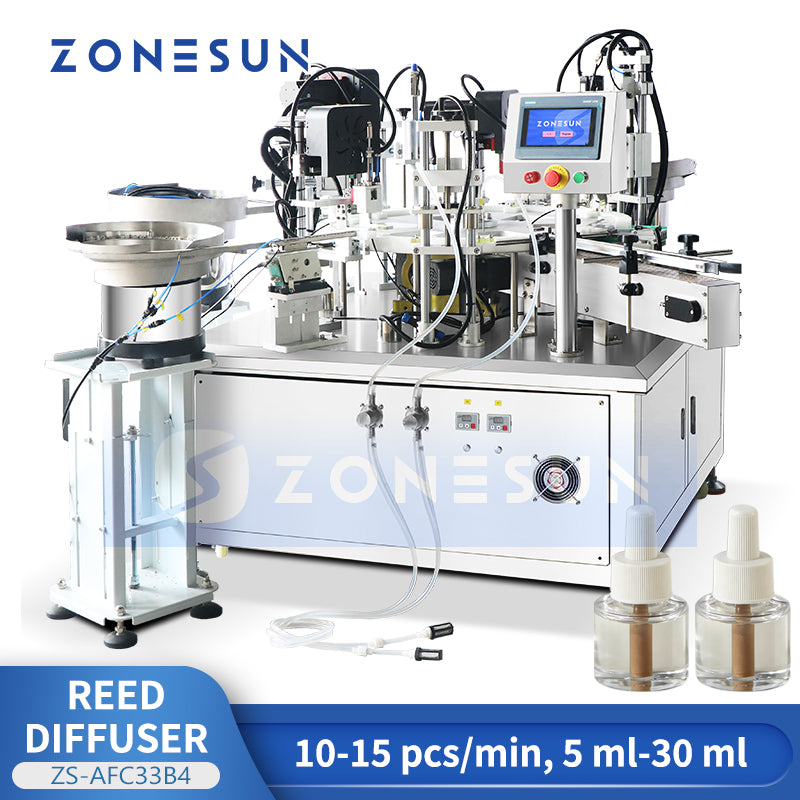

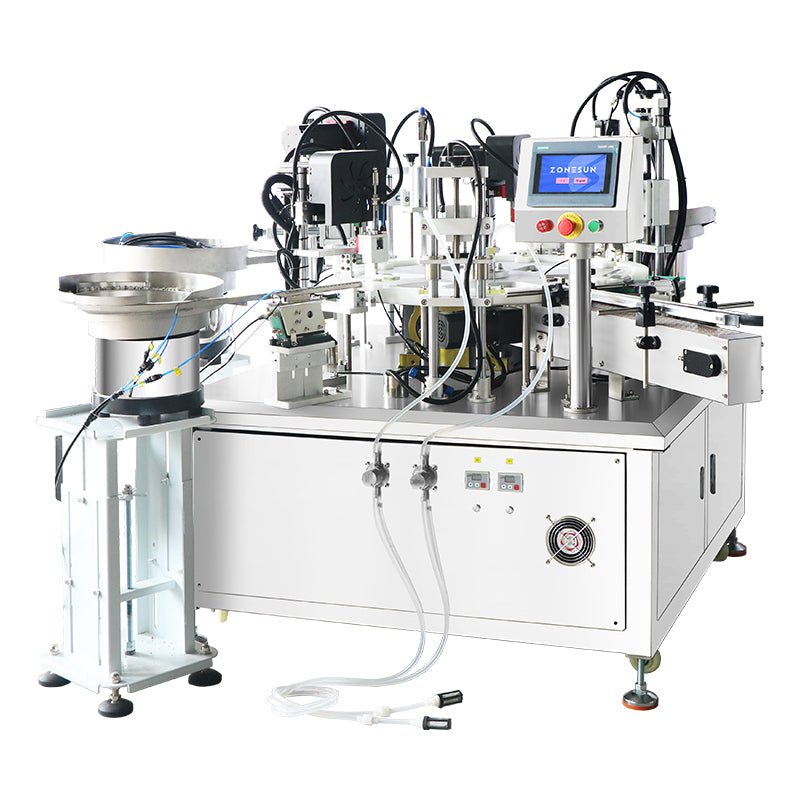

ZONESUN ZS-AFC33B4 Automatic Reed Diffuser Filling & Assembly Machine

Description

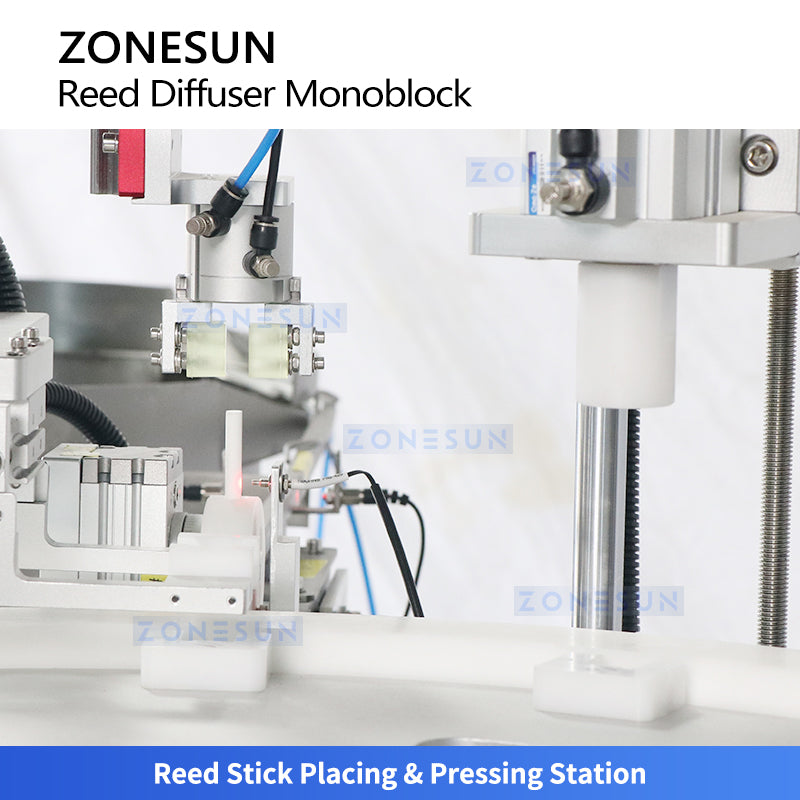

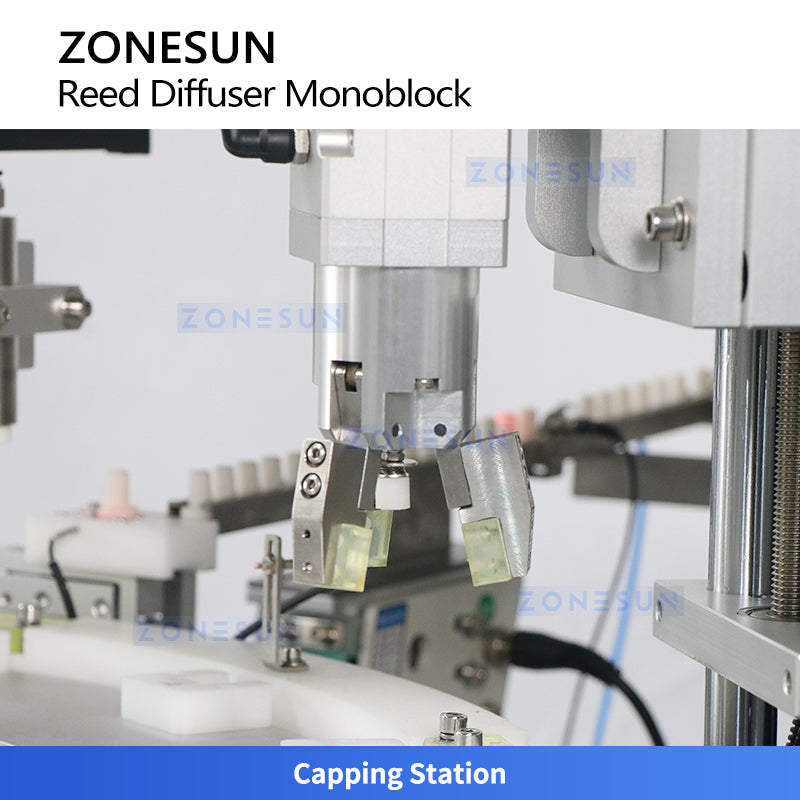

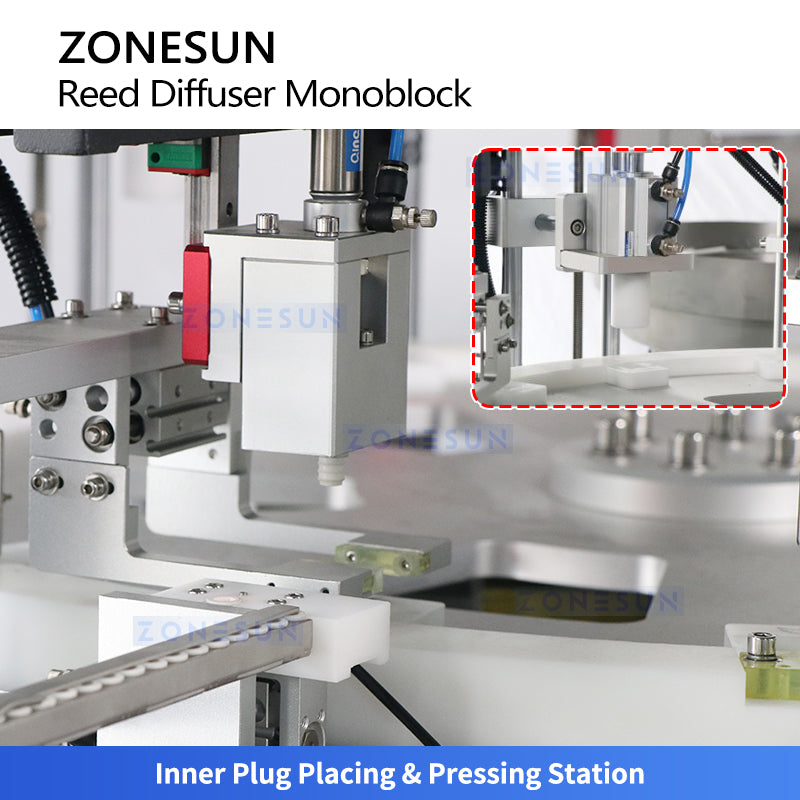

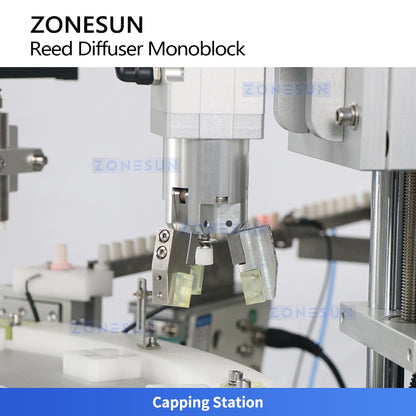

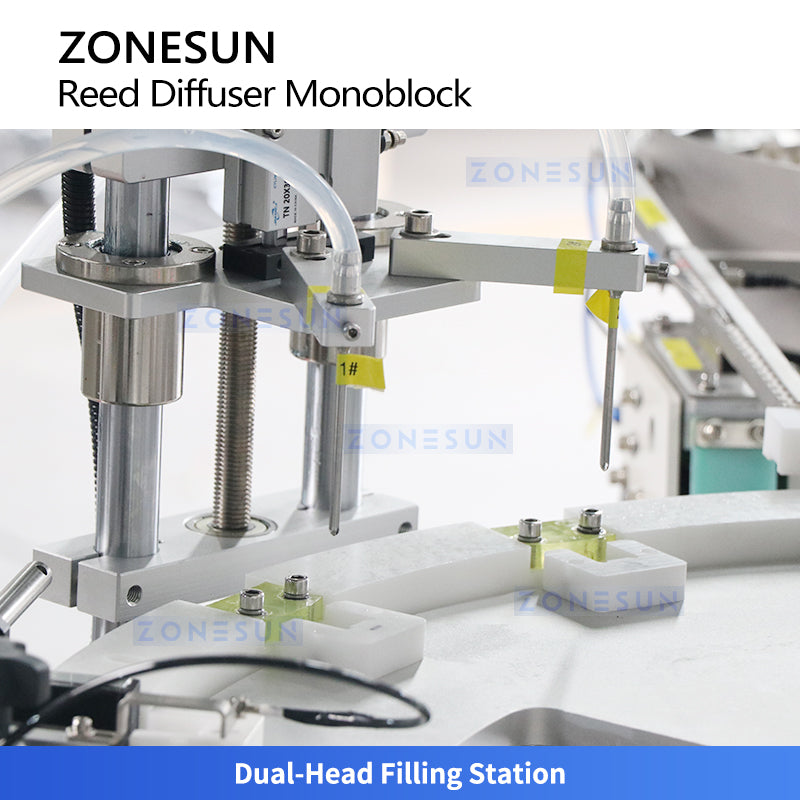

The ZONESUN ZS-AFC33B4 is an automatic monoblock system designed for efficient filling and assembly of reed diffuser bottles. Operating at 10–15 pcs/min, it integrates conveyor infeed, dual-head magnetic pump filling, inner plug placement and pressing, reed stick insertion and pressing, cap placement, and torque-controlled capping into a compact rotary platform. The system ensures accurate dosing, precise component positioning, and airtight sealing for fragrance, aroma, and small-volume liquid products ranging from 5 ml to 30 ml. It is ideal for reed diffusers, essential oil bottles, home fragrance items, and other small personal-care liquid packaging applications.

Parameter

• Model: ZS‑AFC33B4
• Power: 3 kW
• Voltage: 110/220 V
• Speed: 10–15 pcs/min
• Bottle Size: 20–40 mm
• Filling Accuracy: ±1%
• Filling Range: 5–30 ml
• Machine Weight: About 390 kg
• Machine Dimensions: About 1760 × 1180 × 1550 mm
