ZONESUN ZS-EVF04 High-Flow Heat-Resistant Electric Oil Drum Pump for Cooking Oil and Industrial Liquids

ZONESUN ZS-EVF04 High-Flow Heat-Resistant Electric Oil Drum Pump for Cooking Oil and Industrial Liquids

Description

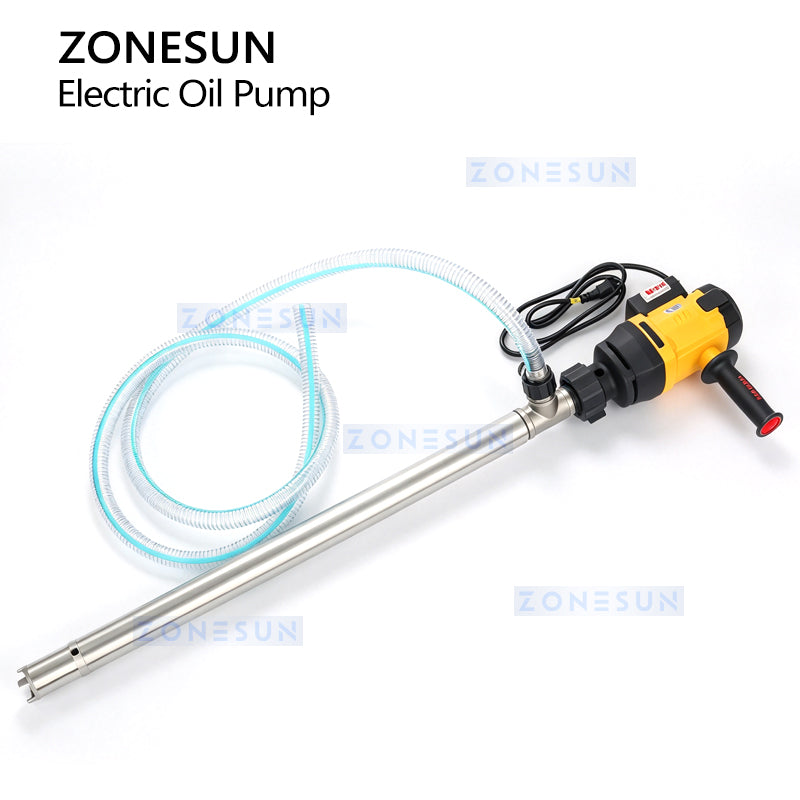

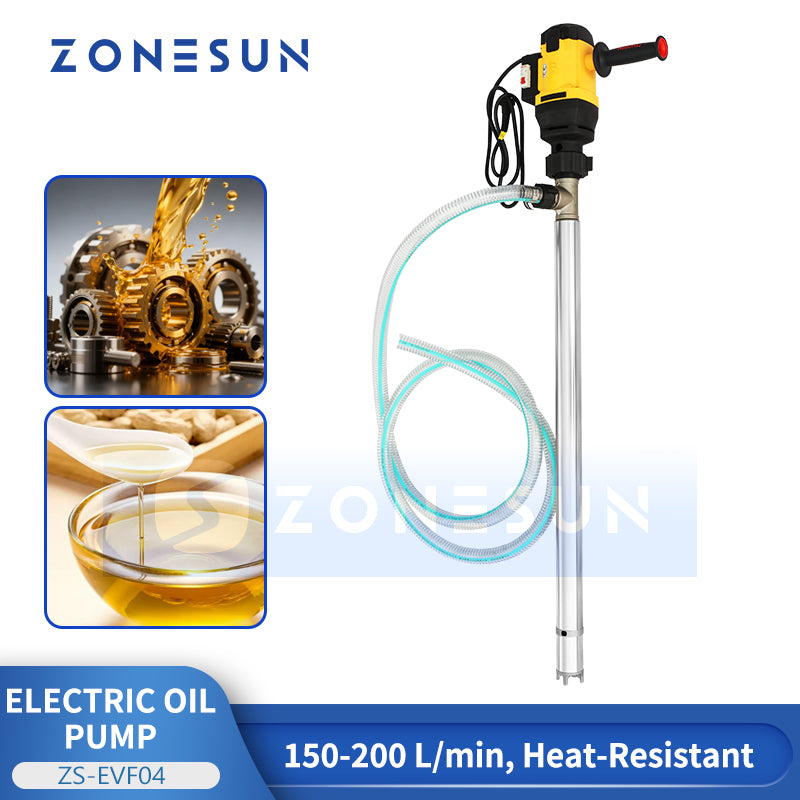

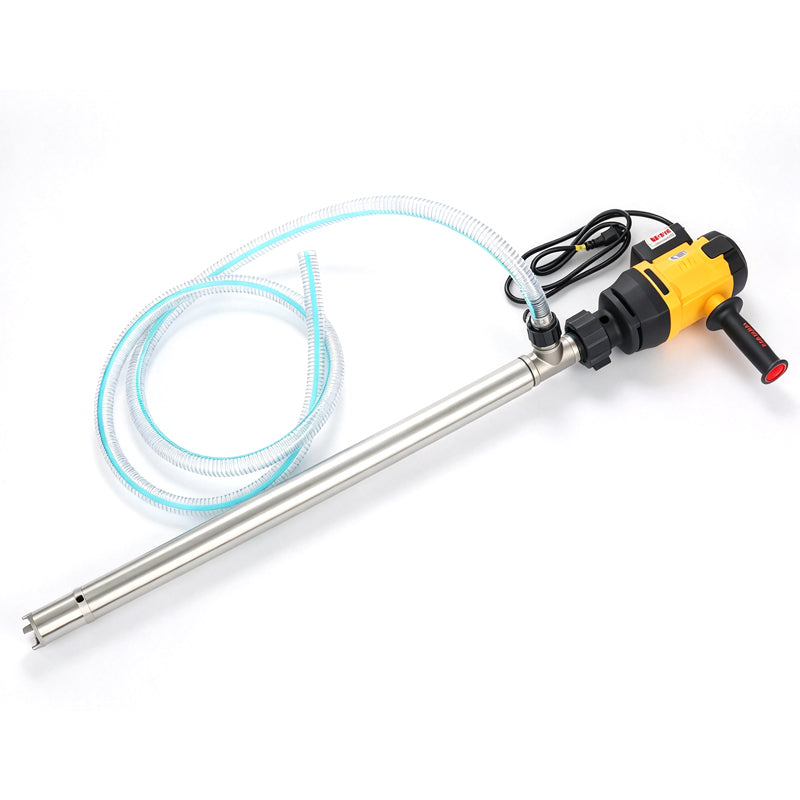

The ZONESUN ZS-EVF04 Electric Oil Pump is designed for fast transfer of oils and other compatible liquids from drums, tanks, and containers. Powered by a 2000 W motor, it provides a flow rate of 150–200 L/min and a maximum head of 25 m. The pump features a 950 mm long SUS304 stainless steel suction tube, 25/32 mm outlet, flexible discharge hose, and heat-resistant design for liquids up to 160°C. It is suitable for transferring cooking oil, hot pot oil, red oil, alcohol, soy milk, flavoring, propylene glycol, detergent, disinfectant, dual-component adhesive, and compatible medium-to-high viscosity chemical liquids. Adjustable speed control can be customized according to production requirements.

Parameter

• Model: ZS-EVF04
• Power: 2000 W
• Power Supply: 220 V
• Flow Rate: 150–200 L/min
• Maximum Head: 25 m
• Outlet Diameter: 25 / 32 mm
• Maximum Liquid Temperature: ≤160°C
• Pump Tube Length: 950 mm
• Pump Tube Diameter: Φ54 mm
• Material: SUS304 Stainless Steel
• Speed Control: Not Included
• Optional Speed Control: Adjustable Speed Control (Customized)
• Packing Dimensions (L × W × H): 1200 × 270 × 130 mm
• Gross Weight: 11 kg
• Suitable Liquids: Alcohol, soy milk, flavoring, red oil, cooking oil, hot pot oil, boiling water, propylene glycol, disinfectant, detergent, dual-component adhesive, lubricating oil, light oil, and compatible medium-to-high viscosity chemical liquids

Key Features

2000 W Electric Motor

Provides electric power for liquid transfer, with a documented flow rate of 150–200 L/min.

Power Switch

Provides simple start and stop control for convenient pump operation.

Ergonomic Handle

Provides a secure grip for easier handling and helps operators stabilize the pump during liquid transfer.

Long Stainless Steel Suction Pipe

The 950 mm suction pipe extends into drums or containers to draw liquid directly into the pump.

Flexible Discharge Hose

Transfers pumped liquid from the pump outlet to a receiving container, tank, or downstream equipment.

Heat-Resistant Design

Supports compatible liquids with temperatures up to 160°C, for both ambient-temperature and heated-liquid transfer applications.

SUS304 Stainless Steel Construction

The documented pump tube material is SUS304 stainless steel, providing durable construction for compatible liquid-transfer applications.

25 / 32 mm Outlet Options

Supports outlet diameters of 25 mm or 32 mm, according to the selected configuration.

Optional Adjustable Speed Control

The standard configuration does not include speed control. An adjustable-speed version can be customized when flow regulation is required.

Benefits

150–200 L/min High Flow Rate

Supports rapid transfer of compatible liquids from drums, tanks, and containers.

Up to 160°C Liquid Temperature

The heat-resistant configuration supports compatible high-temperature liquids up to the documented maximum temperature of 160°C.

25 m Maximum Head

Provides a documented maximum delivery head of 25 m for suitable liquid-transfer arrangements.

Long 950 mm Suction Tube

Can be inserted into drums and containers for convenient liquid extraction.

Flexible Discharge

Directs transferred liquid to the required receiving container or compatible downstream equipment.

Portable Pump Structure

The integrated handle, suction tube, and flexible discharge hose provide a practical structure for transferring liquids directly from containers.

Customizable Speed Control

An adjustable-speed version can be customized for applications that require flow regulation.

Application

The ZONESUN ZS-EVF04 is designed for transferring compatible liquids from drums, tanks, and containers. Suitable applications include transferring cooking oil, red oil, hot pot oil, lubricating oil, light oil, alcohol, soy milk, flavoring, boiling water, propylene glycol, disinfectant, detergent, dual-component adhesive, and compatible medium-to-high viscosity chemical liquids.

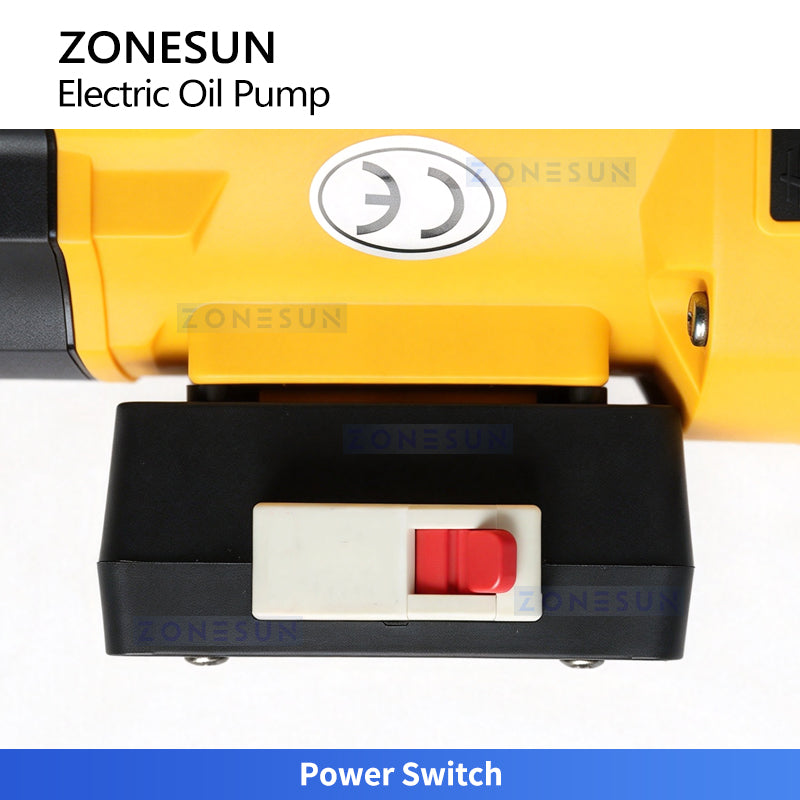

Power Switch

Provides simple start and stop control for convenient pump operation.

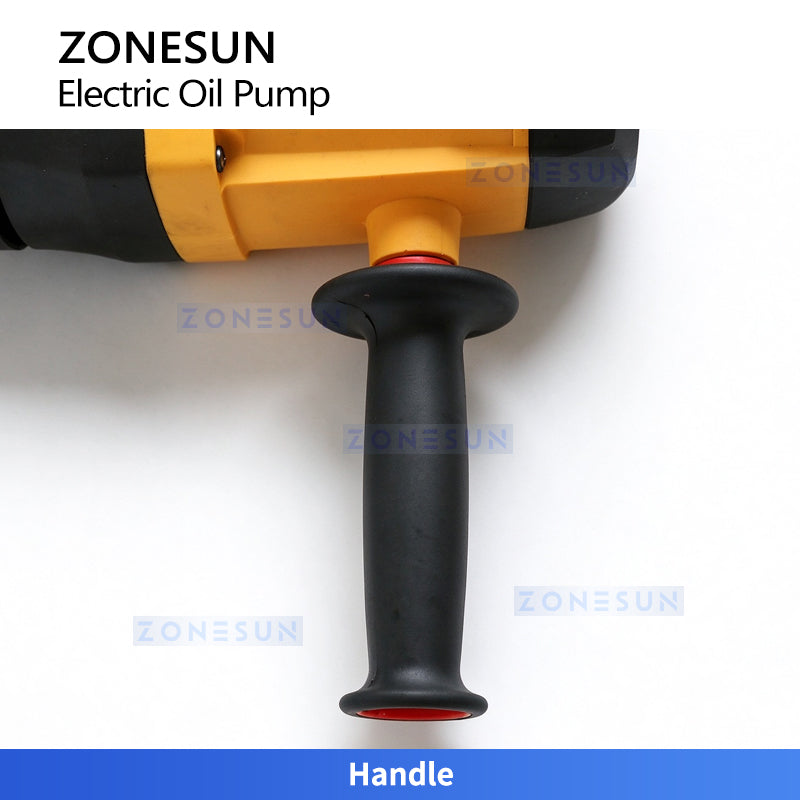

Handle

Provides a secure grip for convenient handling and stable operation during liquid transfer.

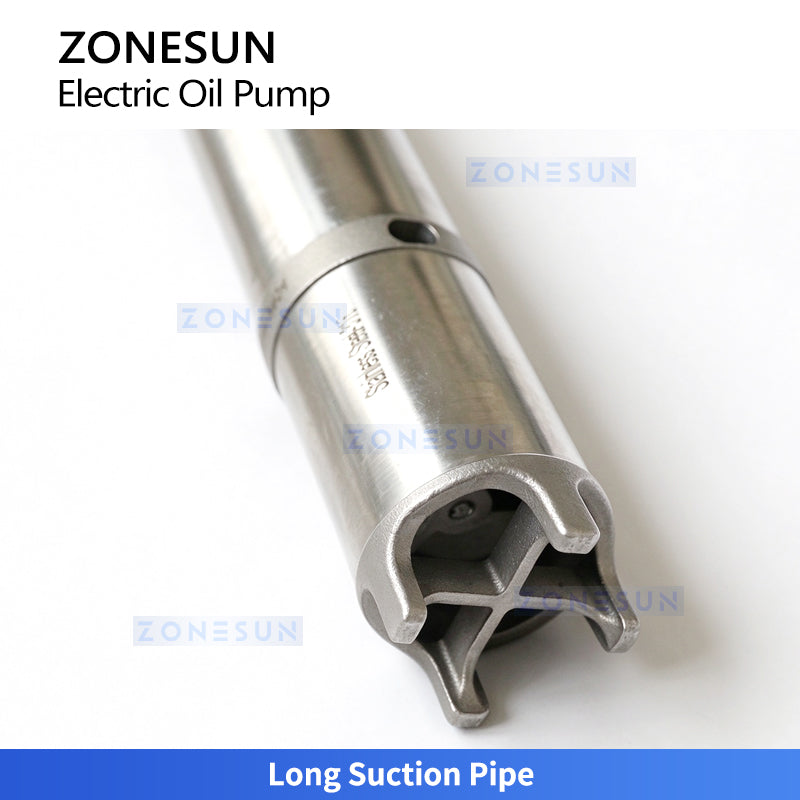

Long Suction Pipe

Extends into drums or containers to draw liquid into the pump for continuous transfer.

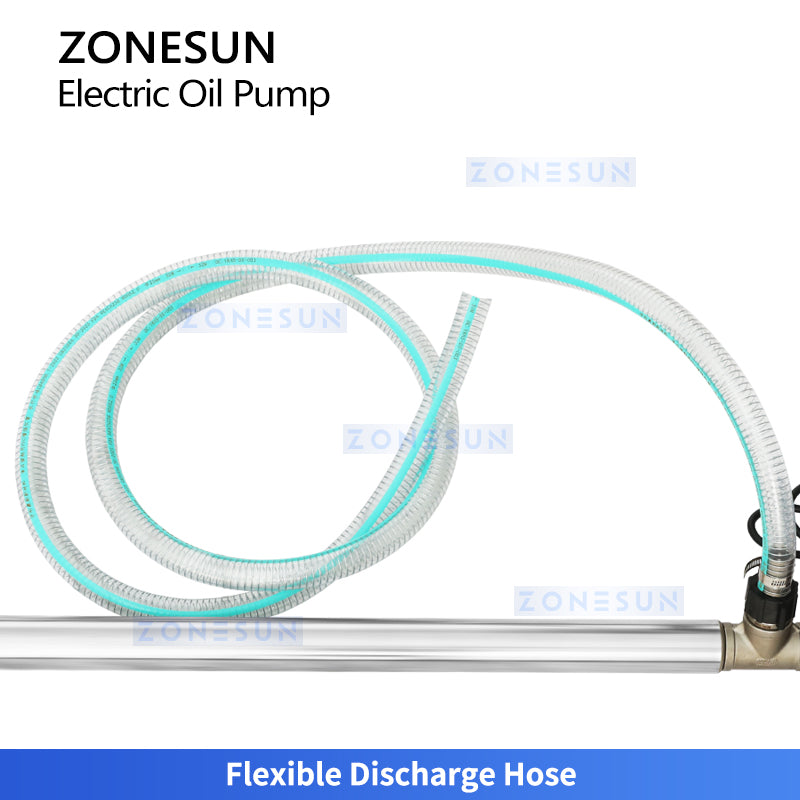

Flexible Discharge Hose

Transfers pumped liquid from the pump outlet to the receiving container or downstream equipment.

Why Choose the ZONESUN ZS-EVF04?

150–200 L/min High Flow Rate

Supports fast transfer of compatible liquids from drums and containers.

Heat-Resistant Liquid Transfer

Handles compatible liquids at temperatures up to 160°C, within the documented operating range.

2000 W Electric Power

Provides powered liquid transfer for suitable industrial and commercial applications.

25 m Maximum Head

Supports liquid delivery arrangements within the documented maximum head.

950 mm Long Suction Tube

Reaches into compatible drums and containers to draw liquid into the pump.

SUS304 Stainless Steel Pump Tube

Provides stainless steel construction for compatible liquid-handling applications.

25 / 32 mm Outlet Options

Offers two documented outlet diameter options according to the required configuration.

Flexible Discharge Hose

Helps direct transferred liquid into a receiving container or connected equipment.

Optional Adjustable Speed Control

Custom speed adjustment is available for applications that require flow regulation.

Practical Portable Structure

The handle, suction pipe, and discharge hose support convenient use with drums and other compatible containers.

Ideal Applications

Cooking Oil Transfer

Suitable for transferring compatible cooking oils, red oil, and hot pot oil.

Heated Liquid Transfer

Designed for compatible heated liquids, including boiling water and heated oils, within the documented maximum temperature.

Lubricating Oil Transfer

Suitable for transferring compatible lubricating oil and light oil.

Food-Related Liquid Transfer

Can transfer compatible liquids such as soy milk and flavoring, subject to material and application compatibility.

Chemical Liquid Transfer

Suitable for compatible liquids such as propylene glycol, detergent, disinfectant, and medium-to-high viscosity chemical liquids.

Adhesive Transfer

Can be used with compatible dual-component adhesive when the liquid properties and pump configuration are suitable.

Drum and Container Emptying

The long suction tube supports direct liquid extraction from compatible drums, tanks, and containers.

Industrial Liquid Handling

Suitable for industrial liquid-transfer tasks requiring a high flow rate and heat-resistant configuration.
