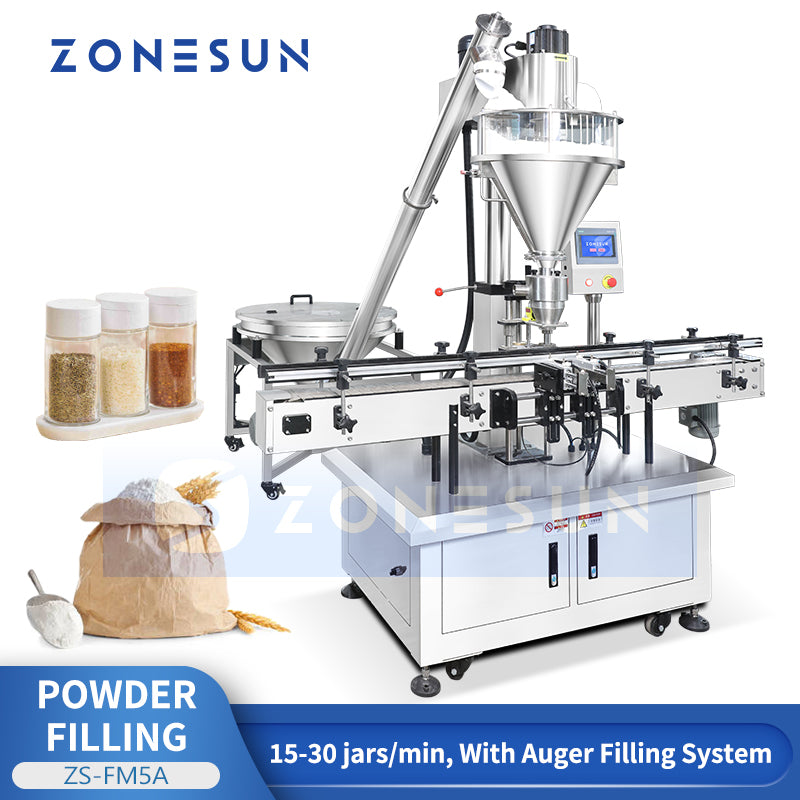

ZONESUN ZS-FM5A Automatic Powder Auger Filling Machine with Vibrating Feeder

DESCRIPTION

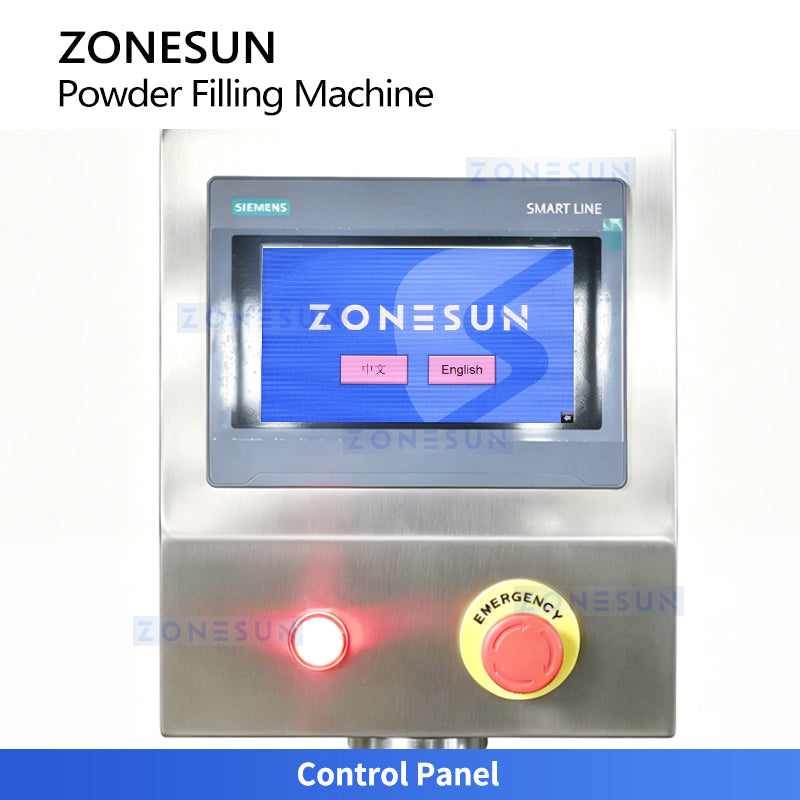

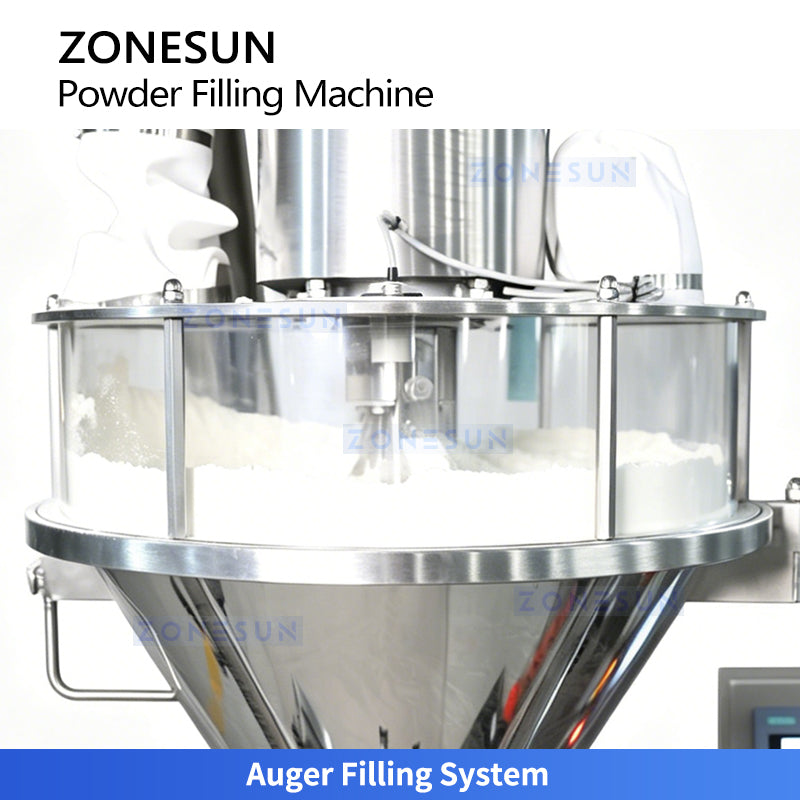

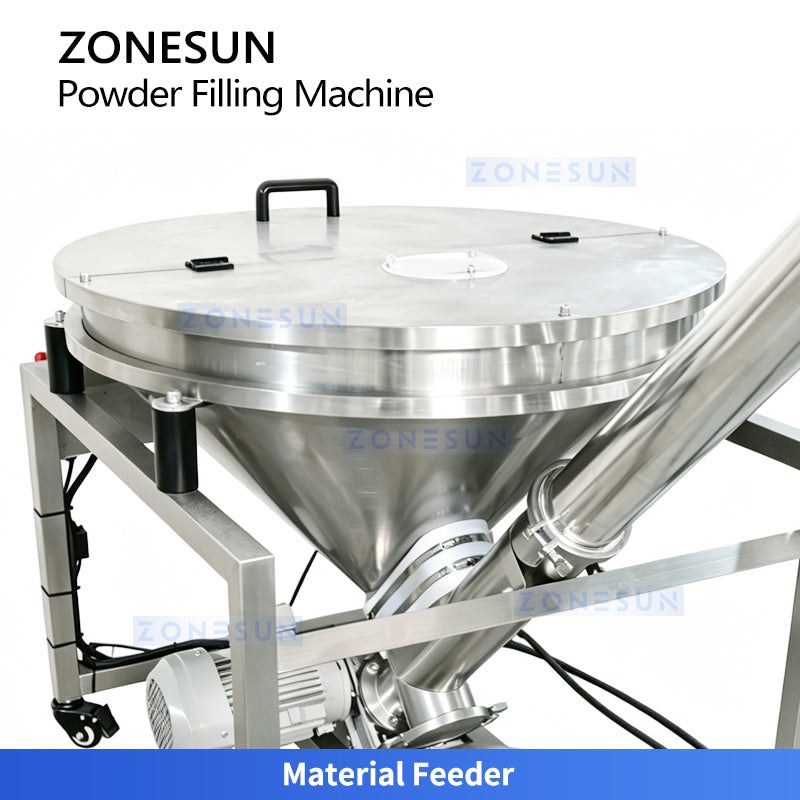

The ZONESUN ZS-FM5A is a servo-driven auger filling machine designed for precise powder dosing. Equipped with a vibrating feeder and a 150L hopper, it ensures smooth material flow and consistent filling. Users can directly set the filling amount via the servo motor control. With a capacity of 5–20 jars per minute and a recommended filling range of 10–500g, it’s ideal for medium to large-scale powder packaging. The machine can be integrated with automatic capping and labeling systems to form a complete production line.

Specification

Model ZS-FM5A
Voltage 380V / 50Hz or 60Hz
Power 2.2kW (Filler) + 1.1kW (Feeder)
Filling Capacity 15–30 jars per minute
Recommended Filling Range 5-50g/50-300g/300-1000g/1000-5000g
Feeder Hopper Size 150L
Feeder Pipe Diameter 102mm
Machine Size Approx. 2000 × 1000 × 1980 mm
Net/Gross Weight Approx. 200 kg
