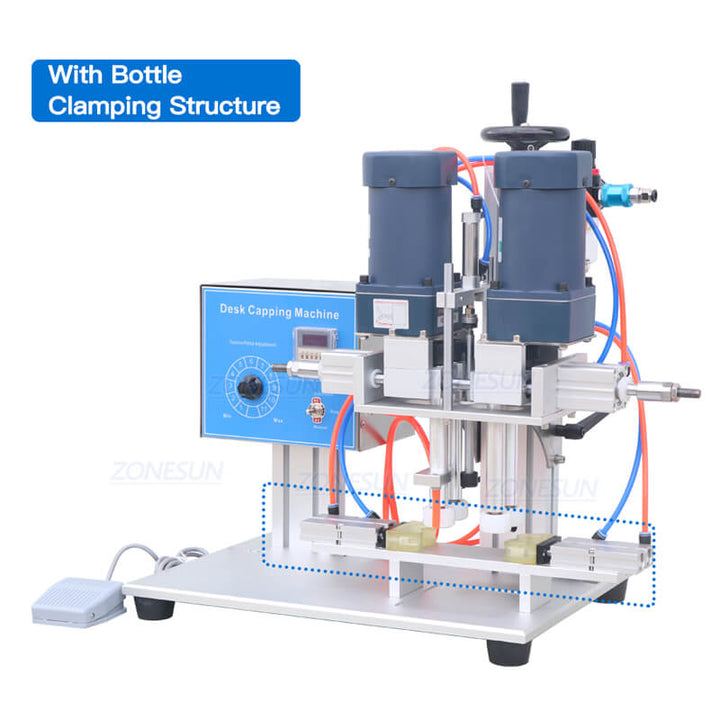

ZONESUN ZS-XG6100 Desktop Pneumatic Pump Bottle Capping Machine

ZONESUN ZS-XG6100 Desktop Capping Machine for Pump & Spray Caps

The ZONESUN ZS-XG6100 desktop capping machine is designed for precise and efficient sealing of various bottle types, including droppers, spray pumps, and hand press caps. Featuring both automatic and manual modes, it offers adjustable speed and torque to accommodate different cap styles and tightness requirements. Its electrical control system ensures stable performance, while the built-in positioning device guarantees accurate capping. Ideal for cosmetic, pharmaceutical, and chemical packaging lines.

Parameter

• Model：ZS-XG6100

• Bottle Height：100–230 mm

• Bottle Caps Diameter：20–50 mm (Max Custom Size 90 mm)

• Working Speed：20–60 bottles/min (depending on bottle and caps)

• Working Voltage：AC220V/110V 50–60HZ

• Power：120W

• Working Mode：Manual / Automatic

• Machine Size：475 × 350 × 550 mm

• Net Weight：28 kg

• Package Size：665 × 365 × 560 mm

• Gross Weight：35.5 kg

• Size of Air Compressor Connector：OD 8 mm

Air compressor required,Sold separately

CONTROL BOX

Controls pneumatic and electrical systems to adjust speed, torque, and working mode.

BOTTLE HEIGHT WHEEL

Adjusts bottle height to align with the capping head, accommodating different bottle sizes.

CAPPING MODULE

Four friction wheels grip the pump head evenly, with adjustable positioning for accurate alignment and smooth capping.

DOUBLE DRIVE MOTOR

Provides dual motor power to drive capping heads independently, delivering stronger torque and higher sealing efficiency.
