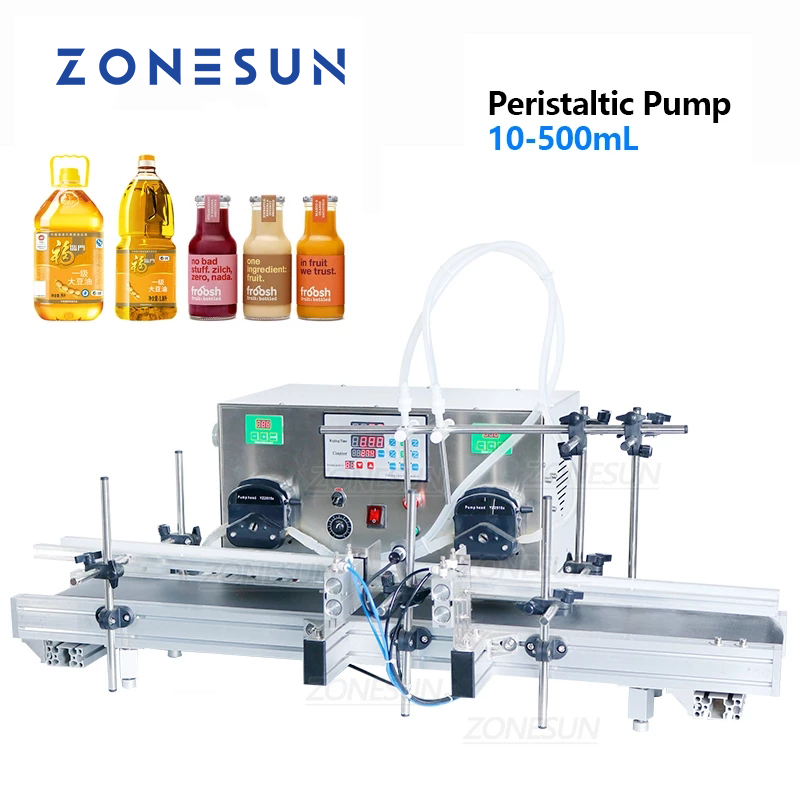

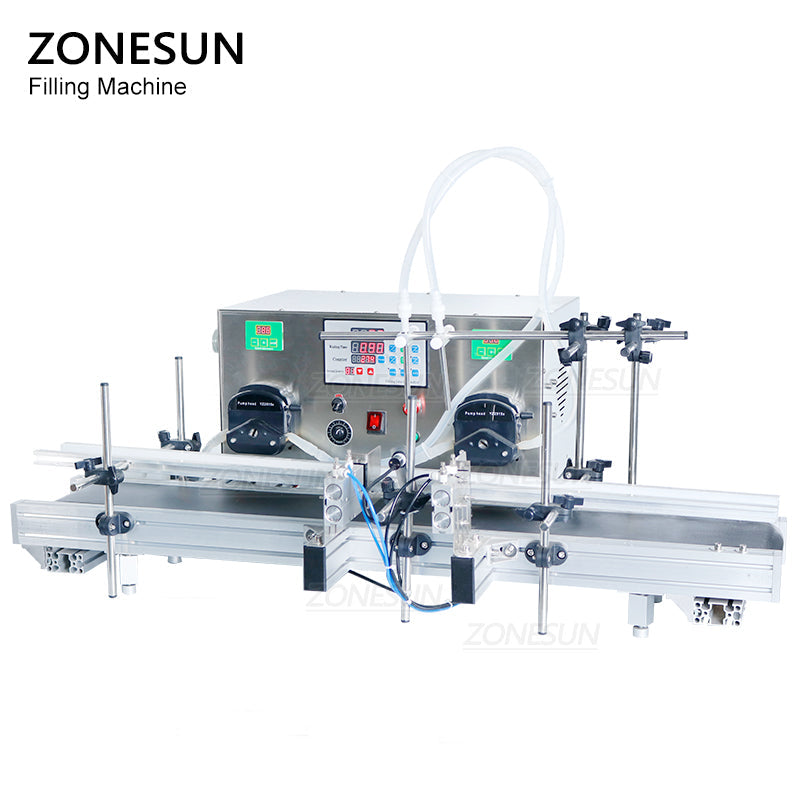

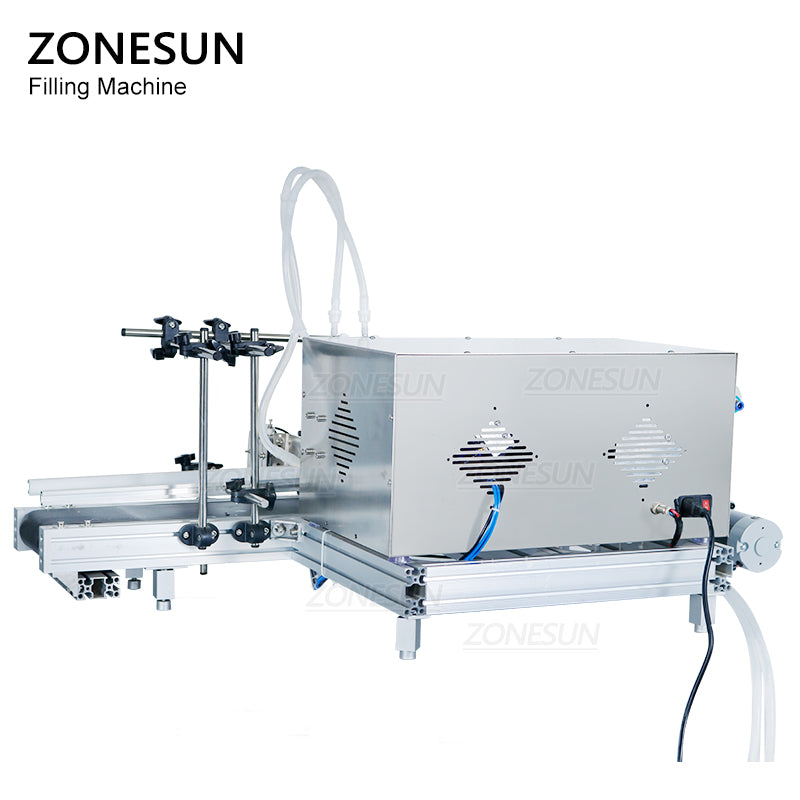

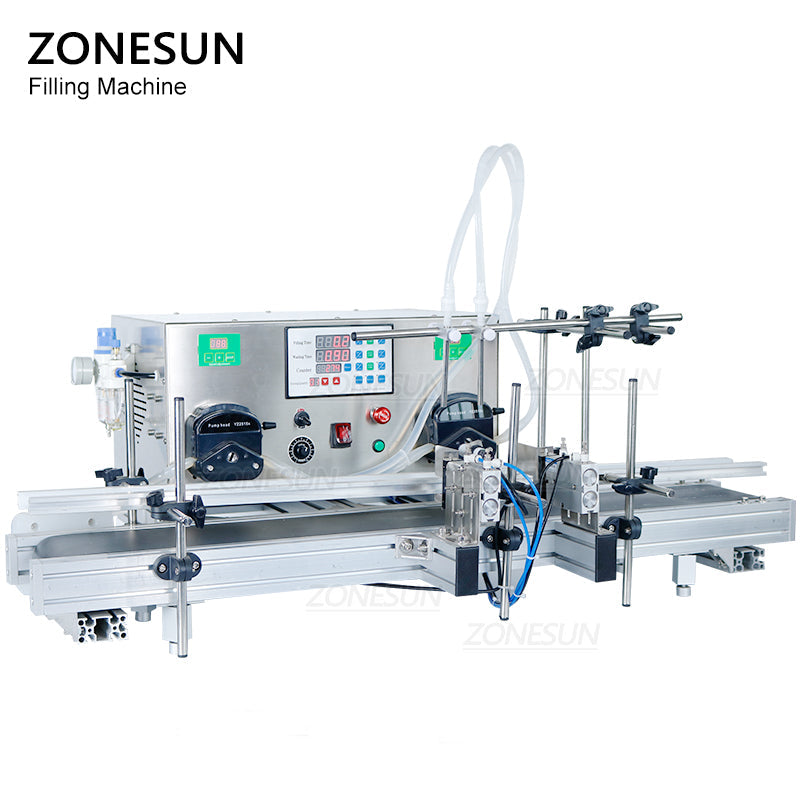

ZONESUN ZS-DTPP-2 Automatic 2 Heads Peristaltic Pump Liquid Filling Machine

DESCRIPTION

The ZONESUN ZS-DTPP-2 is a high-precision automatic liquid filling machine equipped with dual peristaltic pumps and customizable filling heads. Designed for non-viscous liquids such as juice, essential oils, and perfumes, it offers excellent filling accuracy (≤±1%) and adjustable volume ranges for both 110V and 220V configurations. With a speed of up to 30 bottles per minute, it integrates seamlessly with capping and labeling machines to support full automation. Ideal for pharmaceutical, cosmetic, beverage, and daily chemical industries.

PARAMETER

• Machine Model：ZS-DTPP-2
• Voltage：AC 220V / 110V, 50–60Hz
• Power：60W (Each Pump)
• Filling Heads：2 Heads (Customizable)

• Max Flow Velocity：2.4L/min × 2 (based on water)，10-300ml
• Max Flow Velocity：4L/min × 2 (based on water)，10-500ml
• Filling Accuracy：≤ ±1% (for water)
• Filling Speed：20–30 bottles/min (depends on bottle & liquid)
• Air Pressure：0.3–0.4MPa

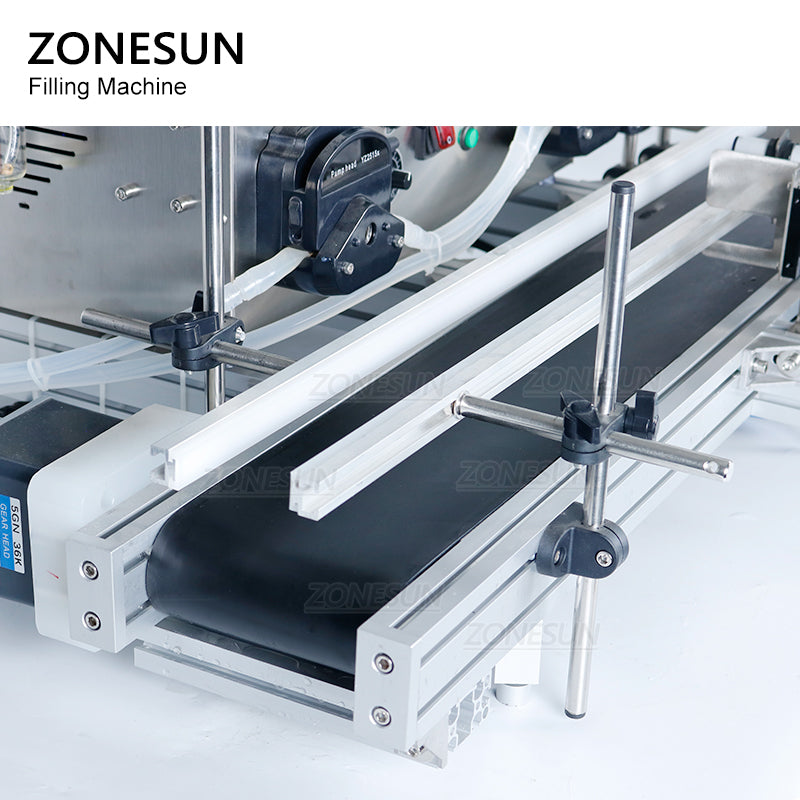

• Conveyor Size：140mm (W) × 1030mm (L)
• Filling Nozzle Diameter：OD 8mm
• Air Compressor Connector Size：OD 8mm
• Whole Machine Size：1030mm × 740mm × 390mm
• Package Size：1120mm × 670mm × 420mm
• Net Weight Approx.：38kg
• Gross Weight Approx.：51kg
