ZONESUN ZS-AFC18 Automatic Dual-Station Vial Filling and Crimp Capping Production Line

ZONESUN ZS-AFC18 Automatic Dual-Station Vial Filling and Crimp Capping Production Line

Description

The ZONESUN ZS-AFC18 is an automatic dual-station filling and capping line designed for vials and other small-dose liquid containers. Operating at 60–70 bottles/min, it integrates vial unscrambling, conveying, 4-head magnetic pump filling, cap placement, and capping into one continuous process. Star-wheel positioning ensures stable container handling through each station, while the magnetic pump system provides accurate and consistent filling for oral liquids, essential oils, injectable liquids, and other compatible products.

Parameter

• Machine Model: ZS-AFC18
• Filling Volume: 5–50 ml
• Filling Accuracy: ±1%
• Pump Type: Magnetic Pump
• Number of Pump Heads: 4
• Peristaltic Pump Tubing: 25#
• Production Capacity: 60–70 Bottles/min
• Machine Dimensions (L × W × H): Refer to the Equipment Drawing
• Machine Weight: 1000 kg
• Power Supply: 220 V / 50 Hz / 5 A
• Outer Vibratory Bowl Material: SUS304
• Filling Needle Material: SUS304
• Capping Qualification Rate: ≥99.9%
• Filling System: 4-Head Magnetic Pump Filling
• Positioning System: Star-Wheel Indexing
• Capping System: Dual-Station Crimp Capping

Key Features

• Vial Unscrambling & Feeding: The loading turntable automatically organizes incoming vials and continuously feeds them onto the conveyor for downstream processing.
• Vial Conveyor System: Smoothly guides vials from the feeding section toward the star-wheel processing station for stable continuous production.
• 4-Head Magnetic Pump Filling: Four magnetic pump heads operate simultaneously to provide controlled liquid dispensing for efficient filling of 5–50 ml products.
• Precision Star-Wheel Indexing: Accurately positions and securely holds each vial at the required processing stations during filling, cap placement, and crimp capping.
• Dual-Station Filling & Capping System: Integrates filling, closure placement, and crimp capping around the star-wheel structure for stable automatic processing.
• ≥99.9% Capping Qualification Rate: The capping system provides a specified qualification rate of at least 99.9% for reliable finished vial closure.
• SUS304 Contact Components: Filling needles and the outer vibratory bowl are specified as SUS304 stainless steel.
• Centralized Touchscreen Control: Provides convenient machine operation, parameter adjustment, and production monitoring from one control interface.

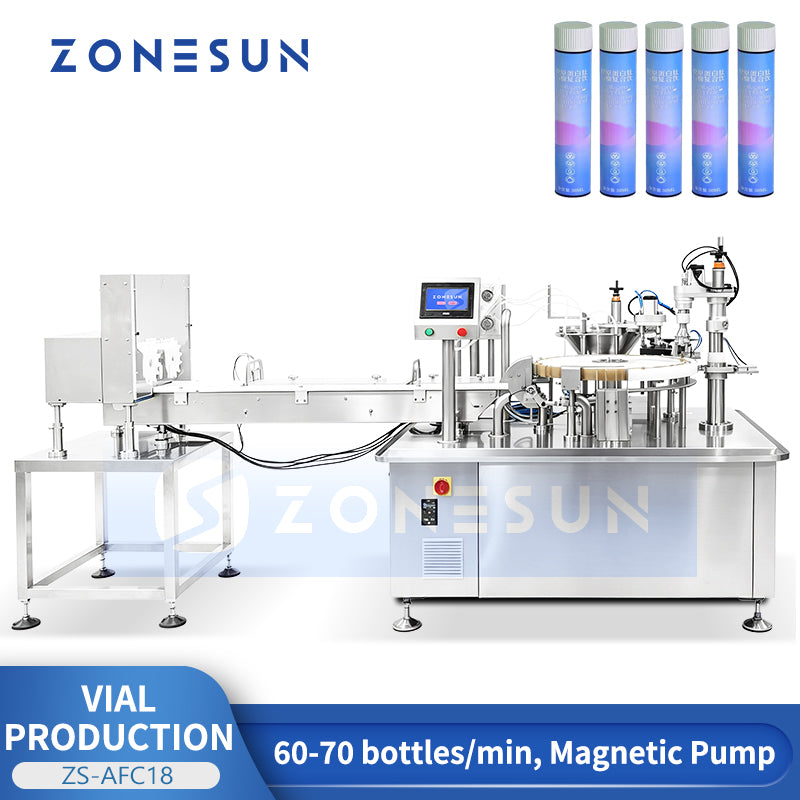

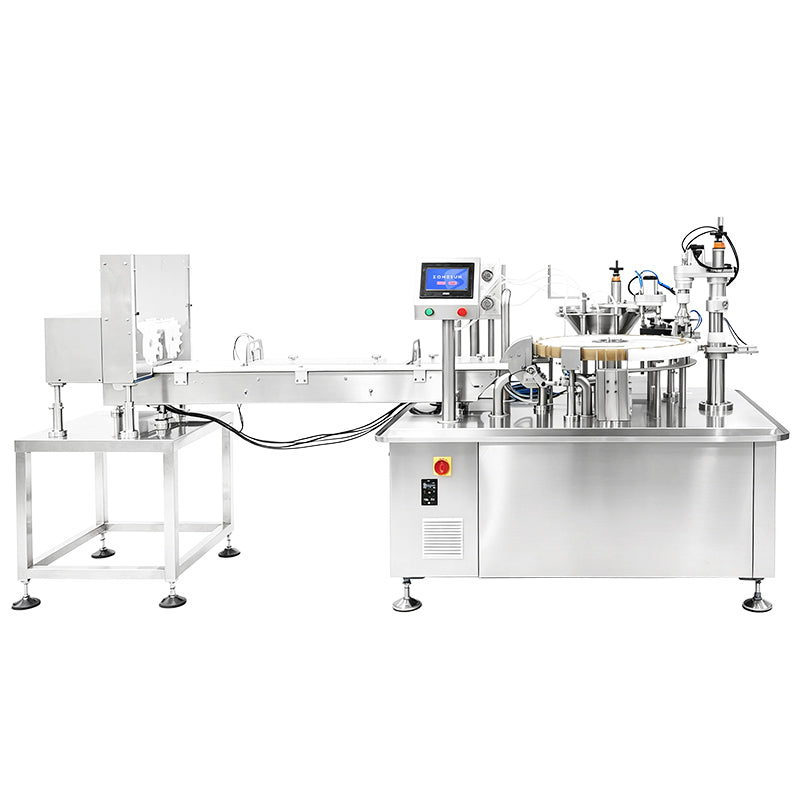

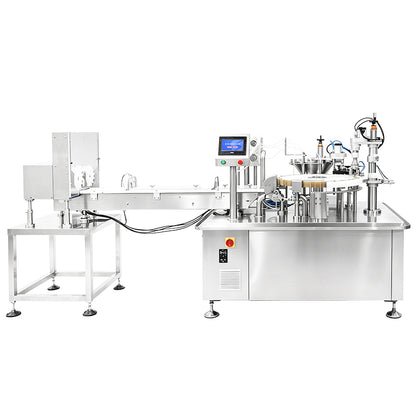

The machine images on pages 1–3 identify the main sections as Control Panel, Vial Unscrambling & Feeding, Vial Conveyor System, Dual-Station Filling & Capping System, and Magnetic Pump Filling System.

Benefits

• 60–70 Bottles/Min Output — Supports continuous high-efficiency processing of small-dose vial products.
• 4-Head Simultaneous Filling — Four magnetic pump heads fill simultaneously to improve production efficiency.
• 5–50 ml Flexible Filling — Suitable for a range of small and medium-dose liquid filling applications.
• ±1% Filling Accuracy — Provides controlled and consistent liquid dosing within the specified filling range.
• Stable Vial Positioning — Precision star-wheel indexing securely holds containers through filling and closure processing.
• ≥99.9% Capping Qualification — Provides reliable crimp capping performance for consistent finished-product quality.
• Reduced Manual Handling — Automatic vial feeding, conveying, filling, closure placement, and capping reduce repetitive operator involvement.
• Production Line Integration — Can operate independently or connect with bottle washing and drying equipment to form a continuous vial processing line.

Application

Ideal for automatic filling, cap or stopper placement, and crimp capping of small and medium-dose liquids, including oral liquids, essential oils, injectable liquids, and other compatible products. According to the supplied document, the machine is suitable for food, pharmaceutical, chemical, and research applications and can operate independently or integrate with upstream bottle washing and drying equipment for continuous production.

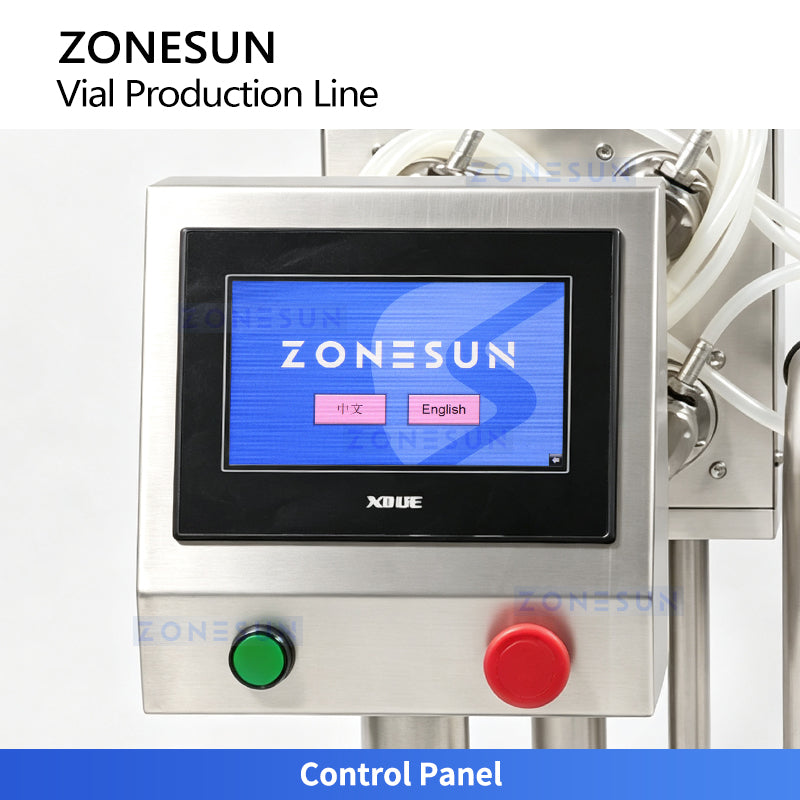

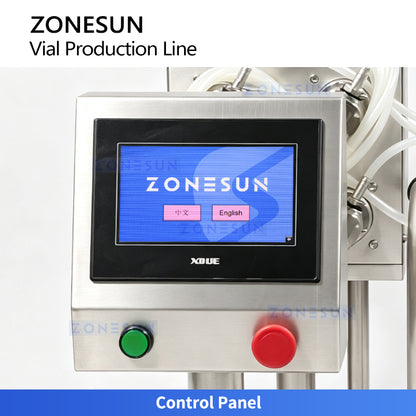

Control Panel

Centralized touchscreen control provides convenient machine operation, parameter adjustment, and production monitoring.

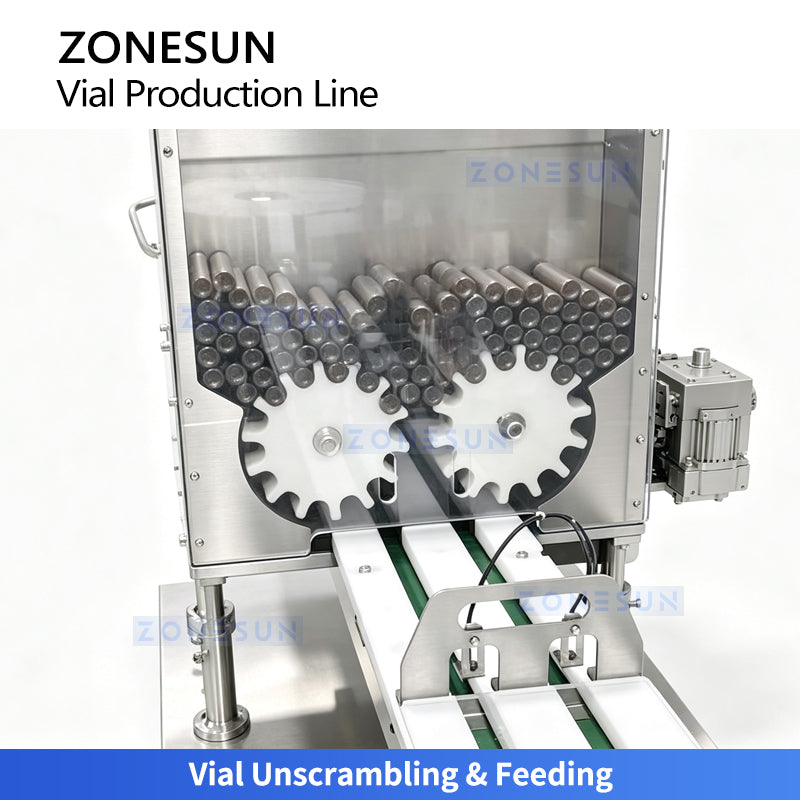

Vial Unscrambling & Feeding

The loading turntable organizes vials and feeds them continuously into the conveyor for automatic processing.

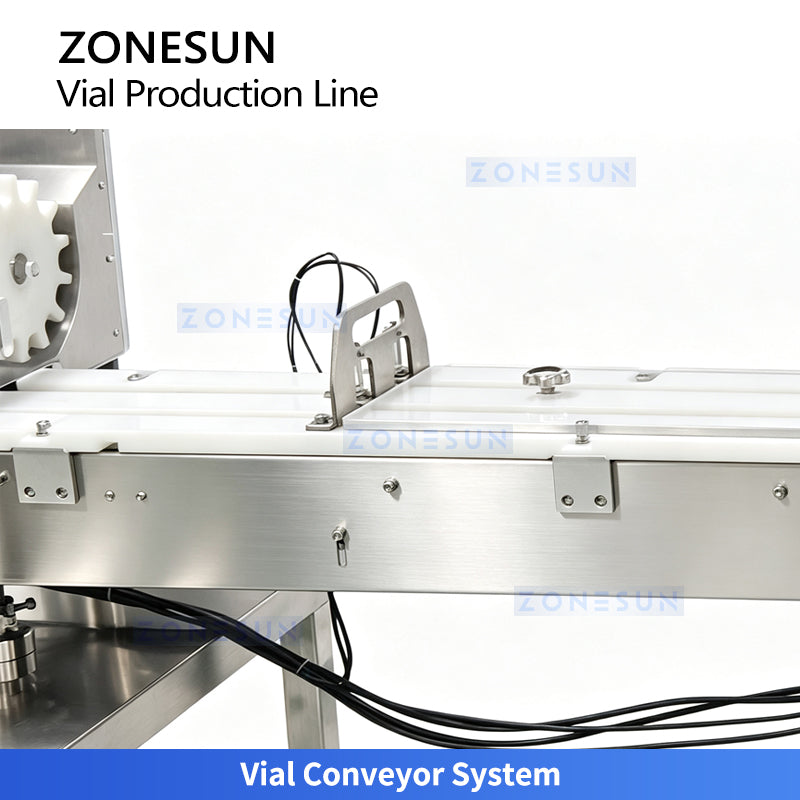

Vial Conveyor System

The conveyor guides vials smoothly toward the star-wheel processing station for continuous production.

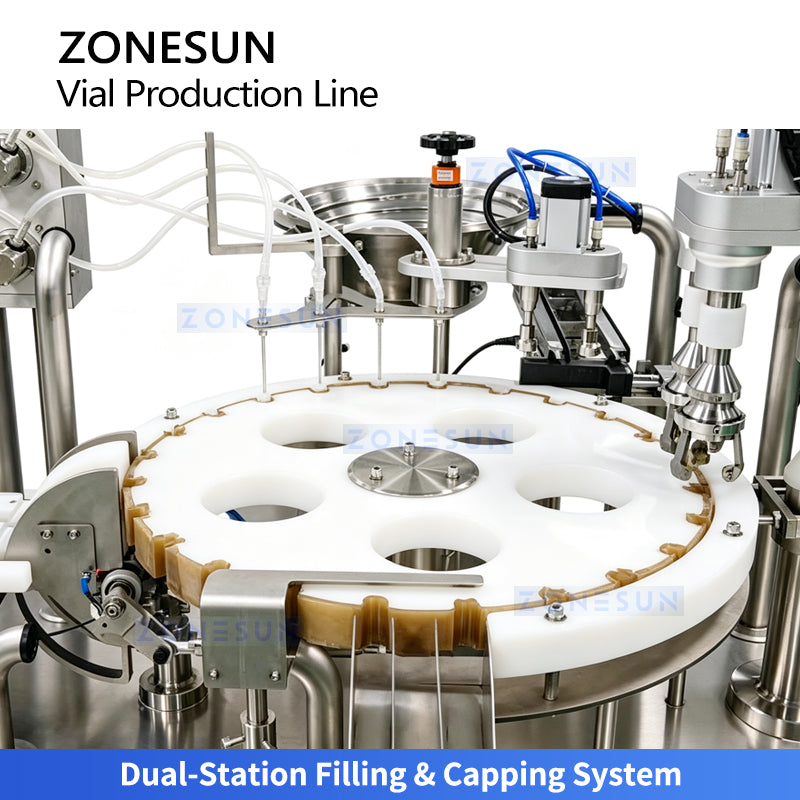

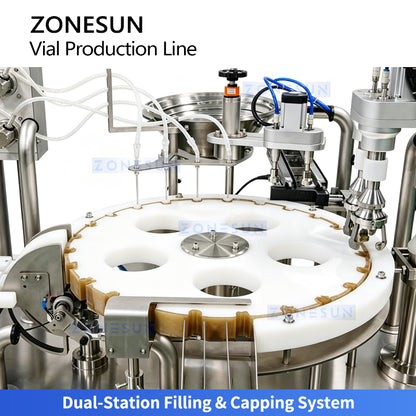

Dual-Station Filling & Capping System

Star-wheel positioning holds each vial securely through filling, cap placement, and capping for stable automatic processing.

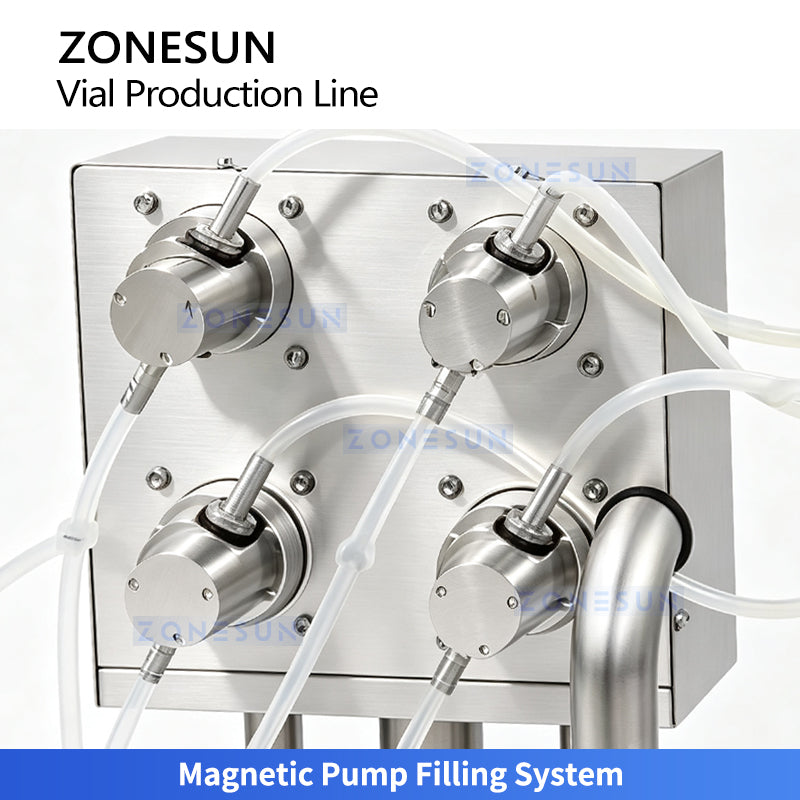

Magnetic Pump Filling System

Magnetic pumps provide controlled liquid dispensing for accurate and consistent vial filling.

Why Choose the ZONESUN ZS-AFC18?

✅ 60–70 Bottles/Min — Efficient Vial Production: The ZS-AFC18 supports approximately 60–70 bottles/min, providing continuous automated processing for small and medium-dose vial products.

✅ 4-Head Magnetic Pump Filling — Higher Filling Efficiency: Four magnetic pump heads operate simultaneously, allowing multiple vials to be filled efficiently while maintaining controlled liquid dispensing.

✅ 5–50 ml Filling Range — Designed for Small-Dose Liquids: The filling system supports 5–50 ml, making it particularly suitable for vial and other small-dose liquid packaging applications.

✅ ±1% Filling Accuracy — Consistent Liquid Dosing: Magnetic pumps provide controlled dispensing with a specified filling accuracy of ±1%, helping maintain consistent filling quantities throughout production.

✅ Precision Star-Wheel Indexing — Stable Vial Positioning: The indexing structure accurately positions and securely holds each vial during filling → cap/stopper placement → crimp capping, supporting stable processing at each station.

✅ Dual-Station Filling & Capping — Integrated Processing: Filling and closure operations are integrated around the star-wheel processing system, reducing unnecessary bottle transfers between separate machines.

✅ ≥99.9% Capping Qualification — Reliable Vial Closure: The capping system provides a specified qualification rate of ≥99.9%, supporting consistent finished-product closure quality.

✅ SUS304 Filling Components — Durable Material Construction: The supplied specifications identify SUS304 stainless steel for both the filling needles and outer vibratory bowl.

✅ Automatic Vial Feeding — Reduced Manual Handling: The loading turntable organizes vials and feeds them continuously onto the conveyor, helping maintain a stable supply to the processing station.

✅ Line Integration — Expandable Vial Processing Solution: The ZS-AFC18 can operate independently or connect with bottle washing and drying equipment to form a more complete automatic vial production line.

Ideal Applications

Oral Liquids: Ideal for compatible oral liquid products requiring 5–50 ml filling, automatic closure placement, and crimp capping.

Essential Oils: Suitable for compatible low-volume essential oil products that can be reliably handled by the magnetic pump filling system.

Injectable Liquids: The source document specifically lists injectable liquids among the compatible applications; the actual configuration should be matched to the required production and hygiene specifications.

Pharmaceutical Vials: Suitable for compatible pharmaceutical vial applications requiring automatic vial feeding, controlled filling, closure placement, and crimp capping.

Small-Dose Liquid Products: Particularly suitable for products packaged within the specified 5–50 ml filling range.

Food & Nutritional Liquids: Can be used for compatible small-dose food liquids where magnetic pump filling and vial-style packaging are appropriate.

Chemical & Laboratory Liquids: The supplied document also identifies chemical and research applications for compatible small-dose liquid products.

Crimp-Capped Vials: Particularly suitable for compatible containers requiring cap or stopper placement followed by crimp capping.

Complete Vial Processing Lines: The machine can be combined with the previous ZS-UVS3 drying tunnel and compatible bottle washing equipment to create a continuous Bottle Washing → Drying/Cooling → Vial Filling → Closure Placement → Crimp Capping production process.
