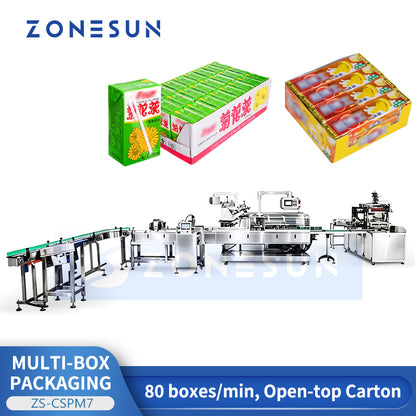

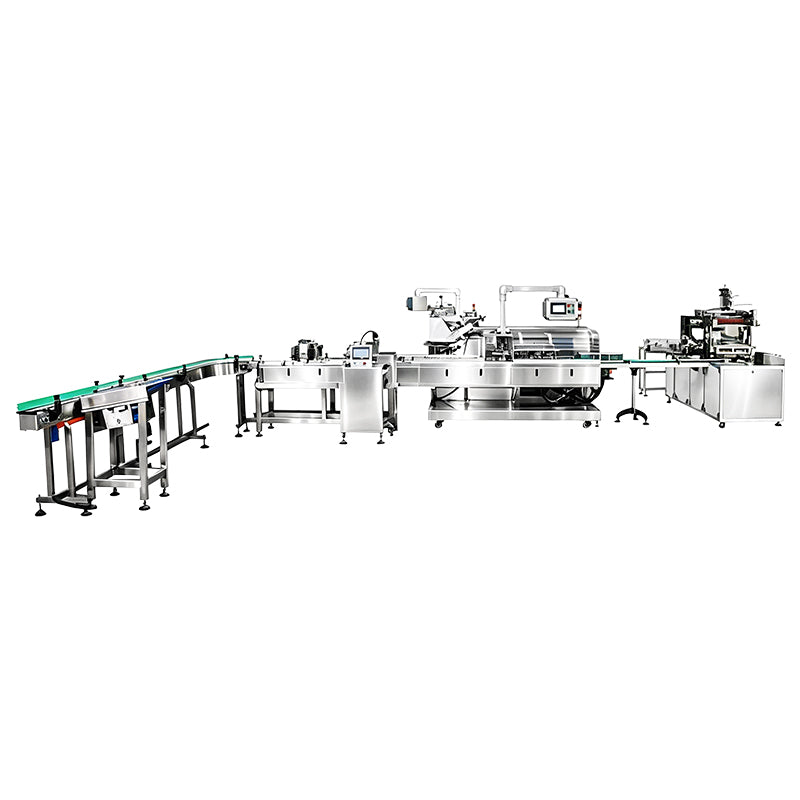

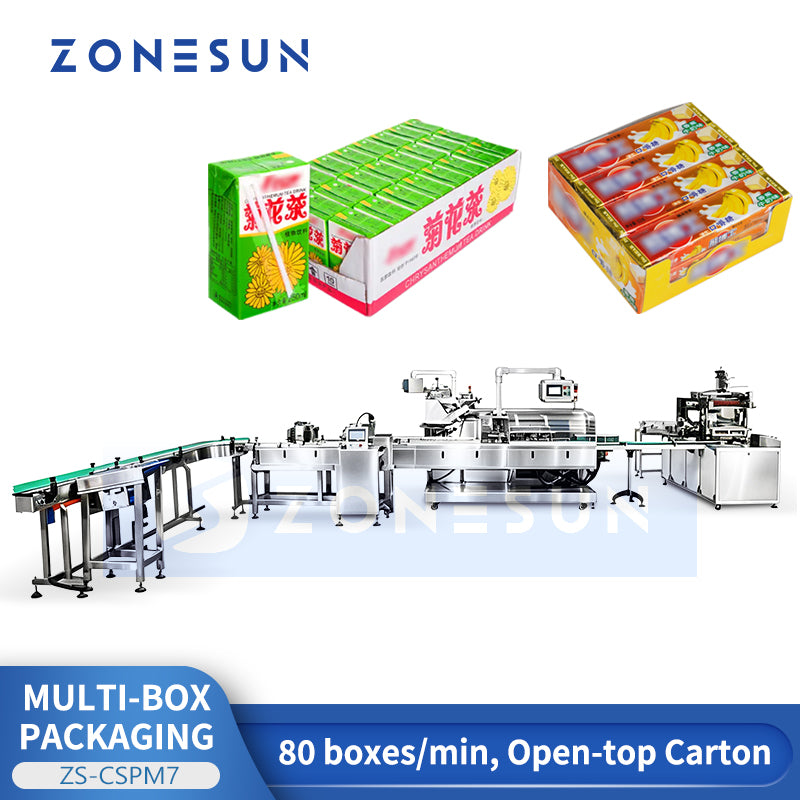

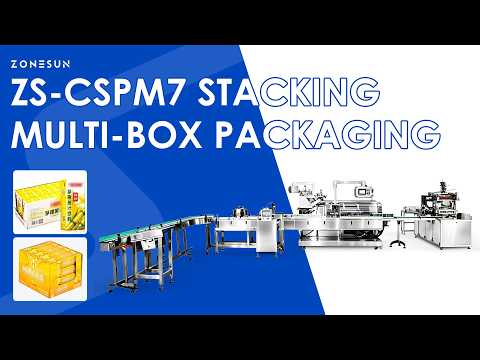

ZONESUN ZS-CSPM7 Automatic Multi-Box Stacking and Cartoning Machine

ZONESUN ZS-CSPM7 Automatic Multi-Box Stacking and Cartoning Machine

$100,000.00 USD
$100,000.00 USD
セール 売り切れ
配送料はチェックアウト時に計算されます。
Voltage

Description

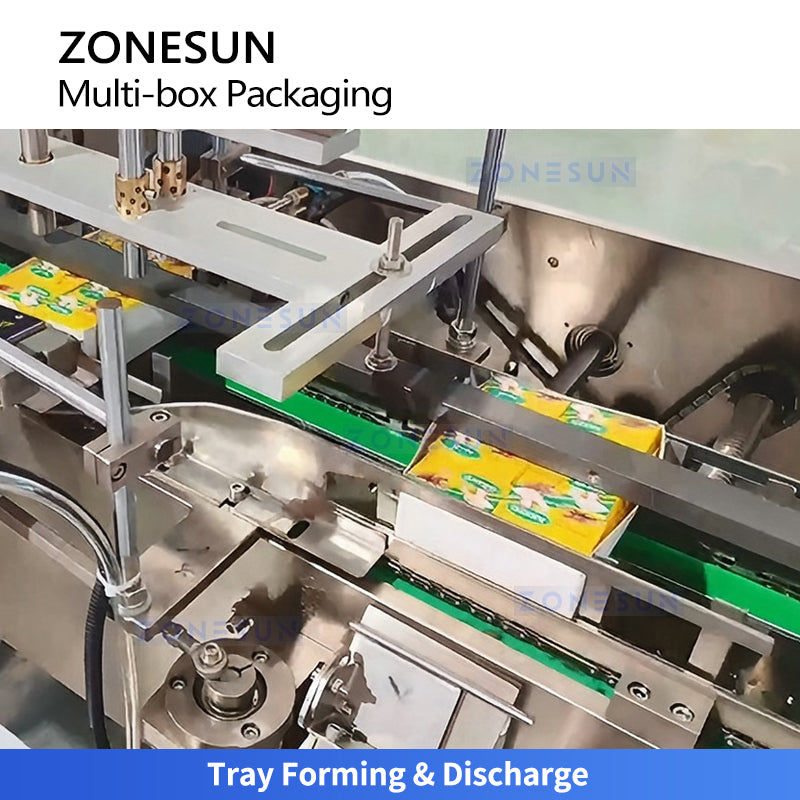

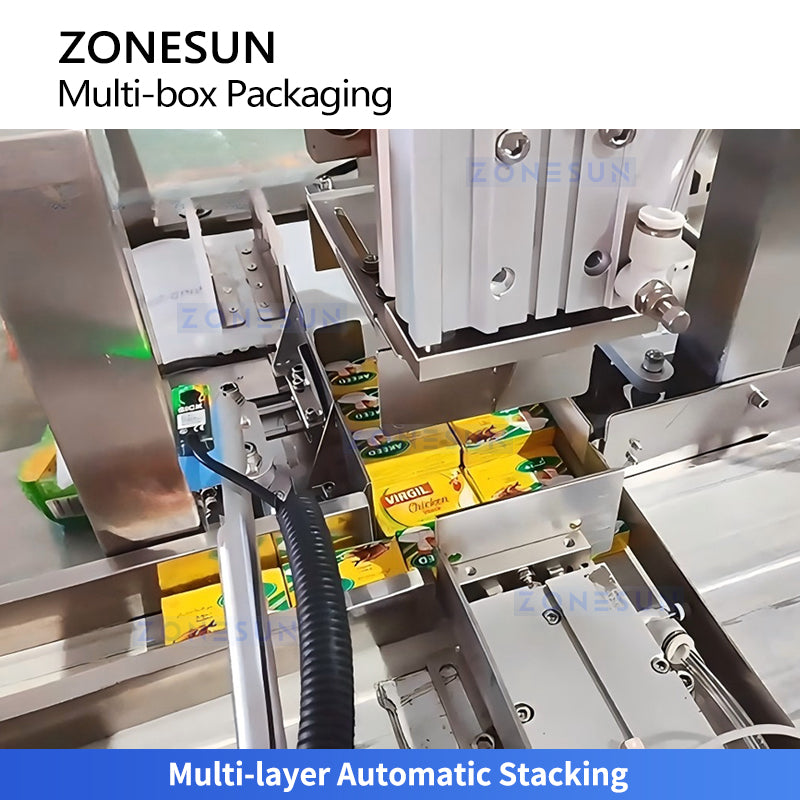

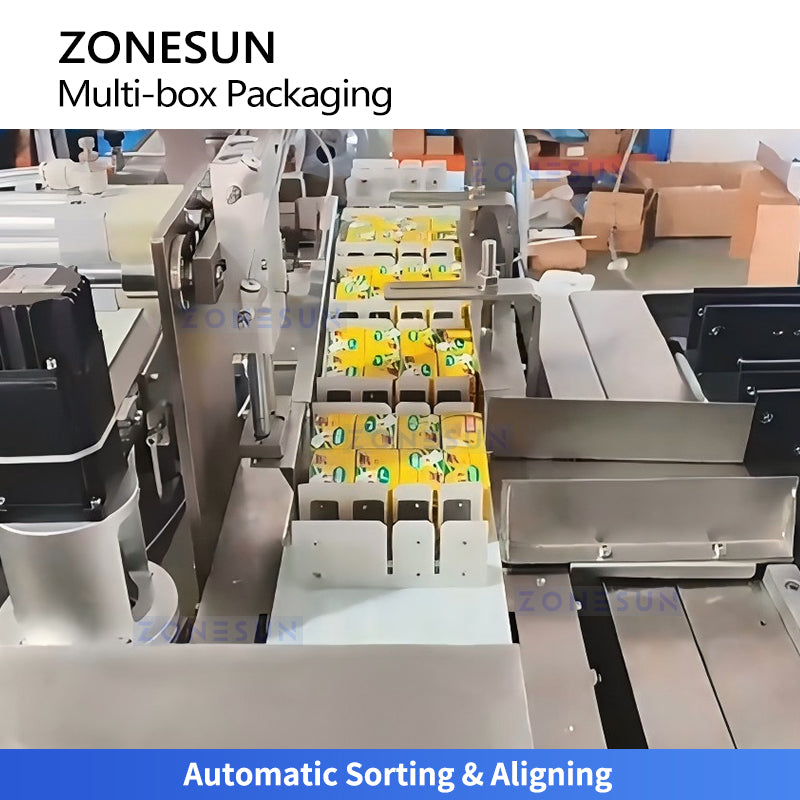

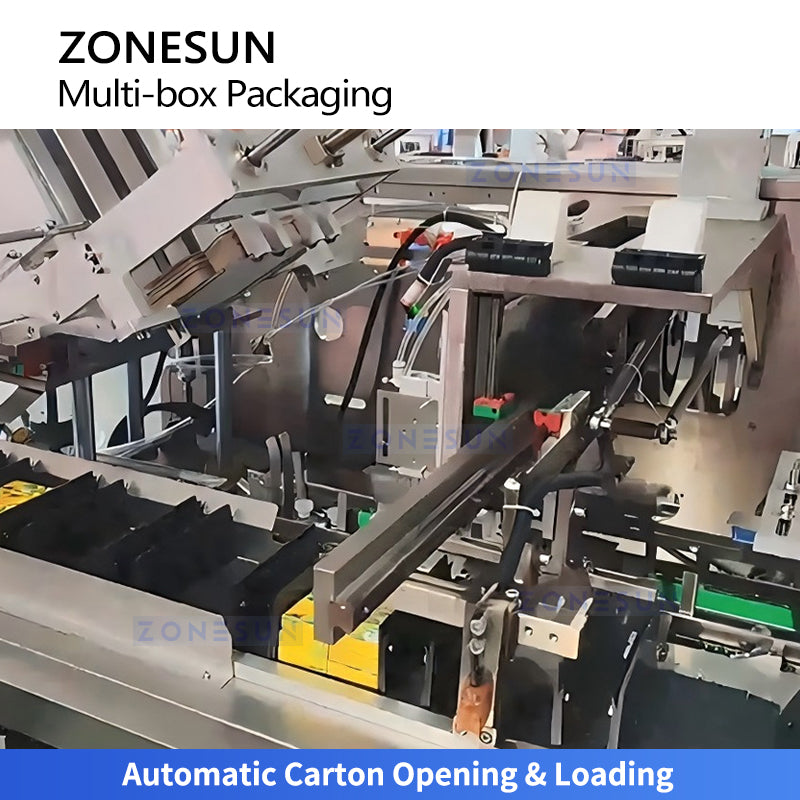

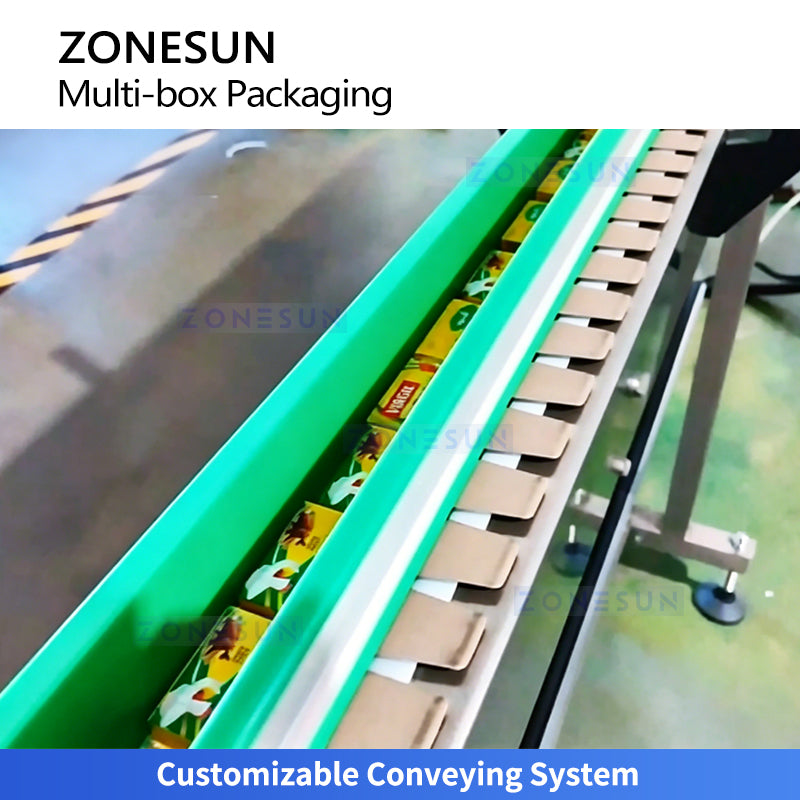

The ZONESUN ZS-CSPM7 is an automatic multi-box stacking and cartoning machine designed for high-speed horizontal grouping and open-top carton packaging. With a maximum output of 80 boxes/min, it integrates Customizable Conveying, Automatic Sorting & Aligning, Multi-layer Stacking, Carton Opening & Loading, and Tray Forming & Discharge into one compact system. It is ideal for food, daily chemical, and pharmaceutical products such as bouillon cubes, small cartons, soap bars, and similar boxed goods requiring precise counting, grouping, and open-top tray packaging.

Parameter

  • Model: ZS‑CSPM7
  • Packing Speed: Max 80 boxes/min
  • Carton Thickness Requirement: 250–450 g/m² (confirmed according to carton size)
  • Max Carton Dimension: 260 × 190 × 60–70 mm (customizable)
  • Working Pressure: ≥0.6 MPa
  • Air Consumption: 160–200 ml/min
  • Power Supply: 380 V, 50 Hz
  • Total Power: 1.5 kW
  • Machine Size: 5000 × 1200 × 1800 mm
  • Net Weight: 3000 kg
