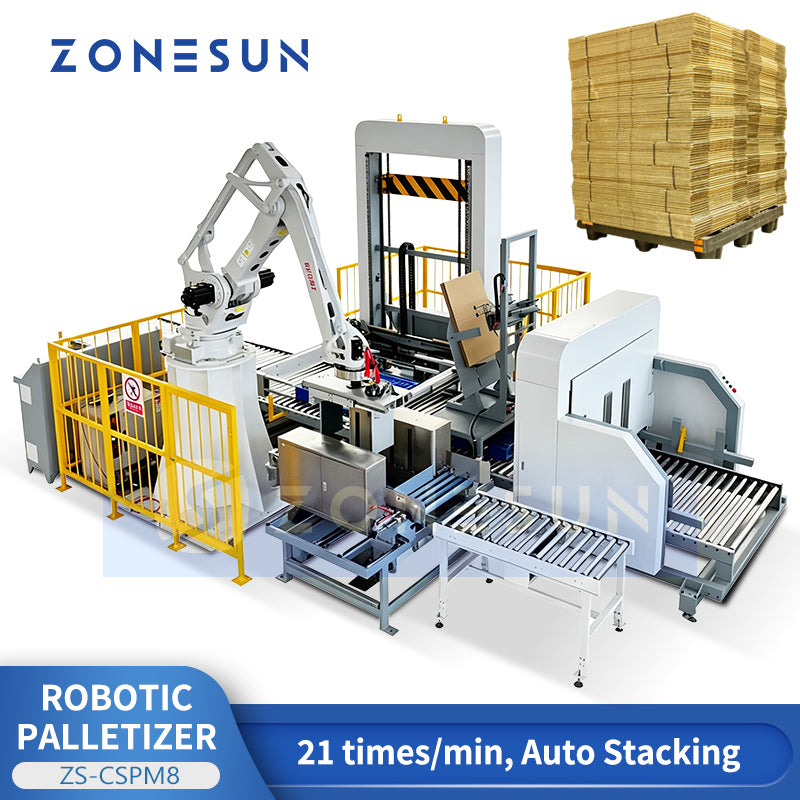

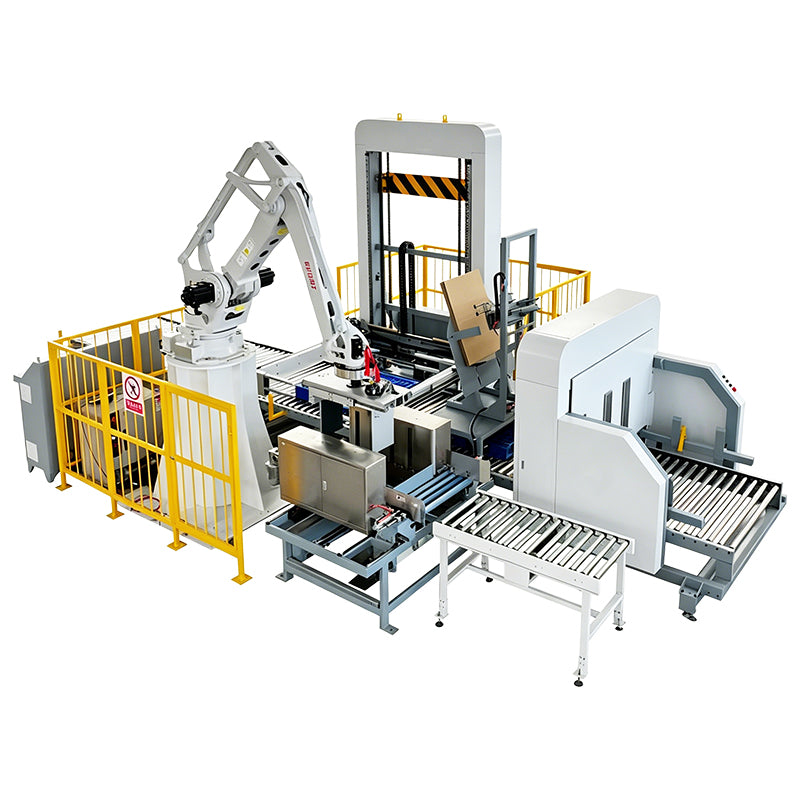

ZONESUN ZS-CSPM8 Corrugated Carton Robotic Palletizer Machine

Description

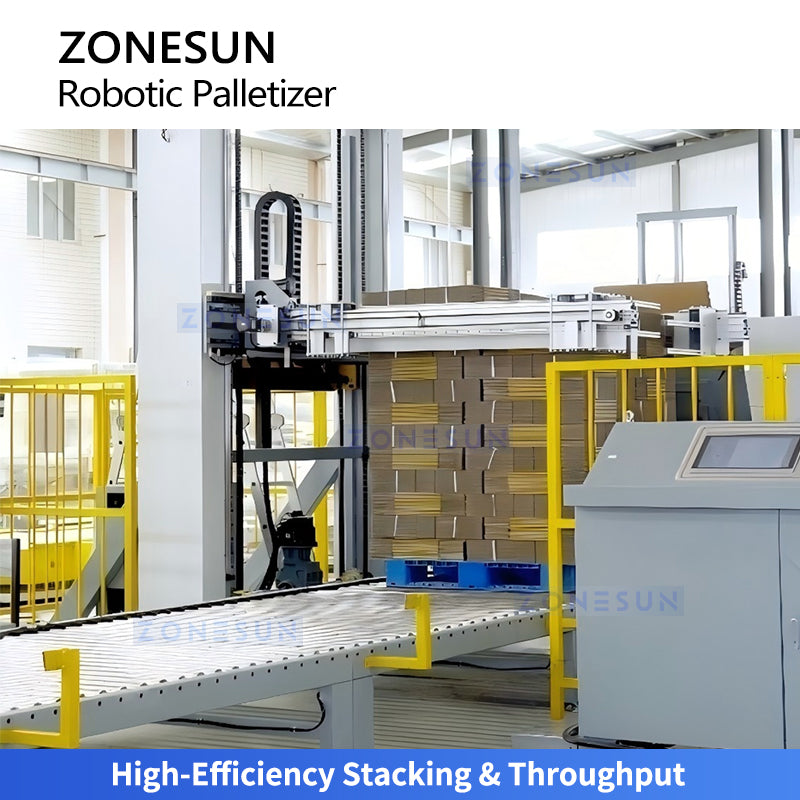

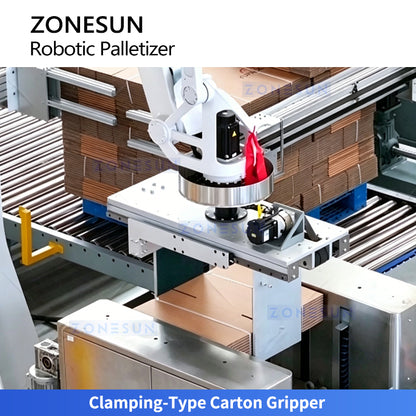

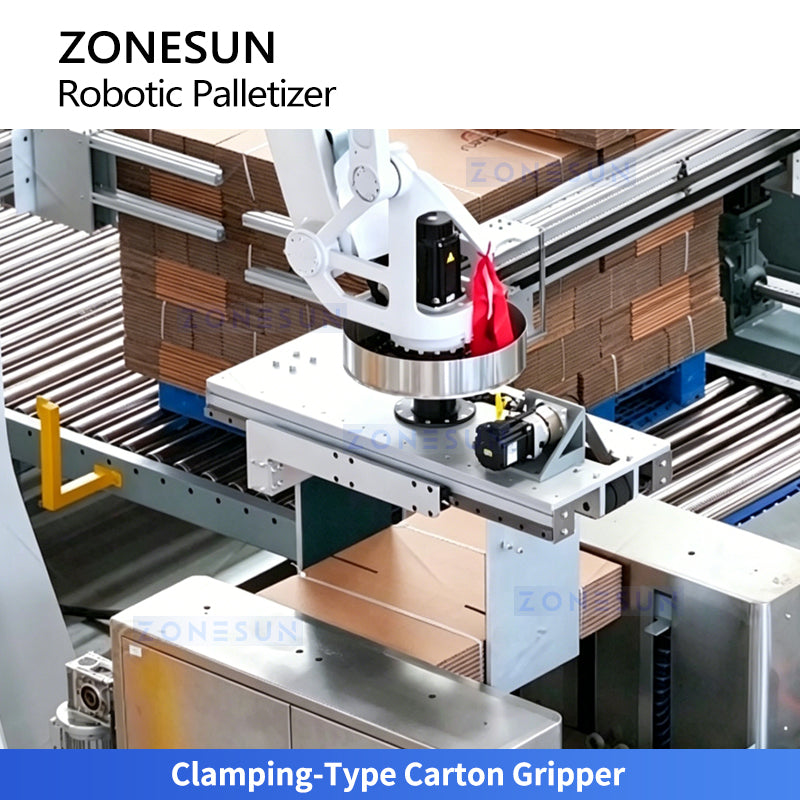

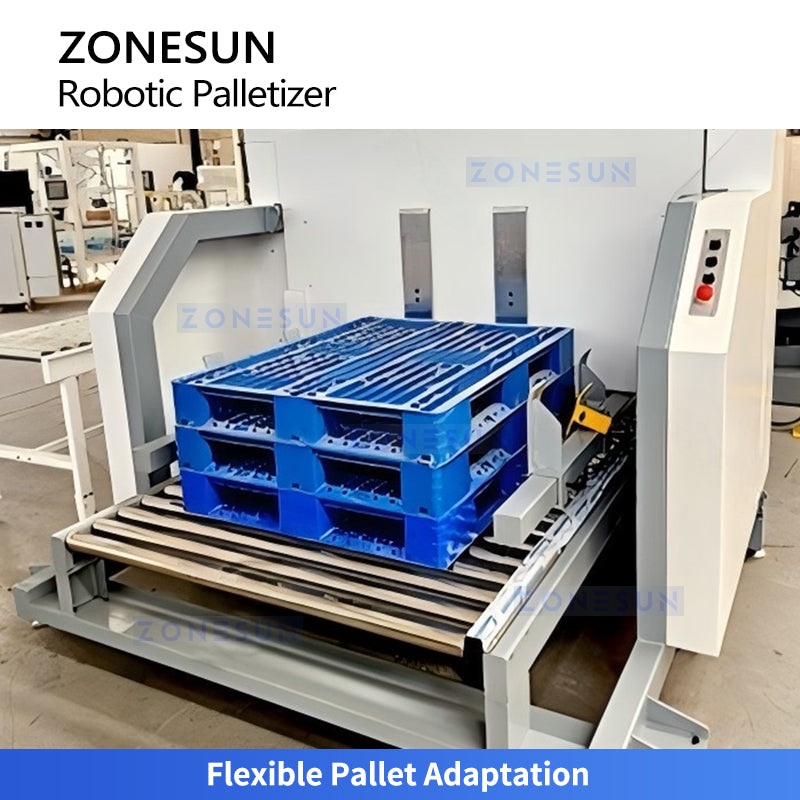

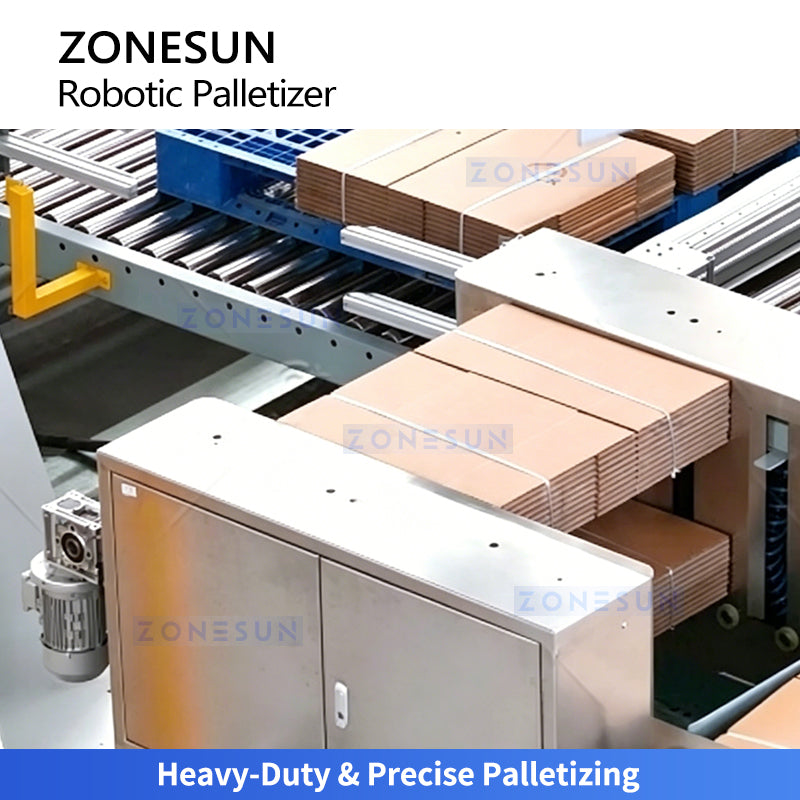

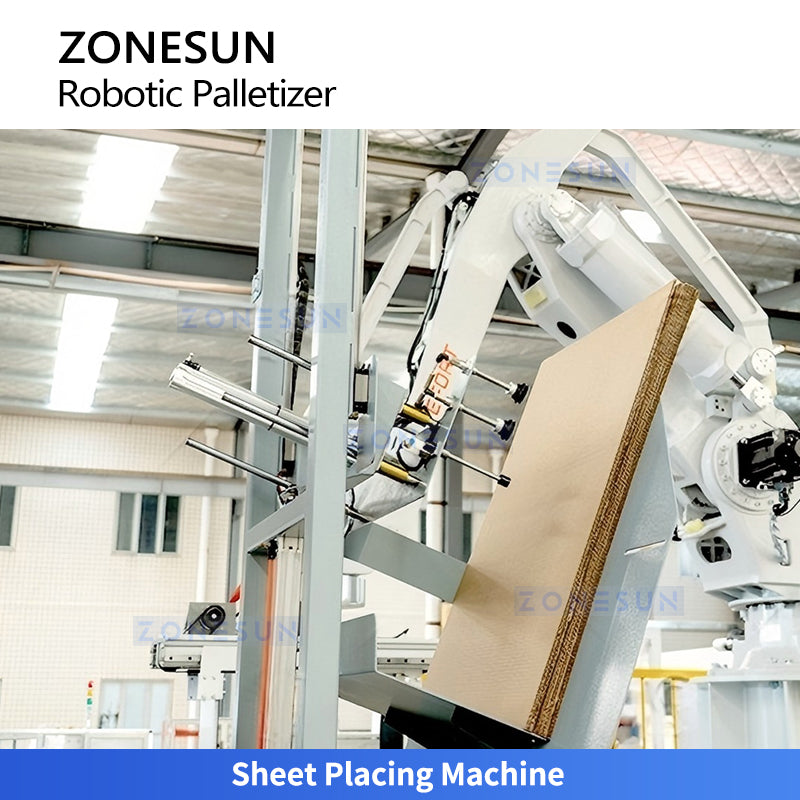

The ZONESUN ZS-CSPM8 is a high-performance corrugated carton robotic palletizer designed for automated stacking, sheet placing, and pallet handling at the end of production lines. With a palletizing speed of up to 21 cycles/min, it integrates Clamping-Type Carton Gripper, Heavy-Duty & Precise Palletizing, High-Efficiency Stacking & Throughput, Sheet Placing Machine, and Flexible Pallet Adaptation into one intelligent system. It is ideal for handling corrugated carton bundles, layer pads, and pallets in logistics, e-commerce, food, manufacturing, and packaging industries requiring stable, precise, and continuous palletizing.

Parameter

• Model: ZS‑CSPM8
• Max. Paper Size: 1450 × 1200 mm
• Min. Paper Size: 350 × 290 mm
• Max. Gripping Height: 350 mm
• Min. Gripping Height: 60 mm
• Max. Gripping Weight: 30+ kg
• Max. Pad Size: 1200 × 1000 mm
• Max. Stack Height: 2200 mm
• Max. Palletizing Speed: 21 times/min ±1
• Max. Pallet Size: 1500 × 1500 mm
• Min. Pallet Size: 1000 × 1200 mm
• Conveyor Line Speed: 0–30 m/min
