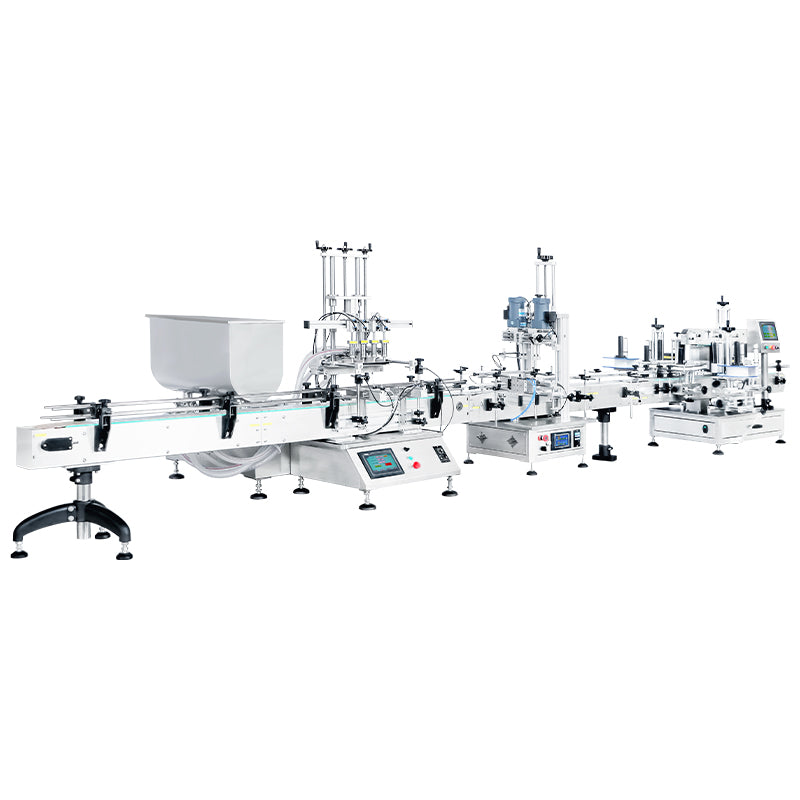

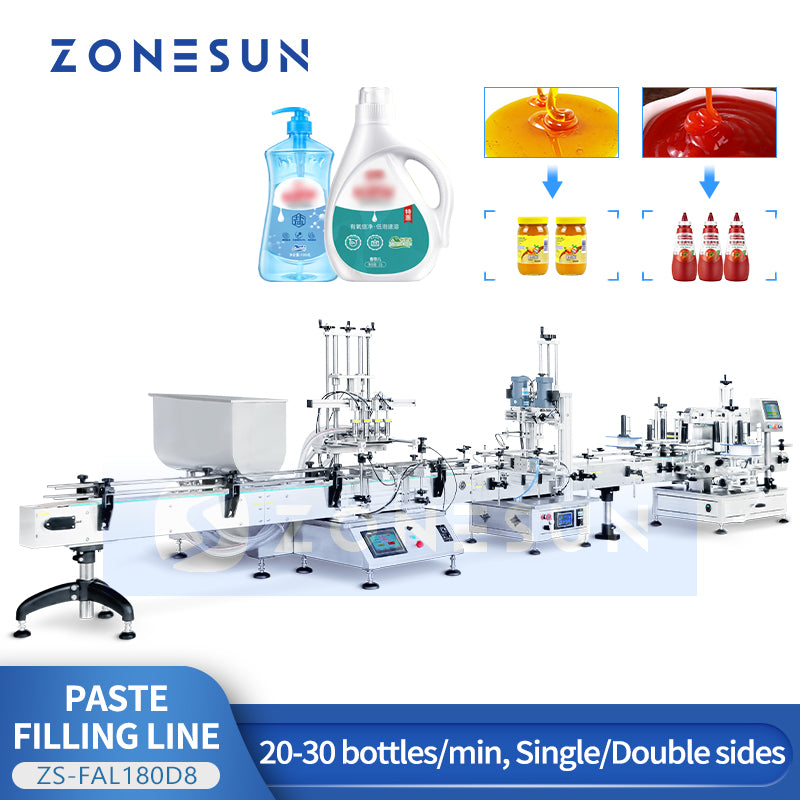

ZONESUN ZS-FAL180D8 Desktop Bottle Filling Capping Labeling Machine For Paste

Description

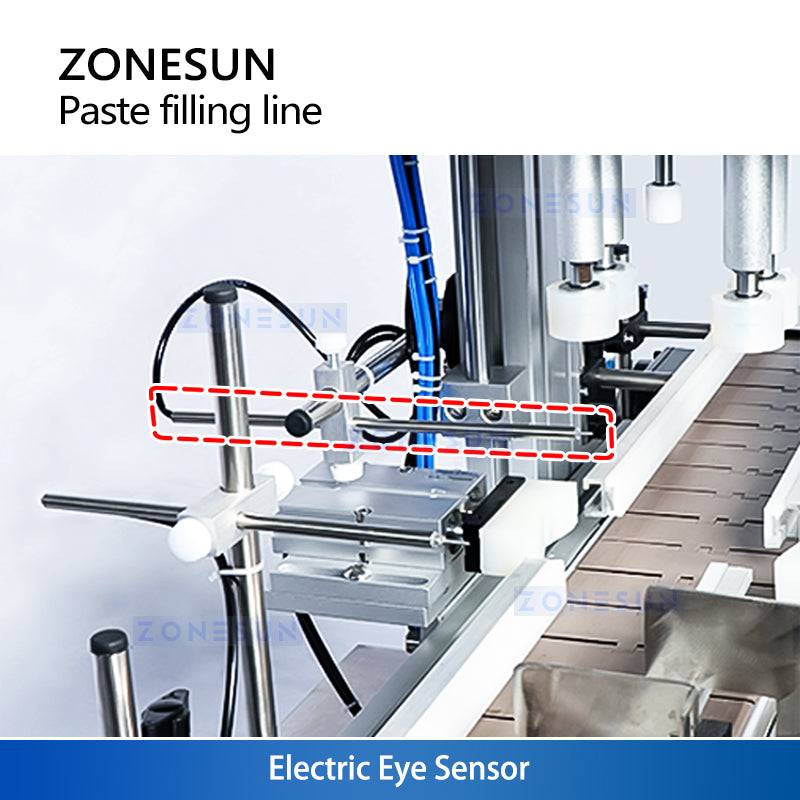

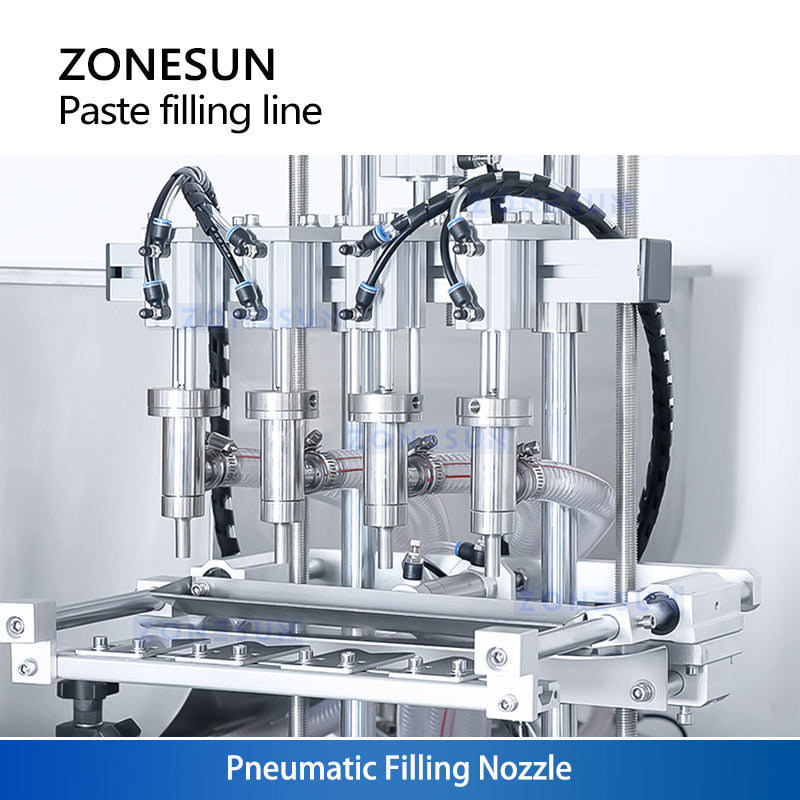

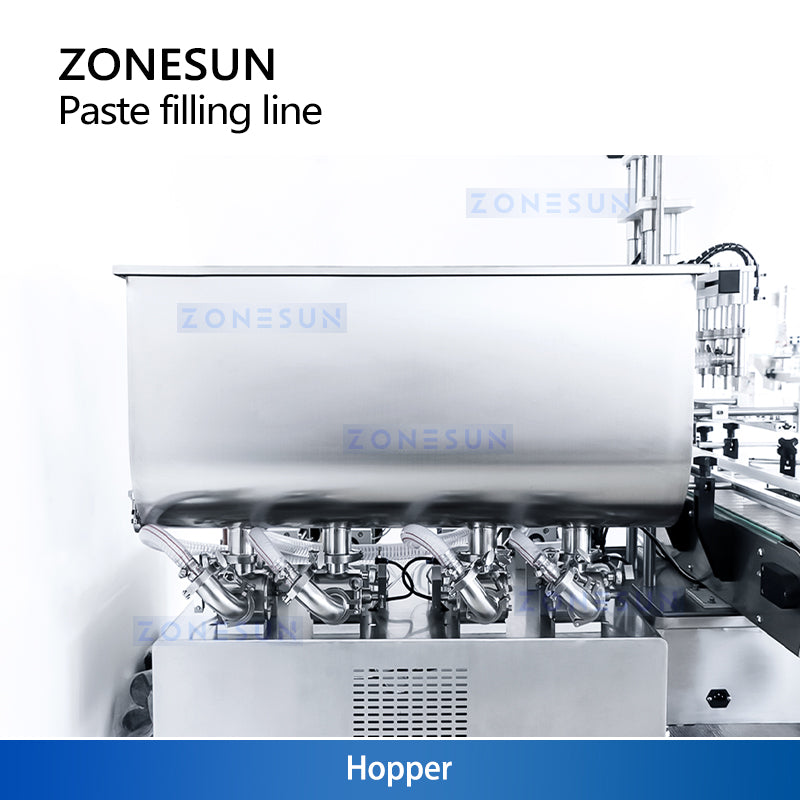

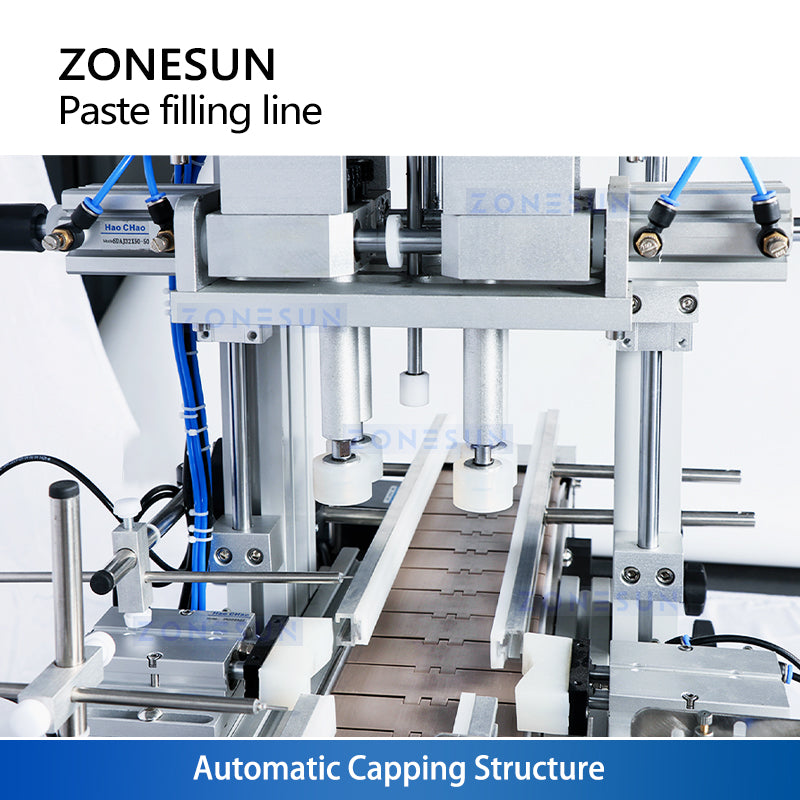

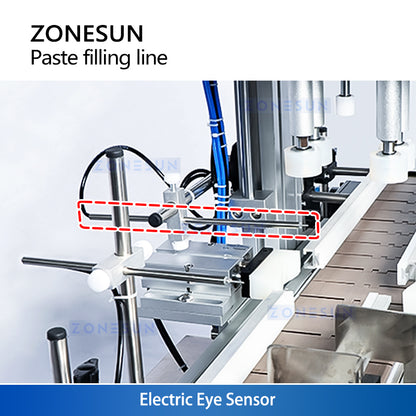

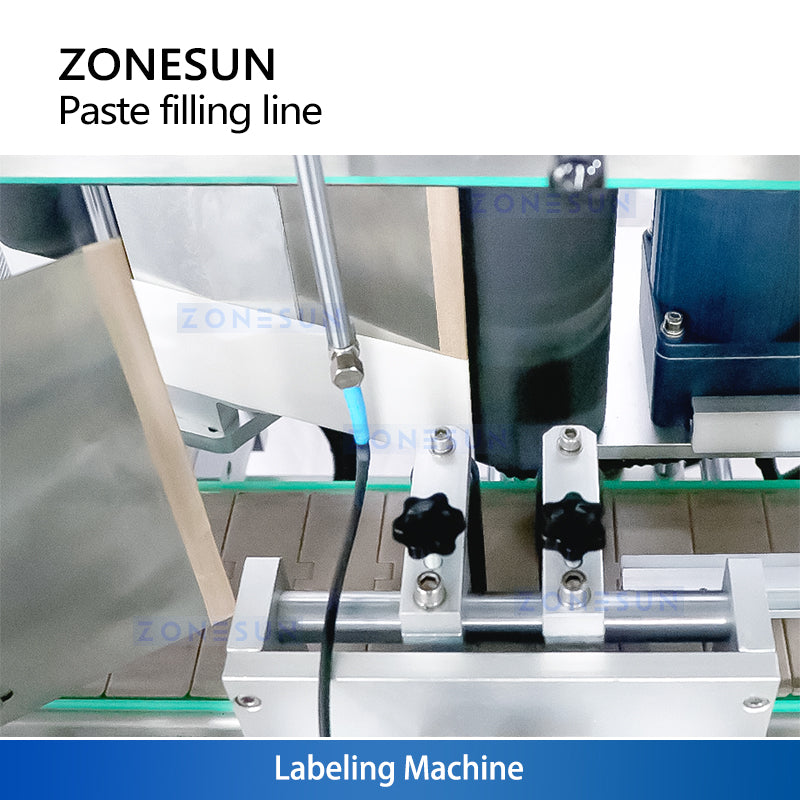

The ZONESUN ZS-FAL180D8 is a compact desktop production line integrating filling, capping, and labeling functions. Designed for paste products such as shampoo, shower gel, sauce, and hand sanitizer, it achieves 20–30 bottles per minute with high accuracy. Equipped with a 90L hopper, pneumatic filling nozzles, automatic capping structure, electric eye sensor, and dual-use labeling machine, it ensures efficient, hygienic, and flexible packaging for both round and square bottles.

ZS‑DTGT4T

• Model: ZS‑DTGT4T
• Power Supply: 110 / 220 V, 50–60 Hz, 300 W
• Filling Range:
  10–100 ml / 30–300 ml / 50–500 ml / 100–1000 ml / 500–2500 ml / 1000–5000 ml
• Working Speed: 20–30 bottles/min (depends on liquid & filling volume)
• Hopper Size: 90 L
• Conveyor Size: About 1300 × 100 mm
• Filling Nozzle Size: OD 10 mm (other sizes optional)
• Filling Accuracy: ≤ ±1%
• Machine Size (L×W×H): About 1300 × 1440 × 1200 mm
• Package Size (L×W×H): About 1550 × 1400 × 1330 mm
• Package Weight: About 237 kg

ZS‑XG1870

• Model: ZS‑XG1870
• Bottle Height: 60–270 mm
• Bottle Cap Diameter: 18–70 mm
• Working Speed: 20–40 bottles/min (depends on bottle & cap size)
• Working Voltage: AC 220 V / 110 V, 50–60 Hz
• Working Pressure: 0.4–0.6 MPa
• Machine Size (L×W×H): 1120 × 580 × 1110 mm
• Conveyor Length: 1117 mm
• Air Compressor Connector: OD 8 mm
• Package Size (L×W×H): 1160 × 610 × 1140 mm
• Package Weight: About 97.5 kg

ZS‑TB300N

• Model: ZS‑TB300N
• Voltage: 110 V, 60 Hz / 220 V, 50 Hz
• Power: 1.5 kW
• Working Speed: About 30–100 bottles/min
• Labeling Accuracy: ±0.5 mm
• Suitable Labeling Size: ≤150 mm (W) (customizable)
• Roll Inside Diameter: Φ75 mm
• Roll Outside Diameter: Φ250 mm
• Suitable Bottle Diameter: Φ≤100 mm; Height ≤350 mm
• Conveyor Size: About 2010 × 100 mm
• Machine Size (L×H×W): About 2000 × 1150 × 900 mm
• Machine Weight: About 208 kg
