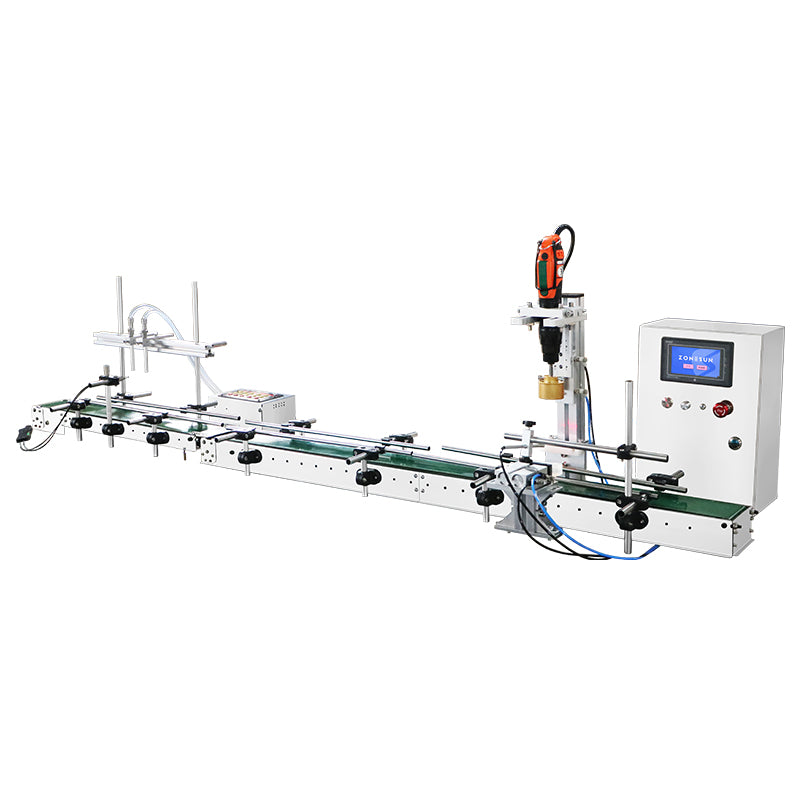

ZONESUN ZS-FAL180DT Automatic Desktop Dual-Head Filling Capping Line

Description

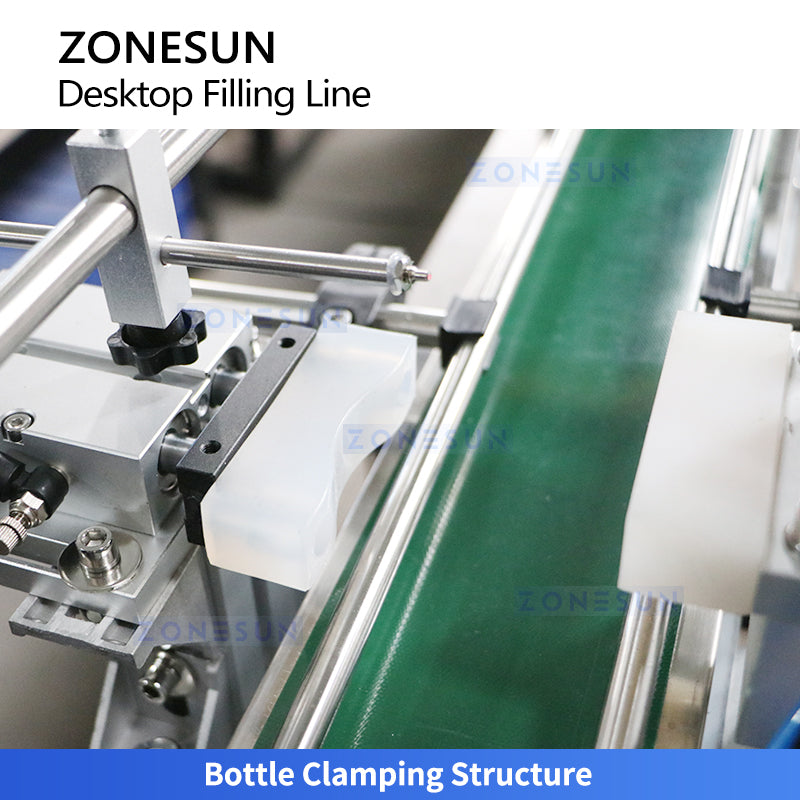

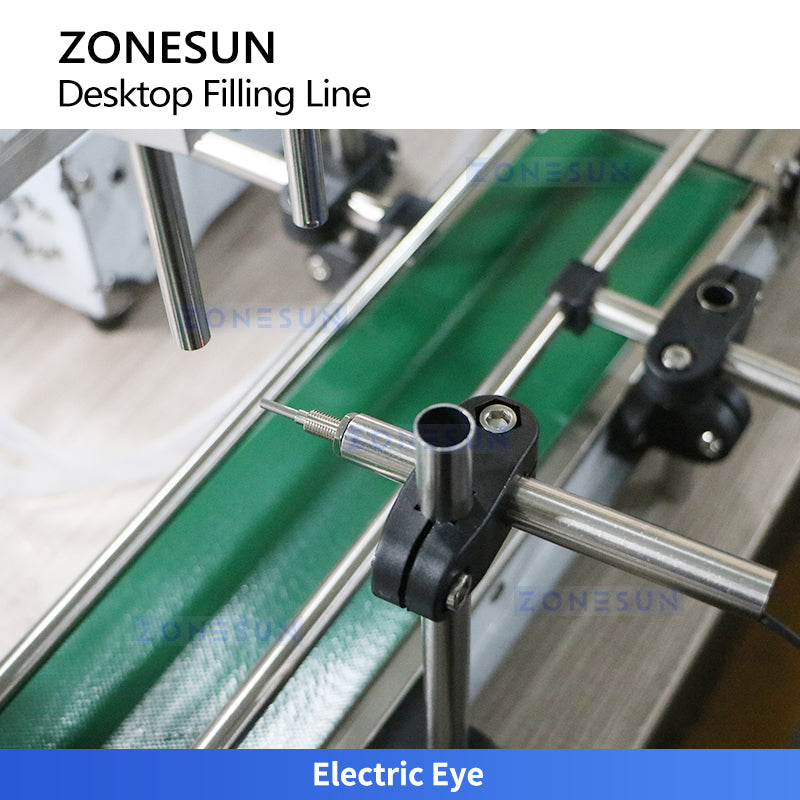

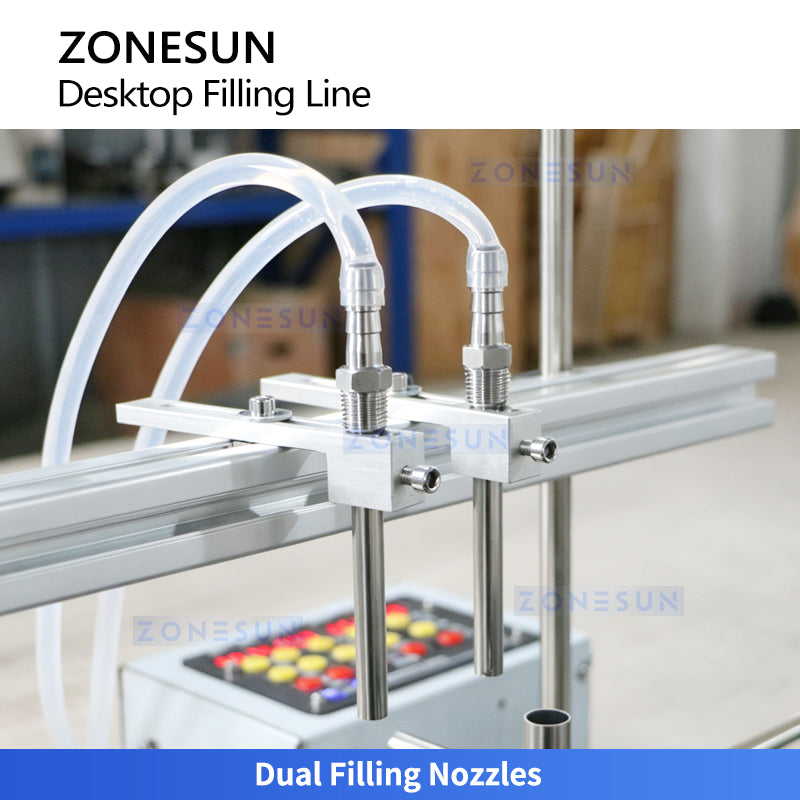

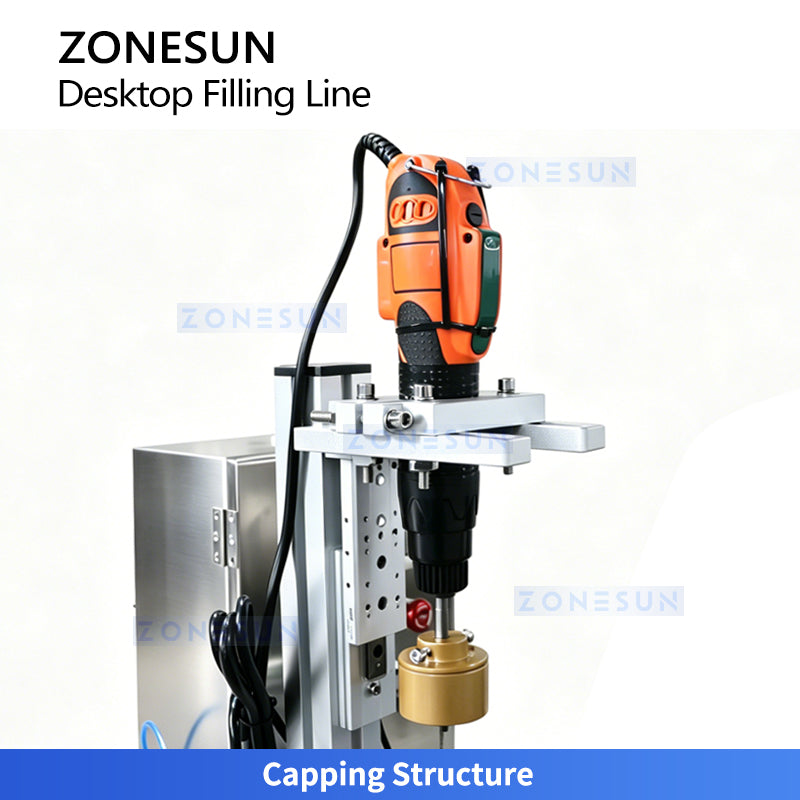

The ZONESUN ZS-FAL180DT is a compact desktop dual-head filling and capping production line designed for small to medium-scale liquid packaging. Equipped with dual filling nozzles, an electric eye for bottle detection, a motor-driven capping structure with pneumatic lifting, and a bottle clamping mechanism, it provides stable, accurate, and synchronized filling-capping performance.Ideal for water, beverages, sauces, juices, soybean milk, toner, and other low-viscosity, particle-free, non-foaming liquids. Its modular design integrates filling, conveying, bottle positioning, and screw-cap tightening into one streamlined system, making it ideal for laboratories, workshops, and small production environments.

ZS‑DPYT1500

• Model: ZS‑DPYT1500
• Output Voltage: DC 12 V
• Max Temperature: 5–100 °C
• Minimum Filling Rate: 5 ml
• Recommended Filling Range: 5–250 ml
• Max Filling Rate: 3000 ml/min
• Filling Speed: Adjustable
• Filling Counter: 1–9999
• Inlet Tube Length: 1.5 m
• Outlet Tube Length: 0.8 m
• Memory Function: Available

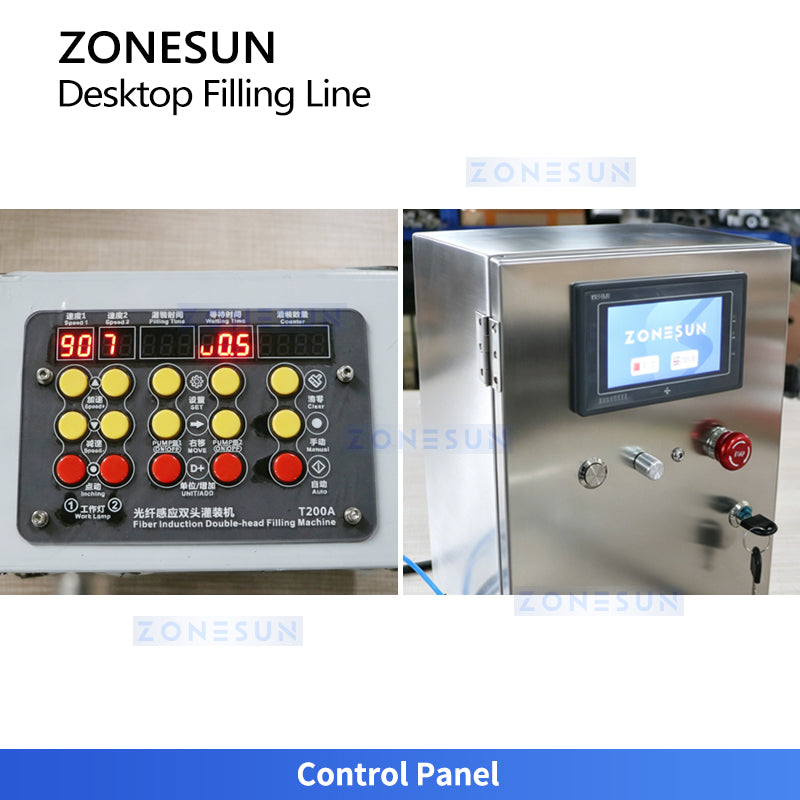

• Working Modes: Manual / Automatic / Intelligent induction
• Filling Nozzle Diameter: 7 mm (inner) × 11 mm (outer)
• Machine Size (L×W×H): 636 × 166 × 179 mm
• Package Size (L×W×H): 650 × 170 × 180 mm

ZS‑XGC1

• Model: ZS‑XGC1
• Voltage: 110 / 220 V, 50–60 Hz
• Capacity: 15–24 seals/min
• Cap Diameter: Standard 10–50 mm (customizable)
• Bottle Diameter: 30–70 mm
• Bottle Height: 90–200 mm
• Capper Power: 100 W
• Capper Pressure: 3–40 kgf/cm²
• Conveyor Size: 1200 × 100 mm
• Conveyor Payload: 6 kg
