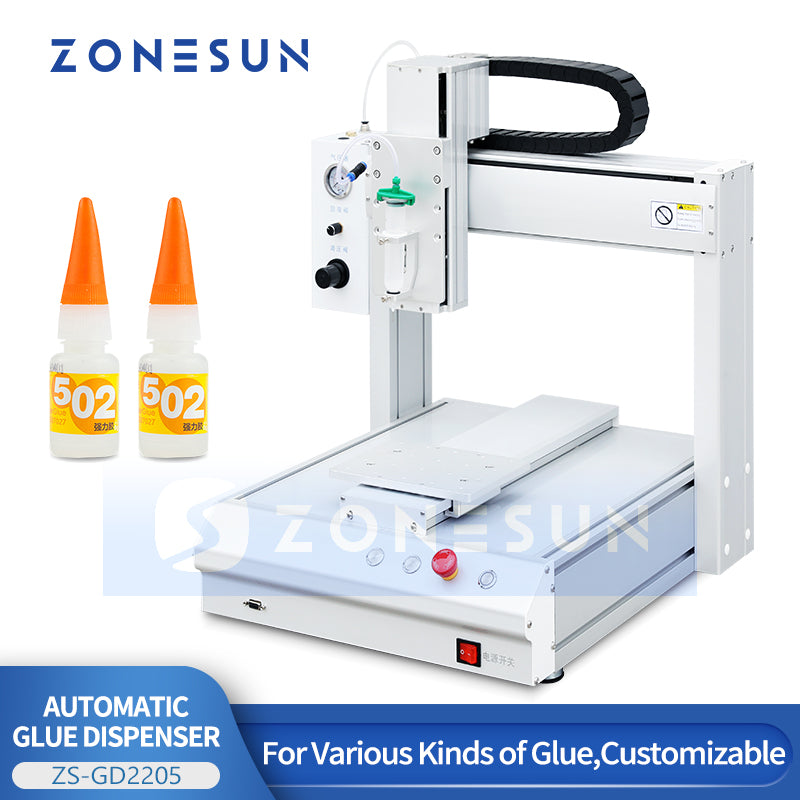

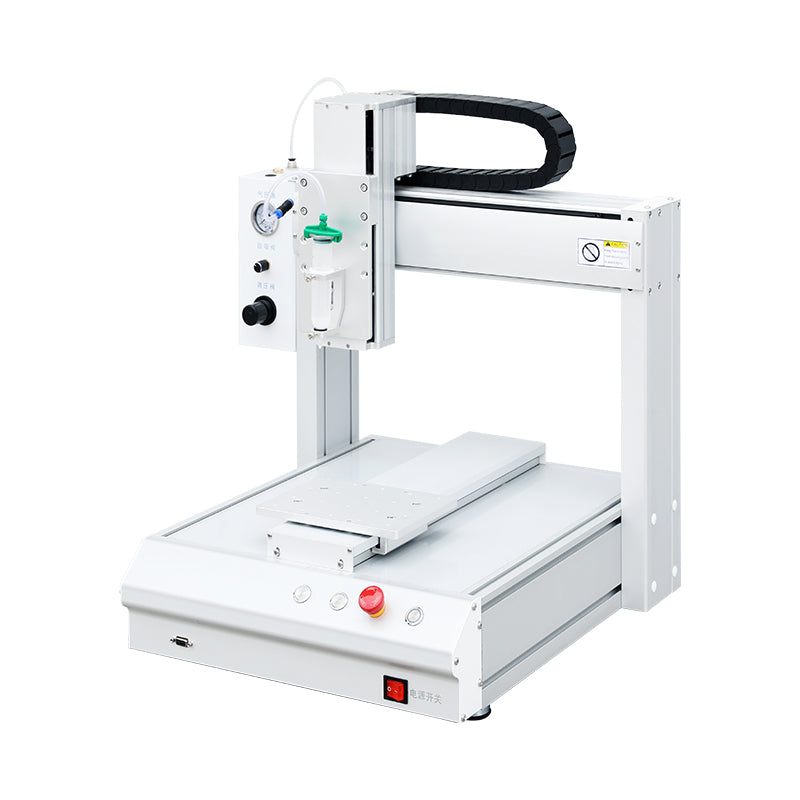

ZONESUN ZS-GD2205 Automatic Glue Dispensing Machine
ZONESUN ZS-GD2205 Automatic Glue Dispensing Machine
受取状況を読み込めませんでした
DESCRIPTION
The ZONESUN ZS-GD2205 is an automatic glue dispensing machine designed for precise, consistent, and efficient adhesive application. Suitable for glues of various viscosities, it delivers stable dispensing performance for a wide range of production needs. The machine features an intuitive control panel for easy parameter adjustment, ensuring accurate flow control and uniform glue output. With customizable dispensing settings and optional configurations, it adapts to different products, materials, and process requirements. Compact in design and simple to operate, the ZS-GD2205 is ideal for electronics assembly, crafts, packaging, DIY production, and industrial manufacturing where reliable and repeatable glue application is essential.
Important Notes
- The 3-Axis Moving Dispensing Machine standard syringe capacity is 30 mL. A 300 mL syringe is available at an additional cost of US$50/pc.
- Please provide the glue TDS before ordering to confirm equipment compatibility.

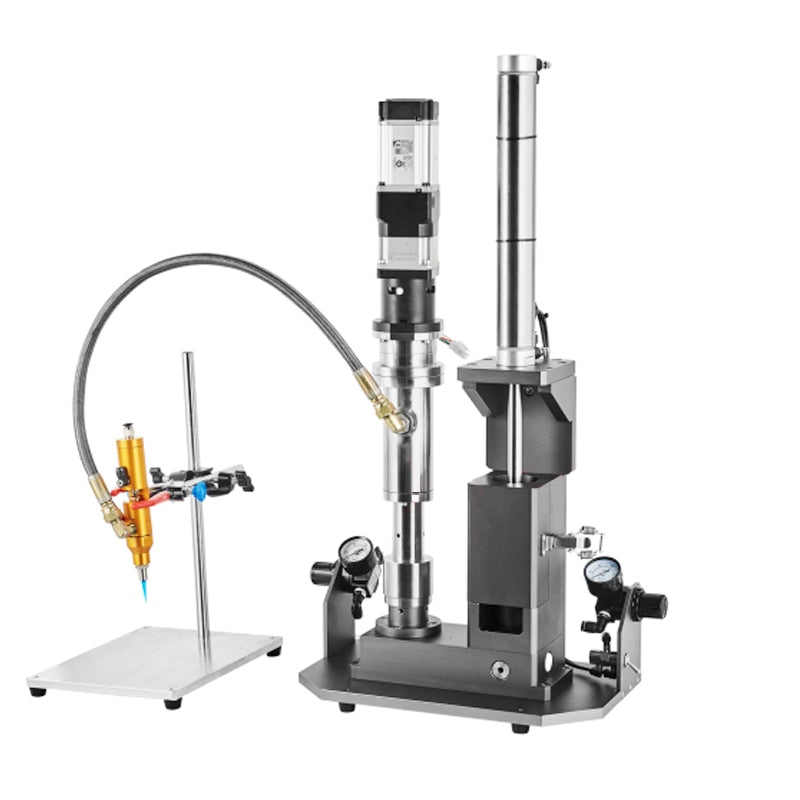

- The dispensing machine is generally used with a glue supply system. Without the supply system, the syringe must be removed and manually refilled.
- An external adhesive supply system is required and must be purchased separately.
Specification
| Model | ZS-GD220S | ZS-GD331 | ZS-GD441 | ZS-GD551 | ZS-GD431X | ZS-GD531X | ZS-GD631X |
|---|---|---|---|---|---|---|---|
| Control Axis | 3-axis (XYZ) | Dual Y-axis | Dual Y-axis | Dual Y-axis | Dual Y-axis | Dual Y-axis | Dual Y-axis |
| X-axis Travel | 200mm | 300mm | 300mm | 300mm | 300mm | 300mm | 300mm |
| Y-axis Travel | 200mm | 300mm | 400mm | 500mm | 300mm | 400mm | 500mm |
| Z-axis Travel | 100mm | 100mm | 100mm | 100mm | 300mm | 300mm | 300mm |
| Working Range | 200×200mm | 300×300mm | 300×400mm | 300×500mm | 300×300mm | 300×400mm | 300×500mm |
| Machine Size (L×W×H) | 475×415×350mm | 520×580×440mm | 580×680×490mm | 685×785×560mm | 585×580×440mm | 585×680×490mm | 685×785×560mm |
| Machine Weight | 35kg | 44kg | 55kg | 66kg | 50kg | 60kg | 75kg |
⚙️ Additional Specifications
| Parameter | Specification |
|---|---|
| Accuracy | Customizable to within ±0.002mm |
| Drive Control | Handheld teach pendant |
| Motor System | Taiwan step motor + timing belt + Japan guide rail |
| Processing Speed | Supports ~1000 sets of data; max 32MB per file |
| Storage | Built-in + external 3MB storage |
| Supported File Format | CAD / CorelDRAW |
| Control Box Capacity | 256MB |
| Offline Card Capacity | 32MB |
| Power Supply | AC220V, 50–60Hz, 350W |

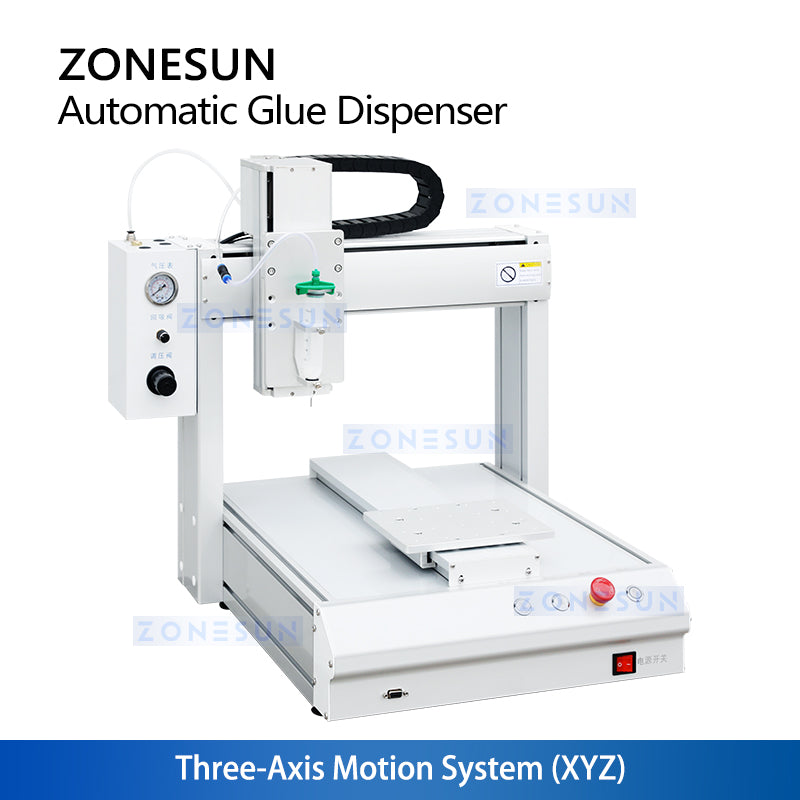

Three-Axis Motion System (XYZ)
Delivers precise three-axis motion control, positioning the dispensing head on X/Z axis and moving the workpiece on Y axis for accurate, repeatable dispensing.

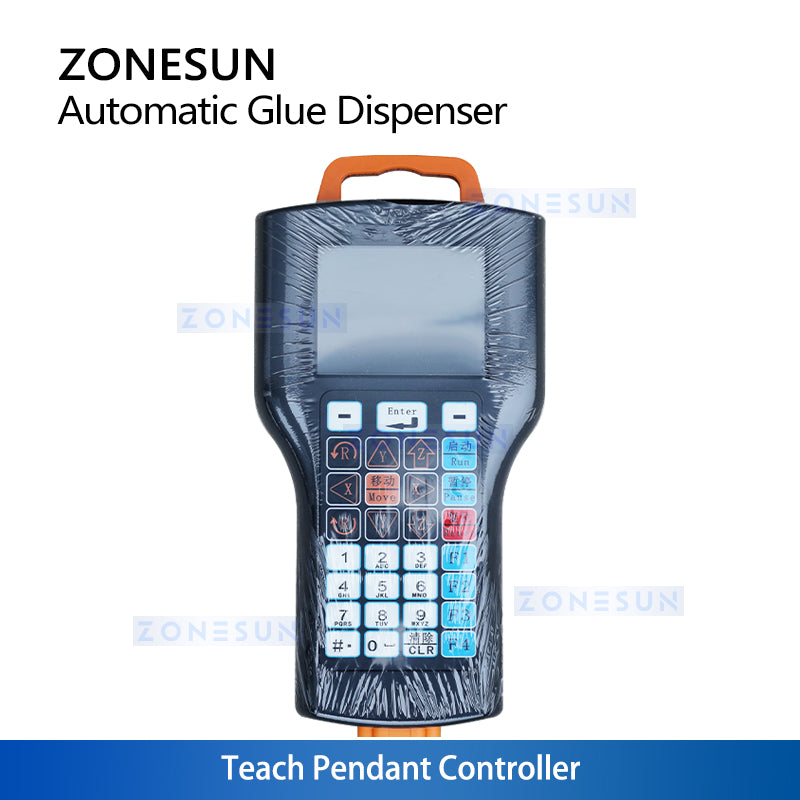

Teach Pendant Controller
Allows manual positioning of the dispensing head and records coordinate points to program precise dispensing paths.

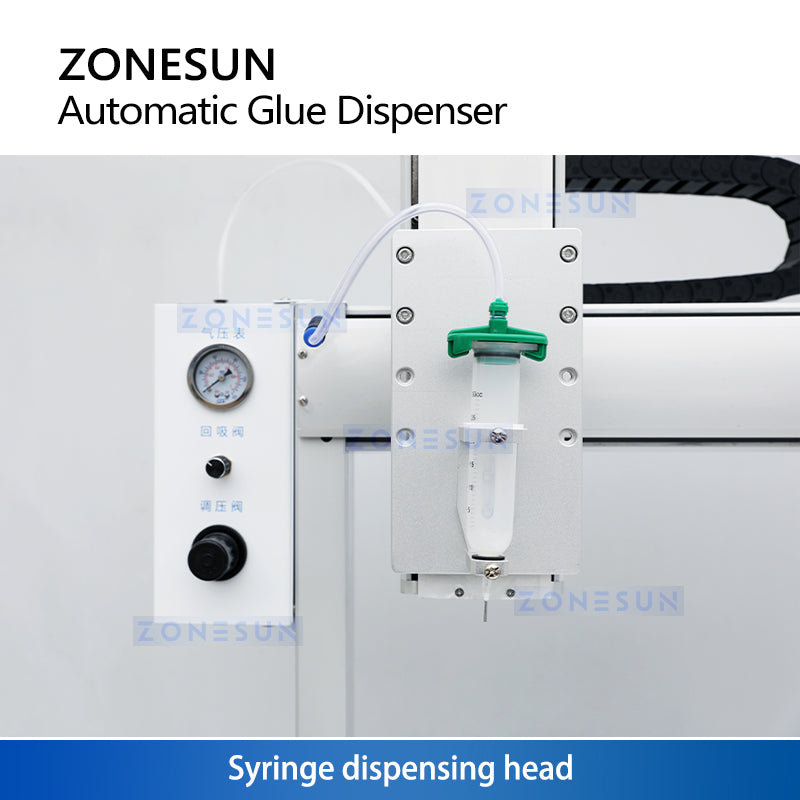

Syringe dispensing head
Provides a fine dispensing outlet at the lowest point, allowing different needle sizes and lengths to be selected based on adhesive viscosity and required dispensing width.

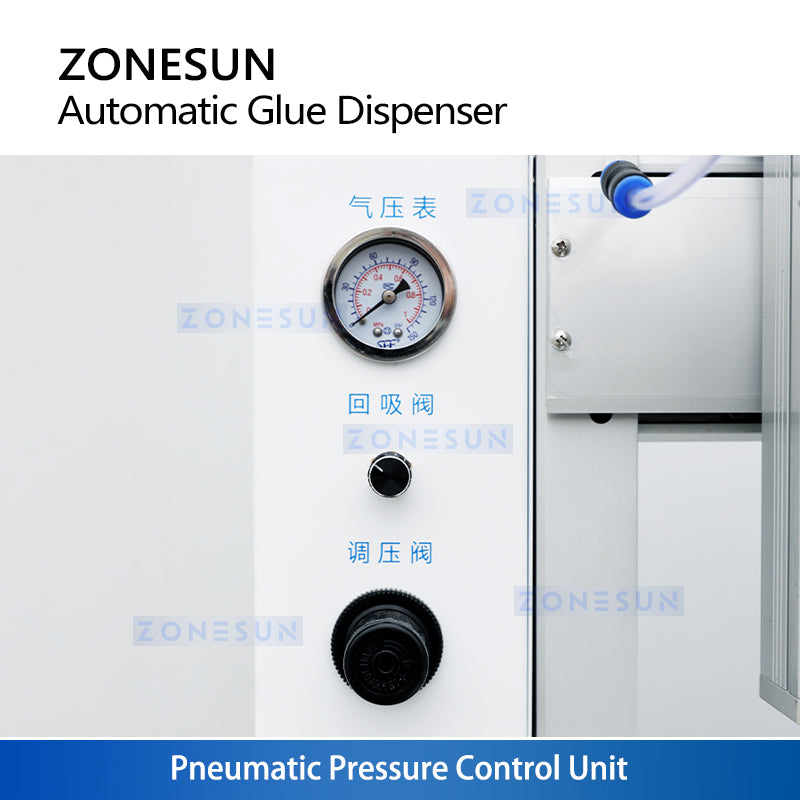

Pneumatic Pressure Control Unit
Displays real-time pressure supplied to the syringe and regulates output pressure to ensure stable, accurate adhesive dispensing.

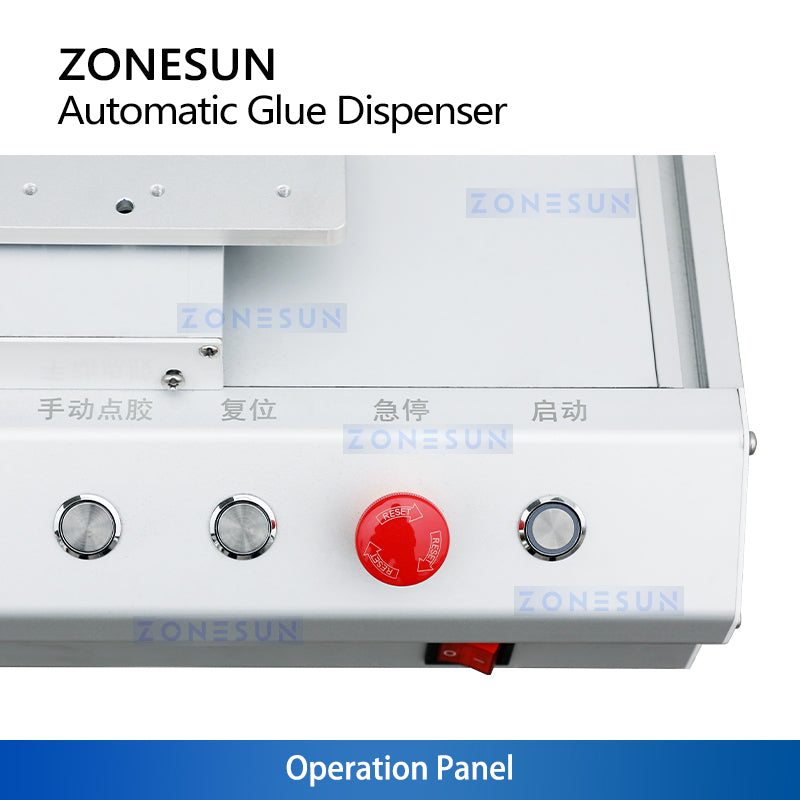

Operation Panel
Provides direct machine control with functions for manual dispensing, reset, start, and emergency stop, ensuring safe and efficient operation.
