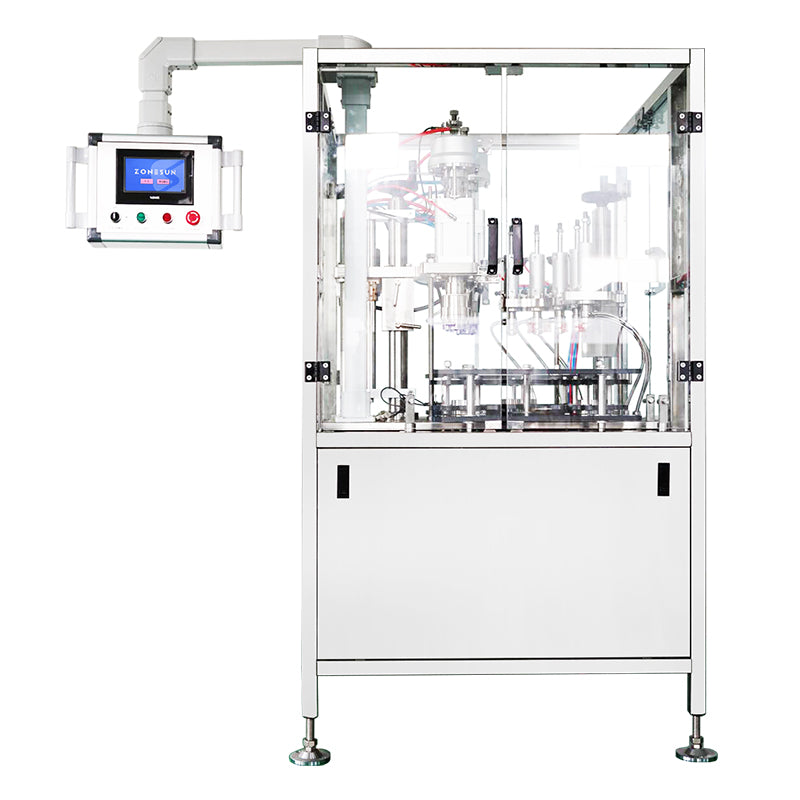

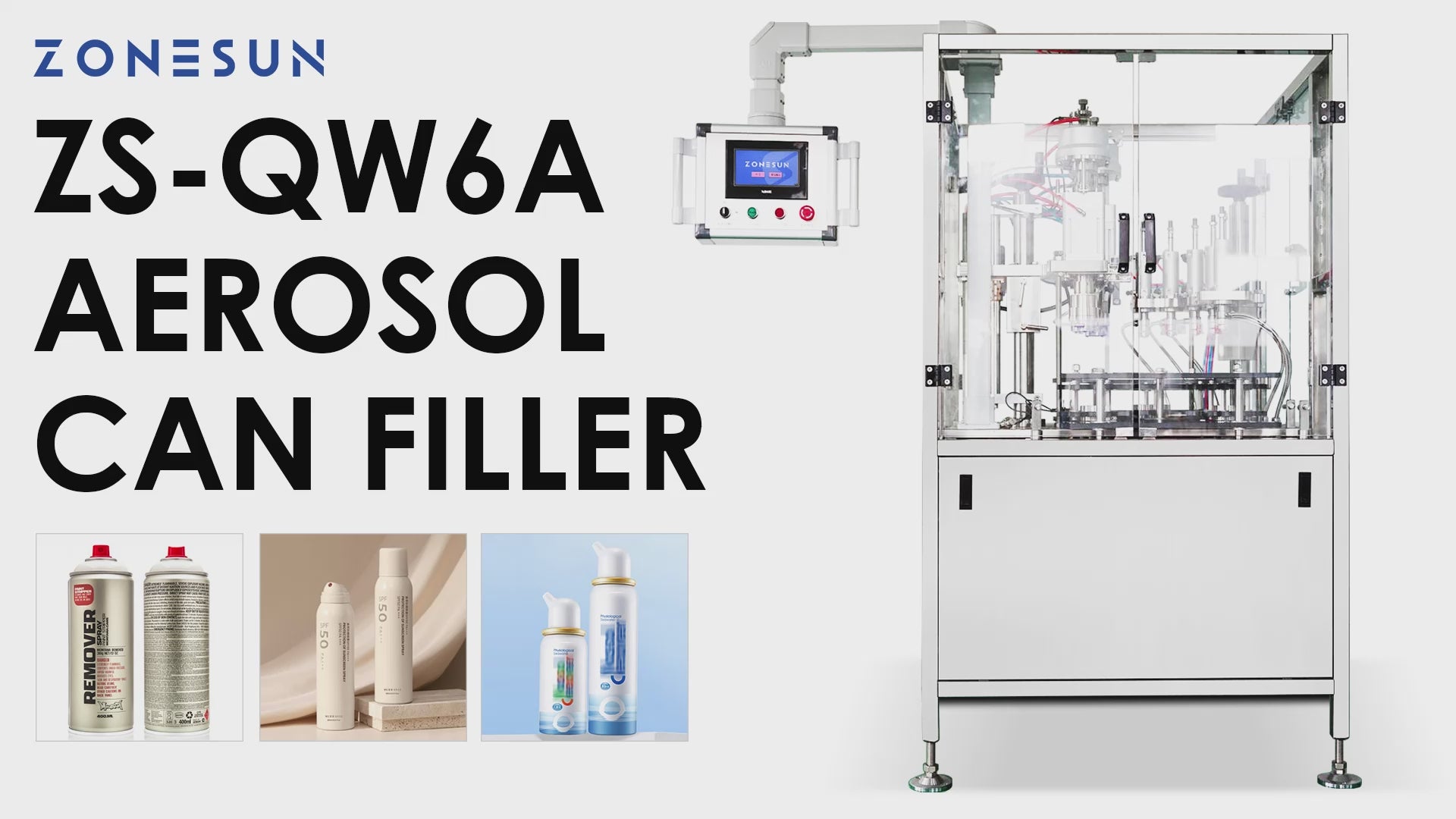

Zonesun ZS-QW6A Bag on Valve Aerosol Filling and Crimping Machine

Description

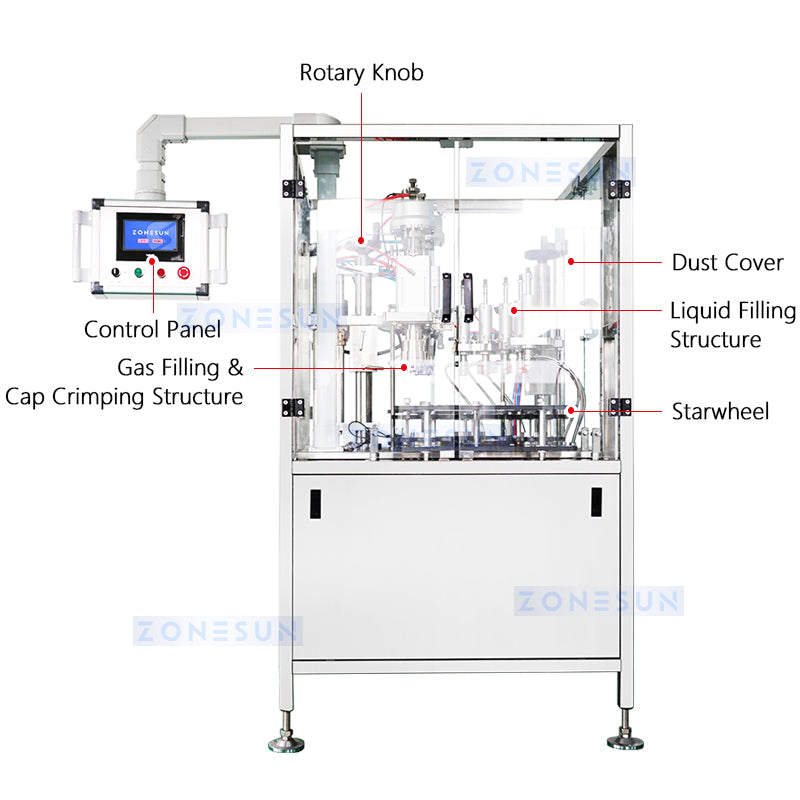

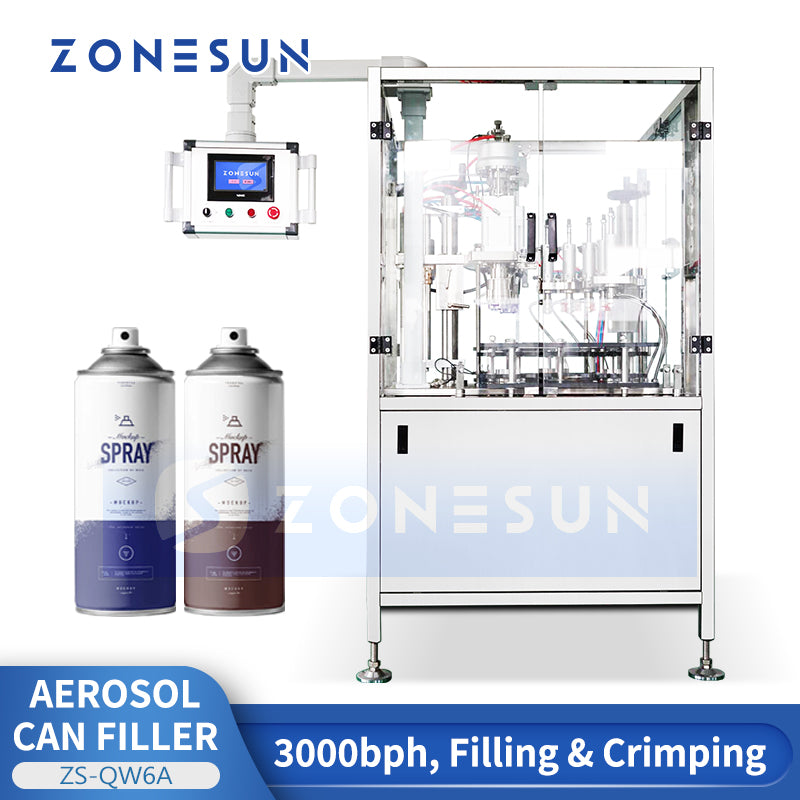

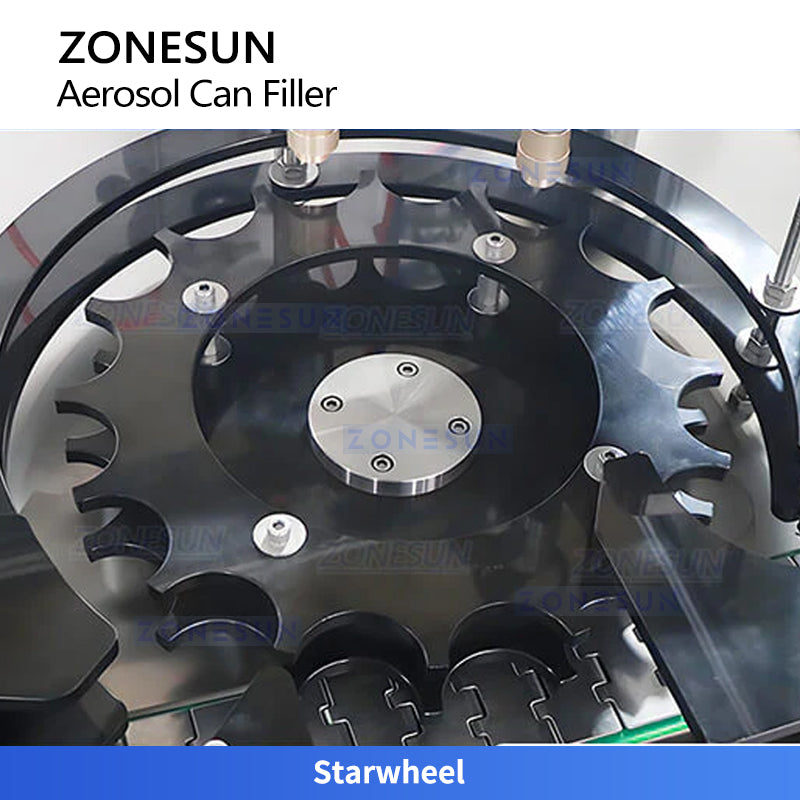

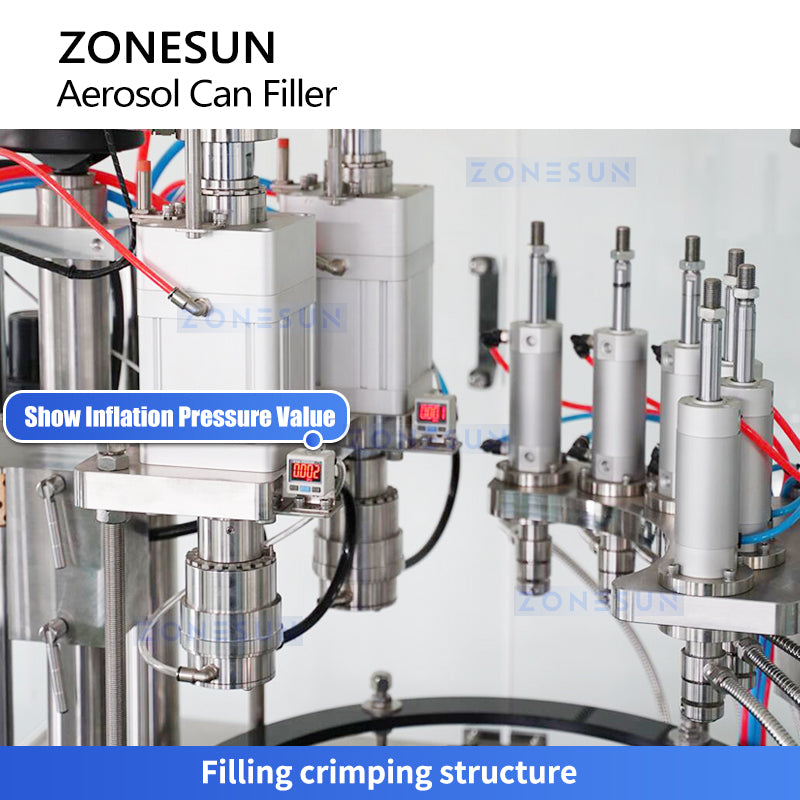

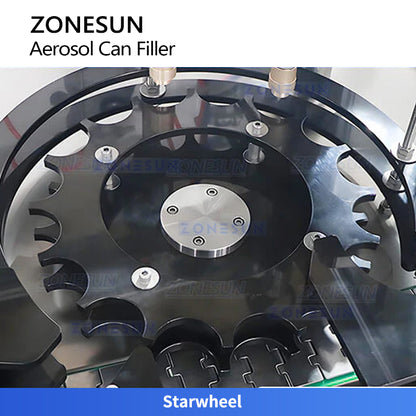

The ZONESUN ZS-QW6A Aerosol Filling and Crimping Machine is designed for efficient bag-on-valve (BOV) aerosol filling. It automates the process of placing BOV valves into aerosol cans, conveying them to a star wheel station for valve crimping and gas filling (2-in-1 head), followed by a 6-head, three-stage liquid filling process. Capable of producing up to 3000 cans per hour, this machine maximizes your aerosol production output.

Parameter

• Model: ZS-QW6A
• Machine voltage: 110/220V 50-60HZ
• Valve size: 1 inch BOV (25.4mm)
• Filling range: 50-250ml (customizable)
• Working capacity: About 45-50 bottles/min
• Working air pressure: 0.4-0.6MPa
• Suitable aerosol can diameter: Customizable
• Suitable aerosol can height: 70-330mm
