ZONESUN ZS-TMB500 Semi-Auto Double-Sided Tape Applicator for Envelopes

Description

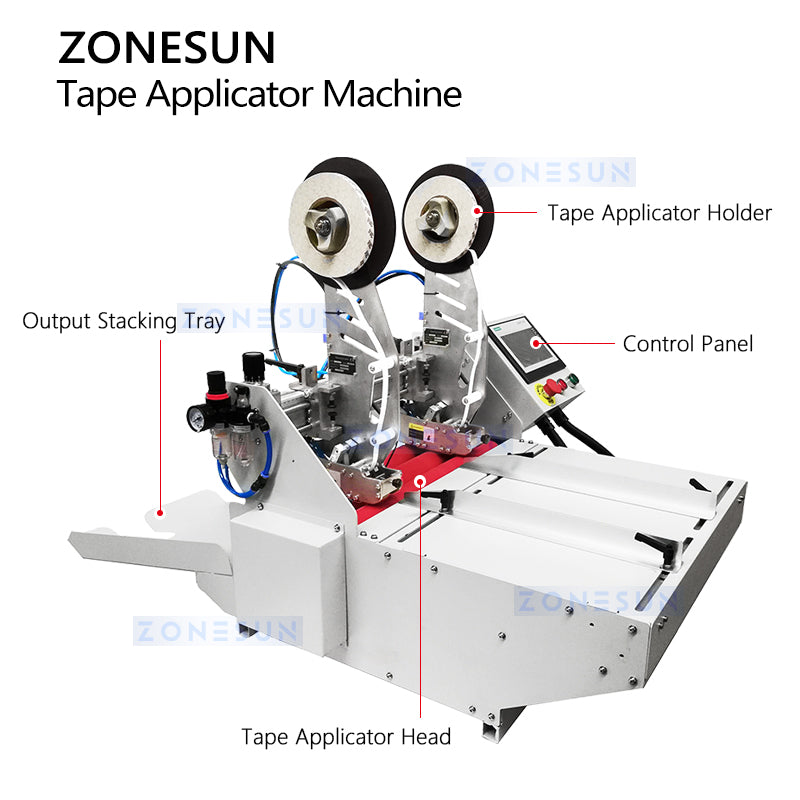

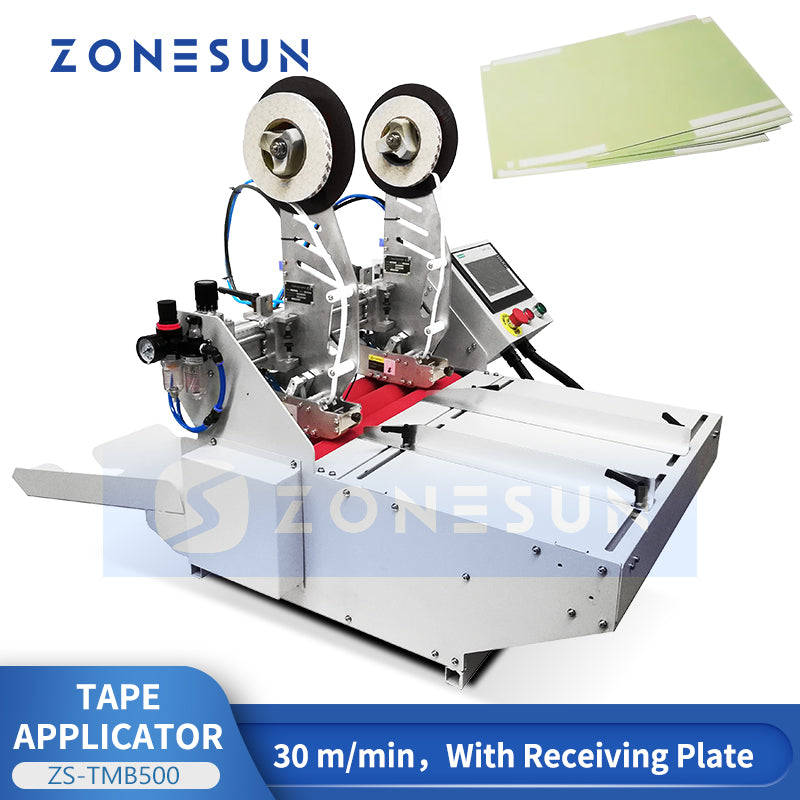

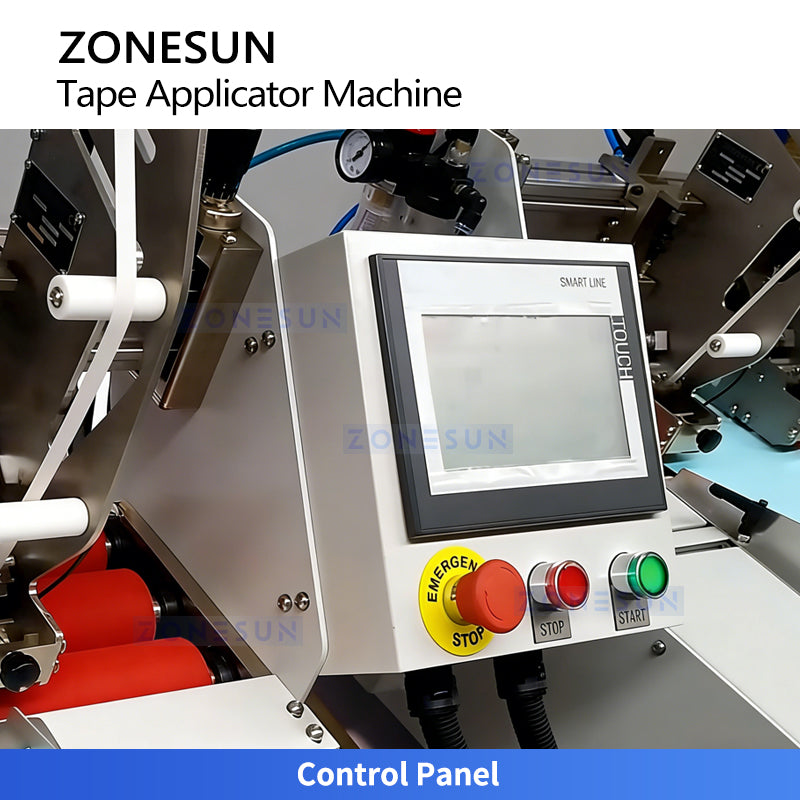

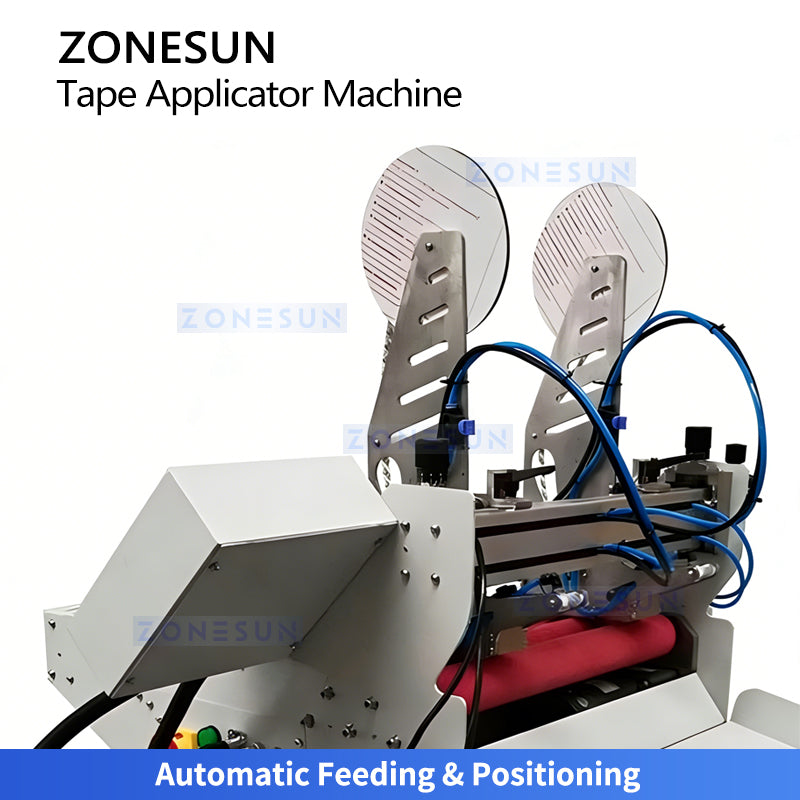

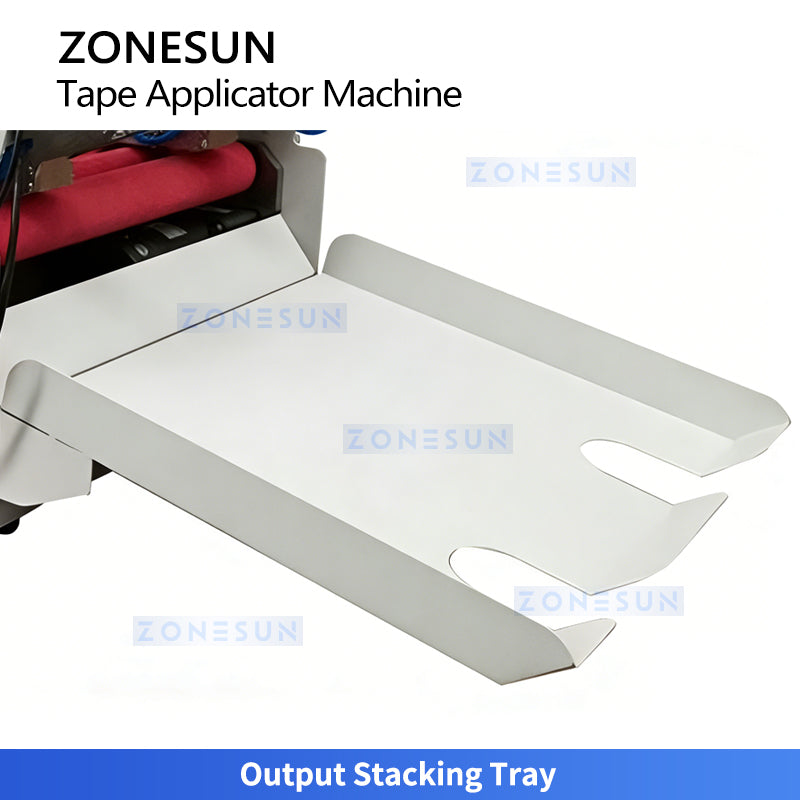

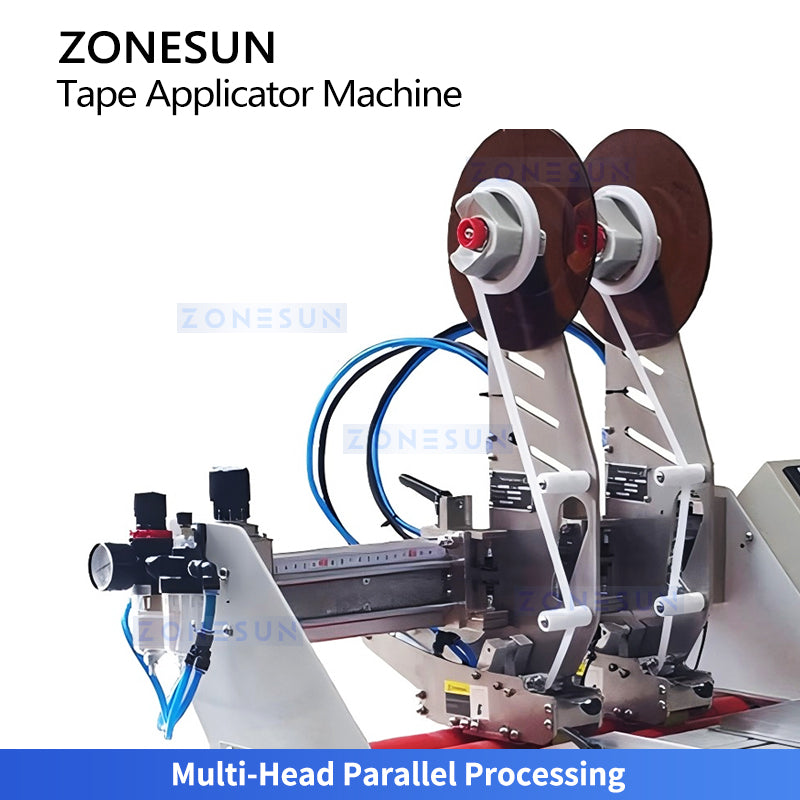

The ZONESUN ZS-TMB500 is a semi-automatic double-sided tape applicator for flat materials such as envelopes, cartons, PVC boards, and corrugated paper. Running at 30 m/min, it integrates feeding, positioning, multi-head parallel processing, and output stacking in one compact system. PLC control ensures precise taping start, end, and length, with tape applied flat and accurately. It is widely used for applying double-sided tape, sealing tape, or tear tape in the production of envelopes, A4 document bags, cartons, display stands, posters, and various packaging materials, greatly improving efficiency and accuracy compared to manual taping.

Parameter

• Model: ZS‑TMB500
• Product Width: 25 mm (1") up to 500 mm (20")
• Product Materials: Envelope, A4 paper, carton box, PVC, floor board, etc.
• Product Thickness (Paper): ≥100 g/m²
• Product Thickness (Other Materials): 0.1–20 mm (e.g., floor board, corrugated board)
• Applicator Heads (Standard/Max): 1–3 heads
• Max Number of Spots: 4 (customizable up to 8)
• Min Spot Length / Tape Strip Length: 25 mm (1")
• Min Distance Between Spots: 25 mm (1")
• Min Horizontal Distance Between Tape Strips: 76 mm (3") center to center
• Tape Thickness: 0.1–2 mm
• Tape Width (Max): 5–30 mm (0.2–1.2")
• Internal Tape Roll Diameter: 76 mm (3")
• Max External Tape Roll Diameter: 400 mm (15.75")
• Languages: English, Italian, German, French, Spanish, Russian
• Speed: 30 m/min (100 ft/min)
• Power Supply: 220 V 50 Hz / 110 V 50 Hz
• Compressor Air Requirement: 6 bar
• Machine Weight: 65 kg
• Machine Dimensions (L×W×H): 800 × 500 × 680 mm
