ZONESUN ZS-ULP18 Fully Automatic Rotary Plastic Bottle Unscrambler

$41,000.00 USD

セール売り切れ

配送料はチェックアウト時に計算されます。

Voltage 220V 380V

数量

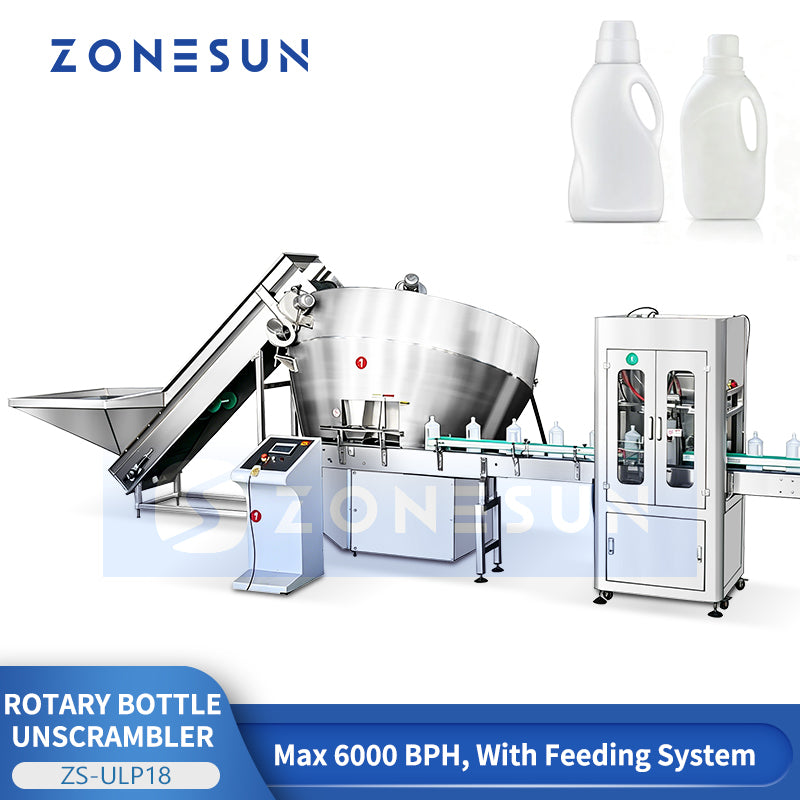

ZONESUN ZS-ULP18 Automatic Rotary Bottle Unscrambler Bottle Sorting and Orienting

The ZONESUN ZS-ULP18 is a fully automatic rotary bottle unscrambler designed to sort, orient, and flip disordered plastic bottles such as PE, PP, PET, and HDPE. With a maximum capacity of up to 6000 bottles per hour, it integrates an automatic feeding system, sorting mechanism, flipping unit, and conveyor transfer section to deliver bottles in a stable, upright, and correctly oriented direction to downstream equipment. Equipped with a PLC-based smart control system, the machine automatically adjusts its operating speed to synchronize with the filling or capping line. Rotary structure ensures high efficiency, smooth bottle handling, and reliable performance for medium to large-scale production lines.

Technical Parameter

Model: ZS-ULP18
Work Stations: 18
Max Capacity: 6000 BPH
Air Pressure: 0.7 MPa
Air Consumption: 1.5 m³/min
Bottle Diameter Range: 50–96 mm
Bottle Height Range: 165–310 mm
Main Power: 1.5 kW
Hoist Power: 0.75 kW
Overall Dimension: Φ2300 × 2340 mm
Machine Weight: 3400 kg

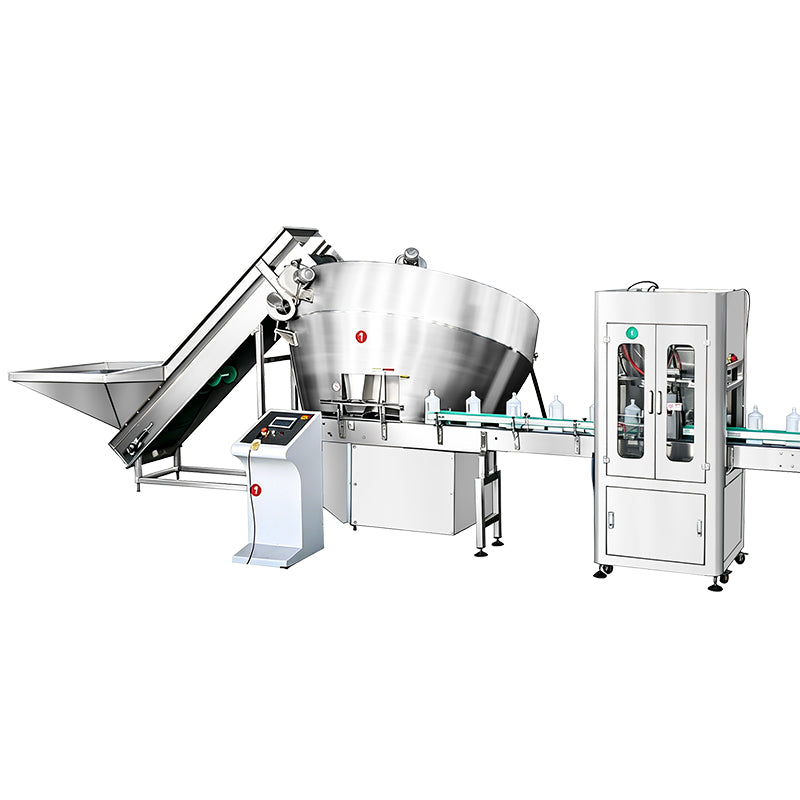

ZONESUN ZS-ULP18 Automatic Rotary PET/HDPE Plastic Bottle Unscrambler Machine

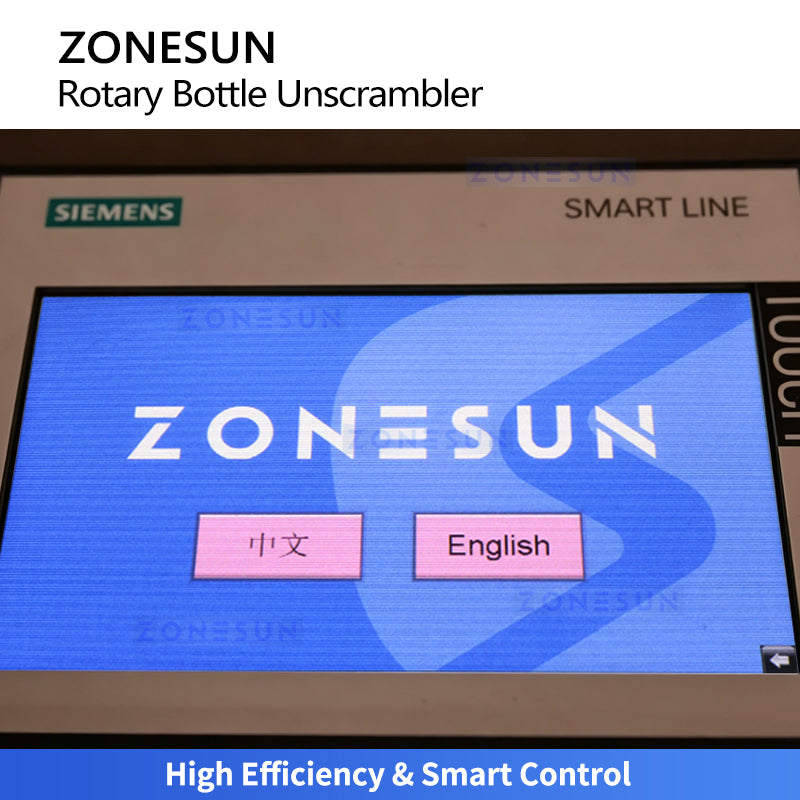

CONTROL PANEL

Adjusts its operating speed through a PLC smart control system to match the downstream filling line, supporting a maximum output of up to 12,000 bottles per hour.

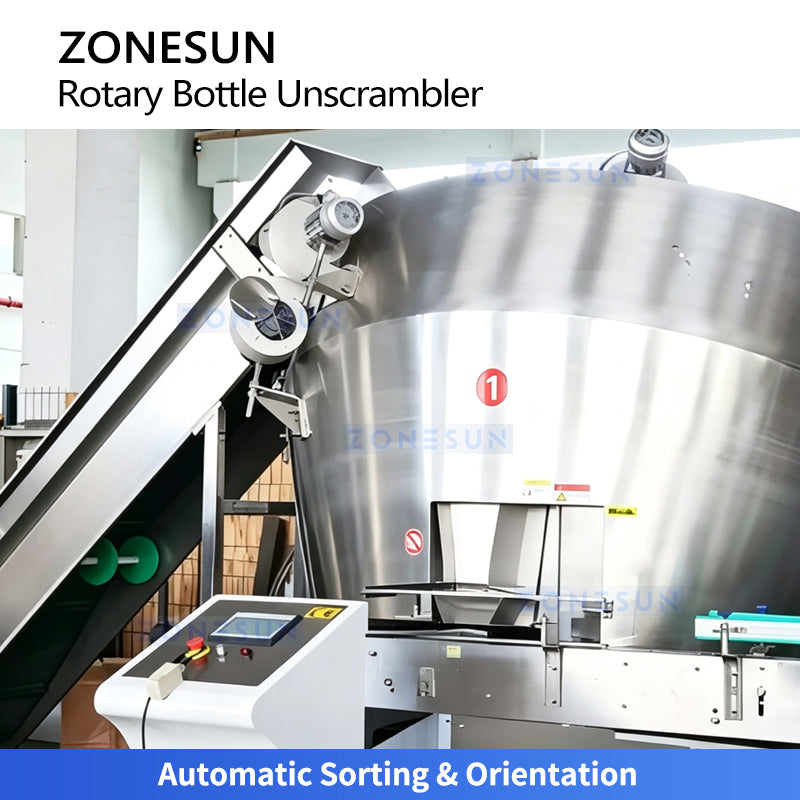

SORTING & ORIENTATION

Automatically separates disordered bottles from the hopper and orients them upright with the mouth facing up, ensuring they enter the conveyor in a stable and orderly flow.

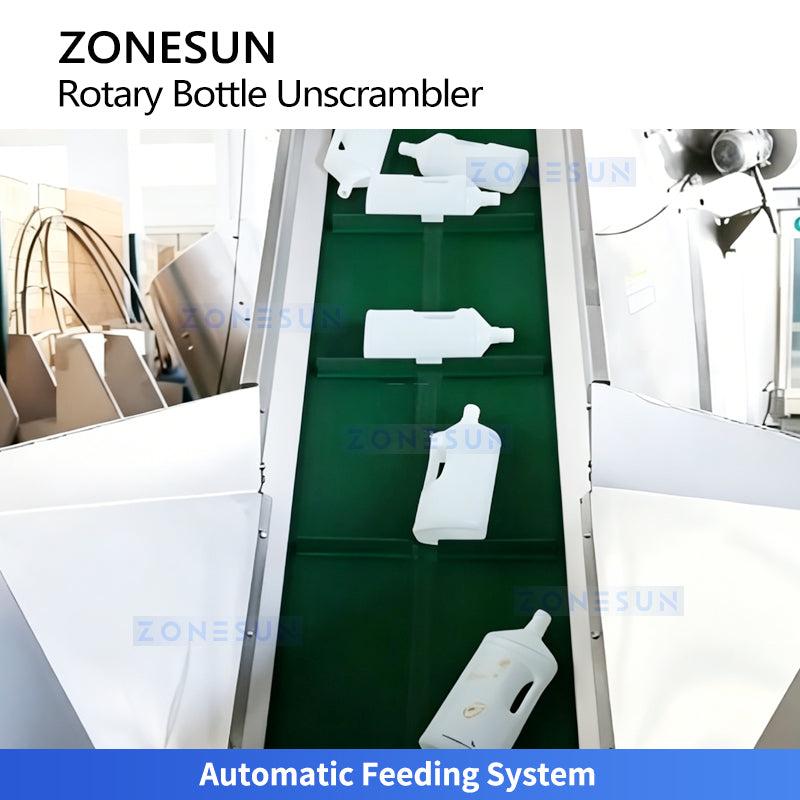

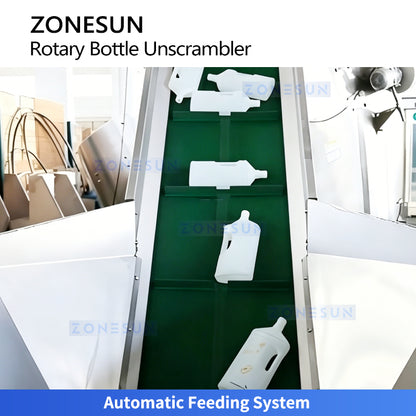

FEEDING SYSTEM

The side elevator is equipped with sensors that automatically start feeding when the hopper is low and stop when it is full.

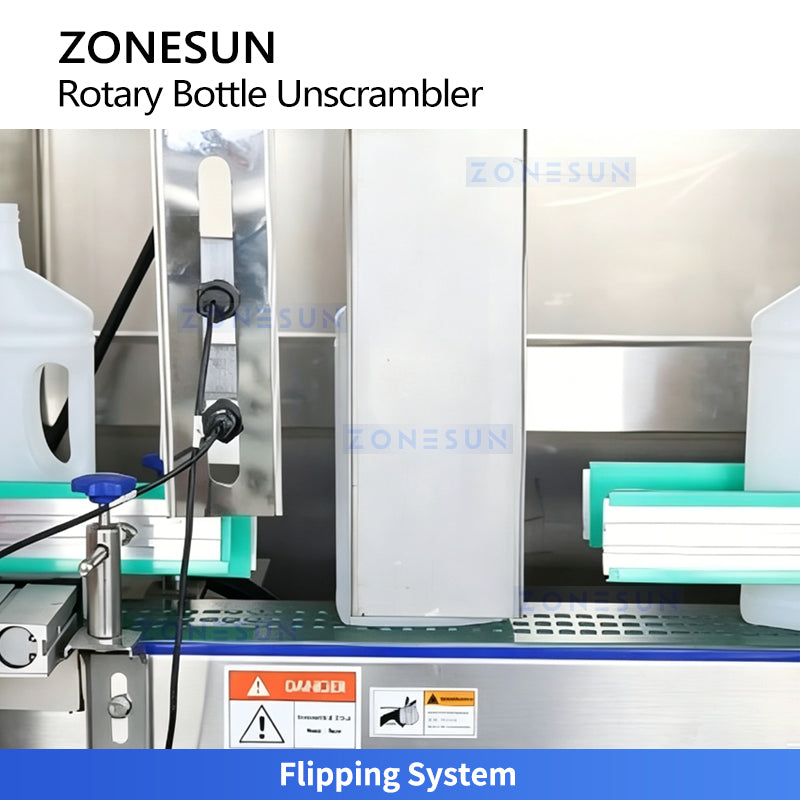

FLIPPING SYSTEM

Identifies the direction of flat or handled bottles and flips misoriented ones to the correct facing direction for smooth downstream processing.

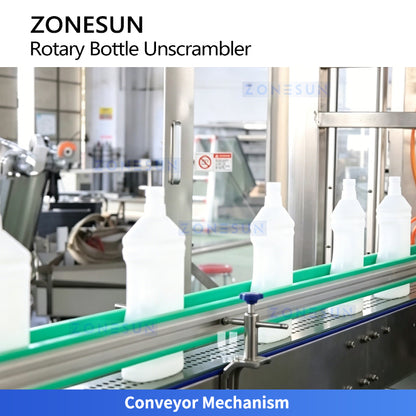

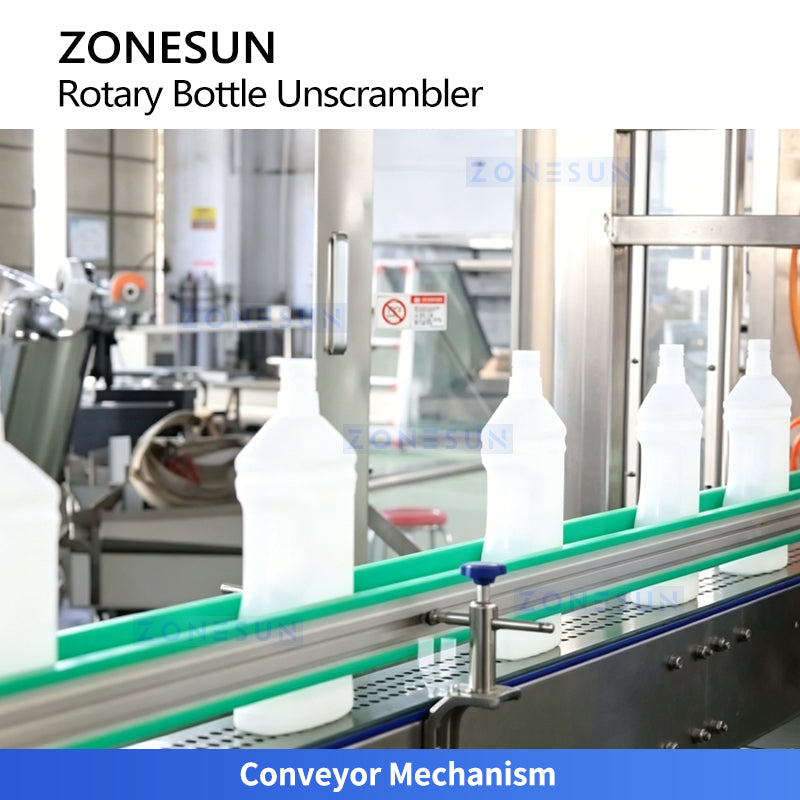

CONVEYOR MECHANISM

Transfers arranged bottles into the flipping unit and conveys them out smoothly after reorientation, ensuring a stable and continuous flow between stations.

Why Choose the ZS-ULP18?

✅ 6,000 BPH High-Speed Output: 18-station rotary design delivers industry-leading throughput for medium to large-scale production lines
✅ Handles PE, PP, PET & HDPE: Wide plastic bottle compatibility covering the most common packaging materials
✅ Wide Bottle Size Range: Diameter 50–96mm, height 165–310mm — adaptable to diverse container formats
✅ PLC Smart Control: Automatically synchronizes speed with downstream filling or capping equipment
✅ Integrated Feeding, Sorting & Flipping: Complete bottle orientation system in one compact rotary unit
✅ Stable Upright Delivery: Ensures every bottle arrives correctly oriented at the downstream station
✅ Dual Voltage: AC 220V / 380V compatible for global production environments

Ideal Applications

Food & Beverage: PET water bottles, juice bottles, sauce containers, condiment jars
Daily Chemical: HDPE shampoo bottles, body wash containers, detergent bottles
Pharmaceutical: PP medicine bottles, syrup containers, supplement packaging
Cosmetics: Lotion bottles, toner containers, cream jars in plastic packaging
Industrial & Chemical: Lubricant bottles, cleaning agent containers, specialty chemical packaging
