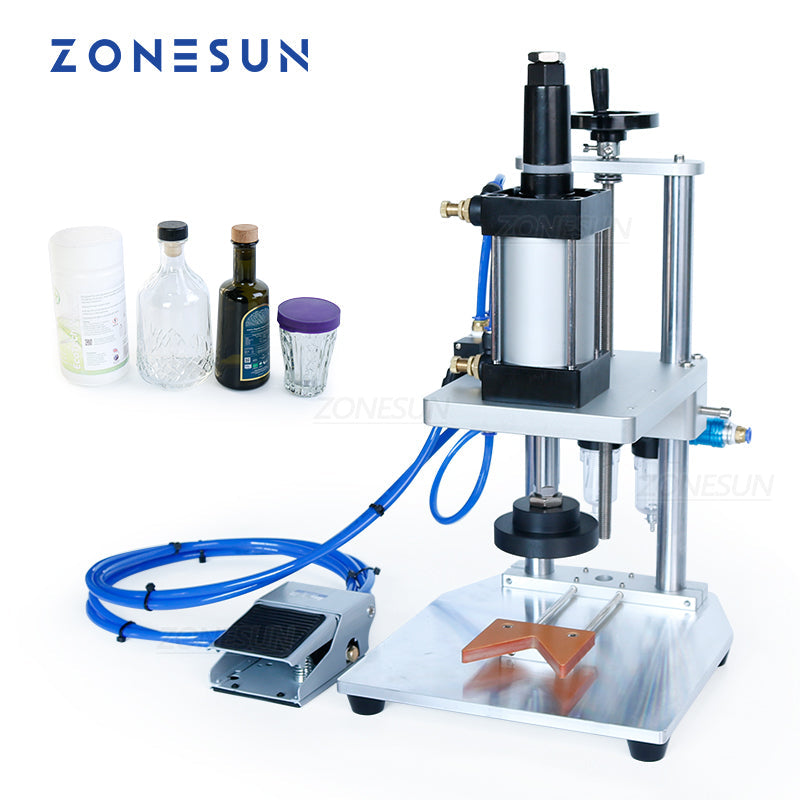

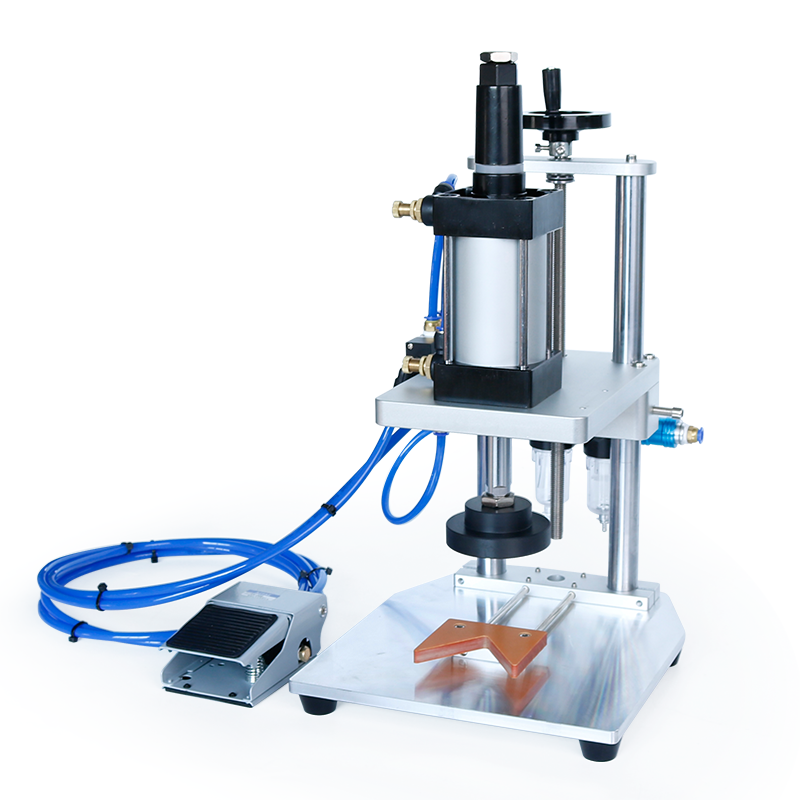

ZONESUN ZS-XG70ZC Pneumatic Semi-automatic Wine Bottle Cap Cork Pressing Machine

Description

The ZS-XG70ZC is a compact pneumatic bottle cap pressing machine designed for corks, plastic lids, and other press-type closures. Equipped with a high-performance cylinder, it delivers smooth, stable operation at up to 40 bottles per minute. The 70mm pressing head suits caps ≤70mm and can be customized for larger sizes. Ideal for workshop and small-scale production, with flexible bottle height compatibility and ergonomic build.

Parameter
Machine Model ZS-XG70ZC
Machine Name Pneumatic Bottle Cap Pressing Machine
Working Speed 20–40 bottles/min (depending on cap size)
Pressing Component Diameter 70mm (Standard, customizable)
Applicable Cap Diameter ≤70mm (Standard, customizable)
Bottle Height Options ≤250mm, ≤350mm, or ≤550mm
Working Pressure 0.5 KPa
Air Compressor Connector Size Outer Diameter 8mm
Net Weight 12 kg
Gross Weight 14.5 kg
Machine Dimensions 250 × 280 × 455 mm
Package Dimensions 610 × 370 × 420 mm
