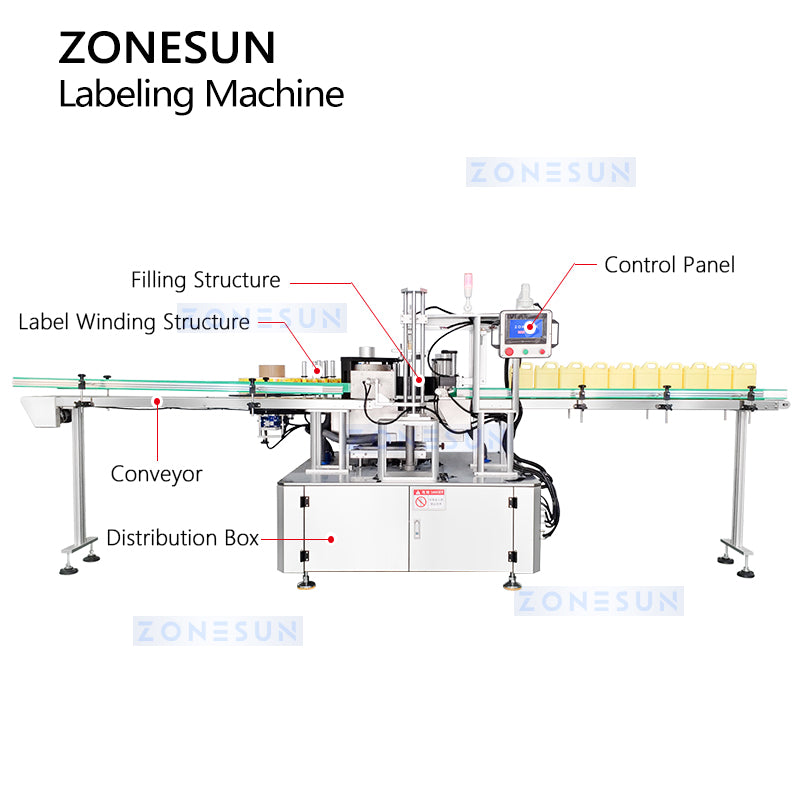

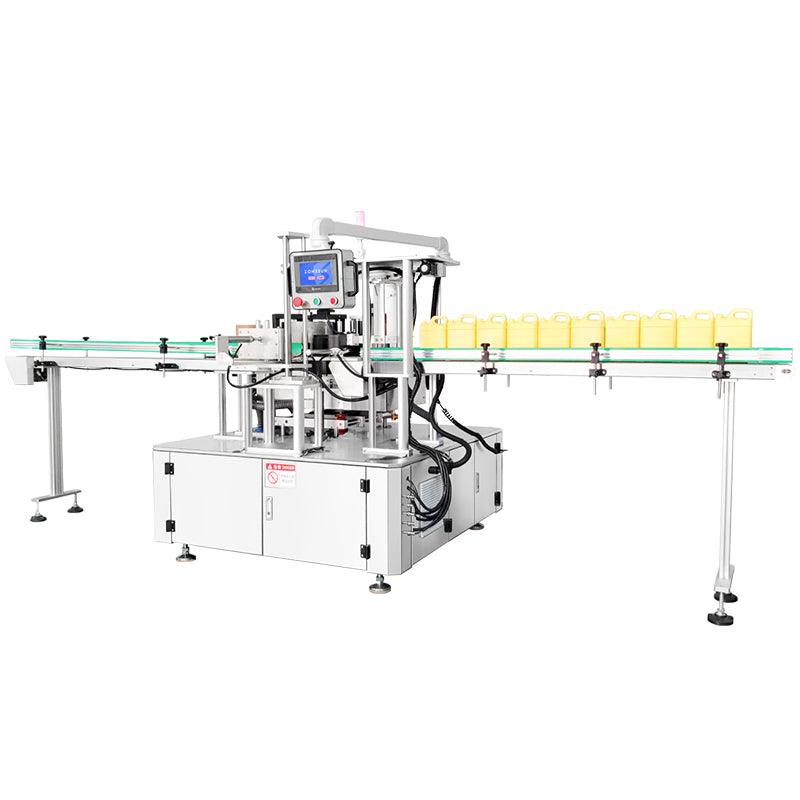

ZONESUN ZS-GTB12S Automatic Hot Melt Glue Labeling Machine OPP labeler for Square Bottles

DESCRIPTION

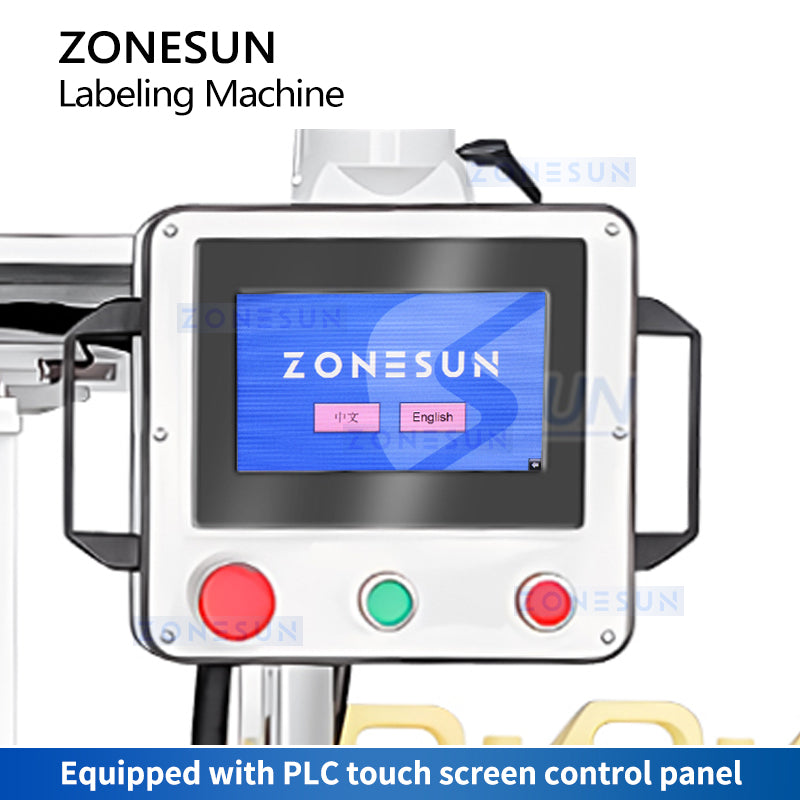

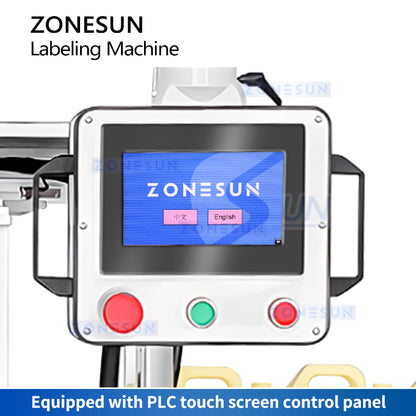

The ZS-GTB12S is a fully automatic labeling machine engineered for precise and efficient labeling of square and oblong bottles. It utilizes a hot melt glue system that applies adhesive only to the ends of the label, ensuring clean and secure application. Equipped with a programmable logic controller (PLC), it offers consistent performance and easy customization. With a user-friendly interface and adjustable speed up to 1400 pieces per hour, this machine is ideal for streamlining your labeling operations. ZONESUN delivers reliable automation tailored to modern packaging needs.

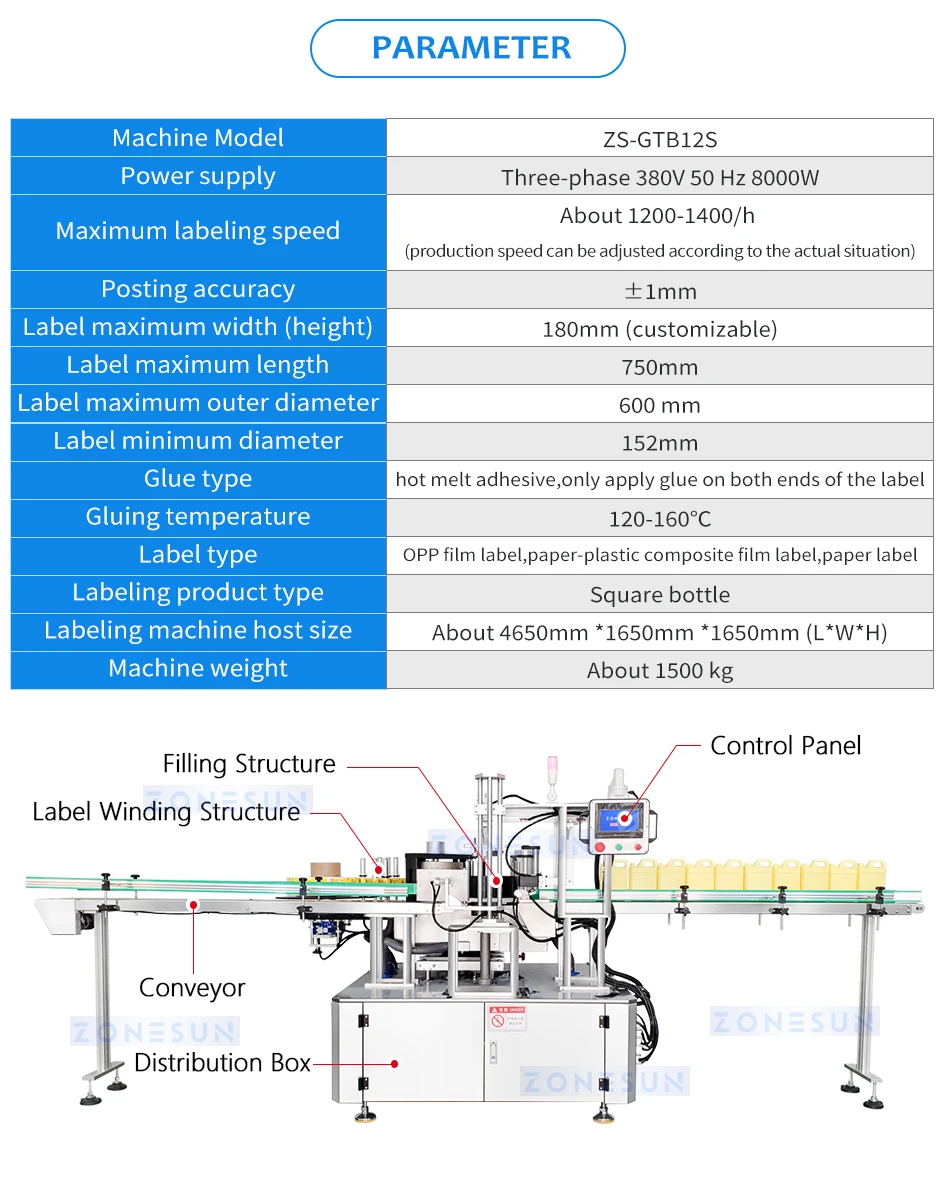

Parameter
Machine Model ZS-GTB12S
Power Supply Three-phase 380V, 50 Hz, 8000W

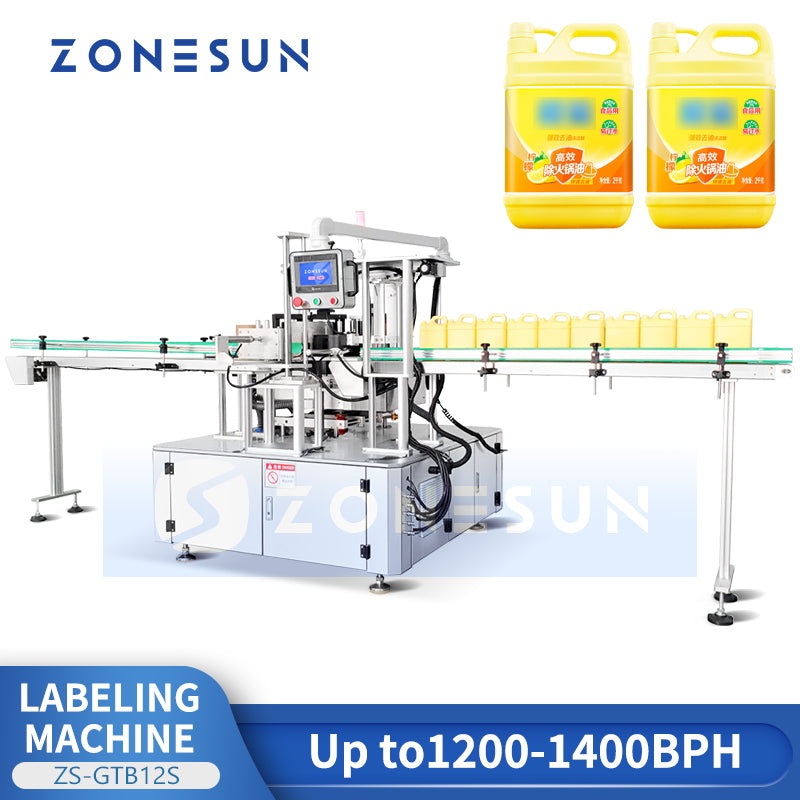

Max Labeling Speed Approx. 1200–1400 pcs/h (adjustable based on actual production)
Labeling Accuracy ±1 mm
Max Label Width (Height) 180 mm (customizable)
Max Label Length 750 mm
Max Label Outer Diameter 600 mm
Min Label Inner Diameter 152 mm
Glue Type Hot melt adhesive (applied only to both ends of the label)
Gluing Temperature 120–160°C
Label Type OPP film label, paper-plastic composite film label, paper label
Applicable Product Type Square bottles
Machine Dimensions (L×W×H) Approx. 4650 × 1650 × 1650 mm
Machine Weight Approx. 1500 kg

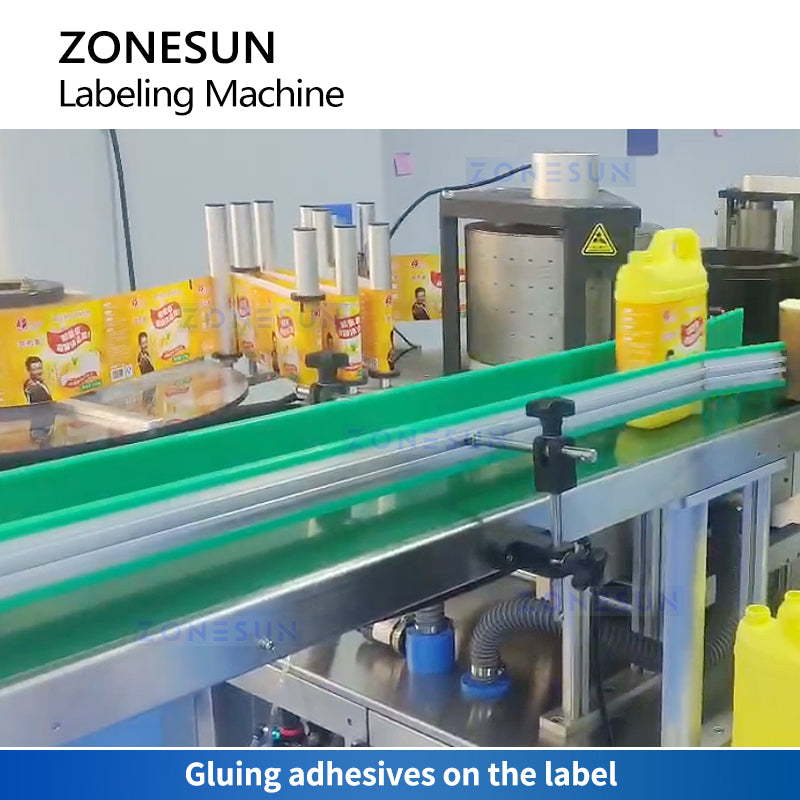

HOT-MELT GLUE ROLLER

The glue roller applies adhesive evenly to support accurate label placement.
