Zonesun ZS-AFS06 Rotary Cup Filling & Sealing Machine

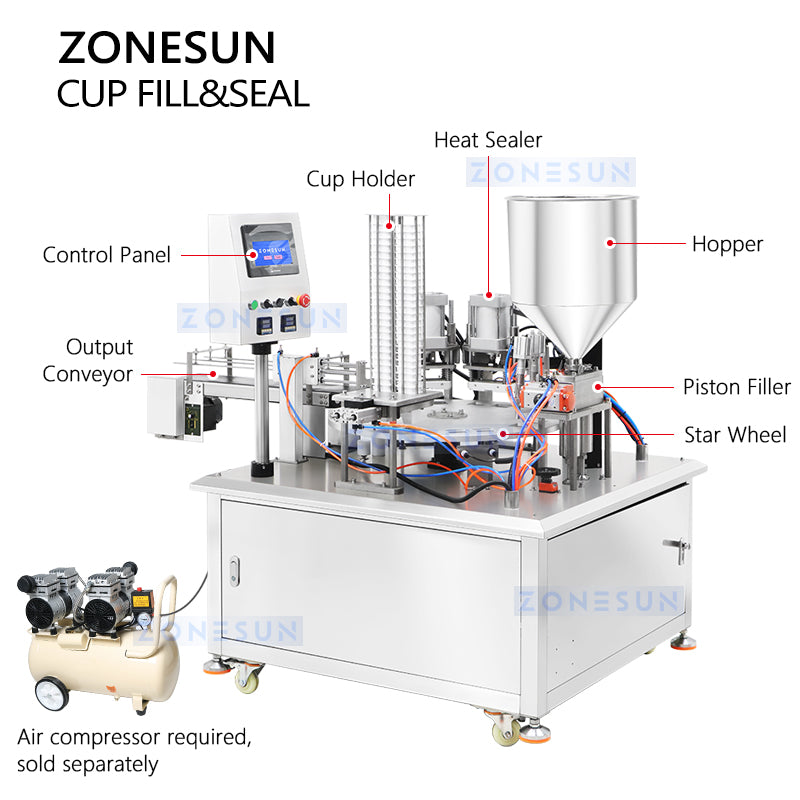

The ZONESUN ZS-AFS06 is a rotary-style automatic cup filling and sealing machine built for high-volume food and beverage packaging. With a working speed of up to 1500 cups per hour (based on 120ml), it’s ideal for yogurt, dairy, sauces, and other liquid products. Featuring a piston pump for precise filling (±1% accuracy), customizable cup sizes, and a sealing temperature range up to 400°C, this machine ensures secure, hygienic sealing. Its 35L hopper and automatic rotary system make it perfect for restaurants, takeout services, and disposable cup manufacturers seeking speed and reliability.

Key Features:

• Double the Speed: Dual-cup design for rapid processing.
• Perfect Fill Every Time: Precise piston filler with 30L hopper.
• Secure Seals: Pneumatic lid placement and dual heat sealing.
• Reduced Labor Costs: Fully automated operation.
• Reliable Performance: Built for long-lasting efficiency.

Parameter Specification
Model ZS-AFS06
Voltage 220V / 110V, 50/60Hz
Power Approx. 1.5kW
Working Speed Approx. 1500 cups/hour (based on 120ml)
Filling Range 10–200ml (Customizable)
Filling Accuracy ±1%
Filling Pump Piston Pump
Sealing Temperature 0–400°C
Suitable Cup Size Customizable
Hopper Capacity 35L
Air Pressure 0.5–0.8Mpa
Machine Dimensions Approx. 1660 × 1150 × 1450 mm
Machine Weight Approx. 300kg
