ZONESUN ZS-EVF01 Automatic Multi-Head Piston Edible Oil Filling Machine

ZONESUN ZS-EVF01 Automatic Multi-Head Piston Edible Oil Filling Machine

Description

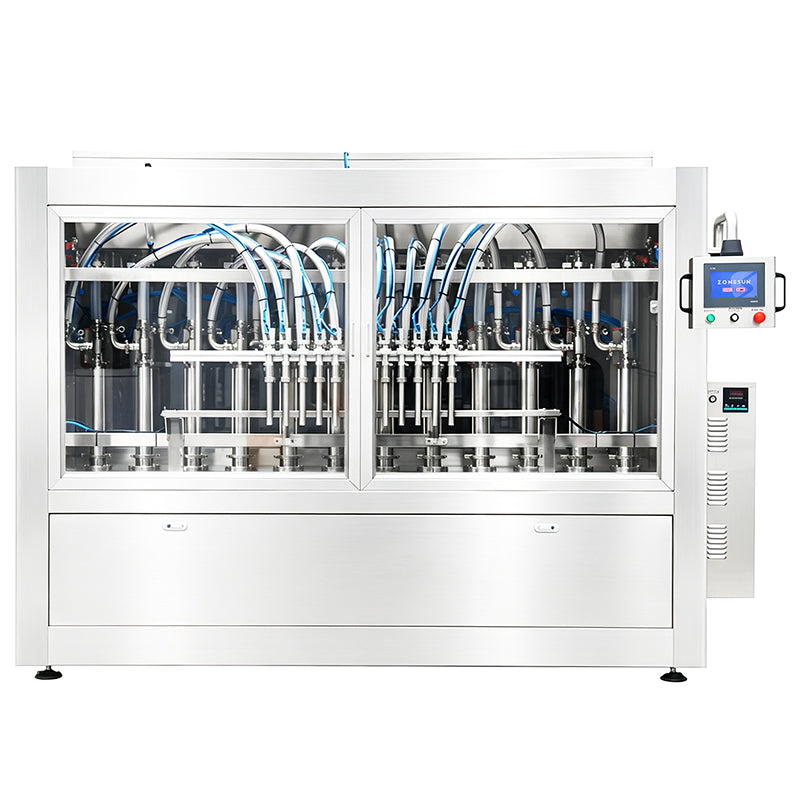

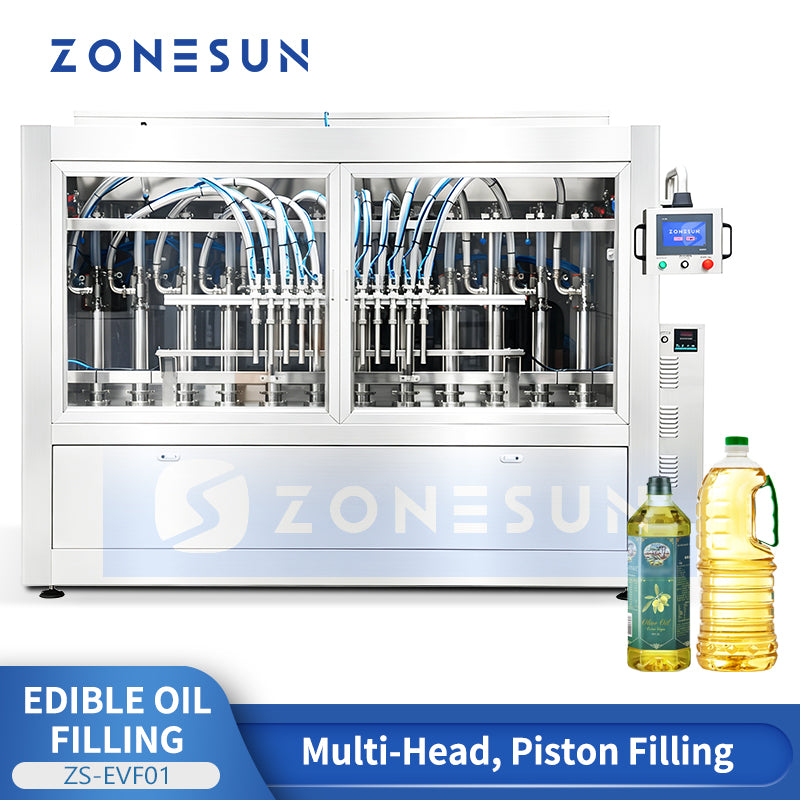

The ZONESUN ZS-EVF01 Automatic Multi-Head Piston Edible Oil Filling Machine is designed for accurate and efficient filling of cooking oil, olive oil, sunflower oil, and other free-flowing or moderately viscous edible oils. Available with 2 to 16 filling heads, it uses a piston dosing system to provide consistent volumetric filling across multiple bottles simultaneously. With PLC touchscreen control, a sanitary 120–220 L top tank, reinforced food-contact hoses, and an enclosed stainless-steel structure, it is suitable for filling PET bottles, plastic jerrycans, and glass containers in automated edible oil bottling lines.

Parameter

• Machine Model: ZS-YG100D
• Machine Voltage: 220 V / 50 Hz
• Power: 3 kW (Customizable)
• Packaging Error: ±0.1%
• Working Capacity: 40 Bottles/min
• Crimping Heads: Double Heads
• Suitable Bottle Size: Customizable
• Suitable Cap Size: Customizable
• Cap Type: Aluminum-Plastic / Flip-Off Caps
• Bottle Feeding: Automatic
• Cap Sorting & Feeding: Automatic
• Bottle Positioning: Customized Star Wheel
• Finished Product Collection: Collection Tray
• Machine Dimensions (L × W × H): Approx. 2060 × 2100 × 1400 mm
• Package Dimensions (L × W × H): Approx. 2210 × 1680 × 1660 mm
• Package Weight: Approx. 960 kg
• Machine Material: SUS304 Stainless Steel
• Optional Configuration: Additional Crimping Heads / Dust Cover / Laminar Flow Hood

Key Features

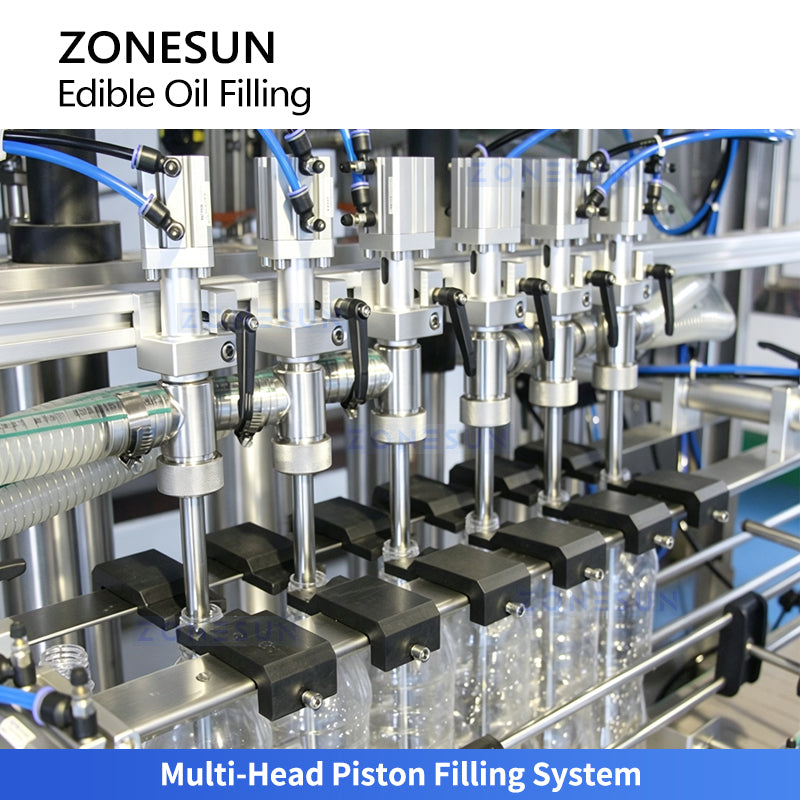

• Multi-Head Piston Filling System: Multiple piston-driven filling heads operate simultaneously to provide controlled and consistent volumetric filling for edible oils with different flow characteristics.
• 2–16 Filling Head Options: Available with 2, 4, 6, 8, 10, 12, or 16 filling heads to match different production-capacity requirements.

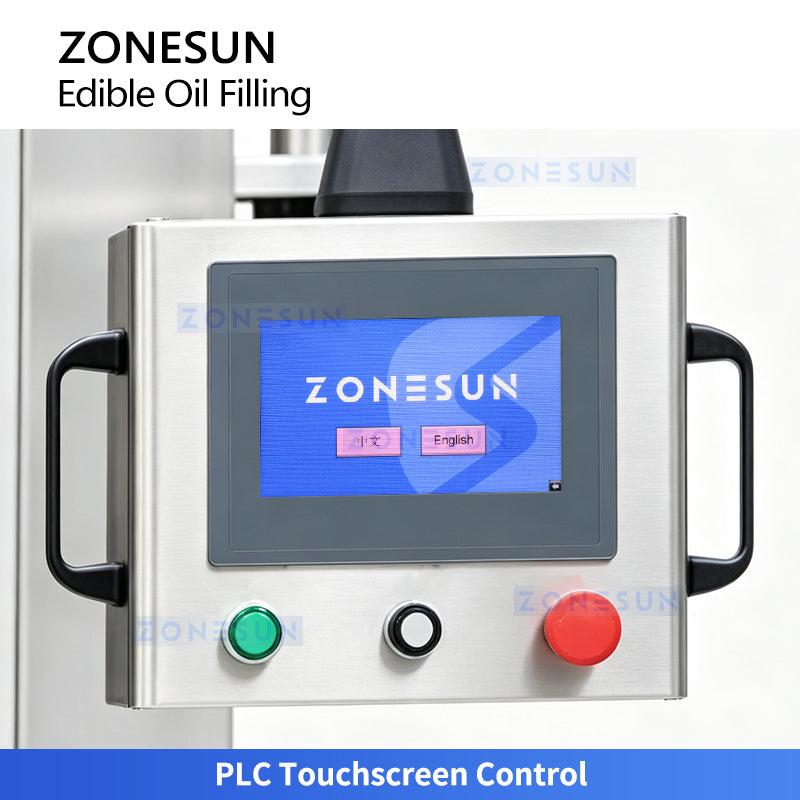

• PLC Touchscreen Control: Allows operators to centrally set filling volume, filling speed, and other operating parameters for convenient machine management.

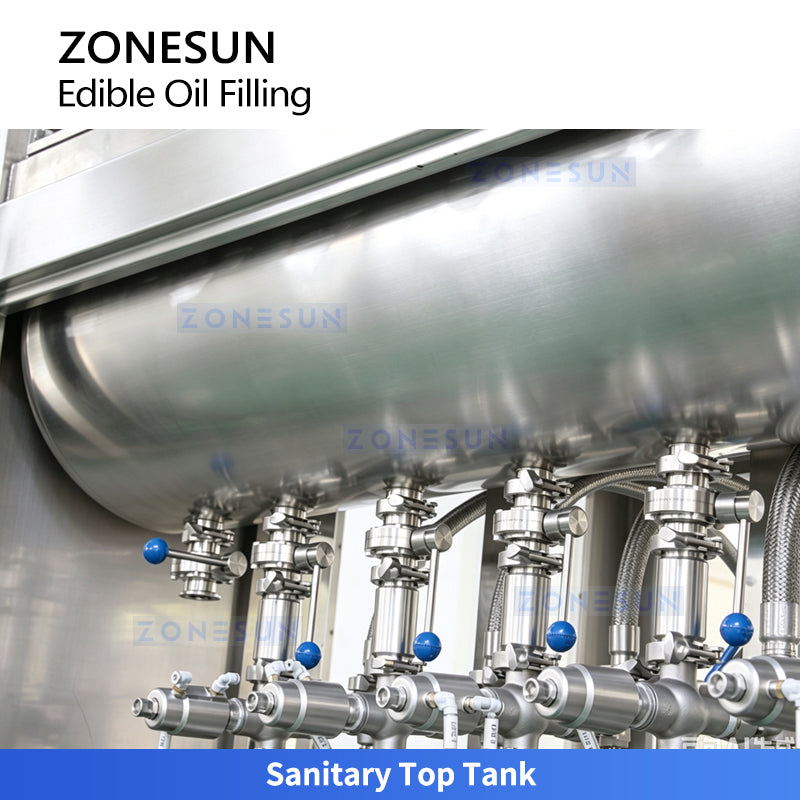

• 120–220 L Sanitary Top Tank: Provides temporary oil storage above the filling system and incorporates level detection for automatic product replenishment.

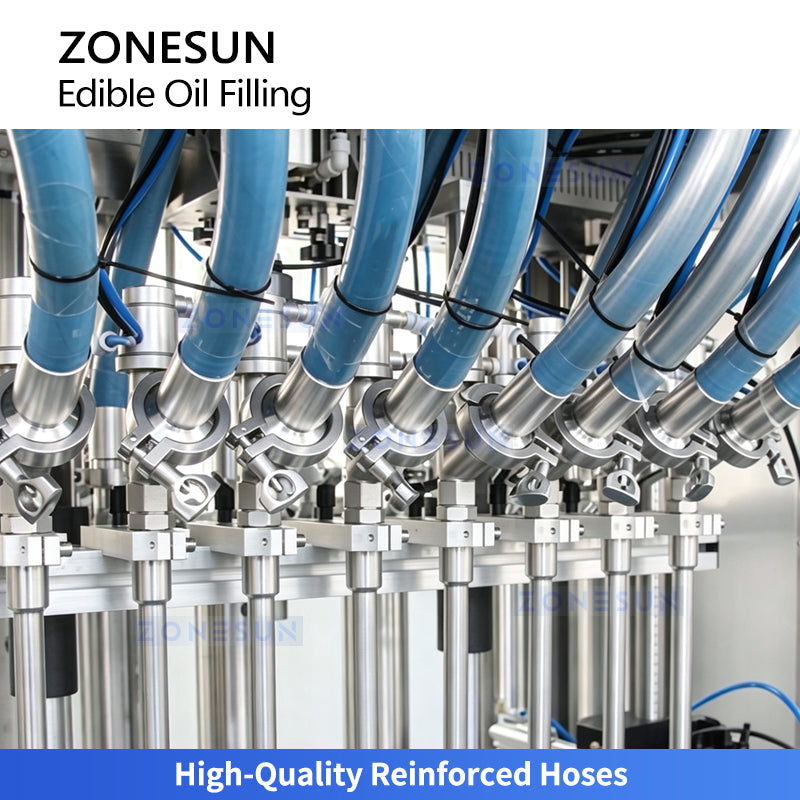

• High-Quality Reinforced Hoses: Corrosion-, heat-, and pressure-resistant food-contact hoses support reliable oil transfer and convenient cleaning.

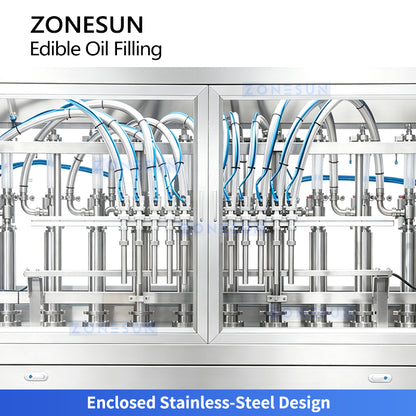

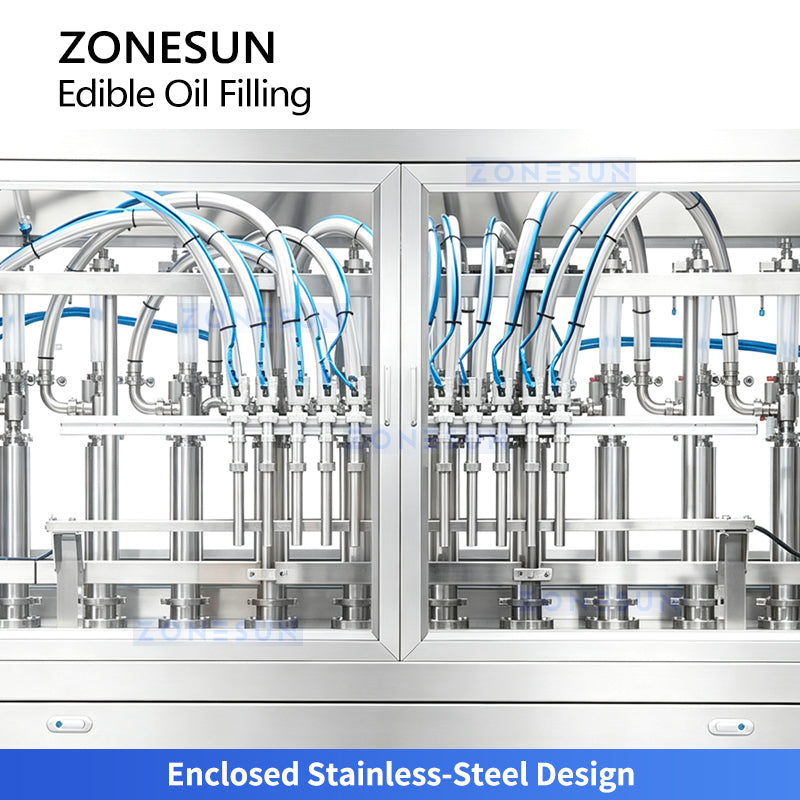

• Enclosed Stainless-Steel Design: Transparent safety doors allow operators to observe the filling process while limiting direct access to moving components.
• 100–5000 ml Filling Range: Different filling configurations cover 100–500 ml, 100–1000 ml, and 1000–5000 ml.
• ±0.1–0.3% Filling Accuracy: Piston-driven volumetric dosing provides controlled and repeatable filling quantities.
• Multiple Container Compatibility: Suitable for compatible PET bottles, plastic jerrycans, and glass containers.
• Production Line Integration: Can serve as the filling section of a complete automatic edible oil bottling line.

Benefits

• 2–16 Filling Heads Available — Select the filling-head configuration according to required production capacity instead of using a one-size-fits-all system.
• Up to 80–100 Bottles/Min — The 16-head configuration reaches approximately 80–100 bottles/min based on a 500 ml filling volume.
• ±0.1–0.3% Filling Accuracy — Piston volumetric dosing supports consistent product quantities during continuous oil filling.
• 100–5000 ml Wide Filling Range — Covers both smaller edible oil bottles and larger packaging formats.
• Designed for Edible Oils — Suitable for cooking oil, olive oil, sunflower oil, soybean oil, corn oil, peanut oil, and other compatible edible oils.
• Automatic Oil Replenishment — Level detection in the top tank supports automatic product replenishment during continuous production.
• Reliable Product Transfer — Reinforced food-contact hoses are designed for corrosion, heat, and pressure resistance.
• Safer Enclosed Filling Area — Transparent safety doors provide visibility of the filling process while limiting access to moving parts.
• Flexible Packaging Formats — Supports PET bottles, plastic jerrycans, and glass containers.
• Easy Line Expansion — Can be combined with compatible bottle feeding, capping, labeling, coding, and end-of-line packaging equipment.

Application

Ideal for automatic filling of cooking oil, olive oil, sunflower oil, soybean oil, corn oil, peanut oil, and other compatible edible oils. The ZS-EVF01 can be configured for PET bottles, plastic jerrycans, and glass containers, with filling volumes from 100 ml to 5000 ml depending on the selected piston configuration. Its multiple filling-head options make it suitable for both moderate-output production and higher-capacity edible oil bottling lines.

Why Choose the ZONESUN ZS-EVF01?

✅ 2–16 Filling Heads — Flexible Production Capacity: The ZS-EVF01 is available with 2, 4, 6, 8, 10, 12, or 16 filling heads, allowing manufacturers to select the configuration according to required output instead of changing to a completely different filling platform.

✅ Up to 80–100 Bottles/Min — High-Capacity Oil Filling: Depending on the number of filling heads, production capacity ranges from approximately 12–14 bottles/min with 2 heads to 80–100 bottles/min with 16 heads, based on a 500 ml filling volume.

✅ Piston Filling System — Controlled Volumetric Dosing: Multiple piston-driven filling heads operate simultaneously to provide controlled volumetric dosing and consistent filling across multiple containers.

✅ ±0.1–0.3% Filling Accuracy — Consistent Product Quantity: The piston dosing system provides a specified filling accuracy of ±0.1–0.3%, helping maintain consistent product quantities during edible oil bottling.

✅ 100–5000 ml Filling Range — From Bottles to Larger Containers: Available piston configurations support 100–500 ml, 100–1000 ml, and 1000–5000 ml, allowing the machine to handle both smaller bottles and larger edible oil containers.

✅ 120–220 L Sanitary Top Tank — Stable Oil Supply: The large-capacity top tank provides temporary oil storage above the filling system and uses level detection to support automatic replenishment during continuous production.

✅ Reinforced Food-Contact Hoses — Corrosion, Heat & Pressure Resistant: The reinforced hoses are designed to withstand corrosion, elevated temperatures, and pressure, supporting reliable product transfer and easier cleaning in edible oil production.

✅ PLC Touchscreen — Centralized Production Control: Operators can adjust filling volume, filling speed, and operating parameters through the centralized touchscreen interface for convenient machine setup and control.

✅ Enclosed Stainless-Steel Design — Visible & Protected Filling Area: Transparent safety doors provide a clear view of the filling process while reducing direct access to moving machine components.

✅ PET Bottles, Jerrycans & Glass Containers — Flexible Packaging Formats: The filling system is suitable for compatible PET bottles, plastic jerrycans, and glass containers, allowing manufacturers to use different edible oil packaging formats.

Ideal Applications

Cooking Oil: Suitable for automatic volumetric filling of compatible cooking oils into bottles and larger containers.

Olive Oil: Ideal for olive oil bottling applications requiring consistent piston dosing.

Sunflower Oil: Suitable for automatic filling of sunflower oil into compatible PET, plastic, or glass containers.

Soybean Oil: Can be configured for soybean oil packaging in different filling-volume ranges.

Corn Oil: Suitable for compatible corn oil bottling applications requiring automatic multi-head filling.

Peanut Oil: The piston dosing system can be used for compatible peanut oil products within the specified filling range.

Vegetable Oils: Suitable for various compatible vegetable oils with free-flowing or moderately viscous characteristics.

PET Oil Bottles: Ideal for common PET edible oil bottle formats when configured according to the actual bottle dimensions.

Plastic Jerrycans: The document specifically identifies plastic jerrycans as a compatible container type, making the machine suitable for larger edible oil packaging formats.

Glass Oil Bottles: Suitable for compatible glass bottles used for olive oil, specialty oils, and other edible oil products.

100–500 ml Products: Suitable for smaller retail edible oil packaging when equipped with the corresponding filling configuration.

100–1000 ml Products: Suitable for common household edible oil bottle sizes within this filling range.

1000–5000 ml Products: Suitable for larger-volume edible oil bottles and containers up to 5000 ml, depending on machine configuration.

Automatic Edible Oil Bottling Lines: The ZS-EVF01 can serve as the filling section of a larger production line and be integrated with bottle feeding, capping, labeling, coding, and end-of-line packaging equipment.
