ZONESUN ZS-LWCSM2 Vertical and Horizontal Continuous Band Sealer

Description

Introducing our versatile vertical and horizontal continuous band sealer, ideal for coding and sealing all types of bags. The machine features high definition inkjet printing and has dual heating groups for reliable sealing. The seal height can be adjusted according to the product, ensuring stable and efficient performance for all your packaging needs.

Parameter

• Model: ZS-LWCSM2
• Power Supply: 220V / 50–60 Hz
• Power Consumption: 1700 W
• Conveyor Table Motor: 24V / 120W / 18K
• Conveyor Table Height: 350–900 mm (adjustable)
• Sealing Speed: 0–21 m/min
• Sealing Width: 15 mm
• Temperature Control Range: 0–280 °C
• Maximum Packaging Bag Size: 600 × 400 × 15 C
• Sealing Belt Specifications: 1450 × 18 × 0.22 mm
• Conveyor Belt Specifications: 2440 × 250 × 2 mm
• Main Chassis Motor: 60BYG2100-50A
• Toothed Belt: M5 × 560 / 670 mm
• Heating Tube Specifications: 350 W / 150 × 12 mm × 4
• Conveyor Load Capacity: 15 kg
• Machine Dimensions (L×W×H): 1390 × 600 × 1200 mm
• Total Weight: 90 kg

Digital Control Panel

The clear display and straightforward controls make it easy to set operating parameters accurately.

Vertical and Horizontal Sealing

The switch handle adjusts the sealing-head angle for different bag shapes, allowing quick changes between vertical and horizontal sealing.

High-Capacity Sealing Module

The extended heating module supports smooth, wrinkle-free sealing and integrates coding for clear printing.

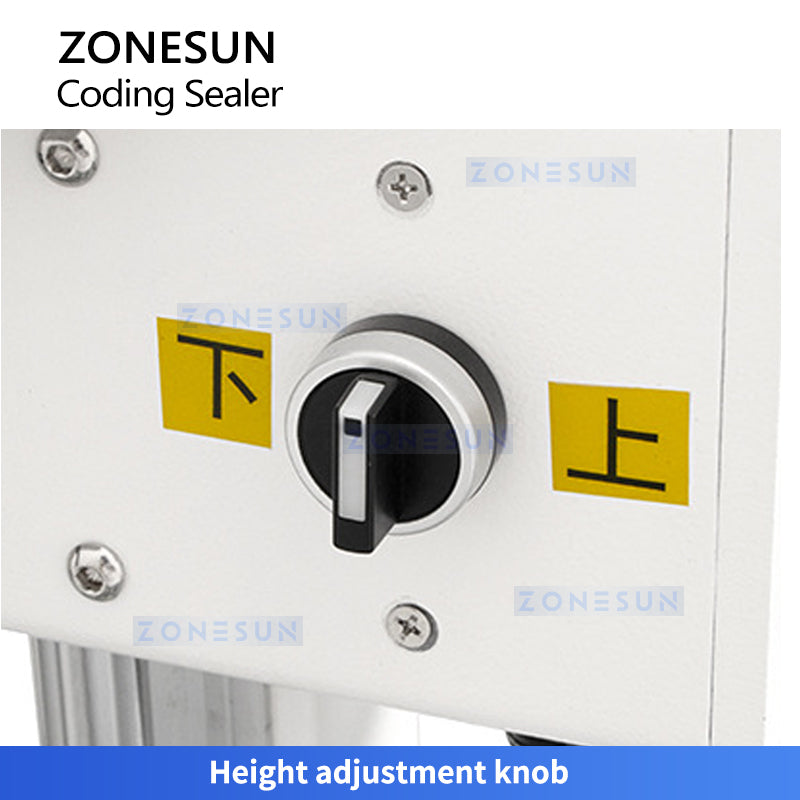

Motorized Height Adjustment

The motorized lifting control adjusts the sealing-module height safely and smoothly for products of different sizes.

Adjustable Conveyor Belt

The conveyor transports products smoothly, supports heavier loads, and offers adjustable length for flexible unloading.
