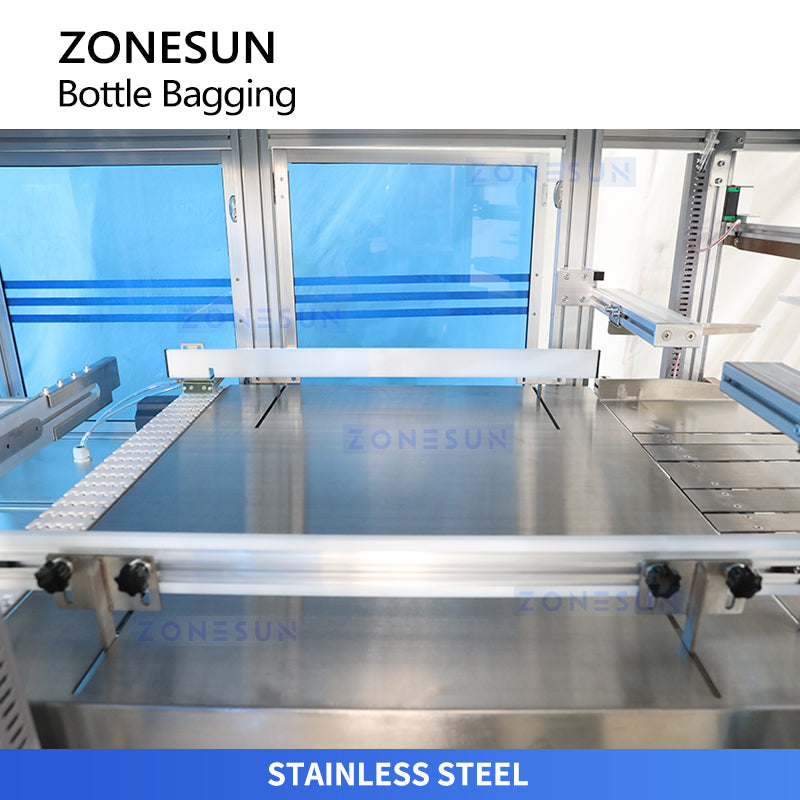

ZONESUN ZS-SPL20 Automatic Plastic Bottle Bagging Machine

Description

The ZONESUN ZS-SPL20 is a fully automatic high-speed plastic bottle bagging machine designed to replace traditional manual bag-loading operations. It automatically arranges bottles, pushes them into pre-positioned bags, and seals the bag mouth, significantly improving production efficiency and reducing labor costs. With high adjustability, it can package 100 ml-5 L plastic containers of various shapes, and the series reaches speeds up to 12000 bph. It can be integrated with blow-molding machines, labeling machines, and sleeving machines to achieve full-line automation from raw material to final packaging. The machine requires only one operator to place bags, while the system automatically loads bottles and heat-seals the bag.

Parameter

• Model: ZS-SPL20
• Suitable Product: Customized
• Bottle Type: 100ml–5L plastic containers of various shapes
• Bagging Speed: 4000–12000 bottles/hour
• Bag Height: Customized
• Voltage: 220 V, 50 Hz
• Total Power: 0.75 kW
• Compressor Consumption: 0.03 m³/hour
• Machine Size(L×W×H): 2800 × 1650 × 1800 mm (customized based on barrel size)
