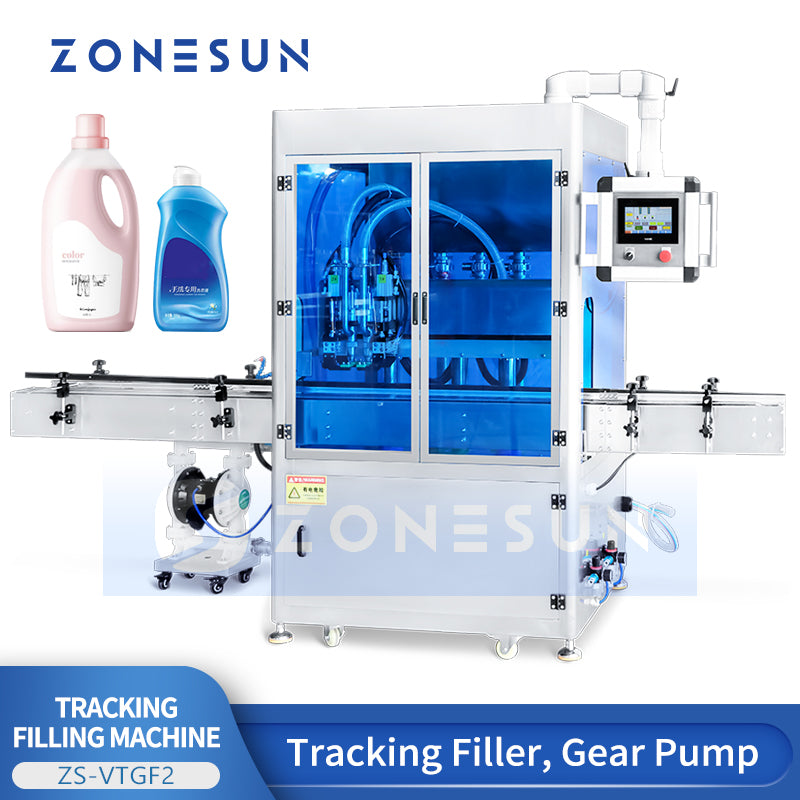

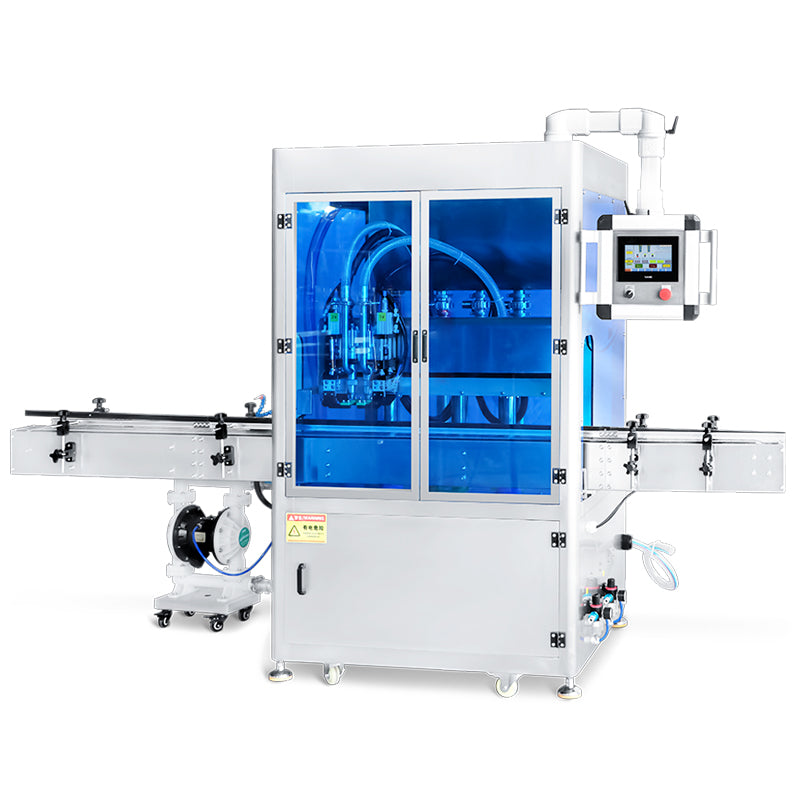

ZONESUN ZS-VTGF2 Servo Gear Pump Tracking Filling Machine for Viscous Liquids
The ZS-VTGF2 is a high-performance servo-driven filling machine designed for viscous liquids such as lotion, soap, and detergent. Its dual nozzles track bottle movement during filling, ensuring precise volume control and minimizing waste. Ideal for medium to large-scale production, this system combines speed, accuracy, and intelligent automation in a compact footprint.
Parameter
- Machine model:ZS-VTGF2
- Power supply:110/220V 50-60HZ 5KW
- Filling pump:Gear Pump
- Filling range:100-3000ml
- Bottle size:H=80-180mm W=15-120mm
- Working speed:About 20-80 bottles/min (2 heads)
- Filling accuracy:About ±0.5%
- Air pressure:About 0.5-0.8MPa
- Machine size:About 2900*1400*1980mm(L*W*H)
- Machine weight: About 390kg
Applications
The ZS-VTGF2 is designed for medium to large-scale production of viscous and semi-viscous liquid products, including: lotion, body cream, liquid soap, shampoo, conditioner, laundry detergent, dishwashing liquid, honey, sauce, chili oil, essential oils, and similar materials. Compatible with plastic and glass bottles across cosmetics, personal care, food & beverage, and household chemical industries.
Why Choose the ZS-VTGF2?
-
Servo Motor Drive: High-precision servo control ensures consistent fill speed and accuracy (±0.5%) across every cycle, even with viscous or variable-flow materials.

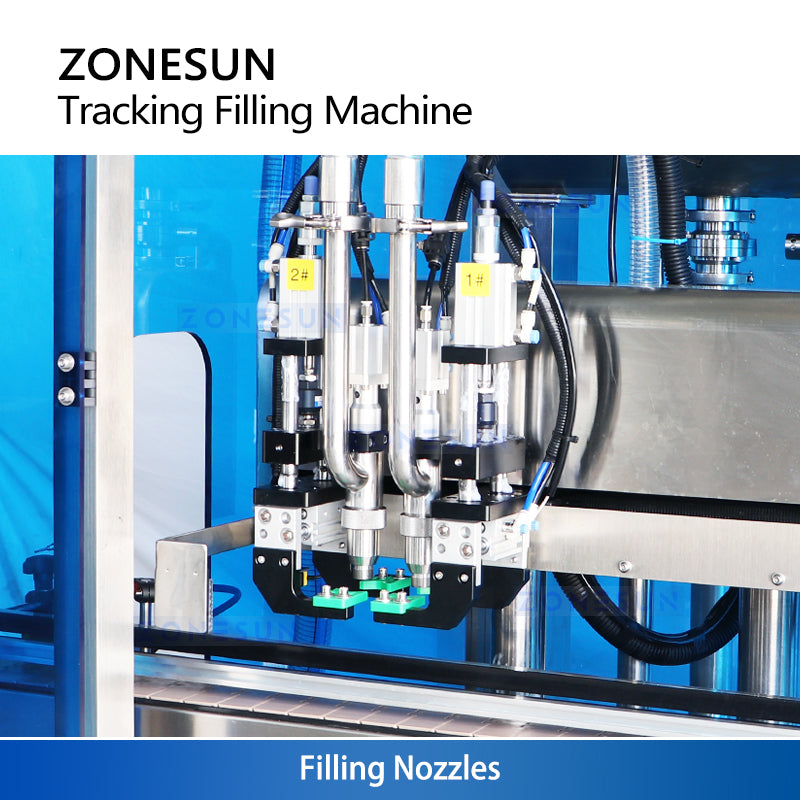

- Dual Tracking Nozzles: Nozzles follow the bottle during filling, enabling continuous motion filling without stopping the conveyor — maximizing throughput.
- High-Speed Output: Up to 80 bottles/min (2 heads), ideal for high-volume production of personal care, household, and food products.
- Gear Pump Filling System: Gear pump design handles viscous liquids reliably without foaming or dripping, suitable for materials from thin liquids to thick pastes.
- Wide Filling Range: 100–3,000ml per fill, accommodating a broad range of bottle sizes (H: 80–180mm, W: 15–120mm).

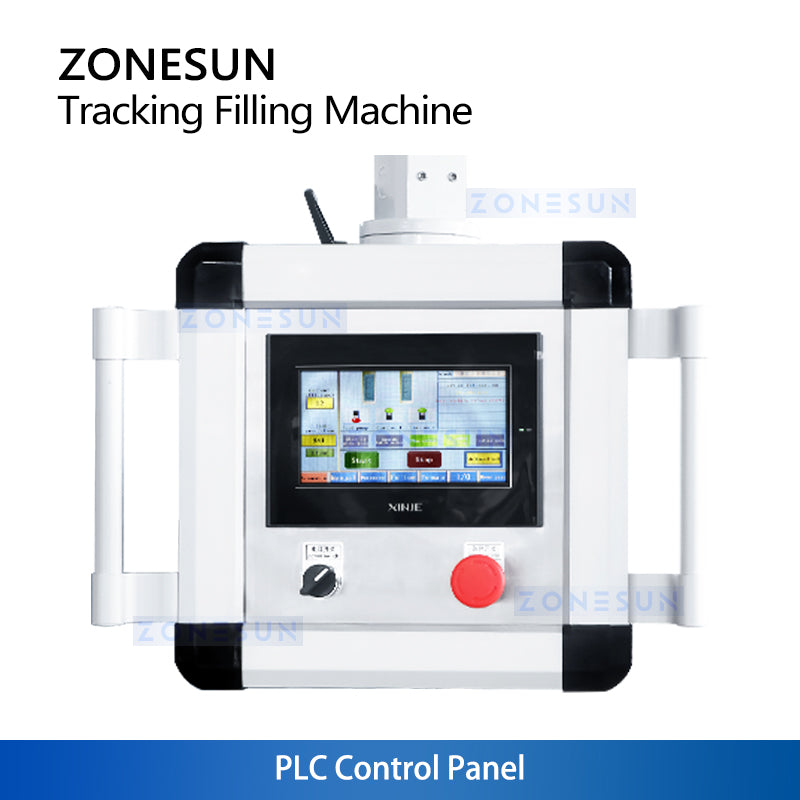

- PLC + Rotatable Touchscreen: Intelligent control panel with customizable language interface and rotatable screen for ergonomic operator access.

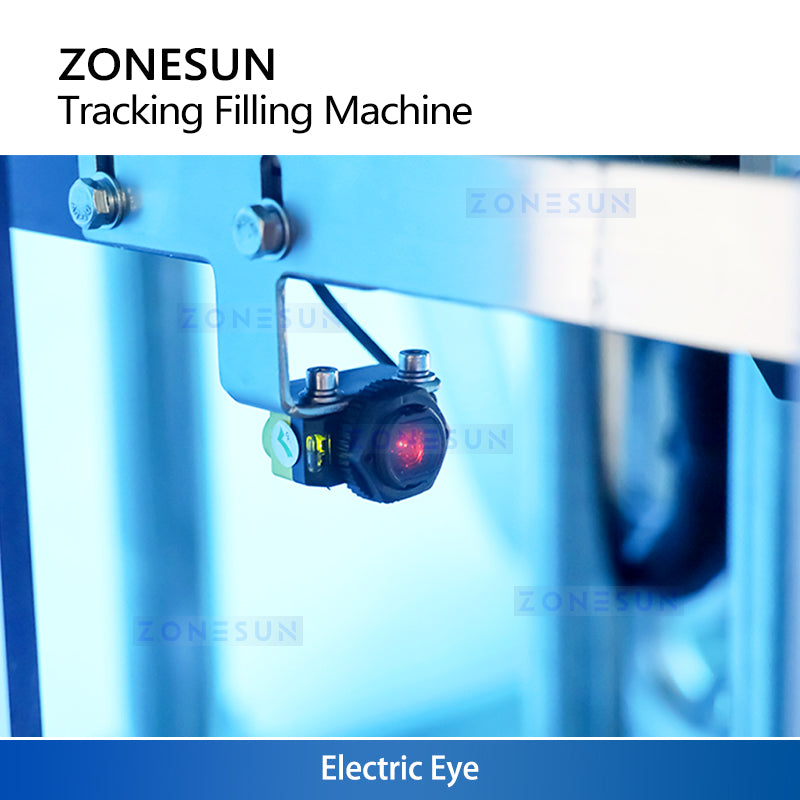

- Electric Eye Bottle Detection: Photoelectric sensor automatically detects bottles and triggers filling, with adjustable sensitivity for different bottle materials and colors.

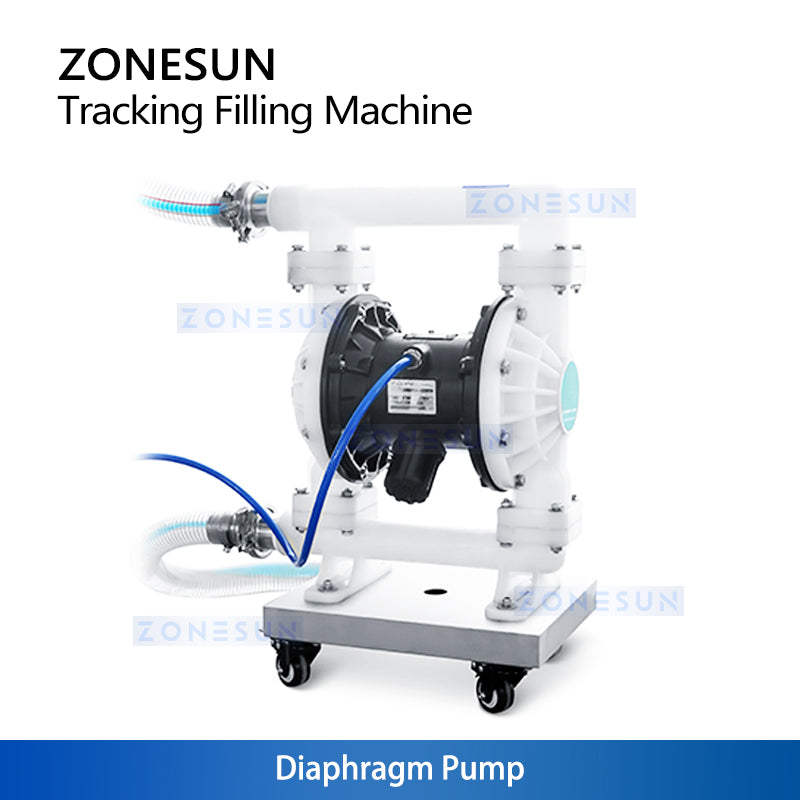

- Auto-Feed Diaphragm Pump: Automatically supplies filling material to the hopper, reducing manual labor and ensuring uninterrupted production.

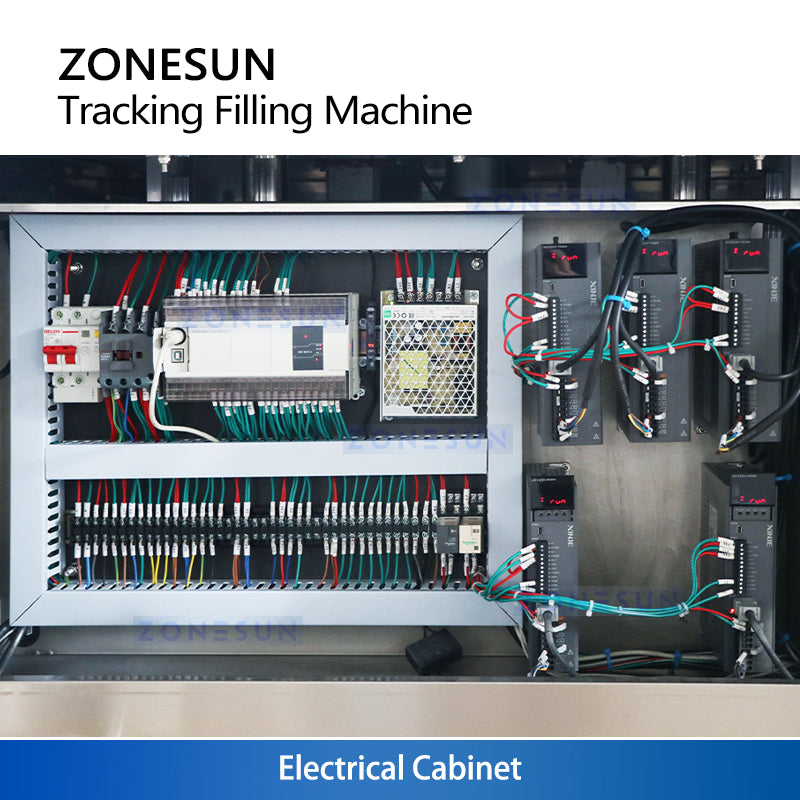

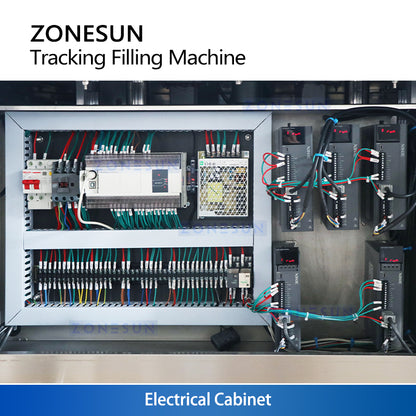

- Neat Electrical Layout: Organized wiring design ensures stable machine operation and simplifies troubleshooting and maintenance.
- Dual Voltage Support: Available in 110V and 220V (50–60Hz) for global deployment.
