Corking & T-Corking Machines

Explore ZONESUN corking equipment for compatible straight corks and T-shaped bar-top stoppers. Match bottle neck dimensions and stopper design to a suitable compression or pressing process, with feeding, insertion depth and filling-line integration assessed for your production requirements.

Bottle & Stopper Compatibility

Share bottle neck dimensions, cork material and stopper geometry to assess fit and tooling.

Compression & Insertion

Confirm straight-cork compression or T-stopper pressing, with insertion depth matched to the closure.

Bottle Support & Output

Assess bottle holders, loading method and practical capacity around your target production rate.

Feeding & Line Integration

Coordinate stopper supply, filling and discharge, with capsule or wire-hooding stations specified separately.

Share bottle and stopper samples, insertion requirements, target output and line layout.

DISCUSS YOUR CORKING NEEDS

13 Produkte

CAPPING MACHINE SERIES

CHOOSE YOUR CORKING SETUP

Find the Right Corking Configuration

Match the stopper design and insertion process before choosing the automation level.

Straight-Cork Insertion

Assess suitable compression and insertion tooling for cylindrical corks. Match the cork dimensions and material to the bottle neck and required depth.

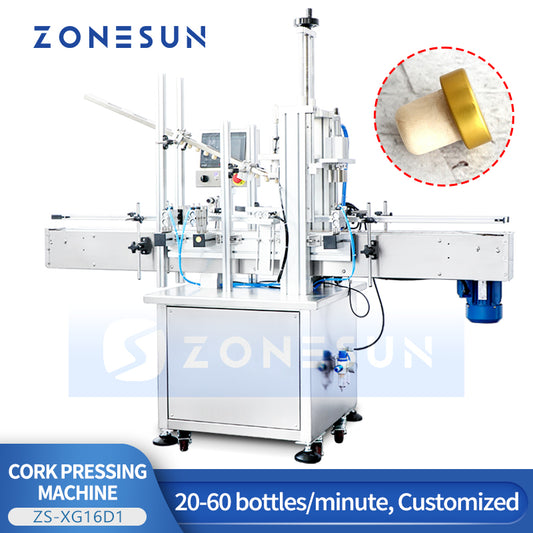

T-Cork & Bar-Top Pressing

Press compatible headed stoppers into the bottle opening. Confirm head clearance, stem dimensions, support and the required seating position.

Automatic & Integrated Corking

Coordinate bottle transport, stopper supply and insertion. Specify filling, stopper orientation and downstream finishing as separate functions.

Straight corks and T-shaped stoppers use different handling and tooling. Automatic insertion does not necessarily include automatic stopper feeding or bottle loading.

BOTTLES, CORKS & BAR-TOP STOPPERS

Match the Machine to Your Bottle and Stopper

Assess the complete bottle and closure combination using drawings and actual samples.

Natural & Agglomerated Corks

Provide cork diameter, length, material and supplier specifications. Assess compression and insertion suitability for the actual closure.

Synthetic Straight Corks

Share material and dimensions together with insertion requirements. Confirm the appropriate tooling and settings for the stopper.

T-Shaped Bar-Top Stoppers

Provide head diameter, shape and stem geometry. Assess presentation, gripping and pressing without unwanted damage to the head.

Bottle Neck & Opening

Share neck drawings, internal dimensions and tolerances. Confirm the fit between the stopper and the intended bottle opening.

Bottle Body & Support

Provide bottle height, shape, material and filled weight. Match holders, guides and transfer parts to stable bottle handling.

Multiple Bottle & Stopper Formats

List every combination and changeover frequency. Confirm insertion tools, feeders and support parts for each format.

FROM FILLED BOTTLE TO SEATED STOPPER

How Corking & T-Corking Works

A typical workflow coordinates bottle positioning, stopper presentation and insertion.

  1. 01

    Position & Support

    Present the filled bottle with its opening aligned to the insertion station.

  2. 02

    Present the Stopper

    Load or feed the matched cork or T-stopper in the required direction.

  3. 03

    Compress or Press

    Use the specified straight-cork compression or T-stopper pressing cycle.

  4. 04

    Check & Transfer

    Check seating depth, appearance and the defined closure criteria before discharge.

Compression is not required for every stopper design. Vacuum assistance, wire hooding and capsule finishing must be confirmed separately where needed.

KEY SELECTION POINTS

What to Confirm Before Choosing a Corking Machine

Provide these six details to define tooling, handling and practical production output.

Bottle Drawings & Samples

Share neck-finish dimensions, internal opening, body shape and height. Include representative bottles and relevant tolerances.

Stopper Material & Geometry

Provide cork or stopper dimensions, construction and supplier specifications. Include full T-stopper assemblies with their heads.

Insertion & Seating Criteria

Specify insertion depth, head seating and appearance requirements. Agree on suitable insertion and closure-performance tests.

Fill Level & Headspace

Share fill quantity, product conditions and headspace before corking. Define any required pressure-management functions separately.

Output & Feeding Scope

State bottles per minute or hour and operator involvement. Specify bottle feeding, stopper sorting and insertion requirements.

Change Parts, Utilities & Layout

List formats and required tooling. Provide available space, conveyor height, power, air where needed and cleaning access.

COMPLETE LINES & CUSTOMIZED SOLUTIONS

Integrate Corking into Your Bottling Workflow

Coordinate filling, stopper insertion and finishing around your product and package.

Bottle Feeding & Preparation

Plan bottle supply, handling and any required rinsing. Match presentation to the filling and corking stations.

Product Filling

Match dosing equipment to the product and fill quantity. Coordinate fill level, headspace and output with the corking process.

Stopper Supply & Orientation

Assess sorting and delivery for the actual cork or T-stopper. Confirm feeding parts and format-change requirements.

Corking & Closure Checks

Coordinate bottle support and insertion settings. Specify any additional seating checks, inspection or rejection equipment.

Capsules & Wire Hooding

Define capsule application or wire hooding only where required by the package. Confirm these finishing stations separately.

Labeling & Case Packing

Plan coding, labeling, accumulation and packing. Coordinate transfers and downstream output for the finished bottles.

Explore Capping Solutions DISCUSS CORKING LINE INTEGRATION

CORKING & T-CORKING FAQ

Frequently Asked Questions

Answers about stopper types, insertion and line integration.

What is the difference between straight corking and T-corking?
Straight corking commonly compresses a cylindrical cork before insertion. T-corking presses a compatible headed stopper into the opening to its specified seating position. Tooling and feeding requirements differ.
Can one machine handle both straight corks and T-stoppers?
Do not assume that it can. Compatibility depends on the insertion mechanism, tooling and feeder. Provide samples of both formats and confirm any required conversion parts.
Can natural and synthetic corks use the same settings?
Not necessarily. Material properties and dimensions can affect compression and insertion. Assess the actual cork and bottle combination and confirm suitable settings with samples.
Does automatic corking include stopper feeding?
Not always. Automatic may describe the insertion cycle alone. Confirm bottle loading, stopper sorting, orientation and delivery separately.
How do I define insertion depth and closure quality?
Use bottle and stopper supplier specifications together with tests on the actual assembly. Define seating depth, appearance and any required closure-performance criteria before selection.
Are wire hooding and capsule shrinking included?
Not necessarily. These are additional finishing operations. Specify them separately and confirm suitability for the intended bottle and closure, especially for pressure-containing packs.
What should I send for machine selection?
Send bottle drawings and samples, cork or T-stopper samples, insertion criteria, product and fill-level details, target output, required feeding functions, format changes and line layout.

CUSTOM CORKING & BOTTLING SOLUTION

Plan Your Corking & T-Corking Setup

Share your bottles, stoppers and production requirements. ZONESUN can help assess suitable insertion tooling, feeding arrangements and line integration for a standalone corker or a coordinated filling, corking and labeling workflow.

Helpful details: bottle and stopper samples · neck drawings · insertion depth · fill level · target output · automation scope · line layout
