ZONESUN ZS-MSFM730 Automatic Transparent Film Overwrapping Machine
ZONESUN ZS-MSFM730 Automatic Transparent Film Overwrapping Machine
Verfügbarkeit für Abholungen konnte nicht geladen werden
ZONESUN ZS-MSFM730 High Speed Servo-Driven Overwrapping Machine for Cosmetic Perfume Box with Tear Tape
The ZONESUN ZS-MSFM730 is a high-speed servo-driven automatic transparent film overwrapping machine designed for three-dimensional wrapping of boxes with BOPP or PVC film. It automatically performs feeding, lifting, pushing, film wrapping, folding, six-side heat sealing, and discharge at speeds of 60–90 boxes per minute. With wide product size compatibility and fast changeover, it delivers neat, professional, and wrinkle-free packaging while being more energy-efficient than traditional shrink wrapping. Ideal for enhancing product appearance and protection in cosmetic, perfume, pharmaceutical, and gift packaging lines.
Box Overwrapping Machine Parameter
- Machine Model: ZS-MSFM730
- Machine Voltage: 220 V, 50 HZ, 11 KW
- Air Pressure: ≥ 0.6 MPa
- Suitable Object Size: 55-300 × 30-200 × 15-100 mm (L × W × H, Customizable)
- Working Capacity: About 60-90 BPM (Based on package products size)
- Suitable Package Film: Double-Side Heat Sealing Bopp, Pvc Films And Tear Tape
- Machine Size: About 4780 × 1000 × 1850 mm
- Machine Weight: About 1200 kg
SWING ARM TOUCHSCREEN CONTROL PANEL
Mounted on a movable swing arm to provide a highly convenient control interface and allow quick parameter adjustment during production.
BOX LIFTING & PUSHING STRUCTURE
Lifts products precisely and pushes them horizontally into the wrapping position to ensure highly stable material handling.
ROLL FILM FEEDING STRUCTURE
Delivers BOPP or PVC film automatically under stable tension to ensure a continuous, precision, and wrinkle-free wrapping process.
OVERWRAPPING FORMING STRUCTURE
Wraps film tightly around the box before folding and sealing to deliver a neat, professional, and wrinkle-free package finish.

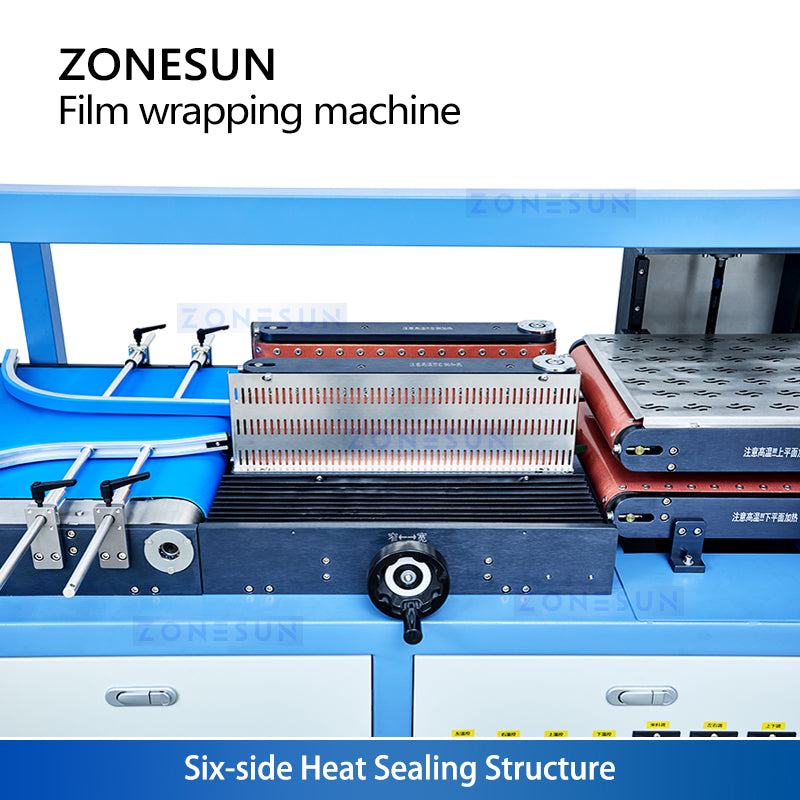

SIX-SIDE HEAT SEALING STRUCTURE
Executes precise temperature-controlled heating on all six sides of the wrapped box to ensure secure film sealing and a perfectly flat finish.
ELECTRICAL CONTROL COMPONENTS
Coordinates servo motion and process timing precisely via premium circuits to ensure stable, reliable, and high-speed overwrapping performance.
Why Choose the ZS-MSFM730?
Capable of wrapping 60–90 boxes per minute, this machine significantly boosts production efficiency. Its servo-driven system ensures precise and stable material handling during the lifting, pushing, and wrapping processes.
It delivers neat, tight, and wrinkle-free packaging with precise six-side heat sealing. The option to include a tear tape adds a high-end, user-friendly touch to your product presentation.
Unlike traditional shrink wrapping that requires heating an entire tunnel, this machine applies targeted heating only at the sealing points, making it a more energy-efficient and eco-friendly choice.
It handles a wide range of box sizes (55-300 × 30-200 × 15-100 mm) and requires minimal mechanical adjustments when switching between different product sizes, reducing downtime.
The movable swing arm touchscreen control panel allows operators to easily access and adjust parameters from a convenient position during production.
The machine is designed to connect smoothly with upstream and downstream packaging equipment, making it easy to integrate into existing production lines.
Ideal Applications
- Cosmetics & Personal Care: Perfume boxes, skincare products, and cosmetic packaging.
- Pharmaceuticals: Medicine boxes and healthcare products.
- Food & Consumer Goods: Cigarettes, gift boxes, and other premium consumer items.
- Media & Entertainment: DVDs, CDs, playing cards, and board games.
