ZONESUN ZS-AFS08K6 Automatic Rotary Premade Pouch Packing Machine for Granules with Zipper Opening Punching and Double Sealing System
ZONESUN ZS-AFS08K6 Automatic Rotary Premade Pouch Packing Machine for Granules with Zipper Opening Punching and Double Sealing System
No se pudo cargar la disponibilidad de retiro
DESCRIPTION

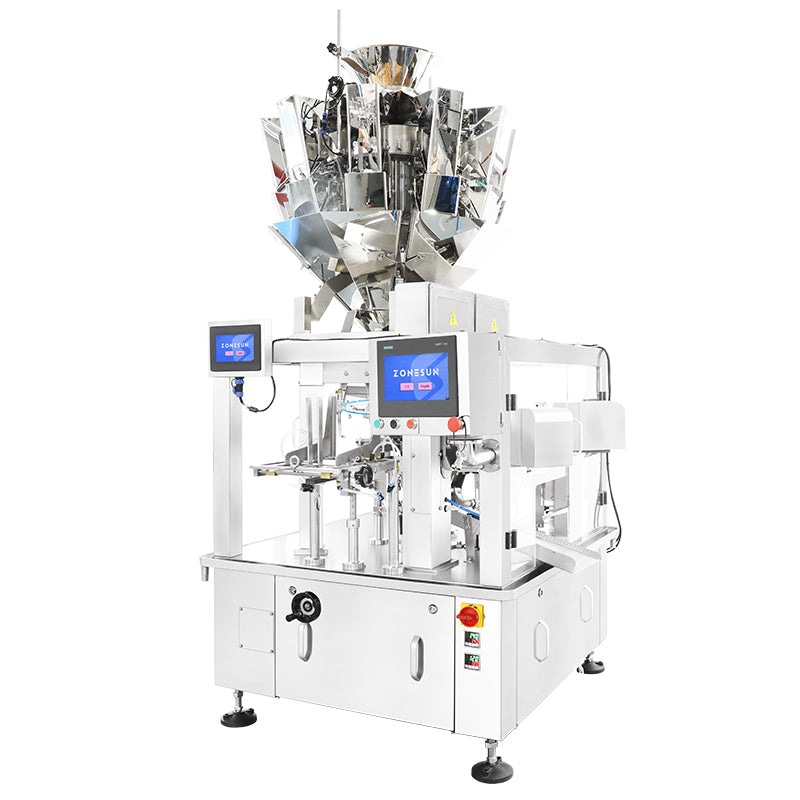

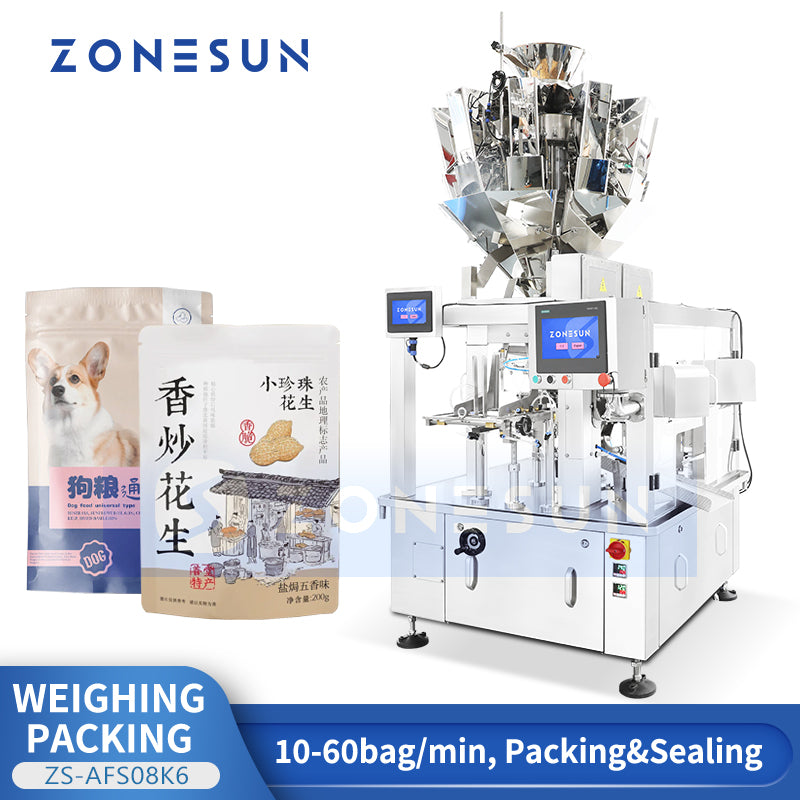

The ZONESUN ZS-AFS08K6 is an automatic rotary premade pouch packing machine designed for granules like dog food, nuts, and snacks. It features a 6-station rotary system with a high-precision cam for smooth and reliable operation. With adjustable speed (10–60 bags/h) and double sealing, it ensures neat, firm packaging. Optional features include zipper opening, bottom opening, and punching, making it a versatile weighing and packing solution.
PARAMETER
- Model: ZS-AFS08K6
- Packaging specifications: Length 140-300MM, Width 80-200MM
- Packing speed: 10-60 bags/minute
- Power requirements: 380V three-phase five-wire 6.5KW
- Compressed air: 5-7kg/cm², 600m³/min
- Dimensions: 1140*1050*3000MM (whole machine size)
- Packing film material: Single-layer PE, PE composite film, paper film, and other composite films
- Optional packaging style: Flat bag, stand-up bag, zipper bag, handbag, M bag (partial modification of equipment required)
- Host weight: About 750KG
Intelligent control panel
Equipped with an intuitive control panel, you can accurately set parameters, monitor in real time and quickly troubleshoot.
Weighing structure
The machine uses a high-precision weighing system, which measures accurately and consistently to ensure that the correct amount of product is loaded into each bag.
Filling and unloading structure
Adopts a seamless operation design to ensure smooth flow of materials, reduce downtime and increase production speed.
Sealing structure
Equipped with a reliable sealing system to ensure a firm and reliable seal, neat and beautiful packaging, and prevent leakage and product damage.
Bag taking device
The automatic bag picking mechanism can efficiently pick up and position packaging bags, simplify the bagging process, and increase overall production.
