ZONESUN ZS-MD50 Automatic Bottles Caps Foil Seal Thermal Imaging Inspection Machine

Description

The ZONESUN ZS-MD50 is an automatic foil-seal inspection machine designed for high-speed production lines. Operating at up to 200 bottles per minute, it uses non-contact infrared thermal imaging to evaluate the sealing quality of induction-sealed or heat-sealed bottle caps. The system accurately detects missing foil, weak sealing, overheating, skewed caps, loose caps, and other sealing defects without touching the product. With its wide cap-size compatibility, high pass rate, and precise imaging accuracy, it provides reliable, efficient, and real-time quality control for cosmetics, food, beverage, and chemical packaging lines.

Parameter

• Model: ZS‑MD50
• Power Supply: AC 220 V ±10%, 50/60 Hz (customizable); 110 V (requires external transformer)
• Power Consumption: ≤ 1 kW
• Applicable Cap Size: Φ10–150 mm
• Applicable Bottle Size: Height 50–350 mm; Diameter ≤ 300 mm
• Max Inspection Speed: 200 bottles/min (depends on product size)
• Pass Rate: ≥ 99.99%
• False Reject Rate: ≤ 0.5% (depends on material and conditions)
• Image Accuracy: ±0.03 mm
• Operating Temperature: –15 °C to 65 °C
• Camera Speed: 50 Hz, full temperature range

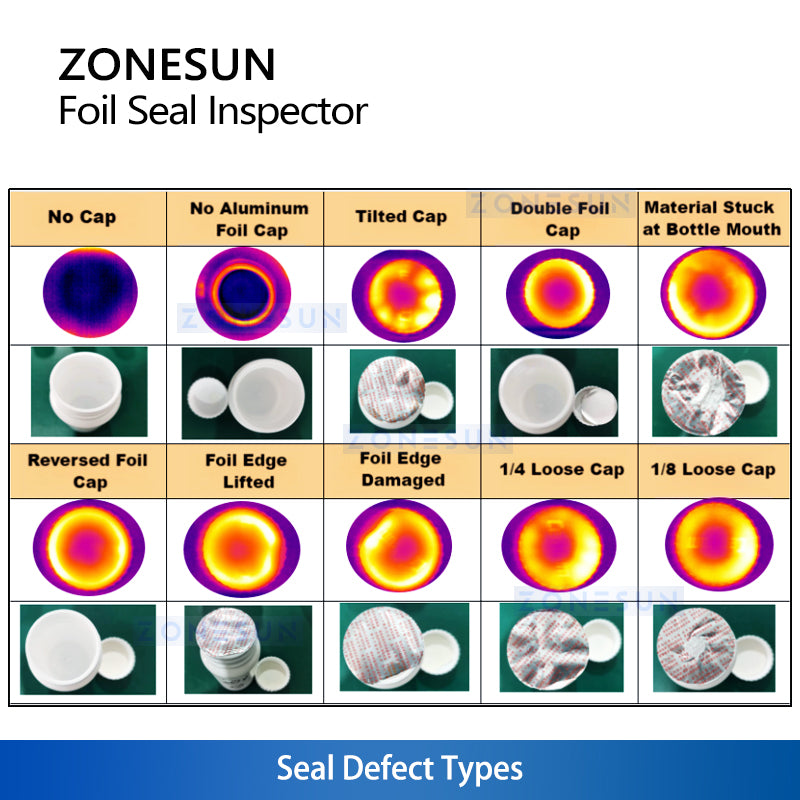

• Inspection Functions: No cap, missing foil seal, skewed cap, high cap, loose cap, reversed foil, double foil, damaged foil at rim, lifted foil edge, under‑sealing, over‑sealing
• Compressed Air Requirement: 0.6–0.8 MPa, ≥ 0.6 m³/min (user supplied)
• Machine Dimensions: 600 × 450 × 1720 mm
