ZONESUN ZS-YTPP2W Semi-automatic 2 Nozzles Peristaltic Pump Liquid Filling Machine
ZONESUN ZS-YTPP2W Semi-automatic 2 Nozzles Peristaltic Pump Liquid Filling Machine
Prix habituel
$726.00 USD
Prix habituel
Prix promotionnel
$726.00 USD
Prix unitaire
par
Frais d'expédition calculés à l'étape de paiement.
Impossible de charger la disponibilité du service de retrait
Description

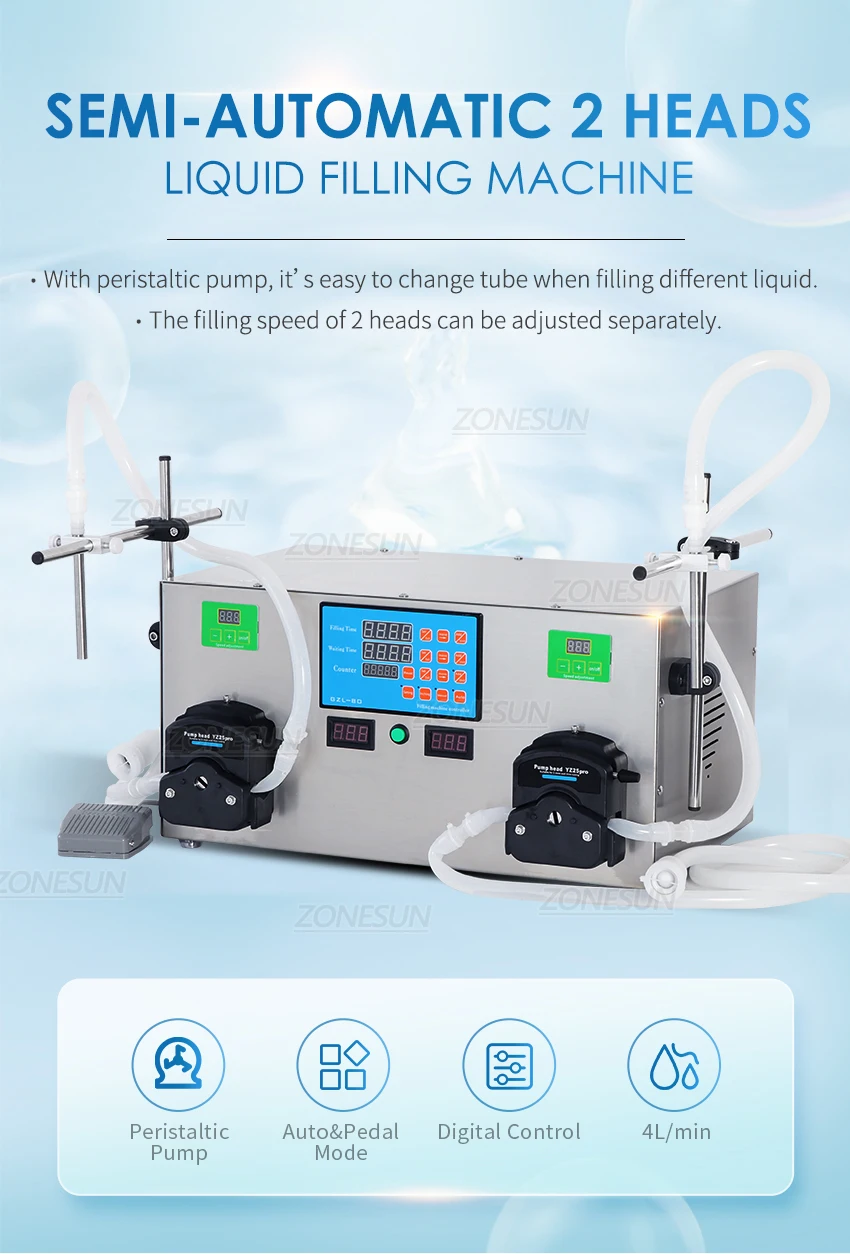

The ZS-YTPP2W liquid filling machine features dual working modes—automatic and manual—for flexible operation. With two peristaltic pumps, it achieves high flow rates up to 4L/min, making it ideal for filling water, milk, toner, beverages, and other liquids. Easy pedal control ensures precise manual dosing, while automatic mode streamlines repetitive tasks. Perfect for labs, cosmetics, and light industrial use.
The ZS-YTPP2W liquid filling machine features dual working modes—automatic and manual—for flexible operation. With two peristaltic pumps, it achieves high flow rates up to 4L/min, making it ideal for filling water, milk, toner, beverages, and other liquids. Easy pedal control ensures precise manual dosing, while automatic mode streamlines repetitive tasks. Perfect for labs, cosmetics, and light industrial use.
Feature
1. Import single-chip microcomputer control, high efficiency, low power consumption
2. Automatic counting function, effectively control filling quantiy
3. Intelligent operation panel,easy to operate.
4. High filing accuracy & Wide Voltage range.
5. Working performance is stable and can be used for long time
6. Suitable for liquid which is PH value 5-8
7. Anti-dripping design for filling nozzle,ensure the filling accurancy
8. Reasonable design, made of stainless steel, meet GMP requirement
1. Import single-chip microcomputer control, high efficiency, low power consumption
2. Automatic counting function, effectively control filling quantiy
3. Intelligent operation panel,easy to operate.
4. High filing accuracy & Wide Voltage range.
5. Working performance is stable and can be used for long time
6. Suitable for liquid which is PH value 5-8
7. Anti-dripping design for filling nozzle,ensure the filling accurancy
8. Reasonable design, made of stainless steel, meet GMP requirement

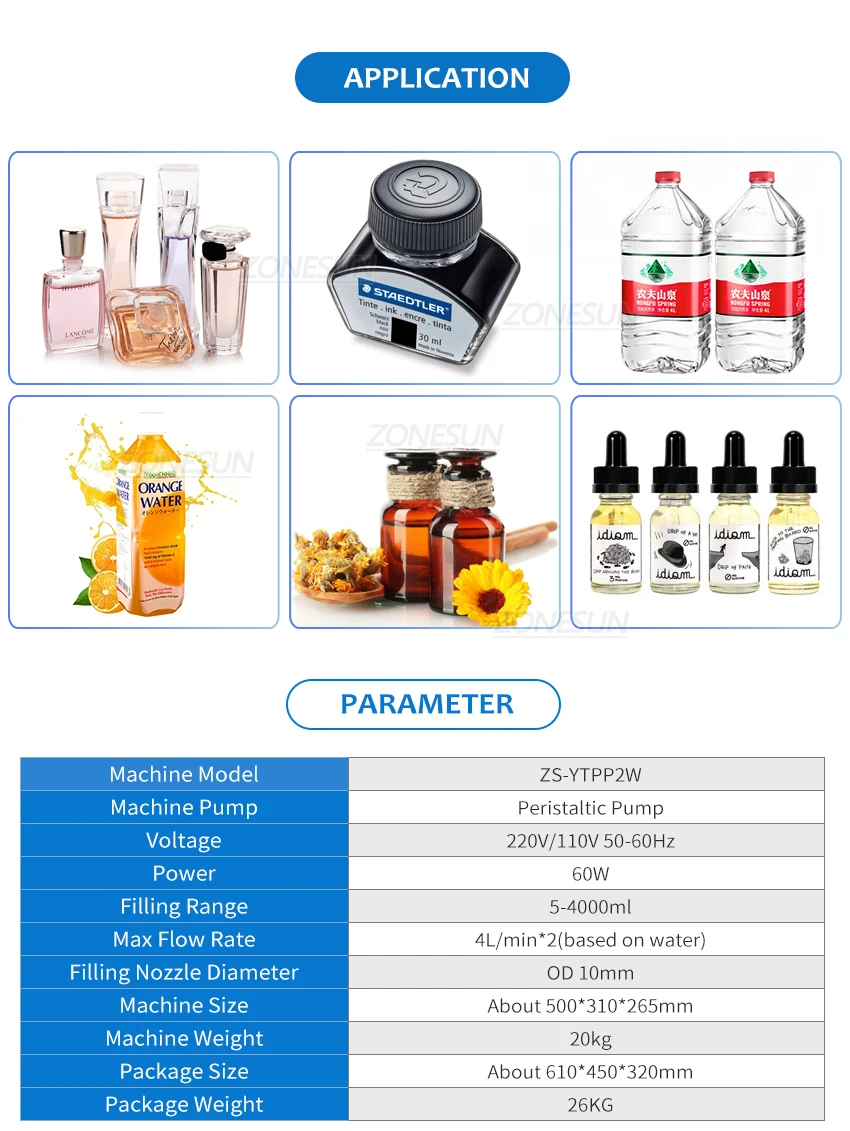

Parameter
Machine Model ZS-YTPP2W
Pump Type Peristaltic Pump
Voltage 220V/110V, 50–60Hz
Power 60W
Filling Range 5–4000ml
Maximum Flow Rate 4L/min × 2 (based on water)
Filling Nozzle Diameter Outer Diameter 10mm
Machine Size Approx. 500 × 310 × 265mm
Machine Weight 20kg
Package Size Approx. 610 × 450 × 320mm
Package Weight 26kg
Machine Model ZS-YTPP2W
Pump Type Peristaltic Pump
Voltage 220V/110V, 50–60Hz
Power 60W
Filling Range 5–4000ml
Maximum Flow Rate 4L/min × 2 (based on water)
Filling Nozzle Diameter Outer Diameter 10mm
Machine Size Approx. 500 × 310 × 265mm
Machine Weight 20kg
Package Size Approx. 610 × 450 × 320mm
Package Weight 26kg
DIGITAL CONTROL PANEL
The digital panel allows operators to set filling time and other working parameters, while the inching function supports machine testing.
HYGIENIC PERISTALTIC PUMPS
Liquid flows only through the tubing during filling, helping maintain cleanliness and simplify tube replacement between products.
ANTI-DRIP FILLING NOZZLES
The filling nozzles are designed to reduce dripping when dispensing compatible low-viscosity liquids.
ADJUSTABLE NOZZLE HEIGHT
The filling-nozzle height can be adjusted to accommodate bottles of different supported heights.
MANUAL AND AUTOMATIC MODES
The machine supports automatic operation and manual control through the foot pedal.
LIQUID FILTER
The filter removes impurities from the liquid to support normal machine operation.
