ZONESUN ZS-YT8T-8PX Automatic 8-Head Servo Piston Paste Filling Machine for Pastes and Viscous Liquid

ZONESUN ZS-YT8T-8PX Automatic 8-Head Servo Piston Paste Filling Machine for  Pastes and Viscous Liquid

Description

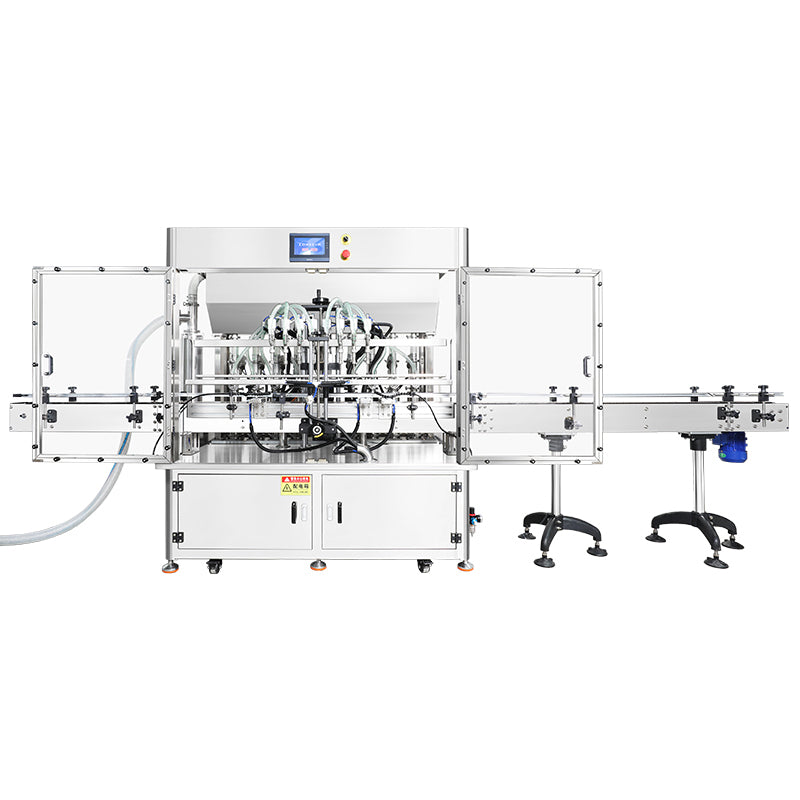

The ZONESUN ZS-YT8T-8PX Automatic 8-Head Servo Piston Filling Machine is designed for efficient filling of pastes and viscous liquid products. It uses 8 servo-controlled piston filling heads with an anti-drip design to provide consistent filling at approximately 30–70 bottles/min. Equipped with a 250 L large-capacity hopper, automatic material feeding pump, touchscreen control, and drip collection tray, the machine reduces manual material handling and supports continuous production. The hopper supports heating up to 80°C, and the number of filling nozzles and hopper capacity can be customized according to production requirements.

Parameter

• Machine Model: ZS-YT8T-8PX
• Power Supply: 220 V, 50 Hz
• Power: 6 kW
• Number of Filling Nozzles: 8 (Customizable)
• Filling Speed: Approx. 30–70 bottles/min (Depending on Bottle Size and Filling Material)
• Filling Range: 100–1000 ml
• Maximum Heating Temperature: 80°C
• Material Hopper Capacity: 250 L (Customizable)
• Air Pressure: 5–6 kg/cm²
• Air Compressor Connector Size: Φ10 mm

Features

Touchscreen Control Panel

Allows operators to set filling volume, filling speed, and other operating parameters while monitoring machine status.

8-Head Anti-Drip Filling System

Eight filling nozzles operate simultaneously for efficient filling, with an anti-drip design to help reduce product dripping after each filling cycle.

Servo Piston Filling System

Uses servo-controlled piston filling to provide precise control of filling volume and speed for consistent filling of viscous products.

Automatic Material Feeding Pump

Automatically transfers paste from an external supply container to the hopper, reducing manual material feeding during continuous production.

Large-Capacity Hopper

The 250 L hopper stores and continuously supplies product to the filling system, reducing frequent material refilling.

Drip Collection Tray

Collects residual product beneath the filling nozzles to help keep the conveyor and working area clean.

Electrical Control System

Neatly integrates and protects the main electrical and control components for stable machine operation.

Benefits

30–70 Bottles/Min

Provides a filling speed of approximately 30–70 bottles/min, depending on bottle size and filling material.

8-Head Simultaneous Filling

Eight filling heads operate simultaneously to improve production efficiency and support continuous automatic filling.

Servo-Controlled Piston Filling

Servo control allows operators to directly set the required filling volume while providing controlled piston movement for repeatable filling.

Automatic Material Supply

The integrated feeding pump automatically transfers product into the hopper, reducing manual refilling and labor requirements.

Heated Hopper up to 80°C

The hopper supports a maximum heating temperature of 80°C, helping maintain suitable material conditions for compatible products requiring heating during filling.

Anti-Drip Filling Nozzles

The filling nozzles feature an anti-drip design to help reduce material dripping between filling cycles.

Customizable Filling Nozzles

The standard configuration uses 8 filling nozzles, with customization available according to production requirements.

Customizable Hopper Capacity

The material hopper capacity can be customized according to production requirements.

Adjustable Filling Parameters

Filling volume and filling speed can be set according to the product and packaging requirements through the touchscreen control system.

Drip Collection System

Residual material from the filling nozzles is collected beneath the filling station to help keep the conveyor cleaner.

Continuous Production

The combination of automatic conveying, multi-head filling, material feeding, and a large hopper supports continuous automated filling operations.

Application

Ideal for automatic filling of pastes and viscous liquid products that are compatible with servo piston filling technology. The 8-head filling system, large-capacity hopper, automatic feeding pump, and heating function make the machine suitable for continuous production where thick materials need to be supplied and filled efficiently. Actual filling speed depends on the product viscosity, filling volume, bottle size, and production conditions.

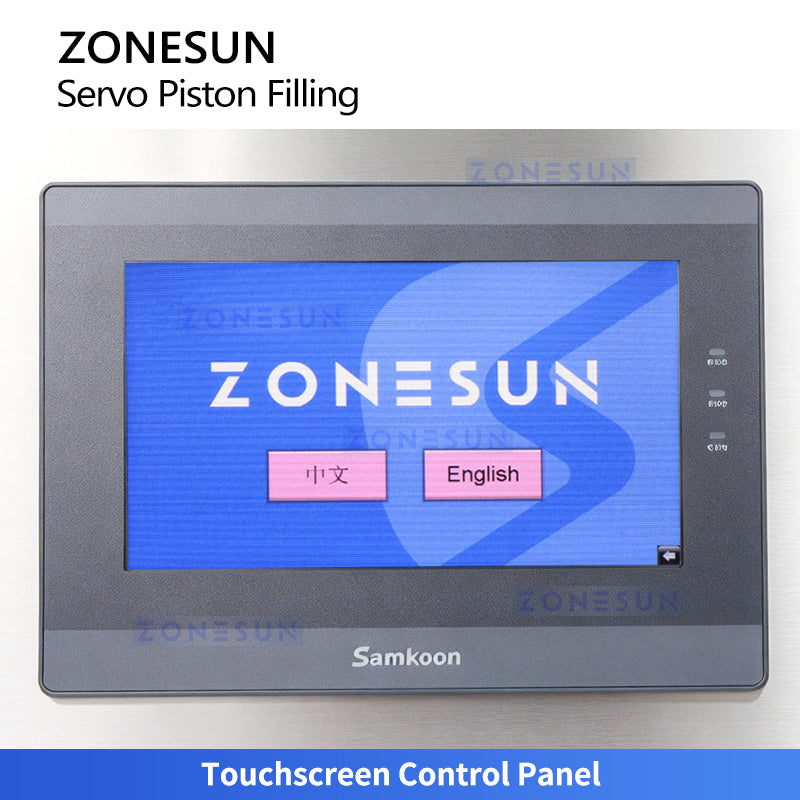

Touchscreen Control Panel

Allows operators to set filling volume, speed and other operating parameters while monitoring machine status.

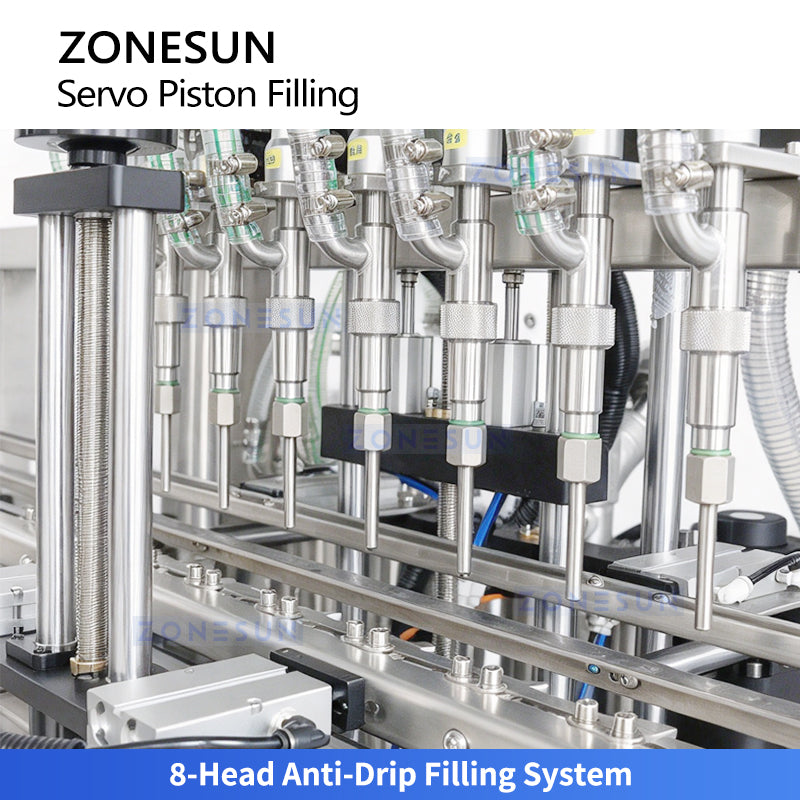

8-Head Anti-Drip Filling System

Eight filling nozzles operate simultaneously for efficient filling, with an anti-drip design to help reduce product dripping after each cycle.

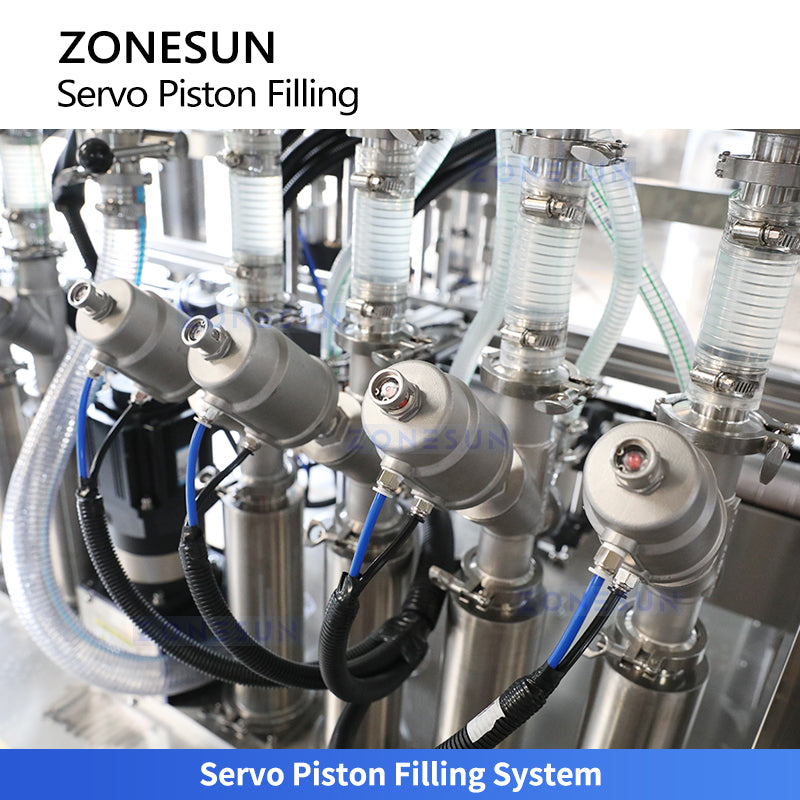

Servo Piston Filling System

Servo-controlled piston filling provides precise control of filling volume and speed for consistent filling of viscous products.

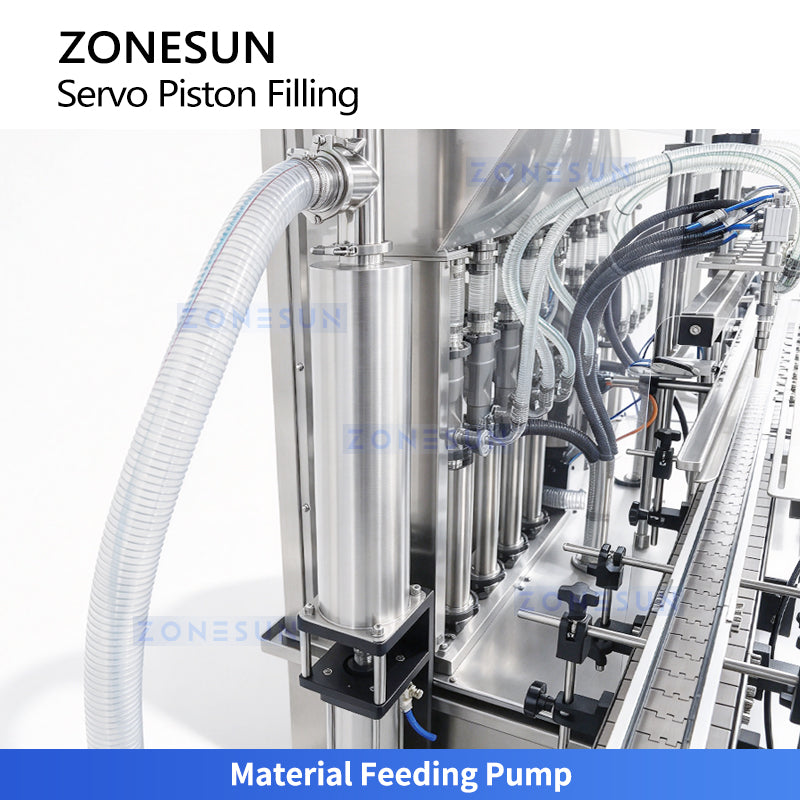

Material Feeding Pump

Automatically transfers paste from an external supply container to the hopper, reducing manual refilling during continuous production.

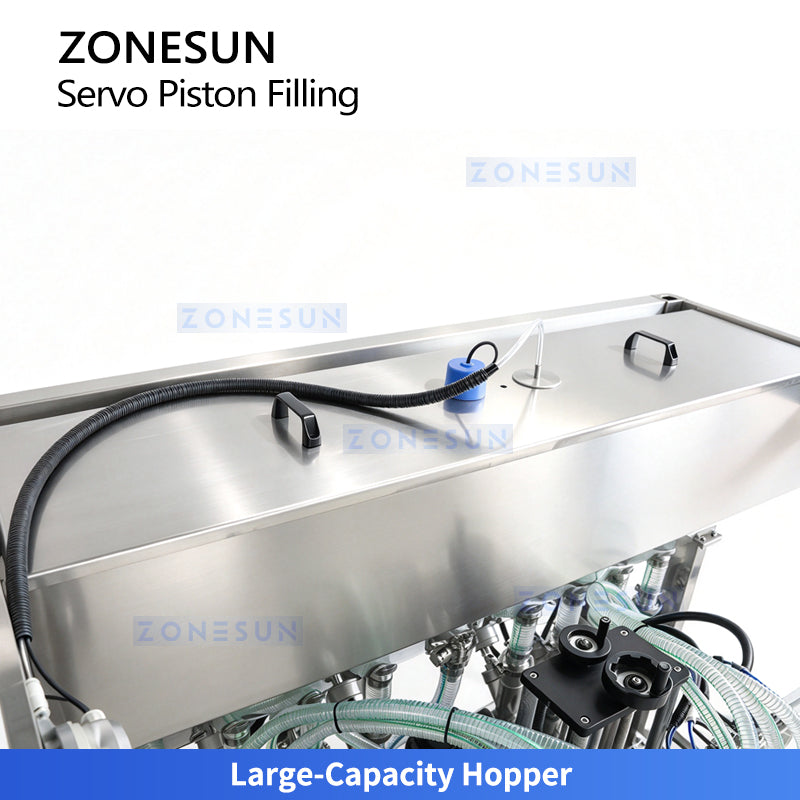

Large-Capacity Hopper

Stores and continuously supplies product to the filling system, reducing frequent material refilling during production.

Drip Collection Tray

Collects residual product beneath the filling nozzles to help keep the conveyor and working area clean.

Electrical Control System

Neatly integrates and protects the main electrical and control components for stable machine operation.

Why Choose the ZONESUN ZS-YT8T-8PX?

✅ 8-Head Simultaneous Filling:
Eight filling heads operate simultaneously to improve production efficiency and support continuous automatic filling.

✅ Servo-Controlled Piston Filling:
Servo control allows operators to directly set the required filling volume while providing controlled piston movement for repeatable filling.

✅ 30–70 Bottles/Min:
Provides a filling speed of approximately 30–70 bottles/min, depending on bottle size and filling material.

✅ Anti-Drip Filling Nozzles:
The filling nozzles feature an anti-drip design to help reduce material dripping between filling cycles.

✅ Automatic Material Supply:
The integrated feeding pump automatically transfers product into the hopper, reducing manual refilling and labor requirements.

✅ 250 L Large-Capacity Hopper:
The standard configuration includes a 250 L material hopper, providing sufficient product storage for continuous production.

✅ Heated Hopper up to 80°C:
The hopper supports a maximum heating temperature of 80°C, helping maintain suitable material conditions for compatible products requiring heating during filling.

✅ Touchscreen Control:
Operators can set filling volume, filling speed, and other operating parameters while monitoring machine status.

✅ Adjustable Filling Parameters:
Filling volume and filling speed can be set according to the product and packaging requirements through the touchscreen control system.

✅ Drip Collection Tray:
Collects residual product beneath the filling nozzles to help keep the conveyor and working area clean.

✅ Customizable Filling Nozzles:
The standard configuration uses 8 filling nozzles, with customization available according to production requirements.

✅ Customizable Hopper Capacity:
The material hopper capacity can be customized according to production requirements.

✅ Continuous Production:
The combination of automatic conveying, multi-head filling, material feeding, and a large hopper supports continuous automated filling operations.

Ideal Applications

Paste Filling:
Suitable for automatic filling of paste products that are compatible with servo piston filling technology.

Viscous Liquid Filling:
Ideal for viscous liquid products requiring precise and consistent filling.

Sauce Filling:
Suitable for automatic sauce filling applications where thick materials need to be supplied and filled efficiently.

Cosmetic Paste Filling:
Can be configured for compatible cosmetic paste products requiring controlled filling.

Food Paste Filling:
Suitable for food paste products that are compatible with servo piston filling technology.

Chemical Paste Filling:
Can be used for compatible chemical paste products requiring precise filling.

Continuous Production Lines:
The 8-head filling system, large-capacity hopper, automatic feeding pump, and heating function make the machine suitable for continuous production where thick materials need to be supplied and filled efficiently.

Customizable Filling Applications:
The number of filling nozzles and hopper capacity can be customized according to production requirements.
