ZONESUN ZS-GHK4 Multi-Drum Rotary Roasting Machine for Nut and Seed Peanuts and Granules
ZONESUN ZS-GHK4 Multi-Drum Rotary Roasting Machine for Nut and Seed Peanuts and Granules
Não foi possível carregar a disponibilidade de recolha
ZONESUN ZS-GHK4 Continuous Rotary Roasting Machine for Nuts Seeds Peanuts Almonds Cashews Sesame

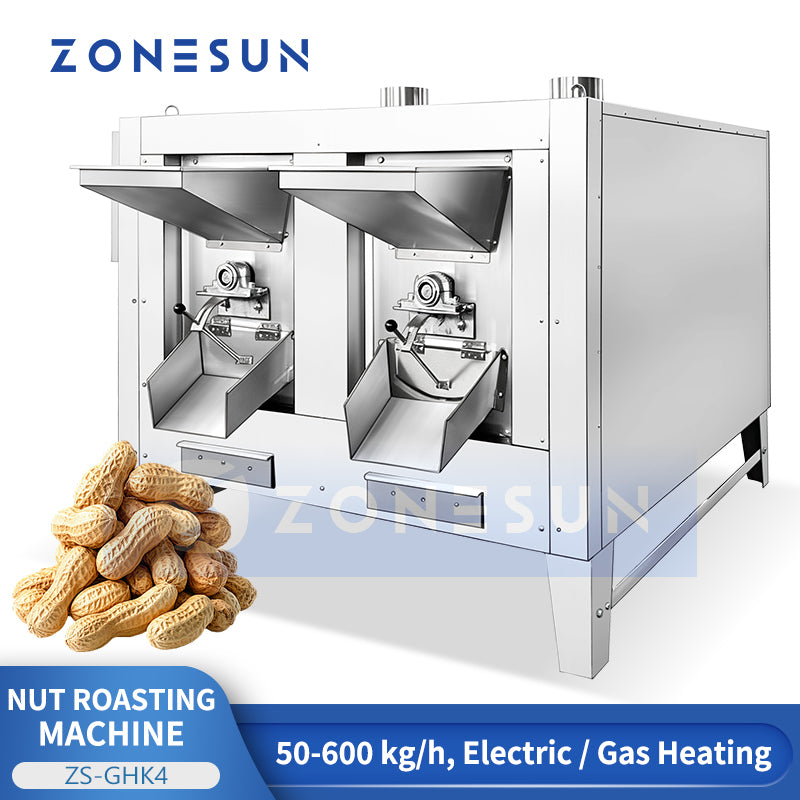

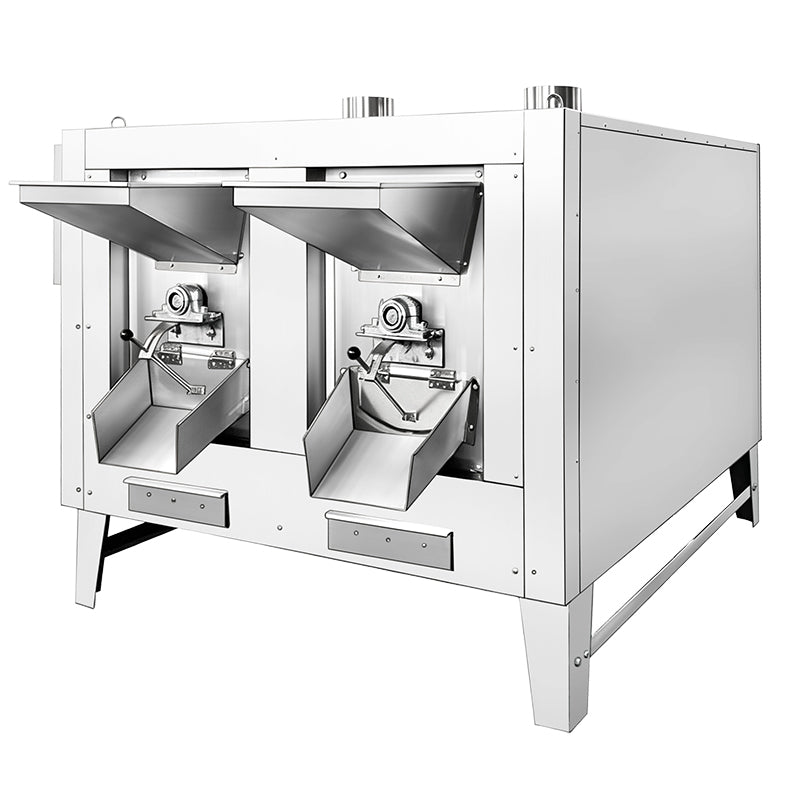

The ZONESUN ZS-GHK4 is a multi-drum rotary roasting machine designed for efficient and uniform roasting of nuts, seeds, and granules. Available in electric or gas heating versions with independent temperature control per drum, it supports capacities from 50 kg/h to 600 kg/h. The continuous rotating drum ensures 360° even heating without scorching, making it ideal for commercial production of peanuts, almonds, cashews, sunflower seeds, sesame, and other dry goods.
Key Features
-

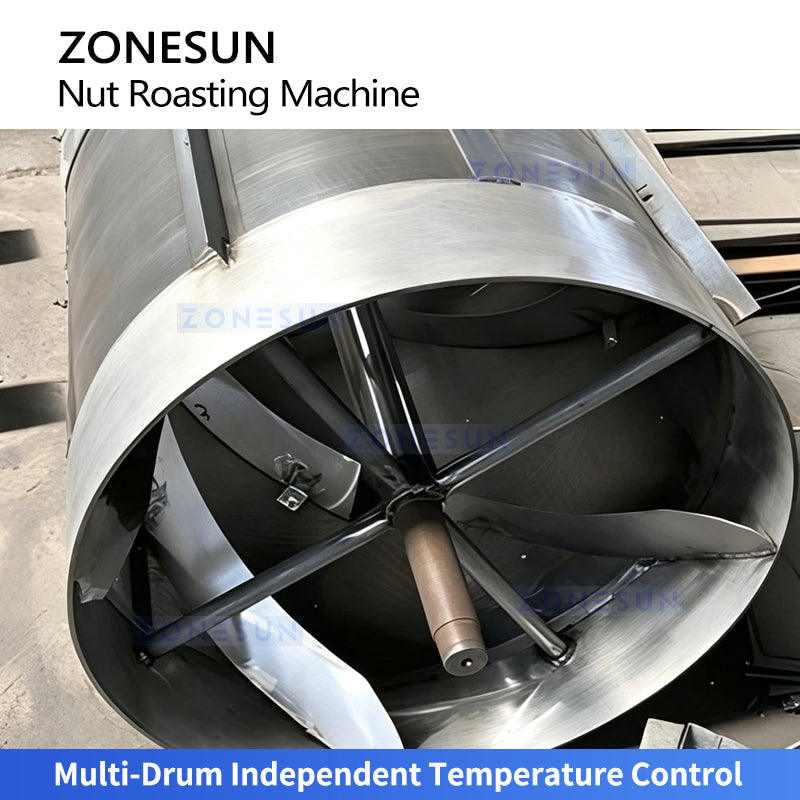

Multi-Drum Independent Temperature Control – Each drum has separate temperature and timer settings, allowing simultaneous roasting of different materials with uniform 360° heating.

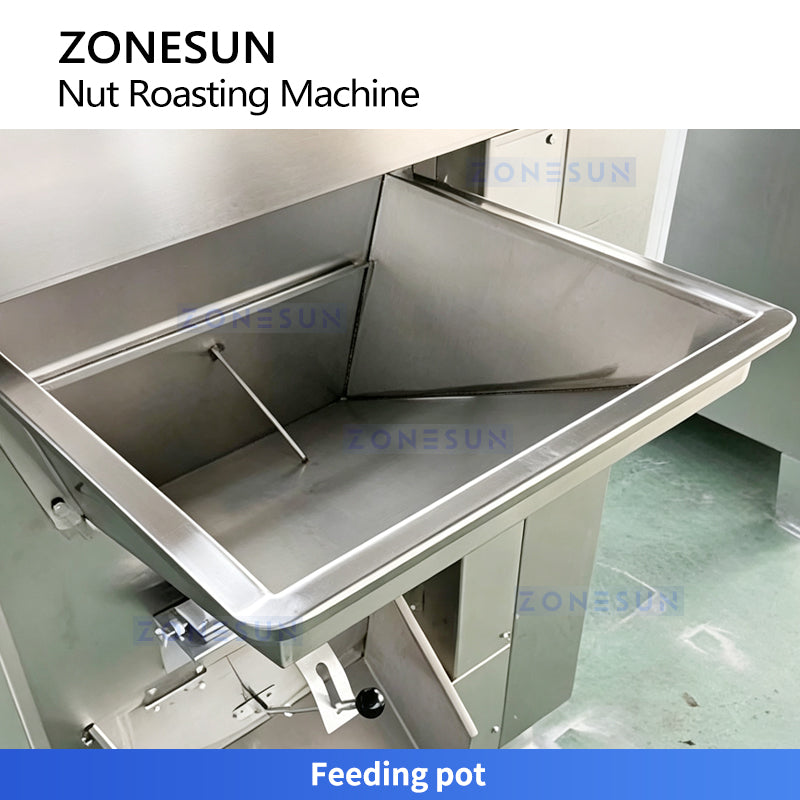

- Feeding Pot – Wide-mouth large-capacity hopper enables fast and smooth high-volume material loading.

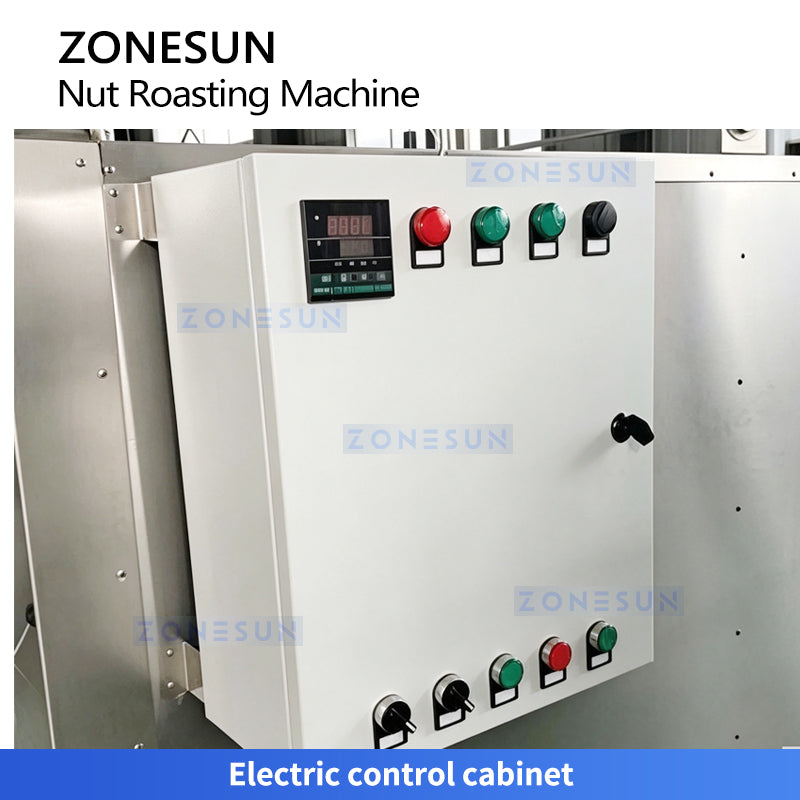

- Electric Control Cabinet – Independent control per drum for flexible temperature and timing adjustments to meet various roasting recipes.

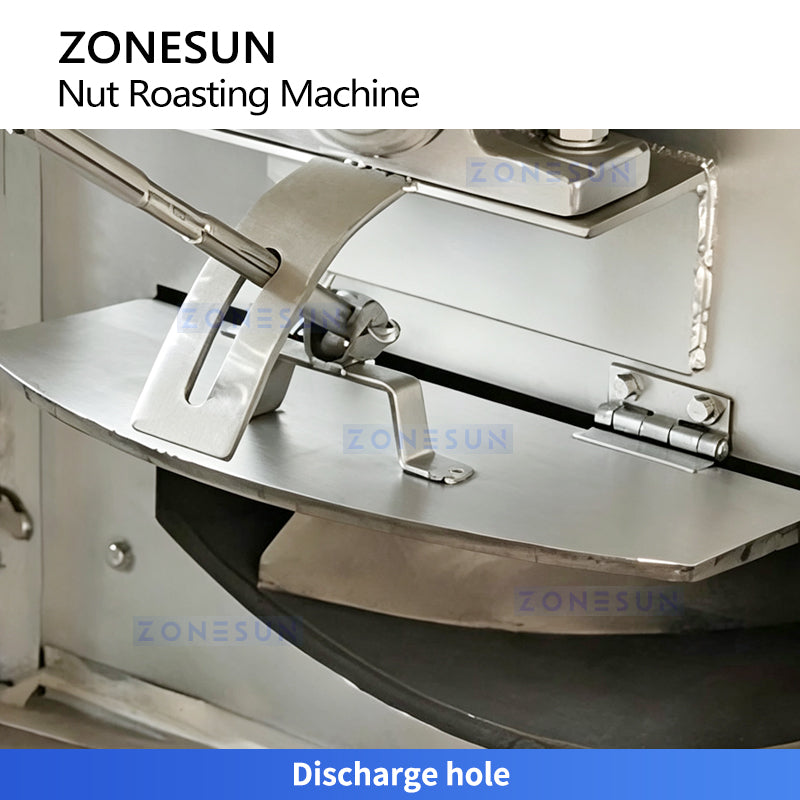

- Auto Discharge – Forward rotation for roasting and reverse rotation for quick, automatic discharging, improving operational efficiency.

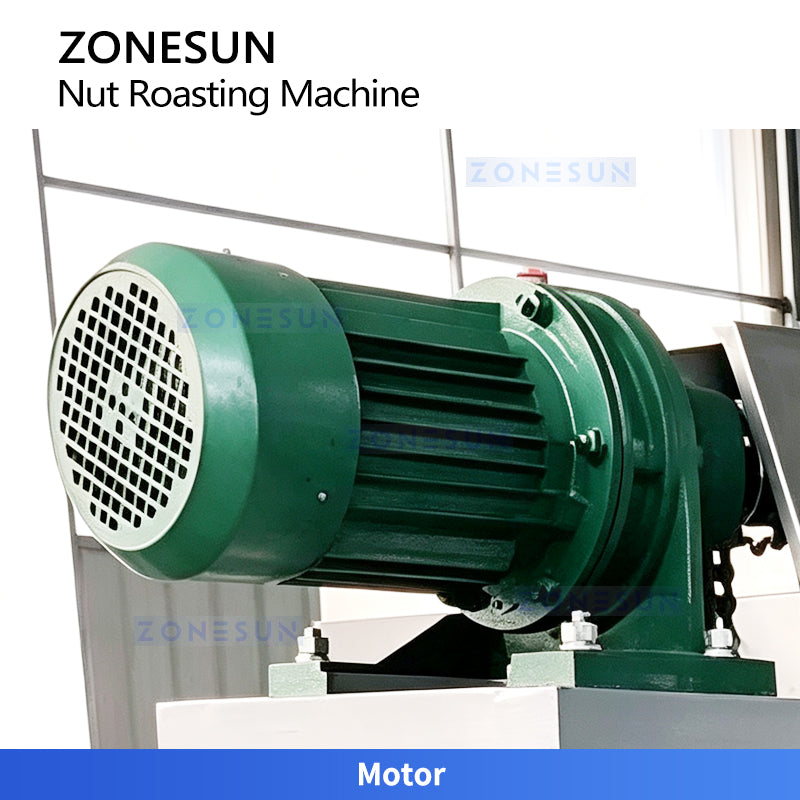

- Motor & Wheels – Stable high-torque motor with heavy-duty wheels for reliable rotation and easy machine mobility.
Technical Specifications
Model ZS-GHK4-0
- Voltage: 380V
- Capacity: 50–80 kg/h
- Motor Power: 0.75 kW
- Electric Heating Power: 13.5 kW
- Gas Consumption: 1–1.5 kg/h
-
Dimensions (L×W×H): 2300 × 1000 × 1350 mm
Model ZS-GHK4-1
- Voltage: 380V
- Capacity: 100–150 kg/h
- Motor Power: 1.1 kW
- Electric Heating Power: 22.5 kW
- Gas Consumption: 2–3 kg/h
- Dimensions (L×W×H): 2900 × 1500 × 1700 mm
Model ZS-GHK4-2
- Voltage: 380V
- Capacity: 200–250 kg/h
- Motor Power: 2.2 kW
- Electric Heating Power: 36–44 kW
- Gas Consumption: 3–6 kg/h
- Dimensions (L×W×H): 2900 × 2100 × 1750 mm
Model ZS-GHK4-3
- Voltage: 380V
- Capacity: 300–350 kg/h
- Motor Power: 3.3 kW
- Electric Heating Power: 54–67 kW
- Gas Consumption: 6–8 kg/h
- Dimensions (L×W×H): 2900 × 2950 × 1750 mm
Model ZS-GHK4-4
- Voltage: 380V
- Capacity: 400–500 kg/h
- Motor Power: 4.4 kW
- Electric Heating Power: 90 kW
- Gas Consumption: 8–10 kg/h
- Dimensions (L×W×H): 2900 × 3900 × 1750 mm
Model ZS-GHK4-5
- Voltage: 380V
- Capacity: 500–600 kg/h
- Motor Power: 5.5 kW
- Electric Heating Power: 118 kW
- Gas Consumption: 10–13 kg/h
- Dimensions (L×W×H): 2900 × 4700 × 1750 mm
Key Features
- ✅ 360° Rotating Drum — Even Heating, No Scorching
Continuous drum rotation ensures uniform heat distribution across every batch, eliminating hot spots and burnt product. - ✅ Electric or Gas Heating — Flexible Energy Options
Choose between electric heating (up to 118 kW) or gas heating to match your facility's energy infrastructure and cost requirements. - ✅ 6 Capacity Models — 50 to 600 kg/h
Scalable from small-batch to large-scale commercial production with models covering the full range of output needs. - ✅ Independent Temperature Control Per Drum
Precise zone-by-zone temperature management ensures consistent roasting quality across different product types. - ✅ Multi-Drum Design for Continuous Output
Multiple drums enable staggered loading and unloading for near-continuous production without downtime between batches.
Applications
Ideal for rapid cooling of roasted nuts, fried snacks, fruits, vegetables, and packaged products after processing. Widely used in nut roasting lines, fried food production, vegetable processing, and other food manufacturing facilities requiring efficient post-processing cooling.
Features a wide-mouth design with a large capacity to accommodate swift, high-volume material loading and ensure smooth, unobstructed material infeed.
Dedication of one independent control cabinet per roller allows for flexible, separate temperature tuning and precise timing adjustments to meet distinct roasting recipes.
Utilizes forward rotation for roasting and reverse rotation for automatic discharging through a dedicated gate, simplifying operation and boosting loading efficiency.
Features industrial heavy-duty wheels under the robust frame to allow easy and flexible machine movement within the production floor.
Why Choose the ZS-GHK4?
✅ 360° Continuous Rotating Drum: Ensures every nut, seed, or granule receives uniform heat exposure throughout the roasting cycle — eliminating hot spots and scorching for consistent product quality
✅ Electric or Gas Heating Options: Choose the energy source that fits your facility — electric heating for clean, precise control or gas-fired heating for high-throughput, cost-efficient production
✅ Independent Temperature Control Per Drum: Each drum zone can be set independently, allowing precise roasting profiles for different products or batch requirements on the same machine
✅ High Capacity 50–600 kg/h: Six model sizes from ZS-GHK4-0 to ZS-GHK4-5 cover small-batch artisan production up to large-scale industrial output — scalable to your exact throughput needs
✅ Continuous Production Design: Unlike batch roasters, the ZS-GHK4 feeds and discharges product continuously, maximizing uptime and reducing labor requirements on the production line
✅ No Scorching — Gentle Even Heat: Rotating drum action combined with controlled airflow prevents product from sitting on hot surfaces, preserving flavor, color, and nutritional value
✅ 380V Industrial Grade: Built for commercial and industrial environments with robust construction and reliable performance across all six capacity configurations
