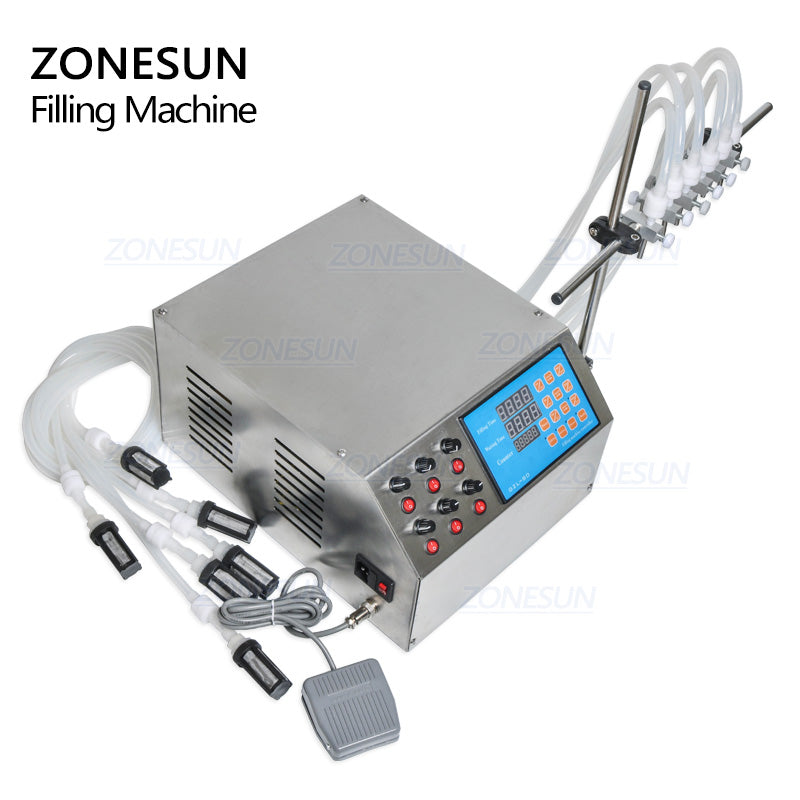

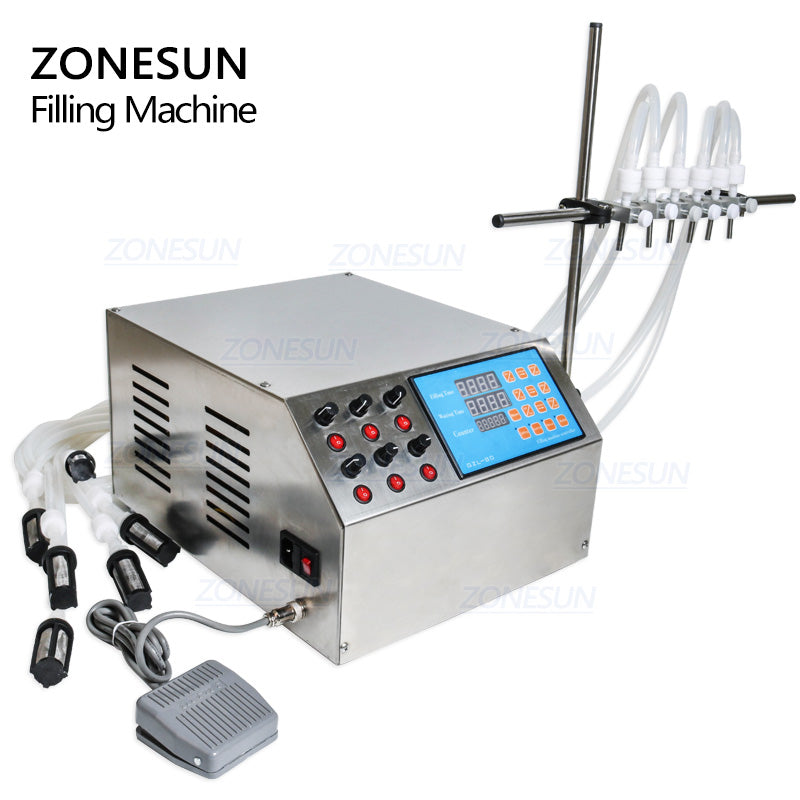

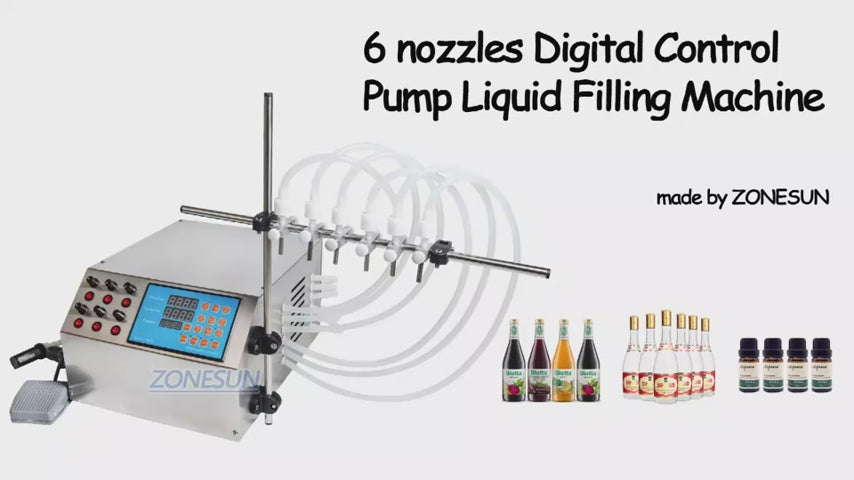

ZONESUN ZS-YTDP6 Semi-automatic 6 Nozzles Diaphragm Pump Liquid Filling Machine
ZONESUN ZS-YTDP6 Semi-automatic 6 Nozzles Diaphragm Pump Liquid Filling Machine
Не удалось загрузить сведения о доступности самовывоза
Feature
1. Import single-chip microcomputer control, high efficiency, low power consumption
2. Automatic counting function, effectively control filling quantiy
3. Digital tube display, touch screen is very easy to operate
4. High filing accuracy & Wide Voltage range
5. Suitable for liquid which is PH value 5-8
6. Anti-dripping design for 6 nozzles
7. Reasonable design, made of stainless steel, meet GMP requirement
Voltage 110V/220V 50–60Hz
Power 80W
Filling Range 3ml–4000ml/min per filling head
Maximum Flow Rate 4L/min
Package Size 460 × 450 × 320 mm
Machine Weight 12.5kg
Maximum Suction Distance 2 meters
Anti-Dripping Function Available
Memory Function After Power Failure Available
Interior Diameter of Filling Nozzle 5mm (3mm optional—please specify when ordering)
OIL-FREE DIAPHRAGM PUMP
The pump requires no oil seal, so no oil is present in the liquid path.
SEPARATED PUMP CHAMBER
The pump chamber is separated from the motor, preventing liquid from entering the motor and helping extend pump service life.
SEALED FLUID PATH
The sealed fluid path supports reliable operation without the need for manual water addition.
MATERIAL SUITABILITY
The pump is intended for low- or medium-viscosity liquids without solid particles and is not suitable for highly corrosive liquids or strong acids and alkalis.

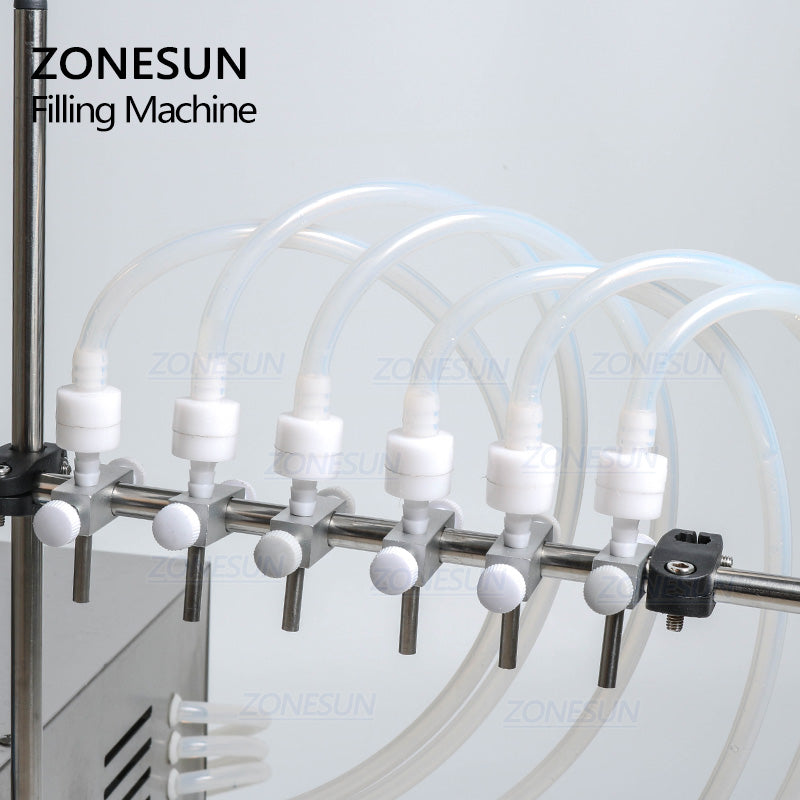

ANTI-DRIP NOZZLES
The check-valve nozzles provide an anti-drip function, and all six nozzles can be controlled separately.

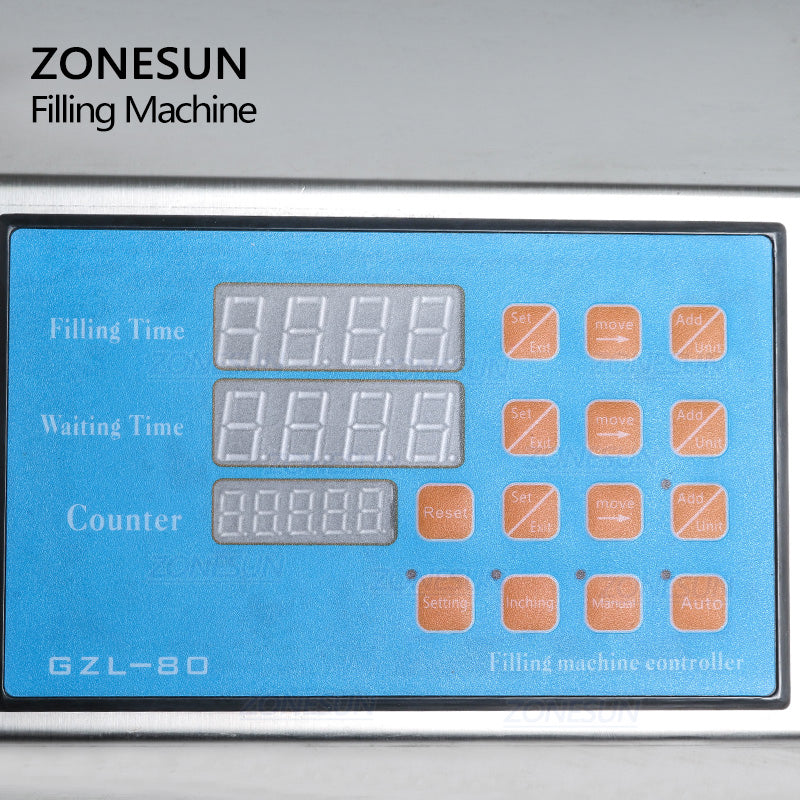

OPERATION PANEL
The digital control panel makes it easy to set operating data, use automatic counting, and control the filling quantity.
POWER SYSTEM
The single-chip microcomputer control system supports efficient operation and is available with different voltages and plug types.

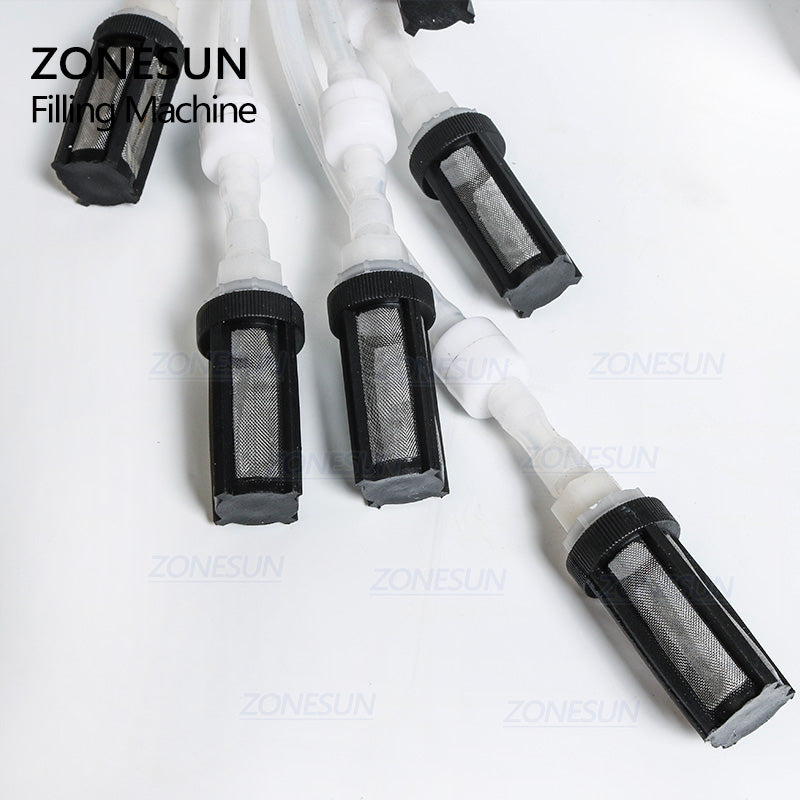

TUBES AND FILTERS
The silicone tubes are suitable for liquids within pH 5–8. High-quality filters help remove unnecessary particles.
