ZONESUN ZS-YTPP1 Single Nozzle Peristaltic Pump Liquid Filling Machine

$130.50 USD

Распродажа Продано

Стоимость доставки рассчитывается при оформлении заказа.

Voltage 110V 220V Filling Pump

Количество

Description

The ZONESUN ZS-YTPP1 is a compact single-nozzle peristaltic pump liquid filling machine designed for small-volume filling of compatible low-viscosity liquids. Because the liquid flows through the pump tubing rather than contacting the pump mechanism directly, the machine is suitable for applications where a clean and easy-to-maintain fluid path is important.

Filling is controlled by a microcomputer through time and speed settings. The machine supports self-priming, anti-drip filling, digital operation, and foot-switch control, making it suitable for laboratory, small-batch, and light-production filling tasks.

Technical Specifications

Model: ZS-YTPP1
Voltage: AC 180V–280V (110V available on request)
Power: 40W
Filling Range: 10–50ml/min
Maximum Flow Rate: 650ml/min
Maximum Suction Distance: 1.2 meters
Anti-Dripping Function: Available
Power-Off Memory Function: Available
Filling Nozzle Outer Diameter: 6mm (optional 4mm)

Advantage

The advantage of the peristaltic pump is that the liquid will not pass through the pump.This makes sure your liquid will be more clear and safe so it is really suitable for the people who need to filling drink .

Characteristics

1. Import single-chip microcomputer control, high efficiency, low power consumption

2. Automatic counting function, effectively control filling quantity

3. Digital tube display, the touch screen is very easy to operate

4. High filing accuracy

5. Wide Voltage range

6. Working performance is stable and can be used for a long time

7. This can self-suck the liquid.

8. The pump can stand for PH value within 5-8

9. Anti-dripping design

10. Reasonable design, made of stainless steel, meet GMP requirement

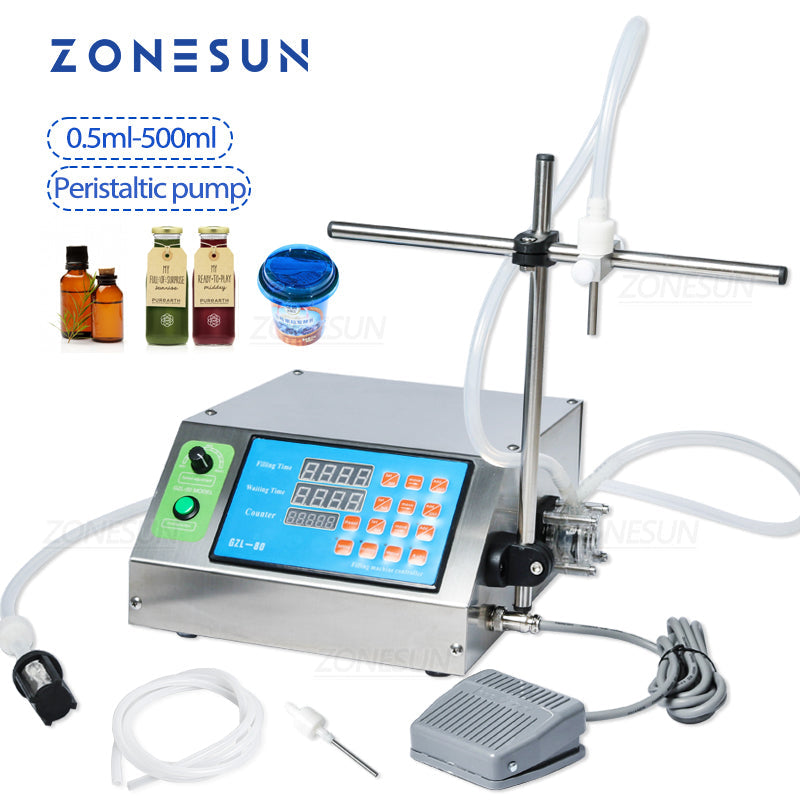

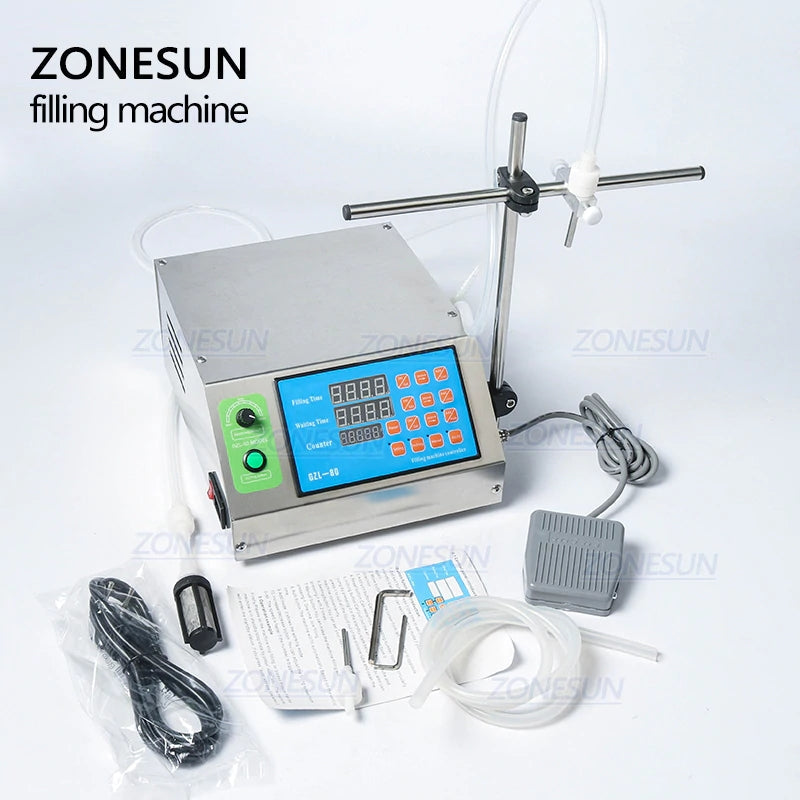

ZONESUN ZS-YTPP1 single nozzle peristaltic pump liquid filling machine

Precise Peristaltic Pump Filling

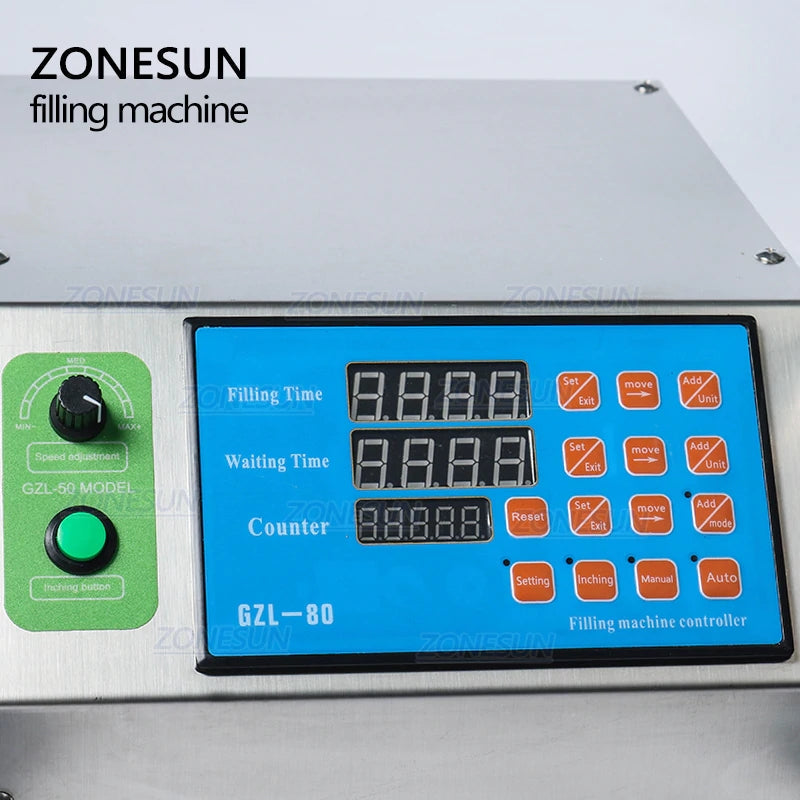

The microcomputer-controlled peristaltic pump adjusts filling output by setting the filling time and pump speed. The digital panel provides straightforward operation for repeated small-volume filling.

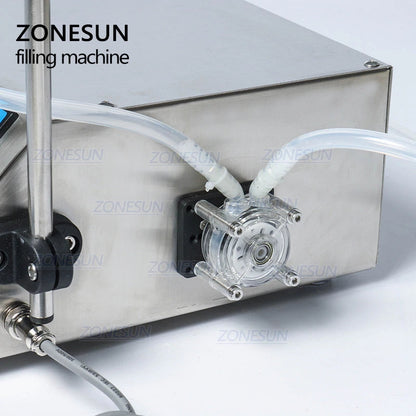

Heat-Resistant Pump Tube and Foot Control

The peristaltic pump tube can work at temperatures up to 100°C. A foot switch provides convenient manual control during filling.

Key Features

Peristaltic Pump Design: Liquid remains inside the pump tubing instead of passing through the pump mechanism.
Digital Filling Control: Filling output is adjusted by setting pump speed and filling time.
Self-Priming: The machine can draw compatible liquid from an external container.
Anti-Drip Function: Helps reduce dripping at the end of each filling cycle.
Foot-Switch Operation: Allows convenient manual cycle control for small-batch work.
Compact Desktop Size: Suitable for laboratories, workshops, and small production areas.

How Does the ZS-YTPP1 Work?

Place the inlet tube into the liquid supply container.
Connect the dispensing tube and nozzle.
Set the filling time and pump speed on the digital controller.
Prime the tubing until liquid reaches the nozzle.
Start the filling cycle using the control panel or foot switch.
The peristaltic pump compresses the tubing to move the liquid into the container.
