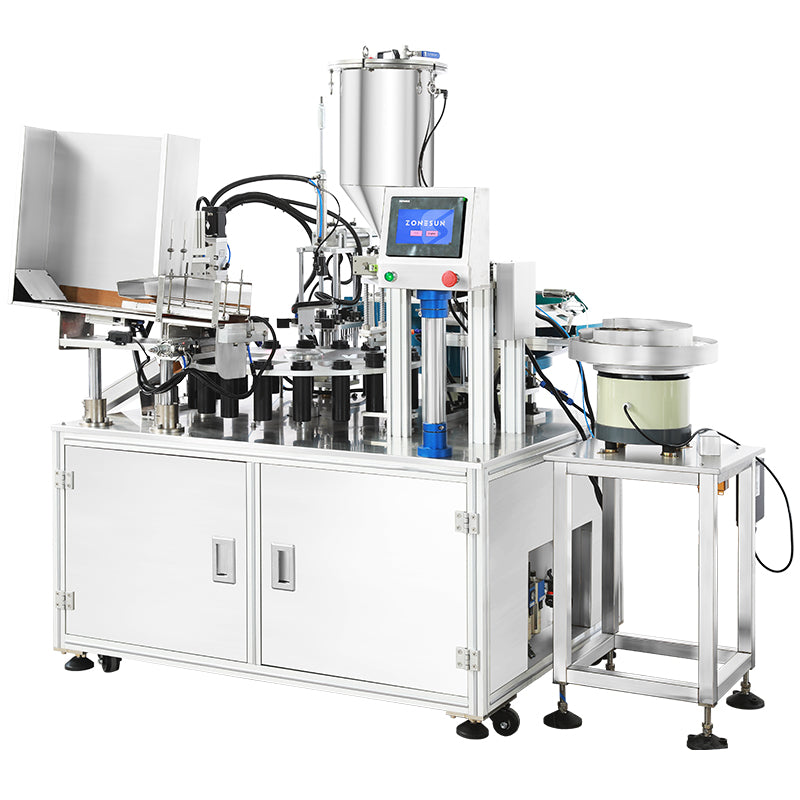

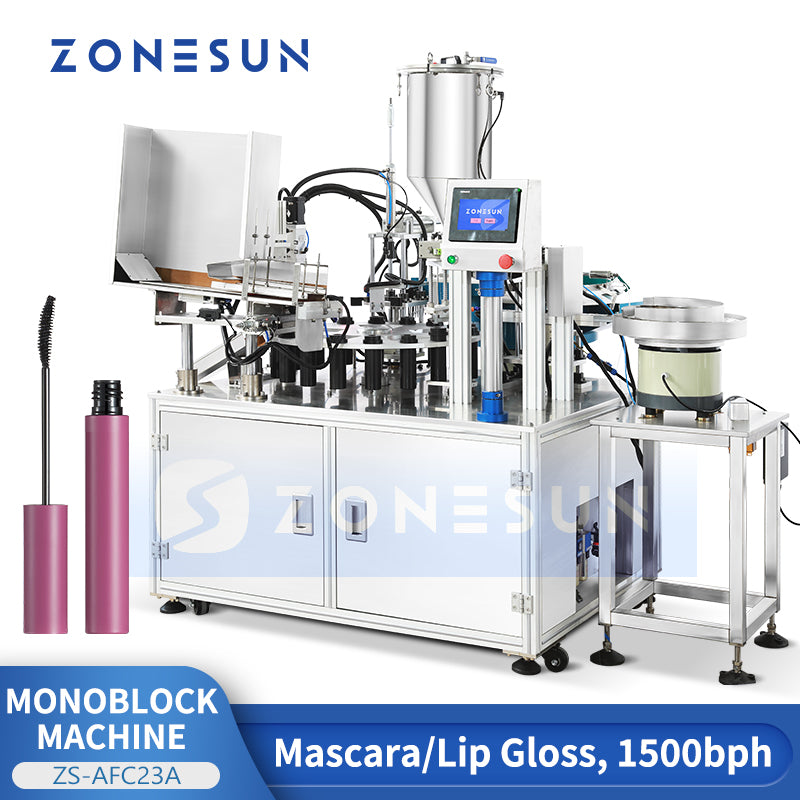

ZONESUN ZS-AFC23A Automatic Mascara Packaging Machine for Cosmetic

DESCRIPTION

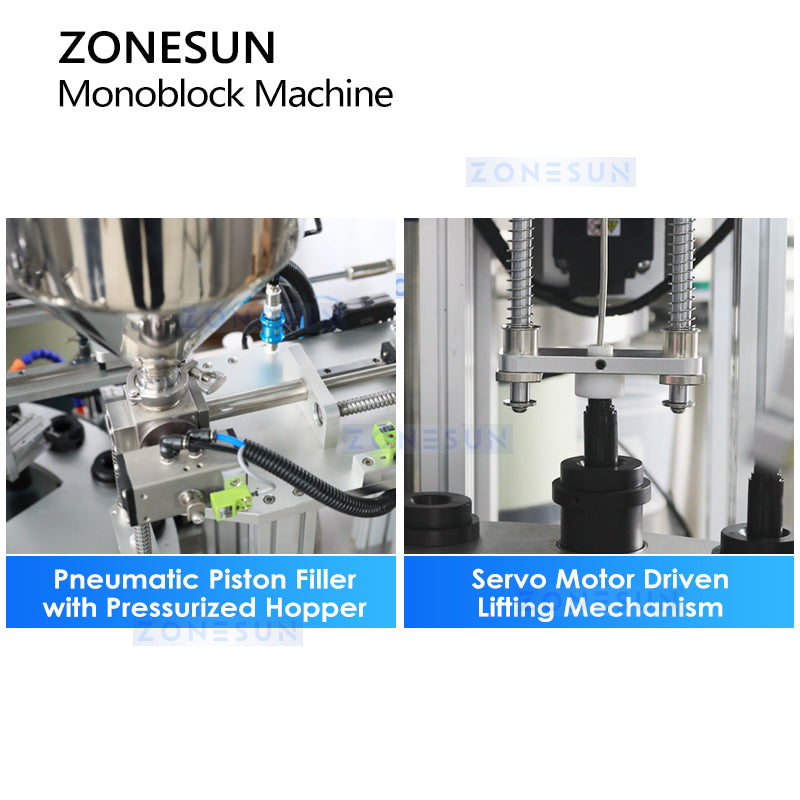

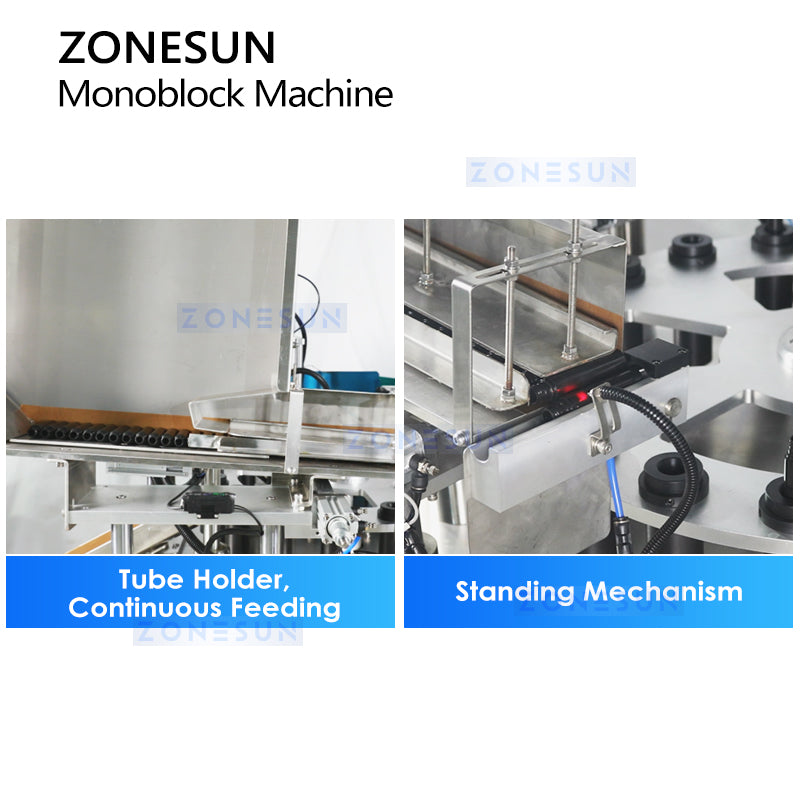

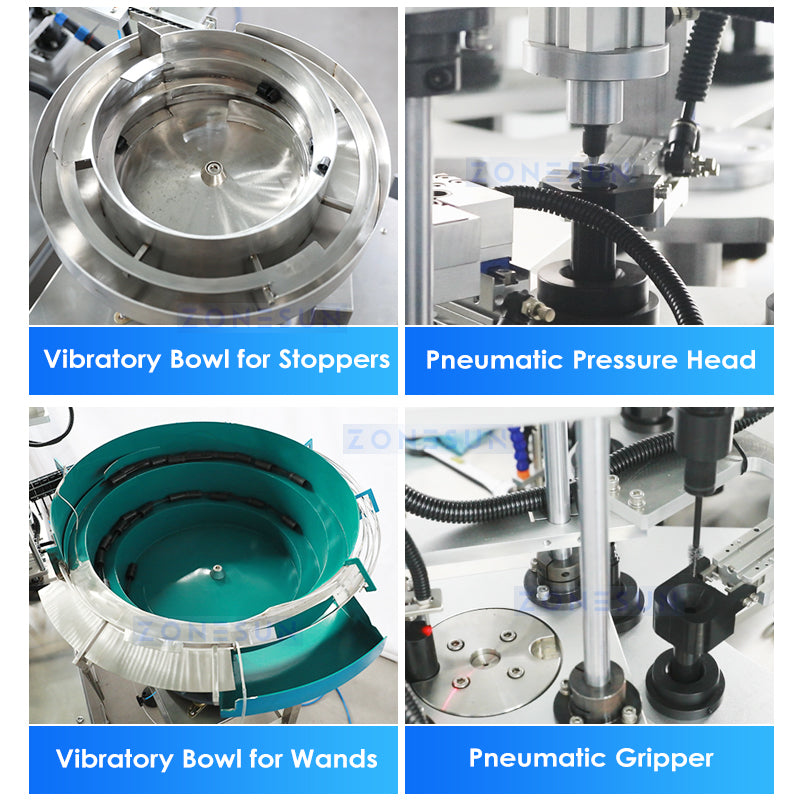

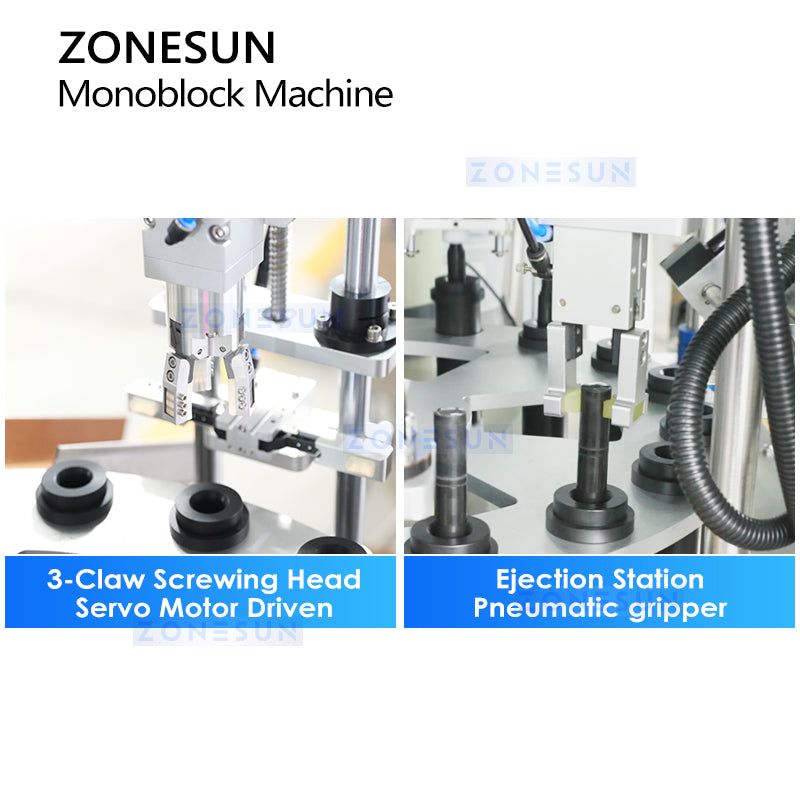

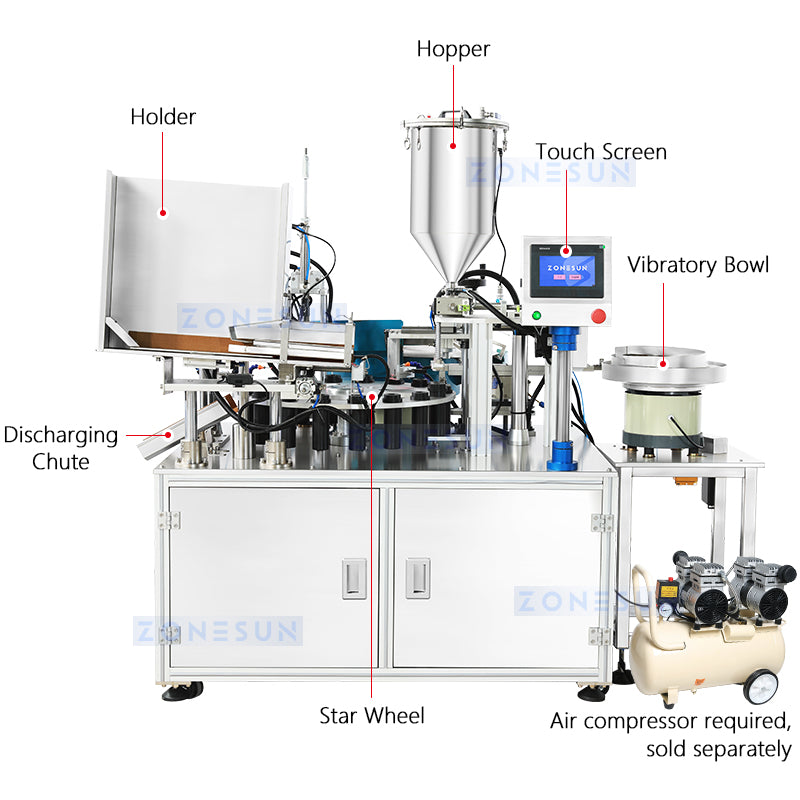

Introducing the revolutionary automated mascara packing machine – a fully integrated monoblock solution designed for high-speed, high-precision mascara packaging.  This cutting-edge system features continuous tube feeding via a horizontal holder, followed by a pneumatic lifting mechanism that inverts tubes for precise placement on a star wheel.  The star wheel, driven by a cam motor, accurately indexes tubes to the piston filler for precise filling.  A servo-driven lifting mechanism positions the tube at the filling nozzle, ensuring consistent filling while gently lowering the tube.  Next, an internal stopper is inserted via a vibratory bowl feeder and pneumatic gripper.  A sensor verifies stopper placement before the mascara brush cap, also fed via a vibratory bowl and pneumatic gripper, is installed.  Finally, a servo-driven three-jaw capping head securely tightens the cap before the finished mascara is gently ejected onto a conveyor for collection. This monoblock system offers unparalleled efficiency, precision, and reduced labor costs, making it the ideal solution for modern cosmetic manufacturing.

SPECIFICATIONS

• Model: ZS-AFC23A
• Voltage: 220V/110V, 50–60Hz
• Power: 2.5kW
• Filling Pump: Piston Pump
• Capacity: Approx. 25 pcs/min
• Filling Range: 1–20ml
• Filling Accuracy: ≤±1%
• Suitable Cap Diameter: 20–65mm
• Mascara Tube Height: 20–130mm
• Hopper Capacity: 20L
• Machine Weight: Approx. 400kg
• Machine Size (L×W×H): Approx. 1274 × 1401 × 1703mm
