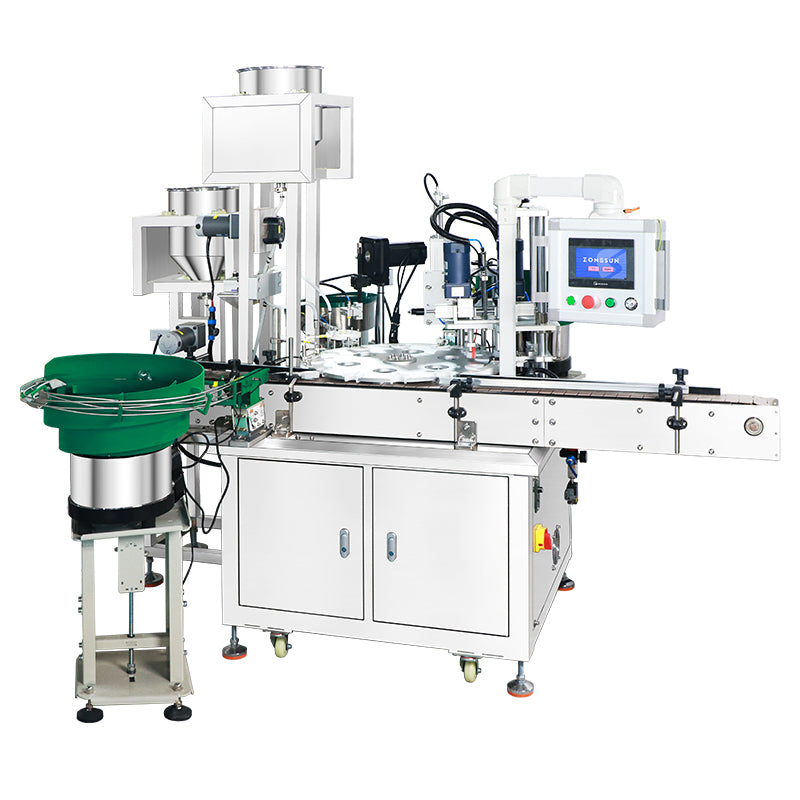

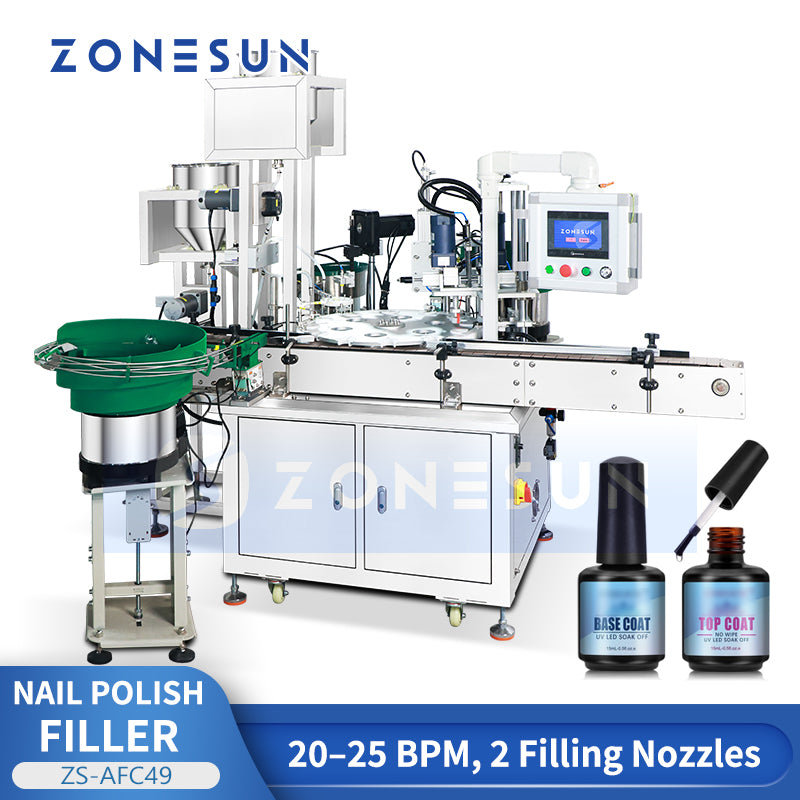

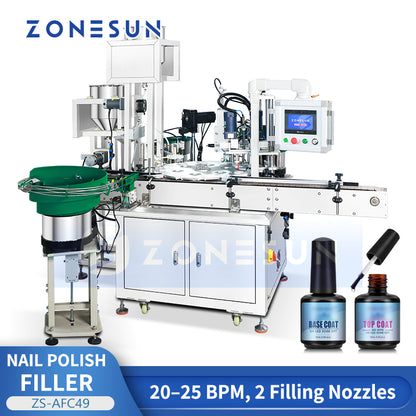

ZONESUN ZS-AFC49 Automatic Nail Polish Filling and Capping Machine

Description

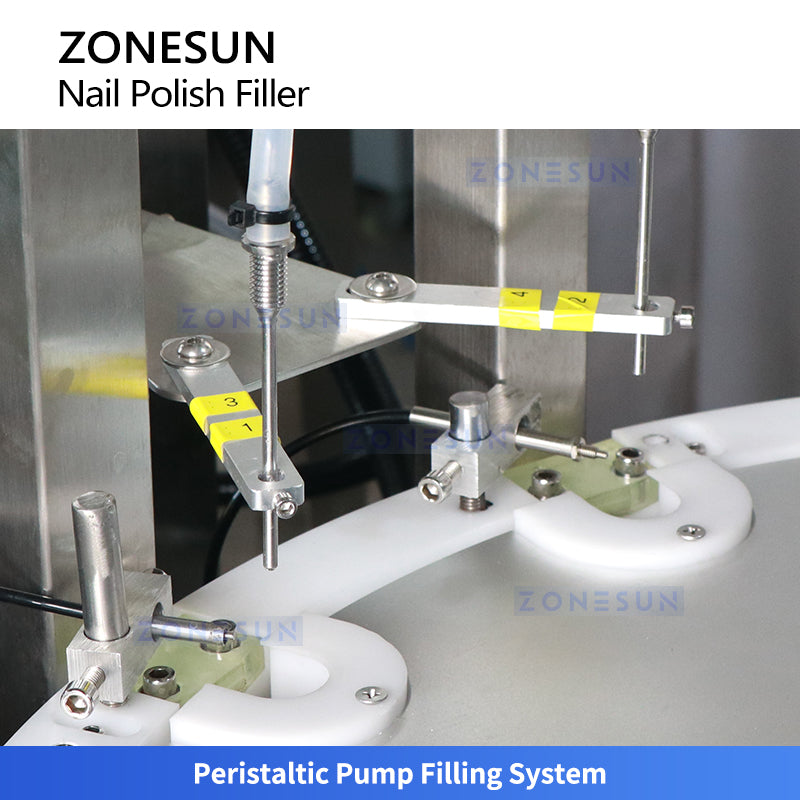

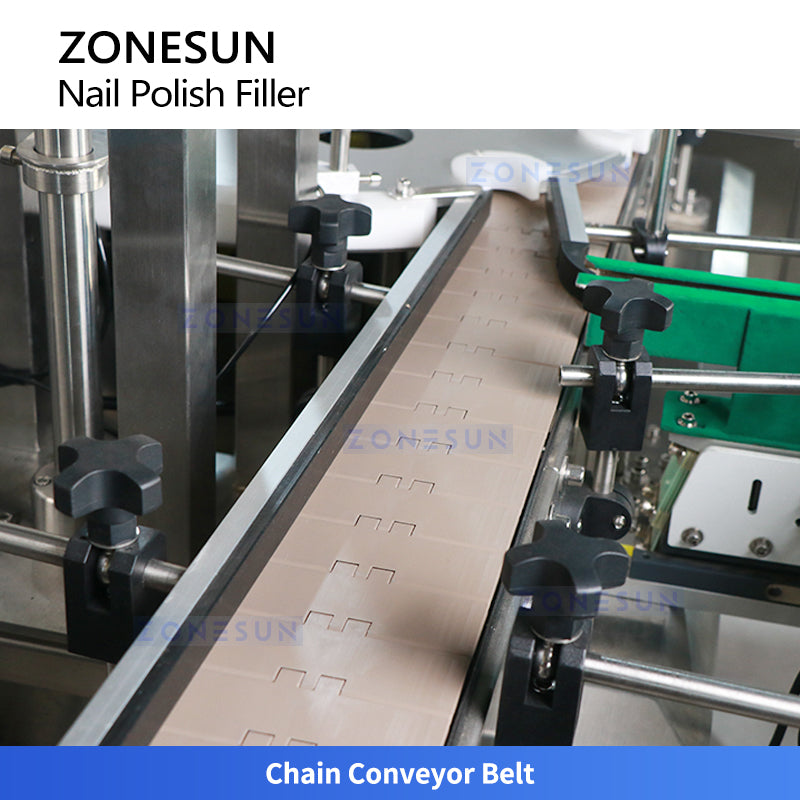

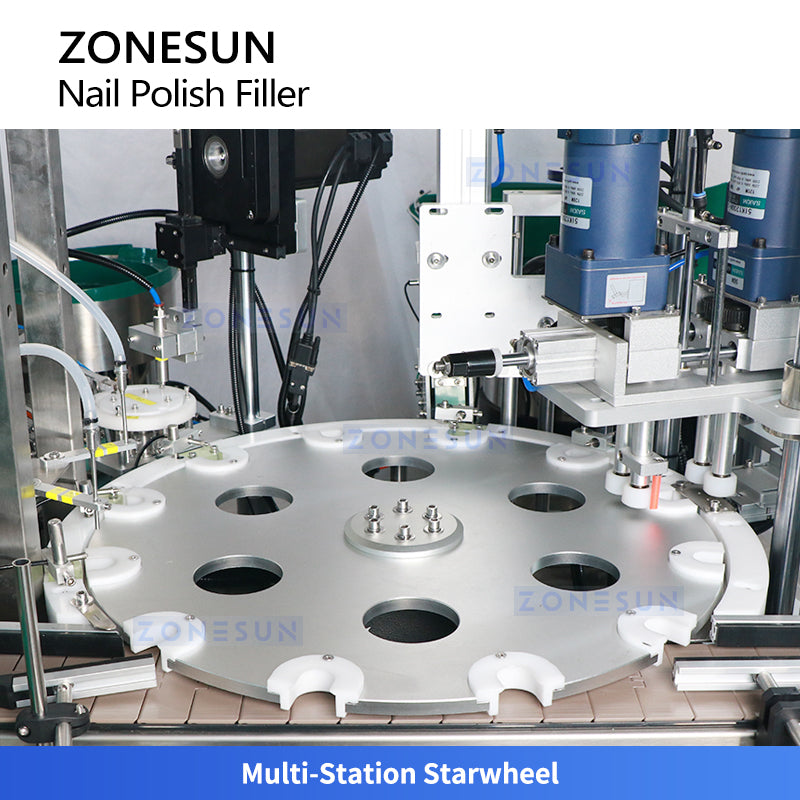

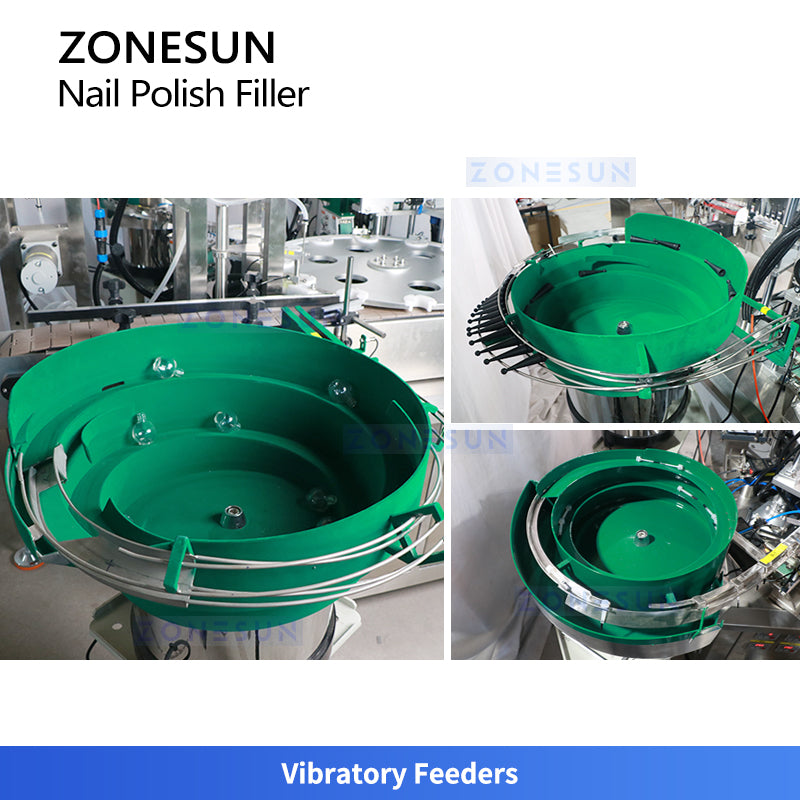

The ZONESUN ZS-AFC49 Automatic Nail Polish Filling and Capping Machine is designed for precise, contamination-free filling of nail polish and similar cosmetic products. Featuring a peristaltic pump system and dual filling nozzles, it delivers accurate dosing with ±0.1 ml precision. The rotary starwheel structure integrates filling, plug inserting, cap placing, and capping into one compact monoblock system. Vibratory feeders supply bottles stoppers, and caps efficiently, while the chain conveyor ensures smooth bottle transfer. With a working speed of 20–25 bottles per minute, this machine is ideal for high-efficiency cosmetic packaging.

Parameter

• Model: ZS-AFC49
• Voltage: 110V / 220V, 50–60 Hz
• Recommended Filling Range: 10–100 ml
• Filling Accuracy: ±0.1 ml
• Working Capacity: 20–25 bottles/min
• Filling Nozzles: 2 heads
• Filling Pump Type: Peristaltic Pump ×4
• Applicable Bottle Size (Φ × H): 30 × 54 mm (customizable)
• Stopper Size (Φ × H): 12.5 × 51 mm (customizable)
• Cap Size (Φ × H): 18 × 39.5 mm (customizable)
• Machine Dimensions (L × W × H): Approx. 2150 × 2190 × 1940 mm
• Machine Weight: Approx. 880 kg
• Package Dimensions:
  • Main Machine: Approx. 2320 × 1200 × 2110 mm
  • Vibratory Bowl Sorter: Approx. 1170 × 1170 × 650 mm
• Package Weight: Approx. 942 kg (722 + 220 kg)
