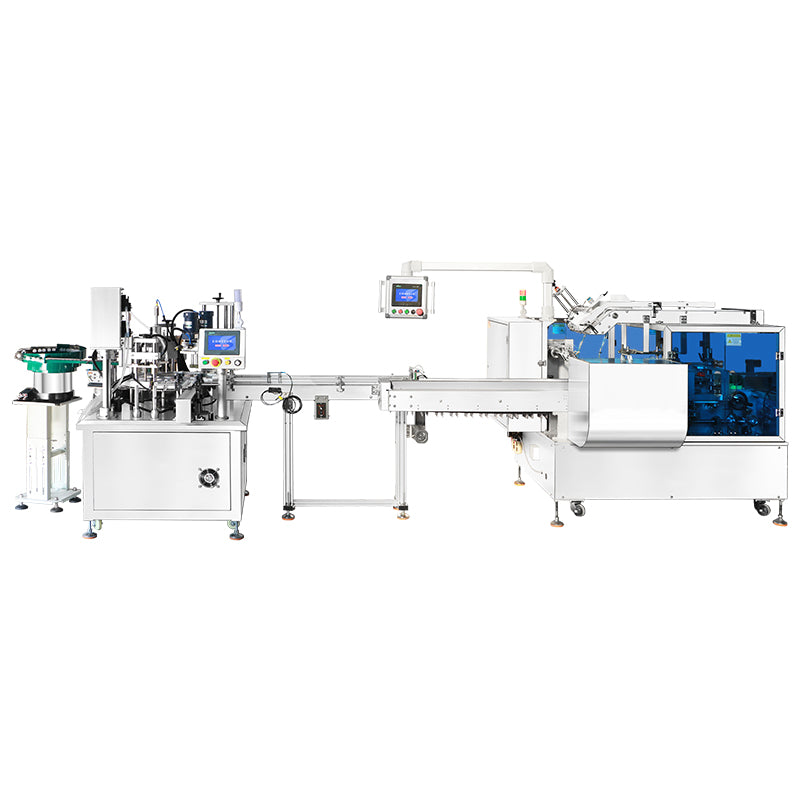

ZONESUN ZS-AFCL8 Automatic Roll-on Bottle Filling Capping Cartoning Machine | For Deodorant Essential Oil Serum Packaging Line

DESCRIPTION

The ZONESUN ZS-AFCL8 is a compact, fully automated line for roll-on bottles like deodorant, essential oils, and serums. It integrates liquid filling, cap feeding, servo capping, and cartoning into one streamlined system. Contact-free filling ensures hygiene, while starwheel positioning enhances bottle stability. Suitable for small to medium batches, it's ideal for cosmetics, pharmaceuticals, and personal care products—improving packaging speed, accuracy, and labor efficiency.

Monoblock Filling Capping Machine Parameter

• Machine Model: ZS-AFC11
• Voltage: 220V/110V 50-60Hz
• Power: 2500W
• Filling Pump: Peristaltic pump
• Working Speed: 20-25 Bottles/min(depending on bottle size and liquid)
• Max Flow Rate: 4L/min*2(based on water)
• Suitable Bottle Size: Customized
• Bottle Cap Diameter: Customized
• Package Size: About 2040*1660*1650 mm
• Package Weight: About 535 kg

Cartoning Machine Parameter

• Machine model: ZS-MSZH50
• Power supply: 110V/220V/380V
• Power: About 1.5KW
• Work efficiency: About 30-50 pieces/min
• Paper box quality requirements: 300-450g/m³(350g/m³ will be best), carton indentation is not less than 0.4MM, with pre-folding effect, no glue leakage in the box
• Suitable box specifications:About 90-200*30-80*20-50 mm(L*W*H) (Can be ordered according to customer requirements)
• Optional Functions: Leaflet placing/gluing/date coding
• Air pressure: 0.6-0.8 Mpa
• Air consumption: 130 L/H
• Machine size: About 2800*1360*1600 mm
• Package size: About 3080*1690*1820 mm
• Package weight: About 1095 kg
