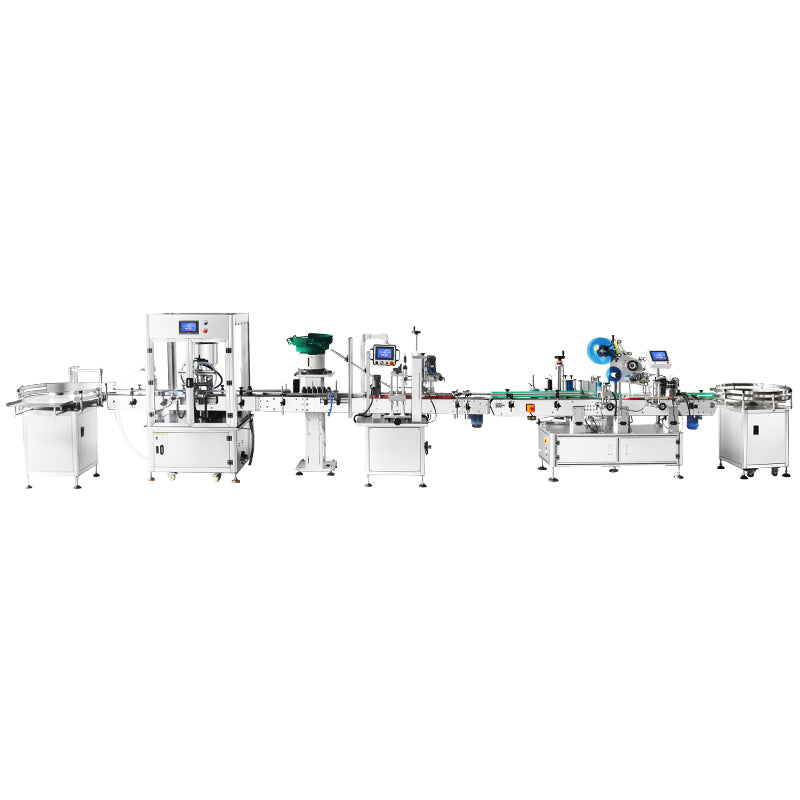

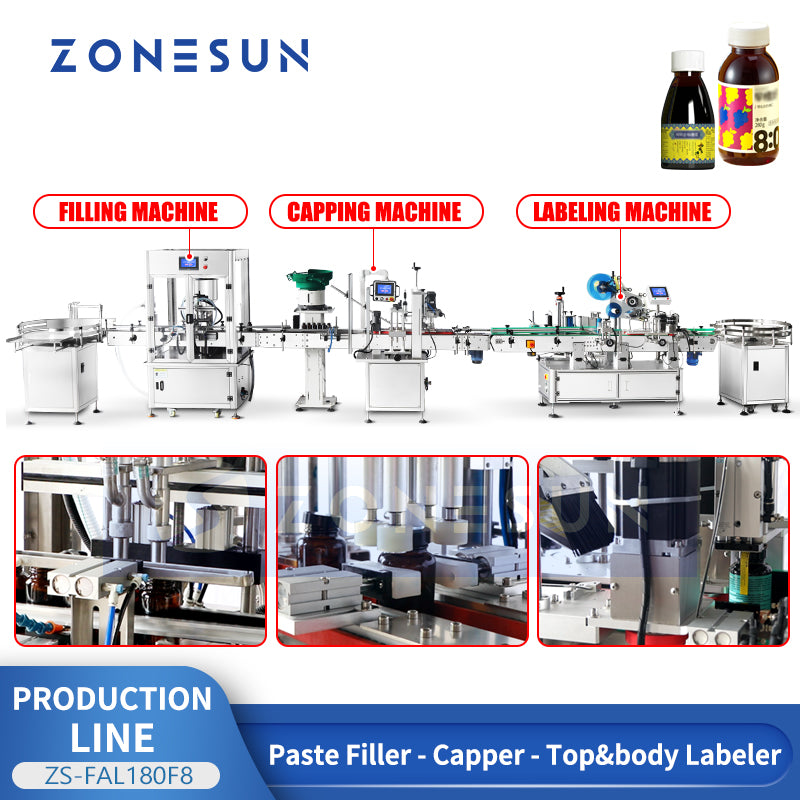

ZONESUN ZS-FAL180F8 Full Automatic Thick Paste Honey Bottling Line

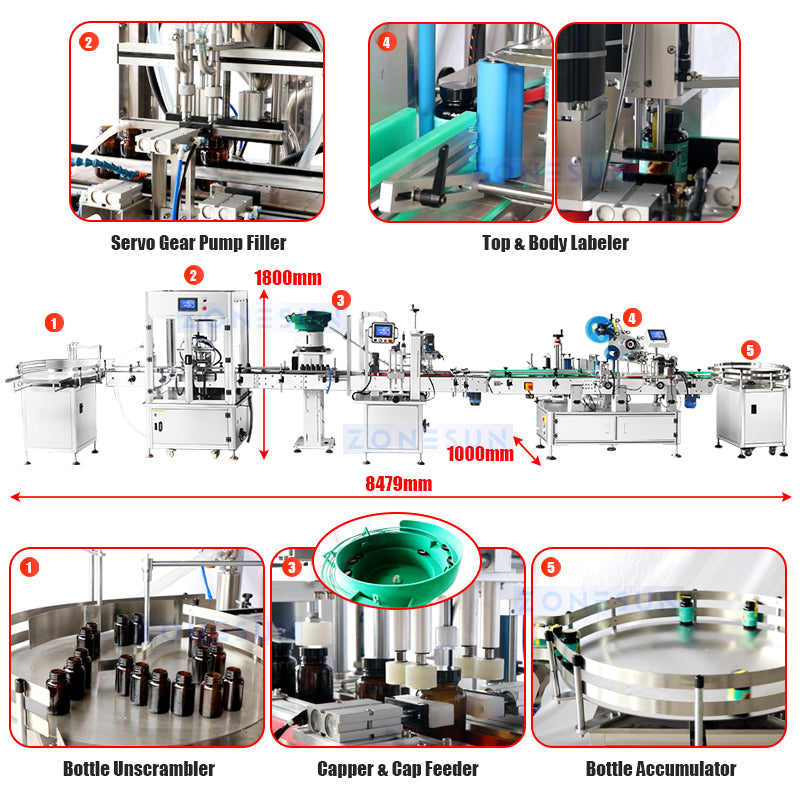

This complete bottling line is designed for efficient and precise filling, capping, and labeling of viscous products like syrups, honey, and other similar materials. It includes the following machines:

*Bottle Unscrambler: Automatically separates and feeds bottles into the line.
*Servo Gear Pump Filler: Accurately dispenses the desired amount of product into each bottle.
*Vibratory Bowl Feeder: Efficiently feeds caps to the capping machine.
*Cap Placement & Screwing: Securely places and tightens caps on each bottle.
*Bottle Body & Top Labeling: Applies labels to both the body and top of the bottles for complete branding.
*Bottle Accumulator: Gathers and holds filled and labeled bottles before further processing.

Parameter
Machine Model ZS-GPSV2 Filling Machine
Machine Voltage 110/220V, 50–60Hz, 2KW
Filling Pump Gear Pump
Filling Range 20–300ml
Filling Accuracy ±1%
Filling Speed Approx. 30–70 bottles per minute
Machine Size Approx. 2000 × 1035 × 1800 mm
Package Size Approx. 2080 × 1000 × 1980 mm

Machine Model ZS-XG16P Capping Machine
Machine Voltage AC 220V / 110V, 50–60Hz
Working Speed 20–60 bottles/min (depends on bottle & cap shape)
Bottle Height 30–300 mm
Cap Diameter 18–70 mm (customizable)
Bottle Diameter 20–160 mm
Working Pressure 0.4–0.6 MPa
Machine Size 2500 × 650 × 1700 mm (Capping Unit)
Vibratory Bowl Size 425 × 425 × 1540 mm

Parameter
Machine Model ZS-TB660 Labeling Machine
Machine Voltage 220V/110V, 50–60Hz
Power 570W
Labeling Speed Approx. 25–45 pcs/min (depending on bottle and label size)
Label Size L: 20–285 mm × W: 20–150 mm
Bottle Diameter Φ25–100 mm
Bottle Height 25–300 mm
Label Roll Inner Diameter Φ76 mm
Label Roll Outer Diameter Max Φ280 mm
Labeling Accuracy ±1 mm
Conveying Speed 5–18 m/min
Air Pressure 0.4–0.6 MPa
Machine Size Approx. 2790 × 700 × 1600 mm

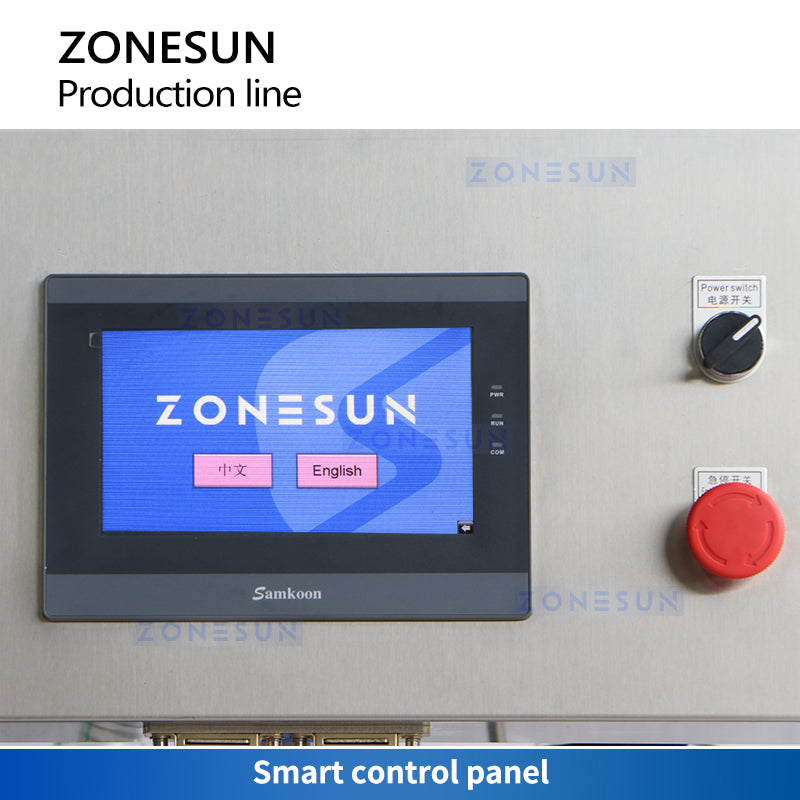

Centralized Control Panel

Filling volume, speed, and timing can be adjusted from the touchscreen.

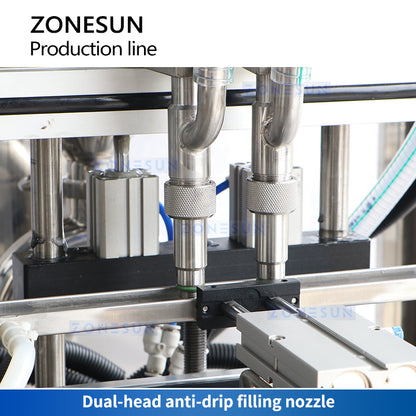

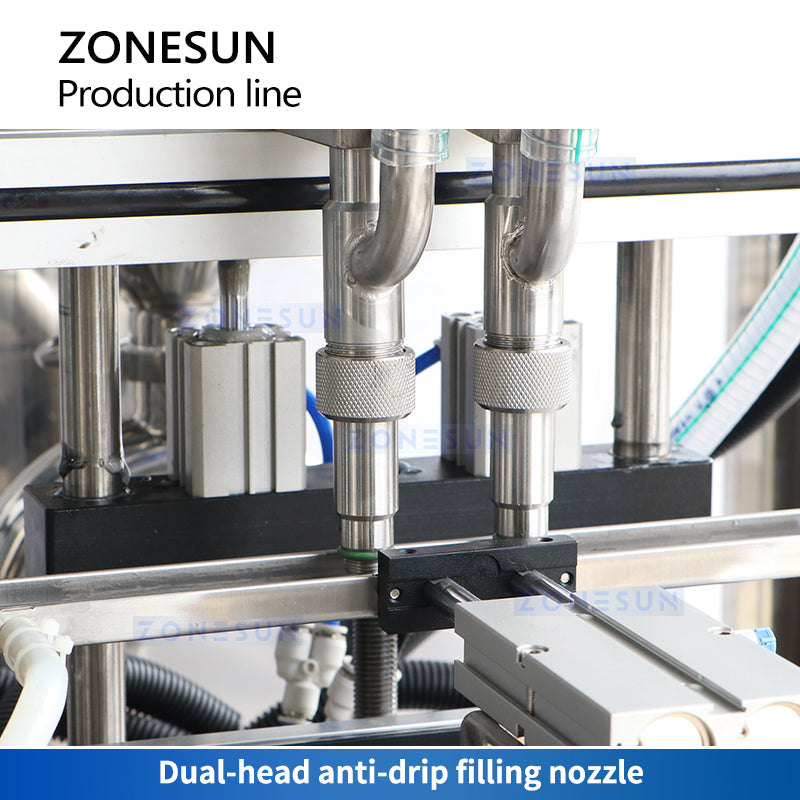

Anti-Drip Filling Nozzles

The nozzles help minimize waste and keep the production area cleaner.

Continuous Product Feeding

The feed pump supplies viscous material steadily to support continuous operation.

Automatic Container Feeding

The vibratory bowl sorts and supplies containers to the production line.

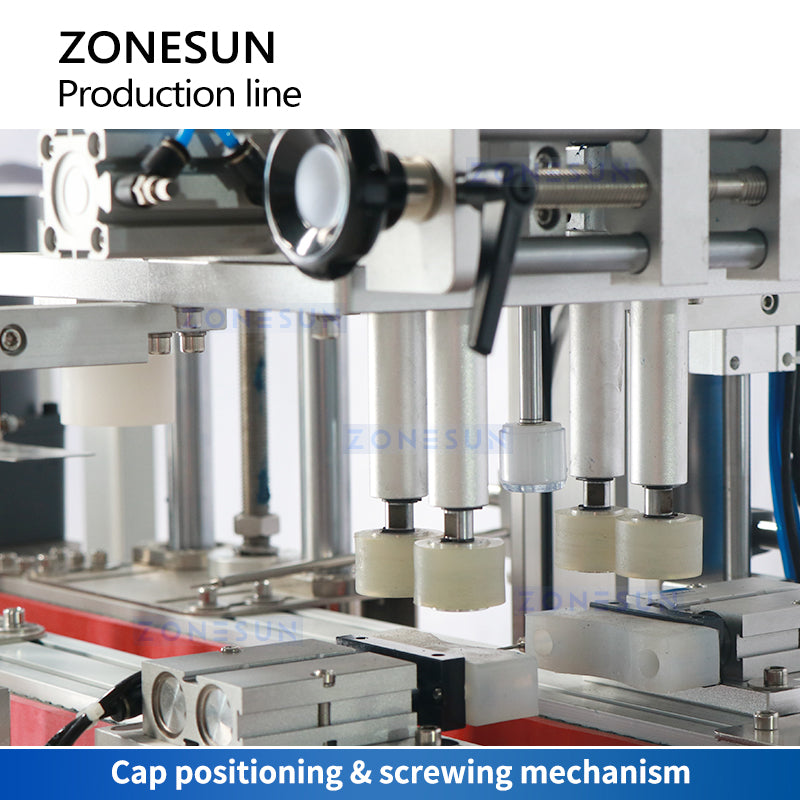

Adjustable Capping System

The capping unit accommodates different bottle heights for reliable closure.

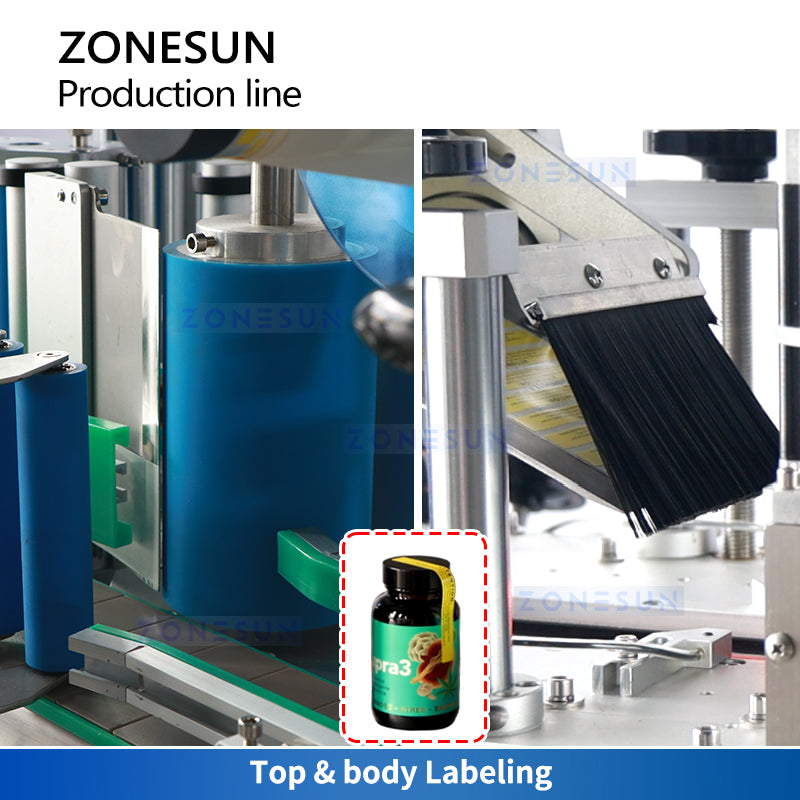

Integrated Labeling

The labeling station adjusts for different bottle sizes and applies labels during continuous production.
