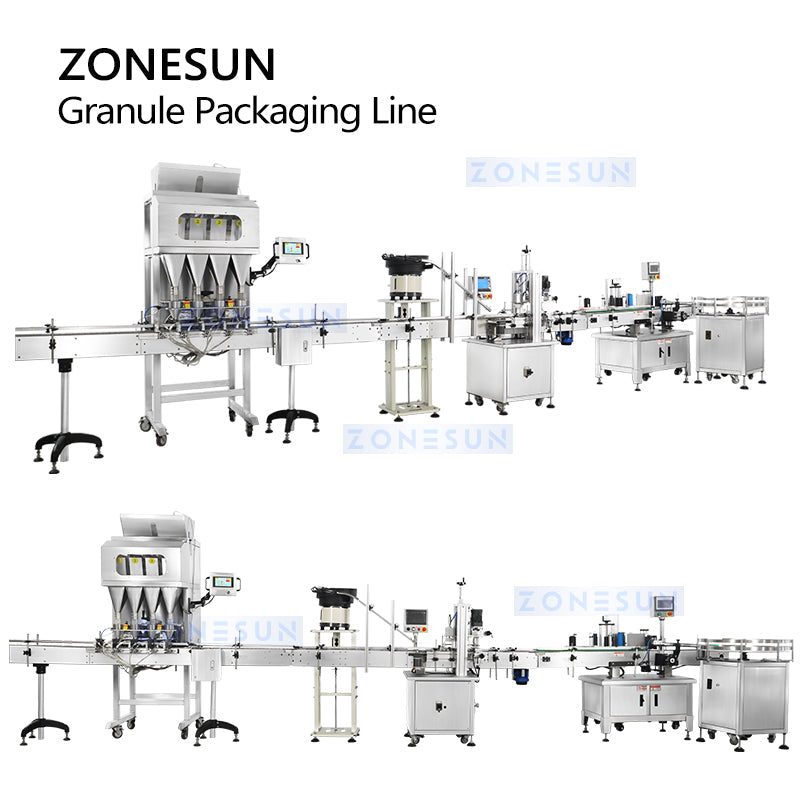

ZONESUN ZS-FAL180X10 Automatic Granule Weighing Filling Capping Labeling Production Line

$17,759.00 USD

Распродажа Продано

Стоимость доставки рассчитывается при оформлении заказа.

size ZS-FAL180X10

Количество

DESCRIPTION

The ZS-FAL180X10 is an integrated granule packaging solution featuring automated weighing, filling, capping, labeling, and bottle unscrambling capabilities. Powered by a PLC control system and equipped with high-speed components, this line is designed to accurately dose 20–100g of granules into bottles before sealing and labeling them with precision. Ideal for food industry applications, it streamlines every stage of the packaging process, improving efficiency and consistency across high-volume production runs.

Parameter

Machine Model	ZS-GW4 granule filling machine
Voltage	220V 50–60Hz
Power	Approx. 3 kW
Working Speed	Approx. 20–30 bottles/min (varies by bottle size and material)
Weighing Range	20–100 g per bottle
Air Pressure	0.4–0.6 MPa

Machine Model	ZS-XG16V Capping Machine
Bottle Height	30–300 mm
Cap Diameter	18–70 mm
Bottle Diameter	20–160 mm
Working Speed	20–60 bottles/min (varies by bottle and cap size/shape)
Working Voltage AC	220V / 110V, 50–60 Hz
Working Pressure	0.4–0.6 MPa
Machine Size	Approx. 1930 × 740 × 1600 mm (L × W × H)
Machine Weight	Approx. 150 kg
Package Size	Approx. 2000 × 820 × 1760 mm

Machine Model	ZS-TB260R Labeling Machine
Power Supply AC	220V, 50/60 Hz, 1000 W
Working Speed	25–50 bottles/min (depends on bottle size)
Labeling Accuracy	±1.0 mm
Applicable Bottle Diameter	Φ12–100 mm
Applicable Label Size Length:	20–300 mm, Height: 15–150 mm
Label Roll Core Diameter	Φ76 mm
Label Roll Outer Diameter	Φ350 mm
Conveyor Size	112 × 2000 mm (W × L)
Machine Size	Approx. 2000 × 820 × 1380 mm (L × W × H)
Package Size	Approx. 2100 × 890 × 1520 mm
Net Weight / Gross Weight	Approx. 180 kg / Approx. 250 kg
