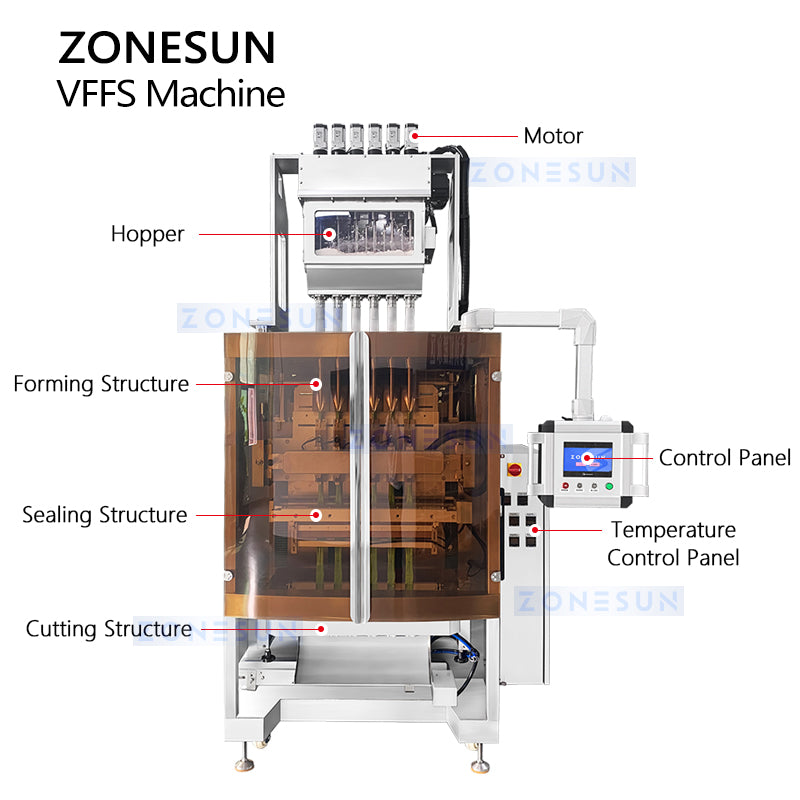

ZONESUN ZS-FSFM6 6-Lane Auger Filler VFFS Powder Packaging Machine

DESCRIPTION

Experience the ultimate in high-speed, multi-lane packaging with the 6-Lane Auger Filler Vertical Form Fill Seal (VFFS) Bagging Machine. This powerhouse machine boasts six individual auger fillers, ensuring precise and efficient product dispensing into each of the six lanes. The film is then rolled and cut into six sections, forming six separate bags. Each bag is then filled, sealed, and cut, achieving an astonishing production rate of up to 240 bags per minute.

Parameter

• Model: ZS-FSFM6
• Voltage: AC220V/380V 50–60Hz
• Power: About 5.5KW
• Production Speed: About 20–40pcs/min for one lane
• Finished Bag Size: (L)50–180mm × (W)20–95mm
• Max Film Width: 600mm
• Film Thickness: 0.07–0.1mm
• Filling Method: Auger filling
• Air Consumption: 0.8 MPa 0.8m³/min
• Machine Size: About 1685 × 1300 × 2005mm
• Machine Weight: About 600kg

PLC Operation Panel

The control panel allows operators to set and adjust packaging parameters.

Automatic Film Cutting

Film tracking and cutting are coordinated automatically for continuous multi-lane packaging.

Multi-Lane Auger Filling

Auger filling provides accurate powder dosing, and the number of lanes can be customized.
