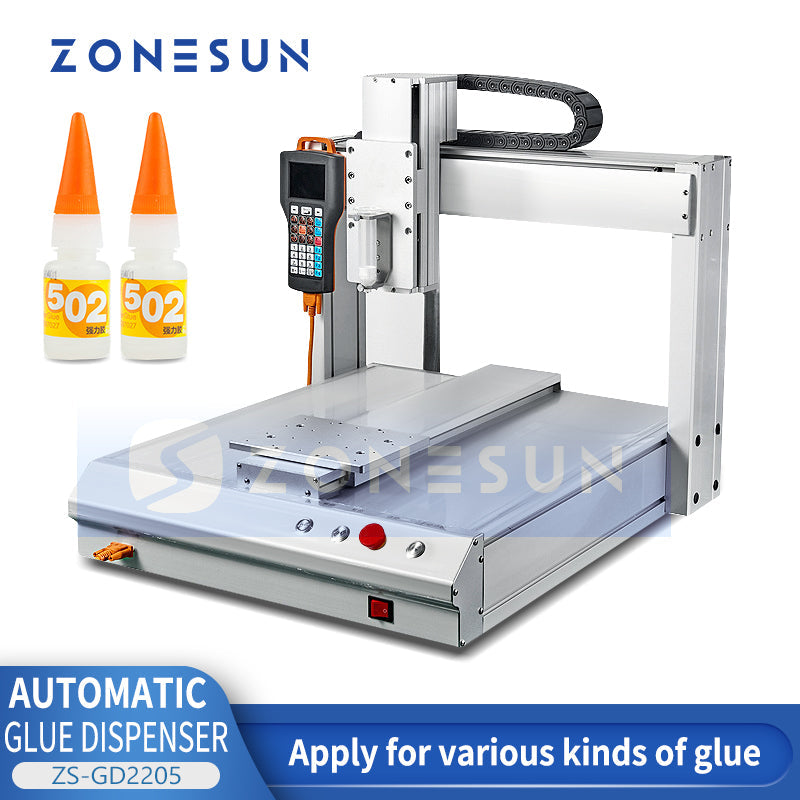

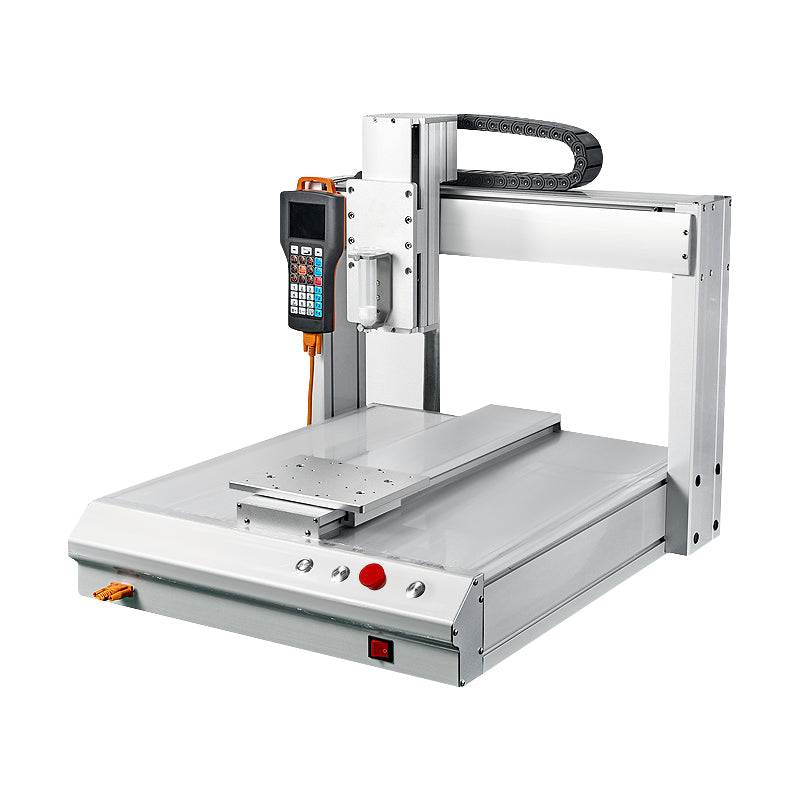

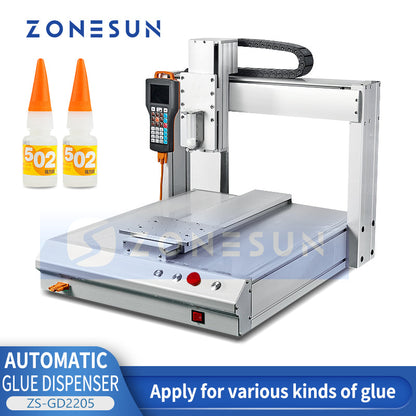

ZONESUN ZS-GD2205 Automatic Glue Dispensing Machine
ZONESUN ZS-GD2205 Automatic Glue Dispensing Machine
Не удалось загрузить сведения о доступности самовывоза
DESCRIPTION
The ZONESUN ZS-GD2205 is an automatic glue dispensing machine designed for precise, consistent, and efficient adhesive application. Suitable for glues of various viscosities, it delivers stable dispensing performance for a wide range of production needs. The machine features an intuitive control panel for easy parameter adjustment, ensuring accurate flow control and uniform glue output. With customizable dispensing settings and optional configurations, it adapts to different products, materials, and process requirements. Compact in design and simple to operate, the ZS-GD2205 is ideal for electronics assembly, crafts, packaging, DIY production, and industrial manufacturing where reliable and repeatable glue application is essential.
Note:
- An external adhesive supply system is required and must be purchased separately.
- Users should ensure the selected adhesive supply unit is compatible with the adhesive type, viscosity, and required dispensing pressure to achieve optimal performance.
Specification
| Model | ZS-GD220S | ZS-GD331 | ZS-GD441 | ZS-GD551 | ZS-GD431X | ZS-GD531X | ZS-GD631X |
|---|---|---|---|---|---|---|---|

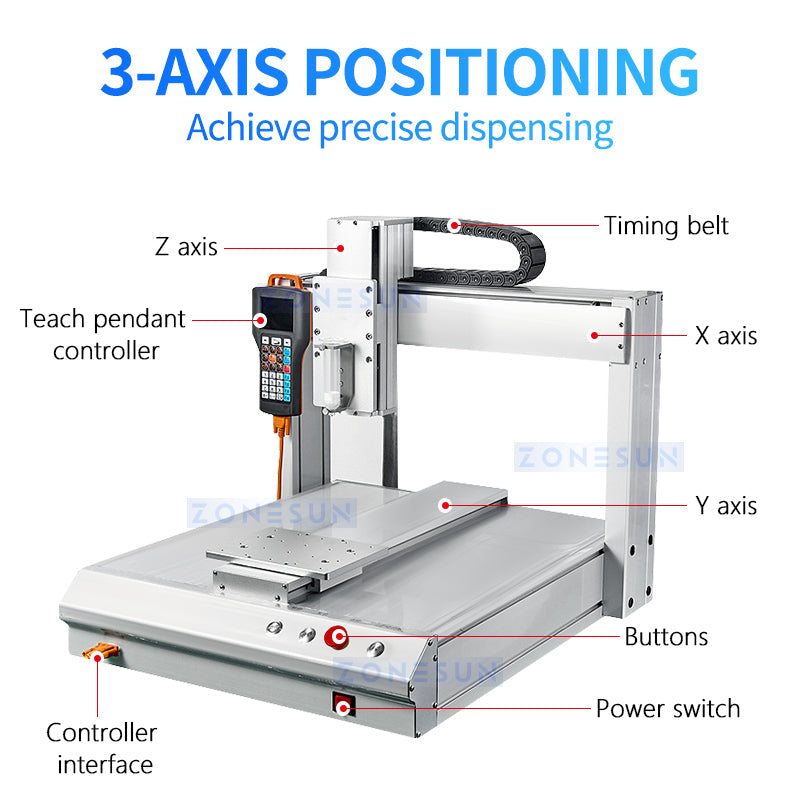

| Control Axis | 3-axis (XYZ) | Dual Y-axis | Dual Y-axis | Dual Y-axis | Dual Y-axis | Dual Y-axis | Dual Y-axis |
| X-axis Travel | 200mm | 300mm | 300mm | 300mm | 300mm | 300mm | 300mm |
| Y-axis Travel | 200mm | 300mm | 400mm | 500mm | 300mm | 400mm | 500mm |
| Z-axis Travel | 100mm | 100mm | 100mm | 100mm | 300mm | 300mm | 300mm |
| Working Range | 200×200mm | 300×300mm | 300×400mm | 300×500mm | 300×300mm | 300×400mm | 300×500mm |
| Machine Size (L×W×H) | 475×415×350mm | 520×580×440mm | 580×680×490mm | 685×785×560mm | 585×580×440mm | 585×680×490mm | 685×785×560mm |
| Machine Weight | 35kg | 44kg | 55kg | 66kg | 50kg | 60kg | 75kg |
⚙️ Additional Specifications
| Parameter | Specification |
|---|---|
| Accuracy | Customizable to within ±0.002mm |
| Drive Control | Handheld teach pendant |
| Motor System | Taiwan step motor + timing belt + Japan guide rail |
| Processing Speed | Supports ~1000 sets of data; max 32MB per file |
| Storage | Built-in + external 3MB storage |
| Supported File Format | CAD / CorelDRAW |
| Control Box Capacity | 256MB |
| Offline Card Capacity | 32MB |
| Power Supply | AC220V, 50–60Hz, 350W |
