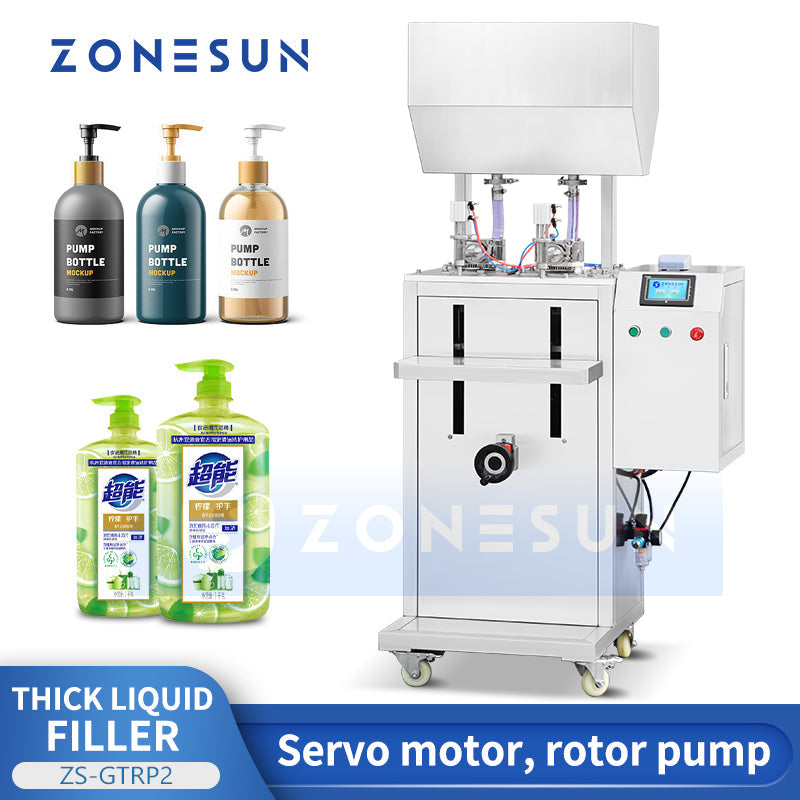

Zonesun ZS-GTRP2 Servo Drive Rotary Lobe Pump Double Heads Thick Liquid Filler
Zonesun ZS-GTRP2 Servo Drive Rotary Lobe Pump Double Heads Thick Liquid Filler
Обычная цена
$4,099.00 USD
Обычная цена
$0.00 USD
Цена со скидкой
$4,099.00 USD
Цена за единицу
за
Стоимость доставки рассчитывается при оформлении заказа.
Не удалось загрузить сведения о доступности самовывоза
DESCRIPTION

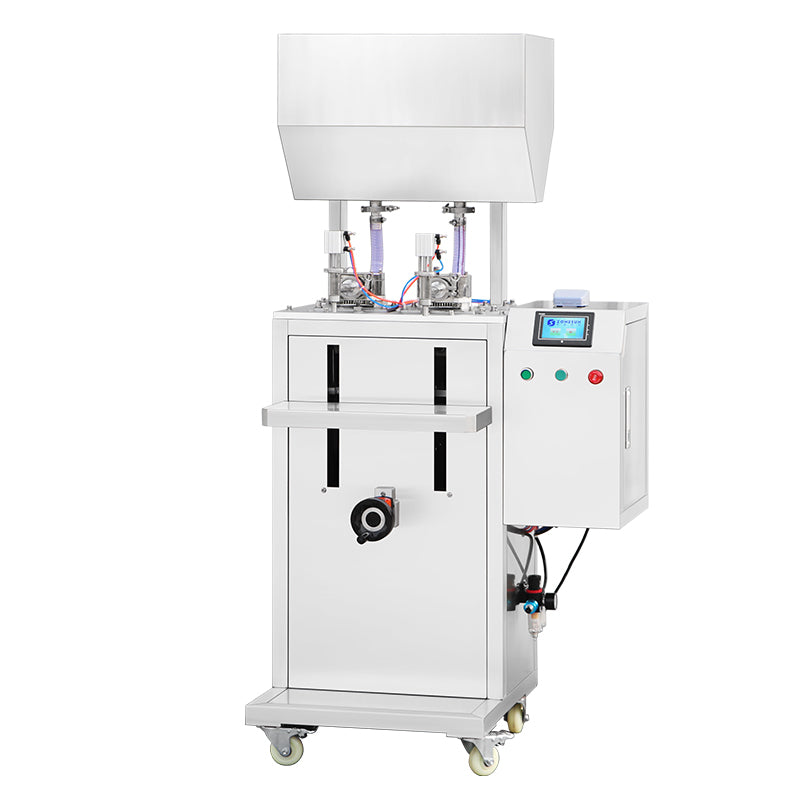

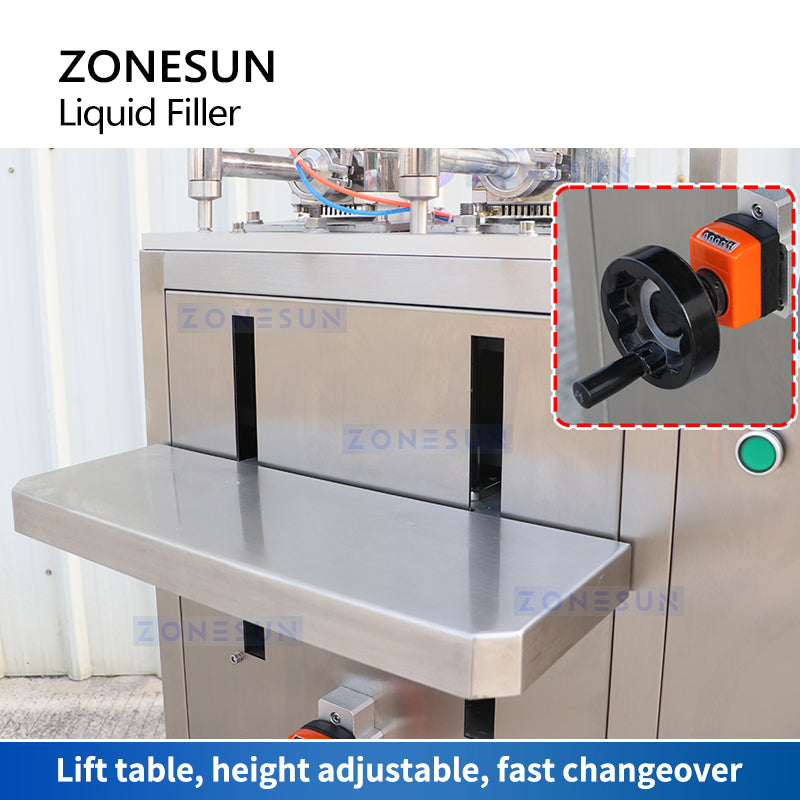

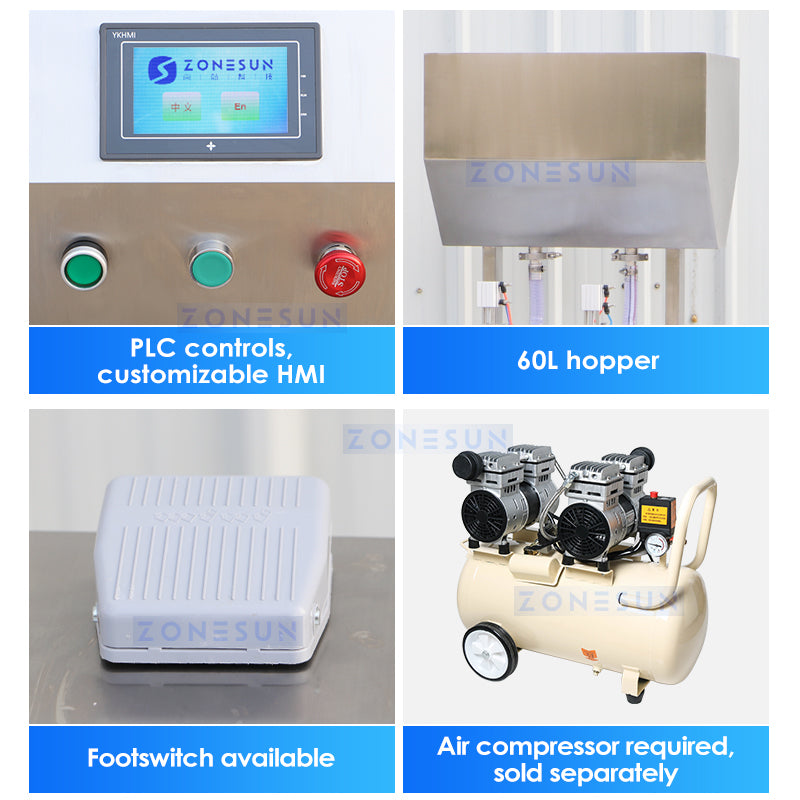

The ZS-GTRP2 is a high-precision liquid filling machine equipped with dual rotor pumps powered by servo motors for consistent and efficient performance. Its vertical design includes a lift table and a 60L hopper, making it ideal for medium to high-volume production. The air-powered filling nozzle ensures clean dispensing, while the PLC touch screen interface allows for easy operation and real-time calibration. Designed for accuracy, speed, and flexibility, this machine is perfect for filling oils, chemicals, and other low to medium viscosity liquids.
Parameter
Machine Model ZS-GTRP2
Voltage 110/220V, 50–60Hz, 2kW

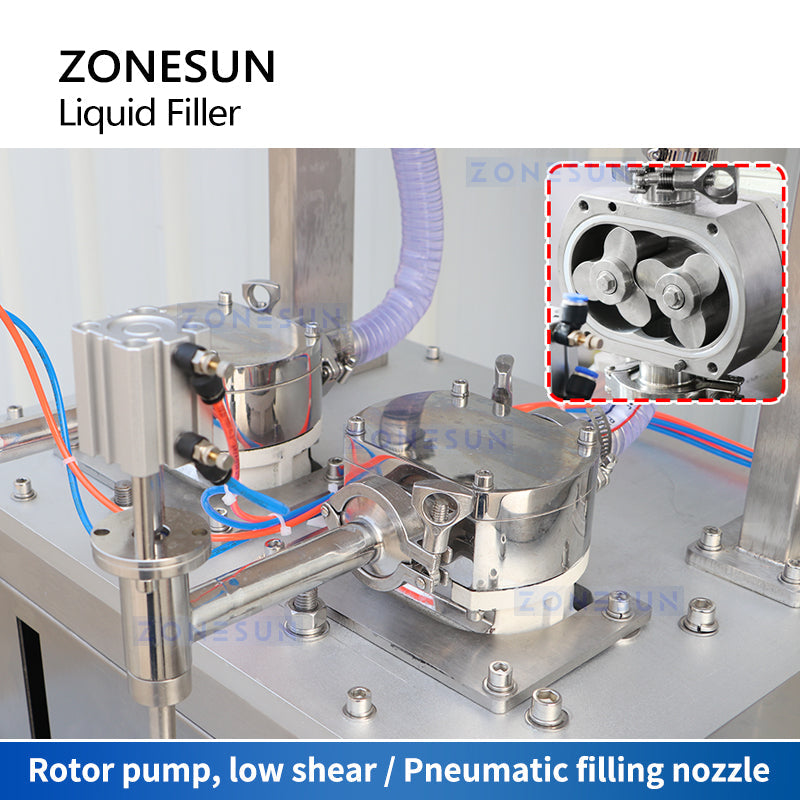

Filling Pump Rotor Pump ×2

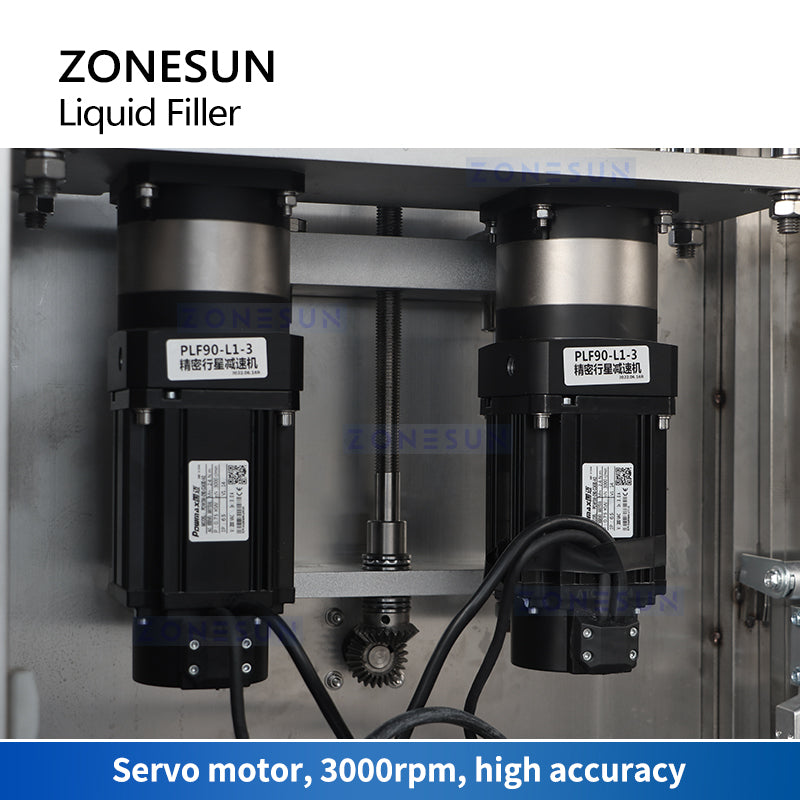

Drive Servo Motor ×2, 3000 rpm
Recommended Filling Volume 5–5000 ml
Filling Accuracy ≤ ±1%
Filling Nozzle Size Φ8 mm
Hopper Size 600 × 360 × 400 mm (L×W×H) / 60 L
Working Speed Approx. 30 bottles/min (1L)

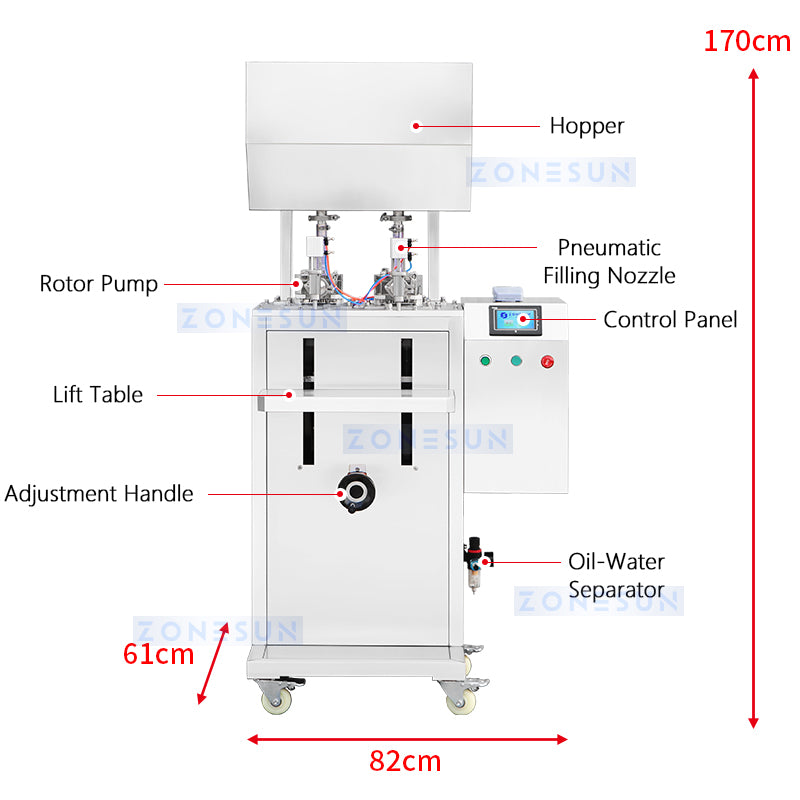

Machine Size 820 × 620 × 1700 mm (L×W×H)
Machine Weight Approx. 128 kg
