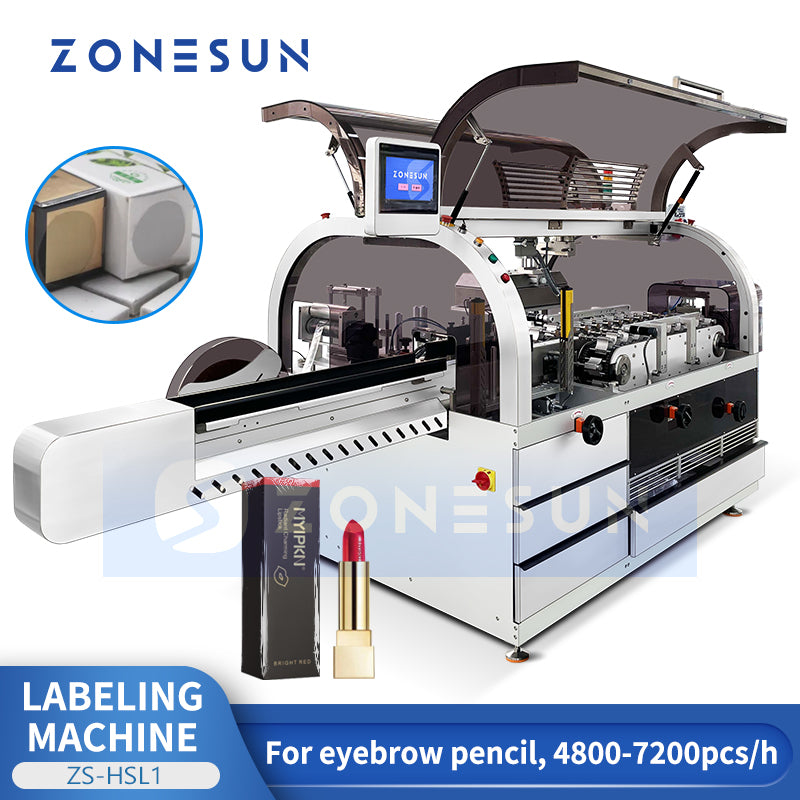

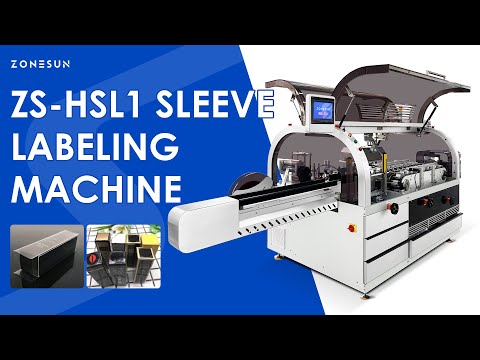

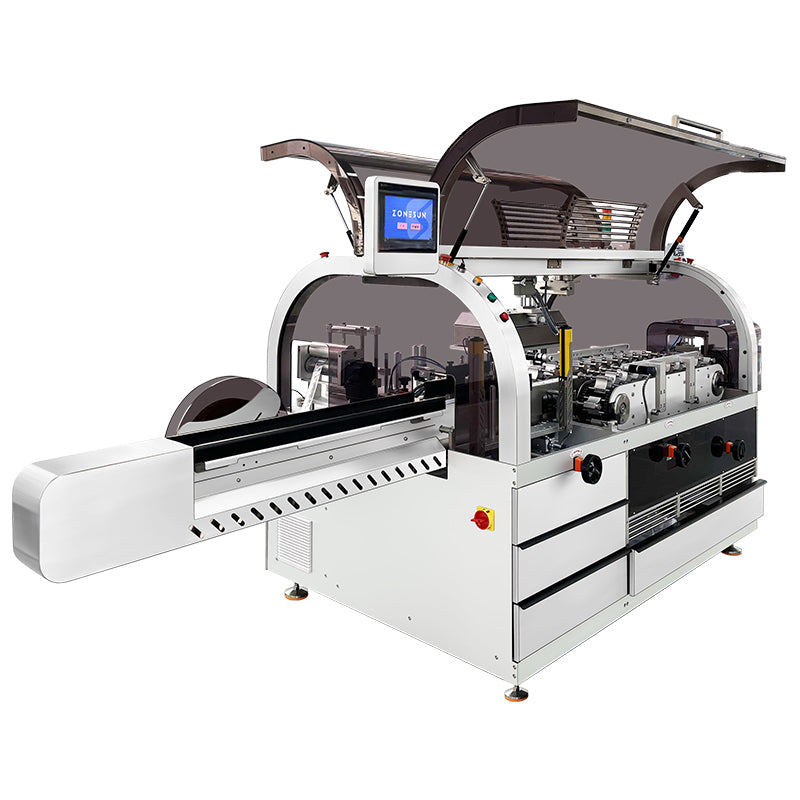

ZONESUN ZS-HSL1 Automatic Horizontal Shrink Sleeve Labeling Machine

Introducing the High-Speed Horizontal Shrink Sleeve Labeling Machine, the perfect solution for efficiently labeling your small cylindrical products like lipstick tubes. This machine features a horizontal product feeding system with a conveyor belt equipped with clamps, ensuring smooth and secure product transport. The labeling process is automated, with a roll of shrink sleeve labels being fed into the machine, where they are cut to size and precisely applied to each product. The labeled products then pass through a heat shrink oven, where the sleeves are perfectly shrunk to fit the product. This efficient process delivers high-quality labeling results at impressive speeds of 4800-7200 bottles per hour.

Parameter
Model ZS-HSL1
Production Speed 4800–7200 pieces/hour
Circular Product Size Diameter: 6–35 mm; Length: 50–180 mm
Square Product Size Cross-section: 6×6 mm to 35×35 mm
Overall Dimensions 3900 × 1400 × 1700 mm (L × W × H)

HORIZONTAL CLAMP CONVEYOR

The conveyor uses clamps to hold small cylindrical products securely while transporting them horizontally.

SLEEVE FILM FEEDING

The machine draws shrink-sleeve material from the roll and feeds it toward the cutting section.

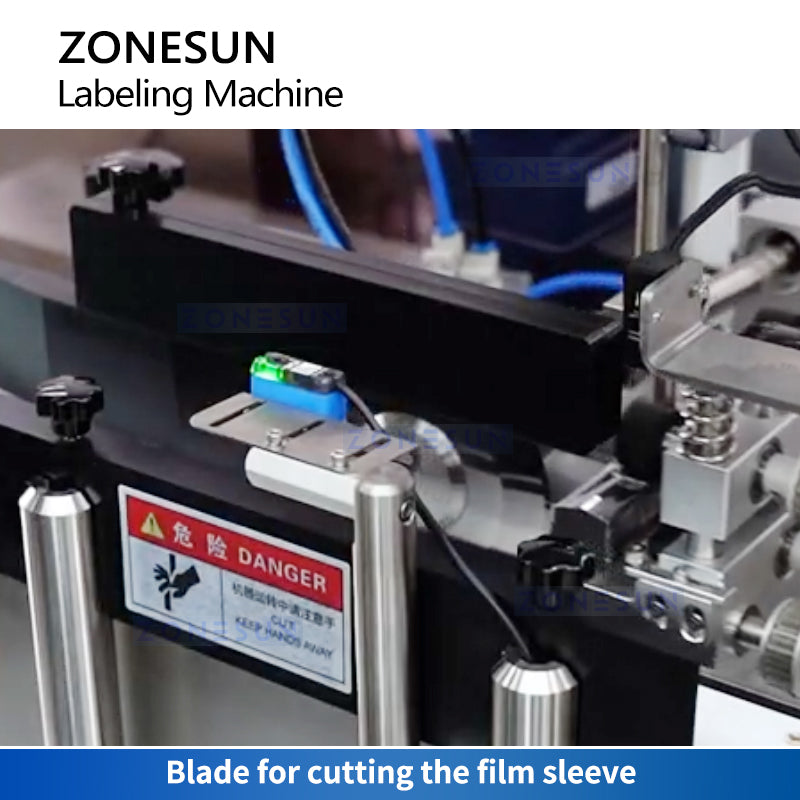

SLEEVE CUTTING AND APPLICATION

The sleeve is cut to the required length and placed over each positioned product.

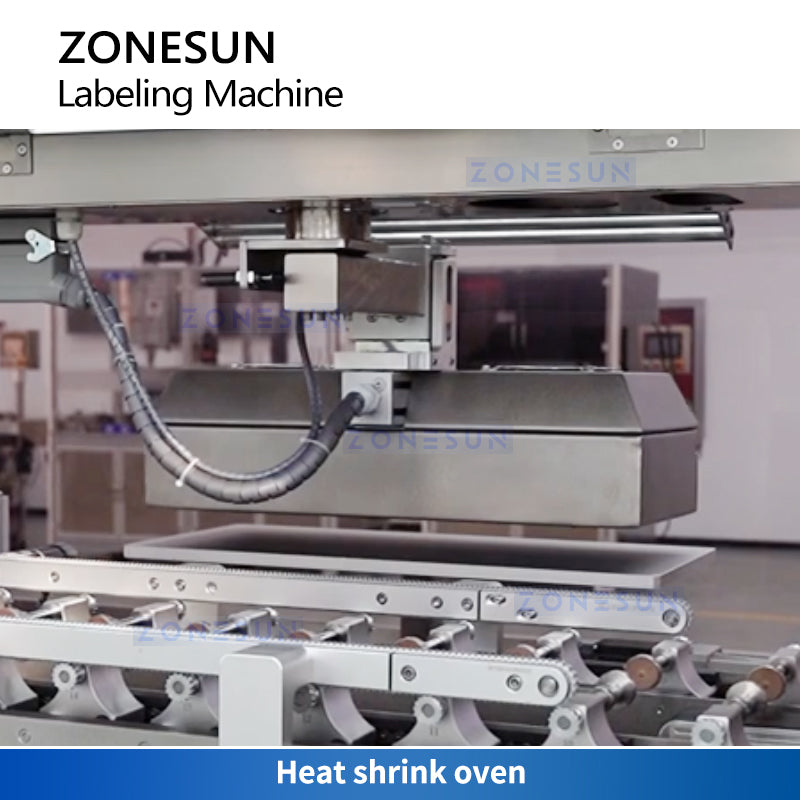

HEAT-SHRINK SECTION

After application, the sleeved product passes through the heating section so the film conforms to its surface.
