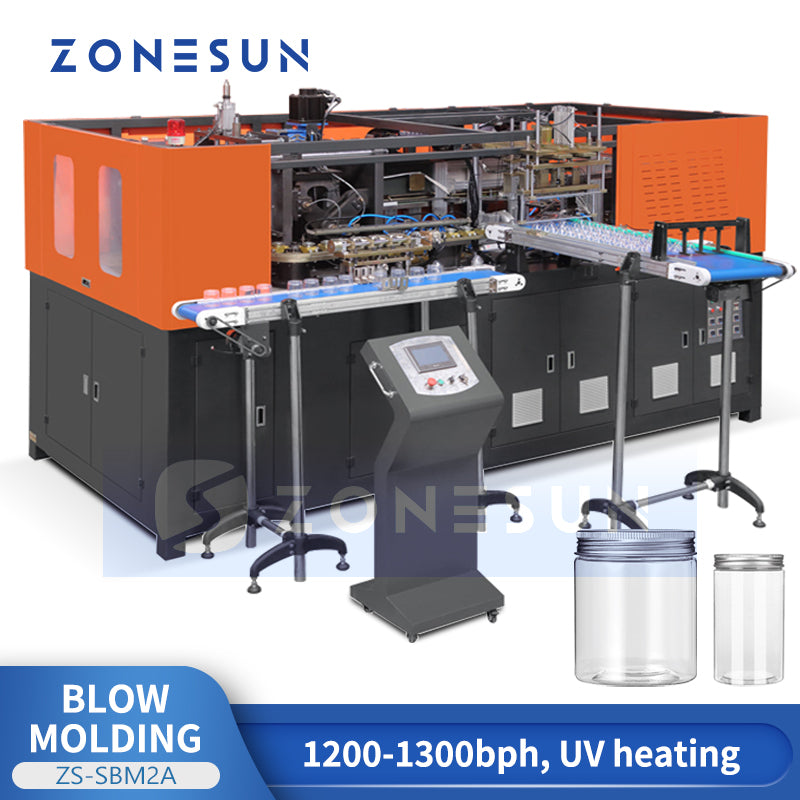

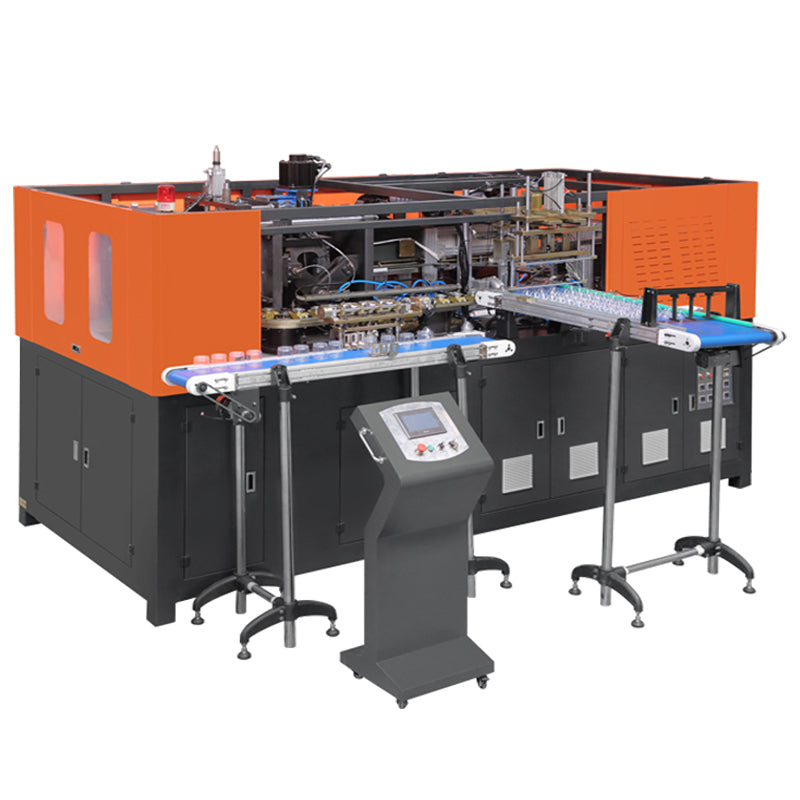

ZONESUN ZS-SBM2A 2-Cavity Automatic Bottle Blow Molding Machine with UV Heating

Description

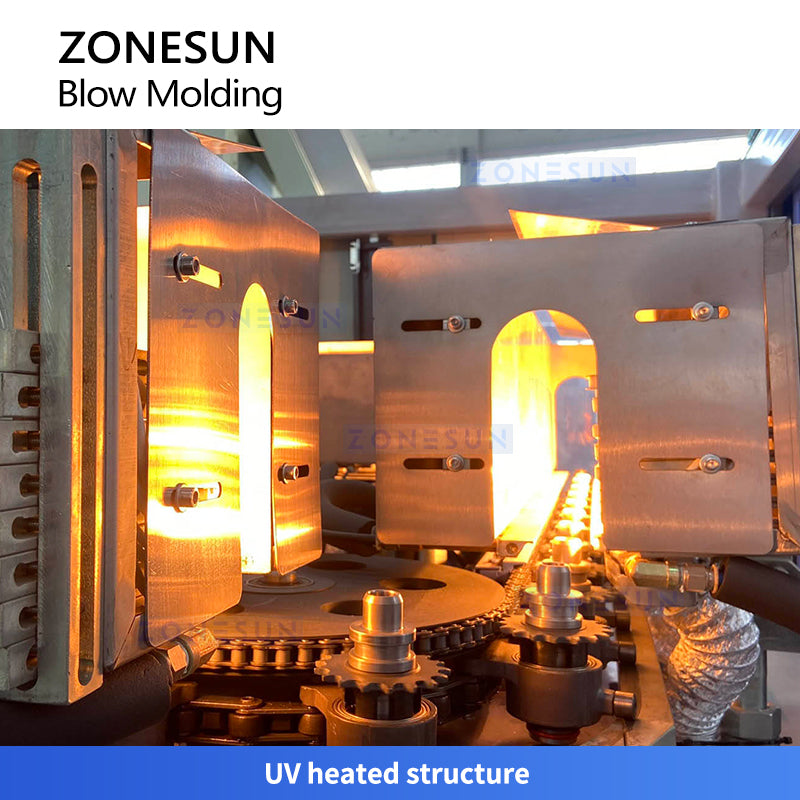

Fully automatic PET bottle blow molding machine equipped with advanced UV heating technology, designed for energy-efficient and fast preform heating. The 2-cavity stretch blow molding machine is capable of producing a wide range of PET plastic containers and bottles, including wide-mouth jars and custom-shaped bottles. The system supports customizable cavity shapes and quantities, making it ideal for flexible, high-speed production (up to 1200–1300 bottles per hour). Its compact design and automatic operation ensure maximum versatility, reliability, and efficiency in your bottle manufacturing line.

Parameter

• Model: ZS-SBM2A
• Cavity Count: 2
• Output Capacity: 1200–1300 bottles/hour
• Maximum Bottle Volume: 5 L
• Maximum Bottle Neck Diameter: 150 mm
• Maximum Bottle Diameter: 180 mm
• Maximum Bottle Height: 400 mm
• Heating Tube Quantity: 32 pcs
• Heating Tube Power: 1.5 kW
• Maximum Heating Power: 48 kW
• Total Installed Power: 51 kW
• Actual Power Consumption: 35.7 kW
• Working Pressure: 5–6 kg/cm²
• Operating Temperature: 10°C
• Machine Dimensions (L × W × H): 4700 × 1600 × 1900 mm
• Machine Weight: 3000 kg
