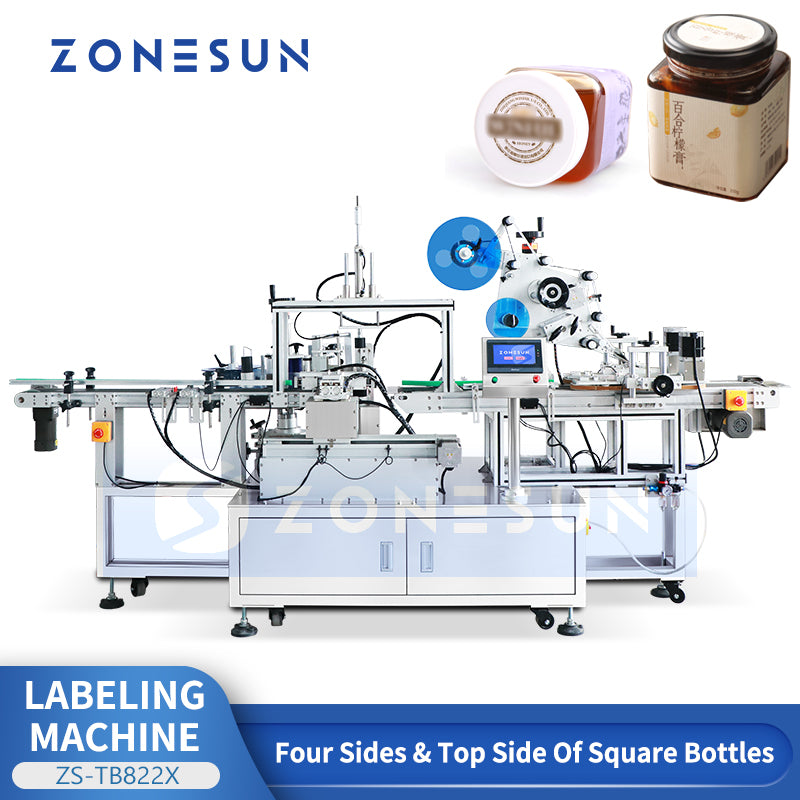

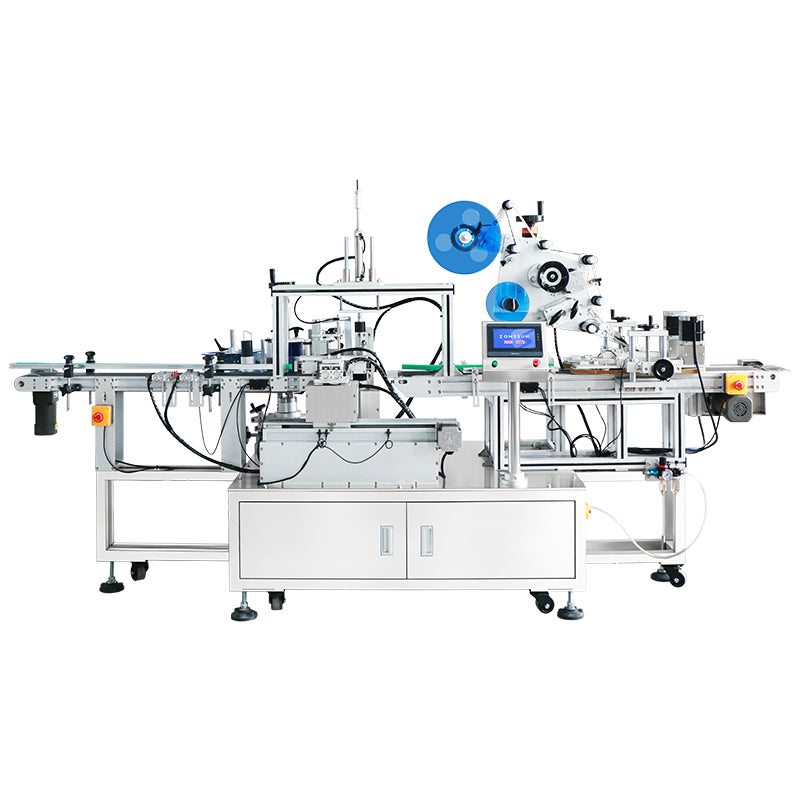

ZONESUN ZS-TB822X Automatic Top and Multi Sided Labeling Machine with Date Coding System for Bottles Boxes and Industrial Packaging

Description

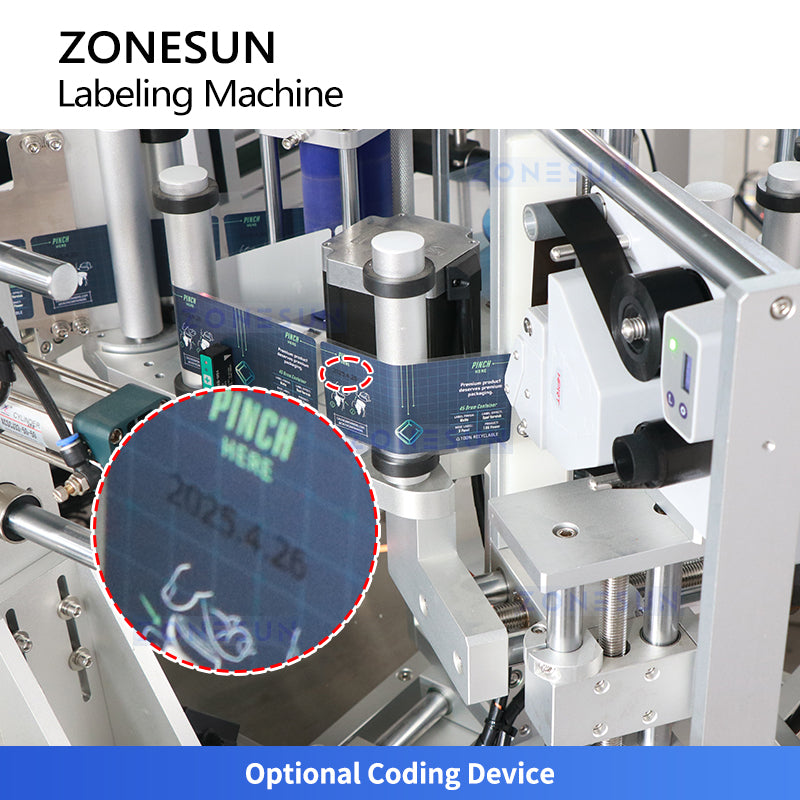

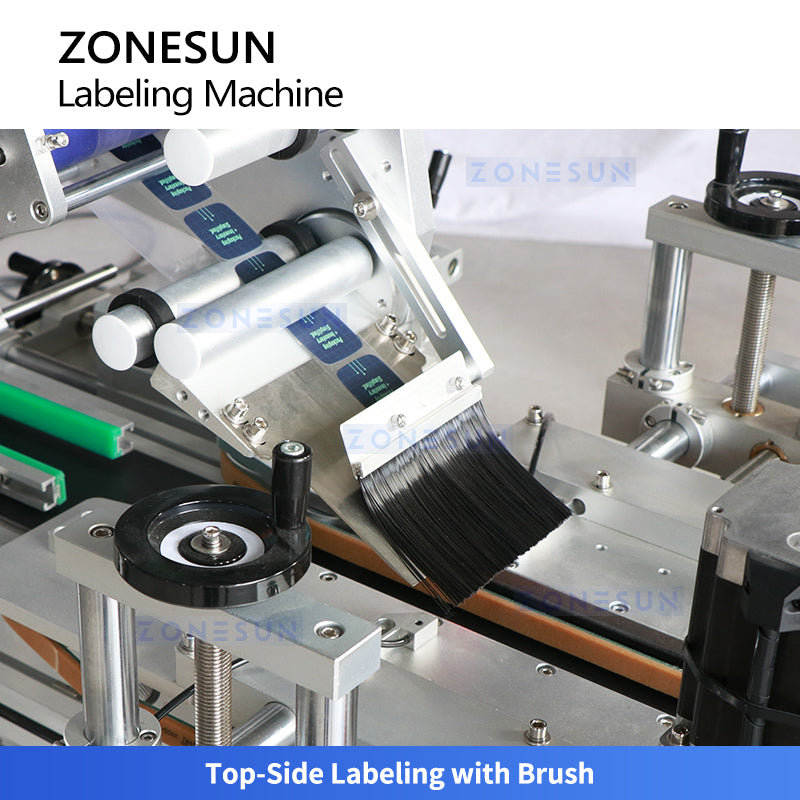

The machine is designed for precise top and multi-sided labeling. It supports single-sided, double-sided, three-sided and wrap-around labeling to meet a variety of packaging needs. Equipped with an integrated batch/date coding system, it can form an automated production line with the filling and capping machine. It is very suitable for the food, beverage, cosmetics and chemical industries, ensuring efficient, precise labeling and professional packaging results.

Parameter

• Machine Model: ZS-TB822X
• Voltage: 220V 50Hz 570W
• Applicable Label Size: Customized According to Product
• Applicable Product Size: Customized According to Product
• Max. Label Roll Outer Diameter: φ280 mm
• Label Roll Inner Diameter: φ76 mm
• Labeling Accuracy: ±1 mm
• Labeling Speed: 25–45 PCS/MIN. (Stepper Motor Edition), 30–60 PCS/MIN. (Servo Motor Edition)
• Conveyor Speed (m/min): 5–18 m/Min.
• Air Pressure (Mpa): 0.4–0.6 Mpa
• Machine Dimensions: Approx. 3100×1280×1680 mm
• Machine Weight: Approx. 200 KG
